.. and the keel?

[AllanKP69]

And by the way: You have also to differ netween the term
"frame" - which is the real frame of the real ship
and
"bulkhead" - which means these false wooden boards we use for building a POB-model

And add to this the station lines are not necessarily an indication of the frame location as mentioned earlier. For argument sake allow that the frames will land on station lines (as well as between if fully framed.) The easiest thing is to make the bulkheads or frames using the station lines on the body plan, then place them accordingly on the keel at the appropriate station.

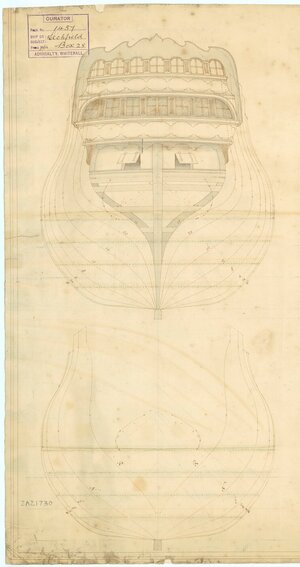

Start with the original body plan drawing

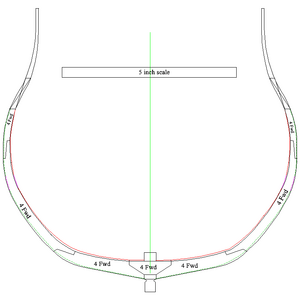

Typical frame drawing - Note that there were paired frames, 4 forward and 4 aft, to be placed at station 4 thus the ID on the drawing below

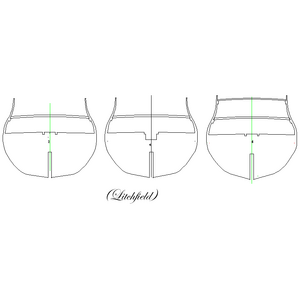

If POB --- Typical bulkhead drawing showing station number

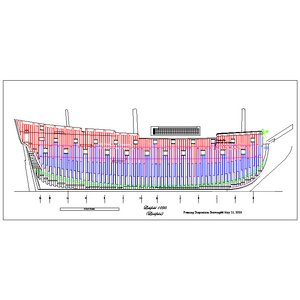

Framing disposition showing frame locations and station lines

Drawing for POB showing station lines would be much simpler and used for locating the bulkheads on the keel



[Uwek]

And add to this the station lines are not necessarily an indication of the frame location as mentioned earlier. For argument sake allow that the frames will land on station lines (as well as between if fully framed.) The easiest thing is to make the bulkheads or frames using the station lines on the body plan, then place them accordingly on the keel at the appropriate station.
Start with the original body plan drawing
View attachment 457086
Typical frame drawing - Note that there were paired frames, 4 forward and 4 aft, to be placed at station 4 thus the ID on the drawing below
View attachment 457087
If POB --- Typical bulkhead drawing showing station number
View attachment 457088
Framing disposition showing frame locations and station lines
View attachment 457090
Drawing for POB showing station lines would be much simpler and used for locating the bulkheads on the keel

Very good additional explanation ! Many Thanks Allan



[Encre de Chine]

The drawing of Charles w Morgan shows the correct placing.
In the subject body plan, all stations are equally spaced, but notice the numbers:

0, 1/2, 1. 1 1/2, 2, 3….. 8, 8 1/2, 9, 9 1/2, 10
The half stations should be placed halfway between the full numbered ones.
