i burned out my bandsaw motor after 20 years service R.I.P.

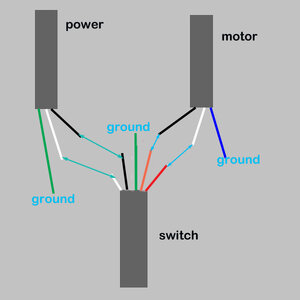

this is how i took out the old motor

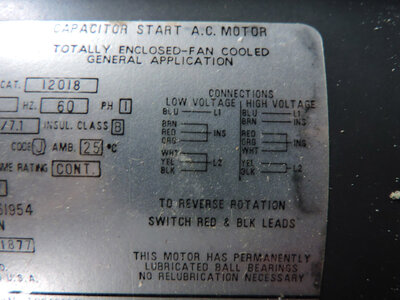

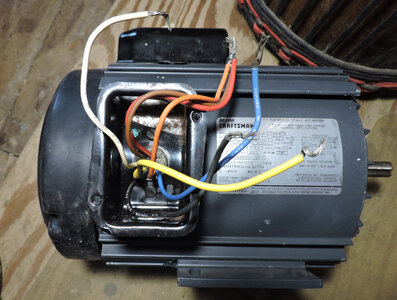

the old motor had just 3 wires black white and green the new motor is a snake pit of wires. The old motor ran on 110 low voltage line.
so do i just use the black and white and wire those in like the old motor and ignore the rest?
this is how i took out the old motor
the old motor had just 3 wires black white and green the new motor is a snake pit of wires. The old motor ran on 110 low voltage line.
so do i just use the black and white and wire those in like the old motor and ignore the rest?
