Book Review:
The Bomb Vessel GRANADO (Anatomy of the Ship)
by Peter Goodwin

IMG_41851.jpg IMG_41861.jpg


  • Hardcover: 128 pages
  • Publisher: Conway Maritime Press; New edition edition (21 April 2005)
  • Language: English
  • Product Dimensions: 26 x 1.9 x 24.1 cm

Synopsis:

Built as a floating siege engine able to withstand the recoil of shell-firing mortars, the ""Granado was one of twelve bomb vessels supplementing the depleted British fleet at the outbreak of the War of Jenkins' Ear in 1739. This book begins with a brief description of the development of bomb vessels, from the early ""galiote a ""bombe built in 1682 to the World War II monitors used for coastal bombardment, and continues with an in-depth description of the Granado, a summary of the ship's career, and more than 250 detailed illustrations. The book also provides insights into fictional hero Jack Aubrey's first command, the ""Sophie, a 14-gun brig-sloop with a quarterdeck and stern windows. First published in 1989, this reprint includes a new fold-out large-scale plan on the reverse of the book jacket.

IMG_41921.jpg IMG_41931.jpg

IMG_41941.jpg IMG_41951.jpg


About the Author

Peter Goodwin is widely acknowledged as one of the leading writers on the sailing warship. His published titles include the classic The Construction and Fitting of the Sailing Man of War (Conway, 1990), The Naval Cutter Alert (Conway 1992), Nelson's Ships (Conway 2002) and The Ships of Trafalgar (2005). Peter was Keeper and Curator of HMS Victory for some 20 years.'

IMG_41961.jpg IMG_41971.jpg


The model shown in the Anatomy book by Goodwin is in the collection of the NMM,
built by Lightley, Robert A. from South Africa in 1971/1972, means before Goodwin wrote this book,
so I speculate, that Goodwins interpretation is also based on this "modern" model.
Read more at http://collections.rmg.co.uk/collec...=maker;makerFacetLetter=L#gvDxejcgUBc8Xqei.99
http://collections.rmg.co.uk/collections/objects/66292.html

large (2).jpg large (3).jpg

large (4).jpg large (5).jpg
Scale: 1: 48. A full hull and partially planked model of the ‘Grenado’ (1742), a bomb ketch fitted with two 12-inch mortars. The model has been designed to lift apart to reveal the internal construction and layout of an 18th-century bomb vessel. The hull is almost entirely built from boxwood but the mortars have been turned in ebony and painted to represent bronze. It is complete with a wealth of removable parts allowing a visual deconstruction. The model illustrates how the mortars were operated and where the shells were stowed down below, and it is also has a set of large sweeps or oars as a backup should the wind drop and minor re-positioning be required. Such is the high standard of modelmaking, it was awarded the gold medal in the National Maritime Museum’s First International Ship Model Competition held in Greenwich in 1975. Vessels of this type were one of many of the ketch-rigged vessels built in the merchant yards. The ketch rig enabled the positioning of two sea mortars amidships and provided a stable platform from which to operate. The ‘bombs’, as they were known, were anchored off shore and employed in bombarding enemy coastal fortifications. The ‘Grenado’ measured 91 feet along the maindeck by 26 feet in the beam and was 279 tons burden. It had an eventful career and was present at the attack on Martinique in 1759, the capture of Guadeloupe in 1759, the capture of Martinique and the Havana expedition in 1762. It was eventually sold the following year.
Read more at http://collections.rmg.co.uk/collections/objects/66292.html#HvQaxpEHEBhVdtdx.99


Contents:

Foreword / Introduction
The Development of the Bomb Vessel
History
Construction
Decoration
Internal Arrangement
Steering gear
Ground tackle
Pumps
Armament
Firing the Mortars
Mast and Yards
Rigging
Boats
Crew
Appendices / Sources
THE PHOTOGRAPHS (page 29 to 40)
THE DRAWINGS (page 41 to 128)
  • Lines and general arrangement
  • Hull Construction
  • Internal Hull
  • External Hull
  • Fittings
  • Armament
  • Mast and Yards
  • Rigging
IMG_41991.jpg IMG_42001.jpg

IMG_42011.jpg IMG_42021.jpg

Review:

A very interesting subject about a type of ship, the bomb vessels, which is often unknown.
The book with the descriptions and especially the detailed draughts is giving a modeler best information to build such a model in scratch or even to pimp the kit model from Jotika / Caldercraft.
As often with this series, this book is highly recommended for the interested modeler

(More Look Inside photos you kind find in the following post)

The wooden kit Model in scale 1:64 of the HMS Granado from Jotika:

see: http://www.jotika-ltd.com/Pages/1024768/Nelson_13.htm


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
17,585
Points
938

Location
Vienna, Austria
Second part of Book Review:
The Bomb Vessel GRANADO (Anatomy of the Ship)
by Peter Goodwin

IMG_42031.jpg IMG_42041.jpg

IMG_42051.jpg IMG_42061.jpg

IMG_42071.jpg IMG_42101.jpg

IMG_42111.jpg IMG_42121.jpg

IMG_42131.jpg IMG_42141.jpg

IMG_42151.jpg IMG_42171.jpg



There are some contemporary drawings available in the NMM:

From the HMS Granado, launched 1742 (sometimes in NMM also as Grenado mentioned)
large (1).jpg large.jpg

and from the HMS Serpent, same construction and also launched in 1742
Serpent 1742.jpg


ADC

Joined
Nov 29, 2017
Messages
365
Points
228

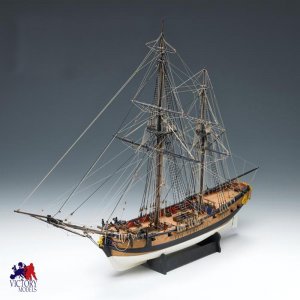

Amati Victory models also have the Granado in 1/64 scale. Both this and the Jotika version are well regarded. Thank you for showing the book.


Joined
Jan 24, 2015
Messages
2,218
Points
538

Location
Pewaukee, Wisconsin

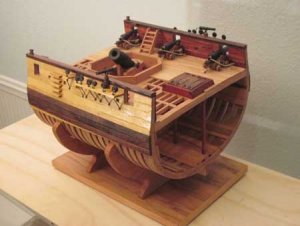

Jeff Staudt drew a great set of plans for a Granado cross section at the mortar pit. The original plans were available in 1:24 or 1:48 scale, but are now only available in the 1:48 size. I got the plans just before they eliminated the 1:24 scale. Another project for my bucket list! The photo is from the Model Ship Builder's website. Here is a link: http://www.modelshipbuilder.com/page.php?135Bomb%20Vessel%202.jpg


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
17,585
Points
938

Location
Vienna, Austria
Very interesting project......These bomb vessels are realy something special and they have chosen an interesting ship......Many thanks for the hint and link.
I agree, that the 1:24 version would be alse my choice...
