Planset Review:
Building a Navy Board Model of HMS Sussex 1693
by Gilbert McArdle

IMG_37841.jpg IMG_38341.jpg

IMG_37831.jpg IMG_37851.jpg

  • Hardcover: 170 pages
  • Publisher: Sea Watch Books LLC (2010)
  • Language: English
The book is 9”x12” (22.9cm x 30.5cm) and has 186 pages of text, drawings and photos in b/w and color. Seventeen sheets of plans are pocketed in the back.
Available at Sea Watch Books for the price of 75 US$

https://www.seawatchbooks.com/ItemDisplay.php?sku=110001


Synopsis:

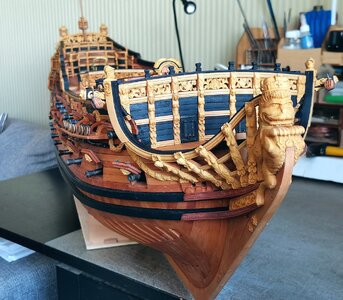

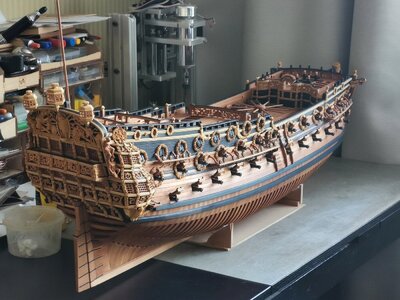

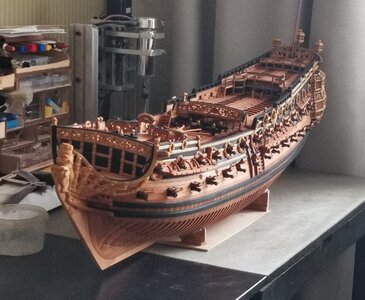

The latest book From SeaWatchBooks is BUILDING A NAVY BOARD MODEL OF HMS SUSSEX 1693. The text, photos, drawings and plans set are by Dr. Gilbert (Gib) McArdle. Gib, who has specialized in Navy Board models, has taken the lines from the magnificent contemporary model of HMS Sussex in the US Naval Academy Museum and created a world class model of his own.

Gib shares his view of the history of the times and then takes you through the step by step building of the model. He has also shared his plans which are reproduced in seventeen sheets housed in a specially designed pocket in the back of the book. As an extra bonus, frame plans in ⅛ scale are provided along with the ¼ scale drawings.

IMG_37901.jpg IMG_37911.jpg

About the Author

I have been interested in ship modeling since my early youth, but was unable to pursue this interest with time and vigor until my retirement from the practice of general surgery in the 1990´s. As I have a particular interest in Renaisance and baroque art, I have focused on building navy board models of 17th century English ships which were some of the most highly decorated vessels of any era and were literally floating sculpture and art galleries. I have therefore completed navy board models of the Henrietta, which was one of Charles II´s yacht of 1679, of the Grafton of 1679, of the Prince of 1670, and finally of the Sussex of 1693. Descriptions of the methods of construction of three of these models were described in the publications of Model Shipwright, Ships in Scale and the Nautical Research Journal, respectively. I do hope that this book detailing the construction methods employed in building a navy board model of the Sussex will prove useful to those ship modelers interested in construction navy board ship models.

IMG_37921.jpg IMG_37941.jpg

Contents:

Chapter 1 (page 1 to 12)
Introduction – Draught Preparation – Vital Statistics of the Sussex – Tools and Materials – Hand Tools – Power Tools – Wood – Glue

Chapter 2 (page 13 to 44)
Hull Construction – Frame Construction – Midships Frames – Fore Frame Construction – Aft Frames – Fairing the Hull – Fairing the Inboard Hull – Keel Construction – Keelson, Limber Strakes and Mast Steps – Sternpost and Transom Timbers – Gun Ports – Wales – Planking

Chapter 3 – Gundeck (page 45 to 60)

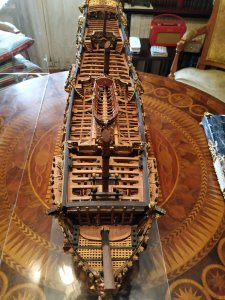

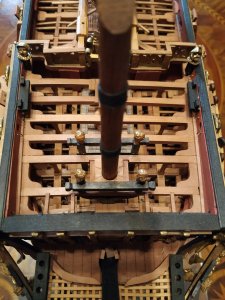

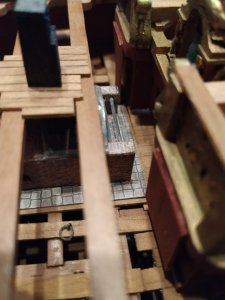

Clamps – Deck Beams – Carlings and Ledges – Riding Bitts – Deck Planking – Mast Platforms and Coats – Hatches – Captstans – Ceiling Planking of the Gun Deck – Gun Ports – Gun Port Lids – Completed Gun Deck

Chapter 4 – Construction of the Main Deck (page 61 to 70)
Clamps – Pillars – Rowle Condtruction – Ladder Construction Detail – Stanchion Railing for the Main Deck / Gun deck ladder – Additional Inboard and Outboard Hull Planking

Chapter 5 (page 71 to 78)
Forecastle Deck Construction – Construction of Beakhead Bulkhead – Forecastle Bulkhead – Carvings

Chapter 6 (page 79 to 84)

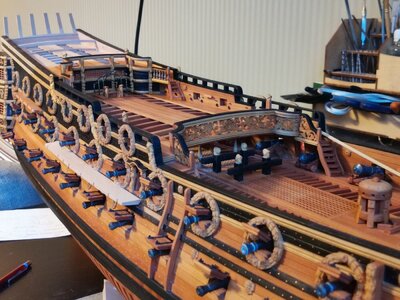

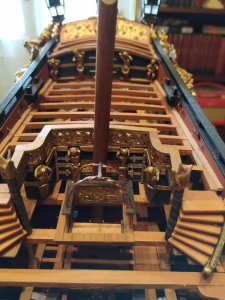

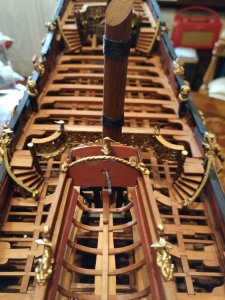

Quarterdeck Construction – Quarterdeck Staircase – Deck Beams and Pillars – Quarterdeck Bulkhead

Chapter 7 (page 85 to 88)
Construction of Poop deck and Poop Royal deck (Topgallant Poop deck) – Poop deck – Topgallant Poop deck

Chapter 8 (page 89 to 102)

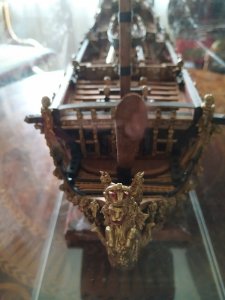

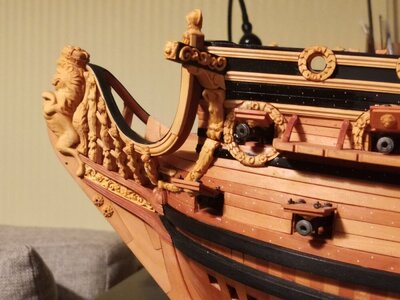

Construction of the Bow – Cathead Construction – Completion of the Beakhead – Figurehead – Cheekrail Construction – Headrail Construction – Cathead Support Carving – Transverse Bow Timbers and Support Carvings – Belfry and Bell Construction

Chapter 9 (page 103 to 122)

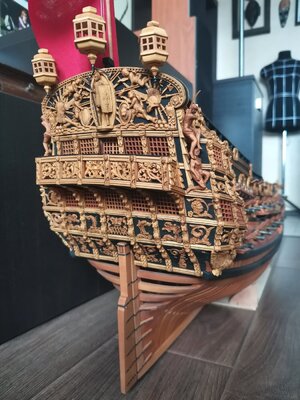

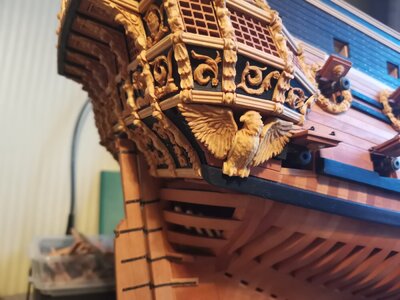

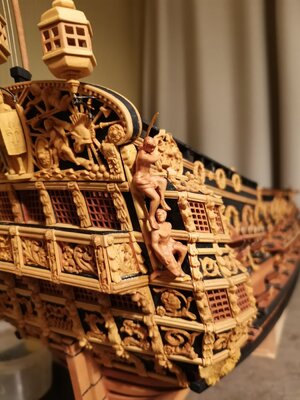

Quarter Galleries and Stern – Rudder Construction – Lower Counter Construction – Upper Counter Construction – Main Deck Windows and Quarterdeck Transom – Quarter Gallery Base Construction – Construction of Upper Quarter Galleries – Quarterdeck Balcony Construction – Top Stern Carving – Stern Lantern Construction

Chapter 10 – Final Fittings and Sundries (page 123 to 132)

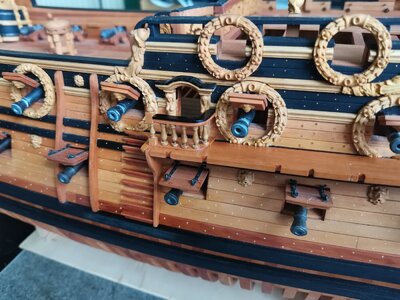

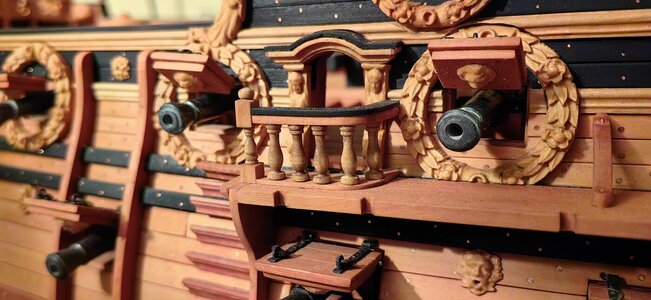

Wreaths – Sheer Plank and Railing Construction – Stairway and Skeed Construction – Channel, Channel Supports and Deadeye Fabrication – Captain´s Entrance – Installation of Gun port lids – Bitts, Horizontal Thumb Kevels, Vertical Kevels and Wooden Cleats – Entrance to Quarterdeck Stairwell – Chesstrees – Cathead Block

Chapter 11 (page 133 to 142)

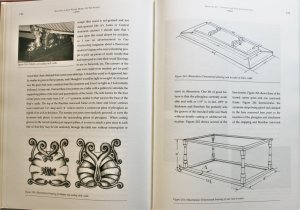

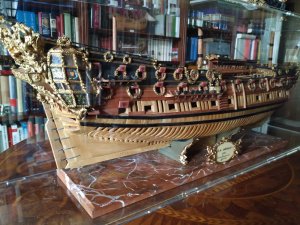

Cradle and Case Construction

Appendix (page 143 to 162)

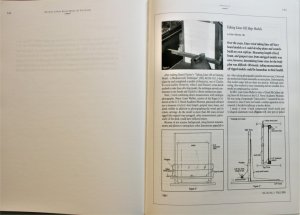

I Reproduction of NRJ article “Taking Lines Off Ship Models
II Photos of uses of laser jig to take lines off model of Sussex

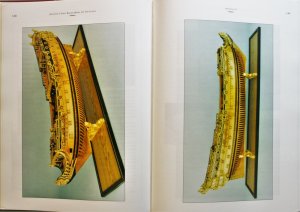

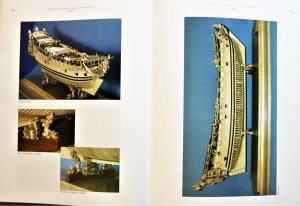

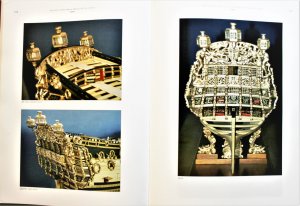

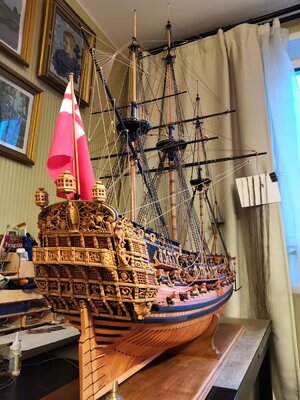

III Photos of completed model of Sussex
IV Plans of Sussex in folder back of book

Index, List of figures and Illustrations

IMG_37951.jpg IMG_37961.jpg

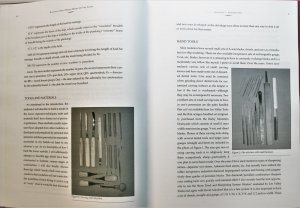

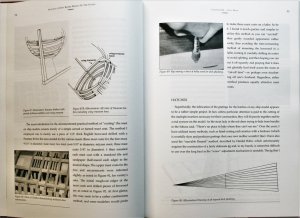

Review and Comment

This publication contains mainly two parts, as Appendix the planset for the ship content Seventeen sheets of plans pocketed in the back and the Book by itself with appr. 170 pages.
The Book is showing the reader in detail the construction of the Navy board model, the author is sharing a huge number of modeling hints and descriptions of his modeling techniques. Here he following the order of the construction of such a model, in such a way, that the modeler can get a great number of info during his work. The quality of the model by the author is outstanding, but also the construction is described in a very understandable and clear organized way. It is remembering me a little bit David Antscherls way in his Swan class book.
The second part are the drawings by itself. McArdle has taken the lines from a magnificant contemporary model of the HMS Sussex in the US Naval Academy Museum and put these data on paper.
I did not check the drawings in detail, so I am only able to describe the overall content and the details given, which is looking absolute complete and absolutely sufficiant to build an outstanding model. In addition the modeler has all plans for every single frame in smaller scale, so no extra design of the frames are necessary. The reader is getting a lot for the money.

Due to the fact, that the plans were taken from a contemporary model, this planset represents are very rare possibility to be basis for a scratch build 17th century Navy Board model.

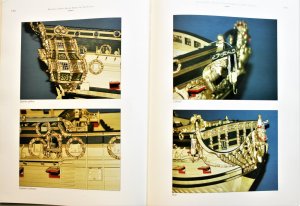

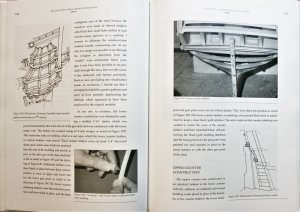

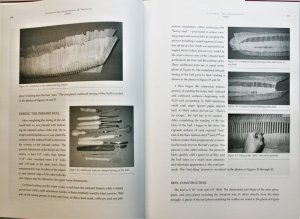

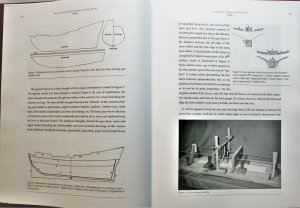

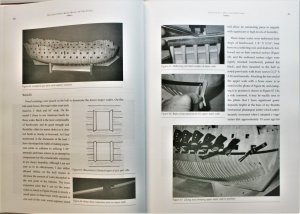

IMG_37971.jpg IMG_37981.jpg

IMG_37991.jpg IMG_38001.jpg

IMG_38011.jpg IMG_38021.jpg

IMG_38031.jpg IMG_38041.jpg

IMG_38051.jpg IMG_38061.jpg

IMG_38081.jpg IMG_38091.jpg

IMG_38101.jpg IMG_38111.jpg

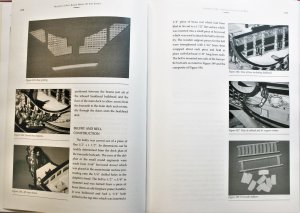

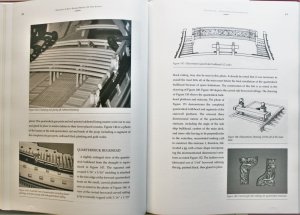

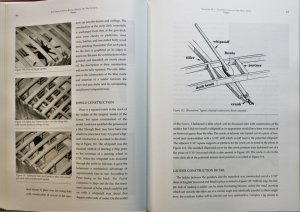

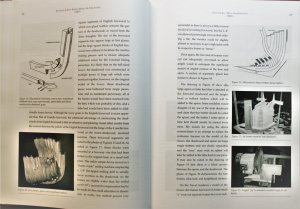

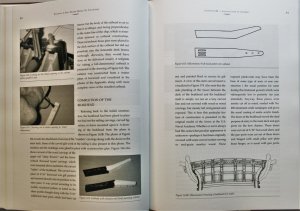

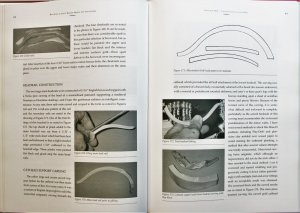

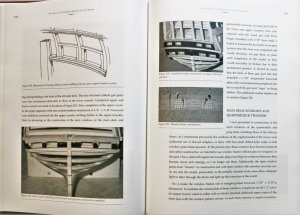

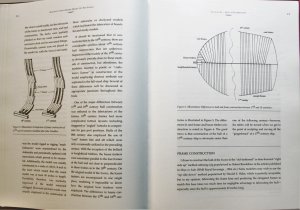

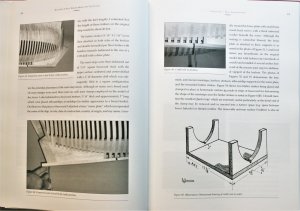

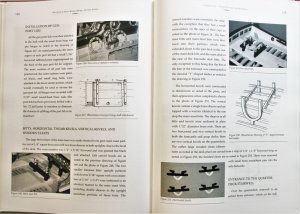

Some more Look Inside photos and the drawings you can find in the following post


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
17,585
Points
938

Location
Vienna, Austria
Part II of the Planset Review:
Building a Navy Board Model of HMS Sussex 1693
by Gilbert McArdle

IMG_38121.jpg IMG_38131.jpg

IMG_38141.jpg IMG_38151.jpg

IMG_38161.jpg IMG_38171.jpg

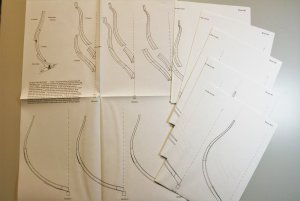

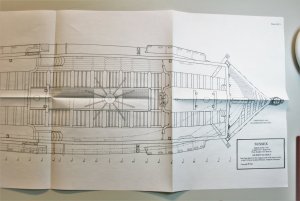

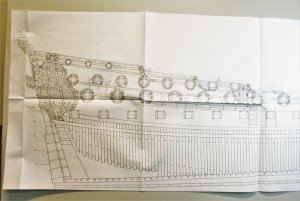

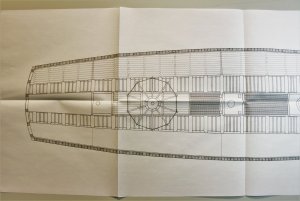

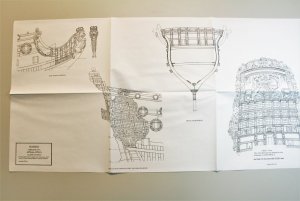

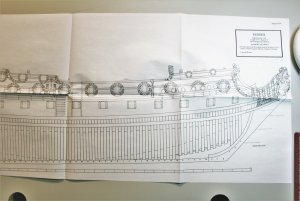

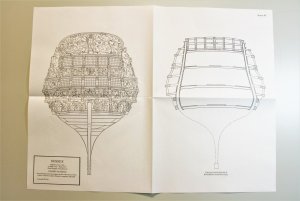

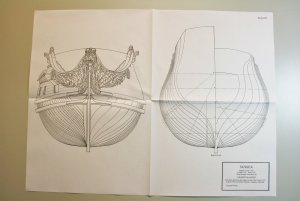

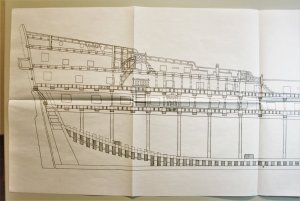

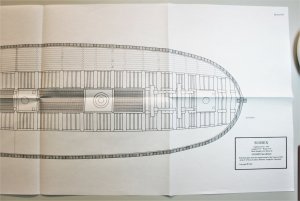

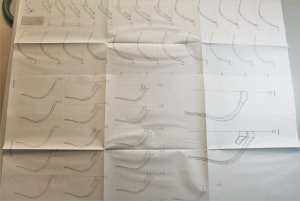

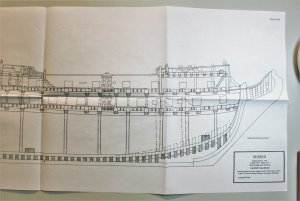

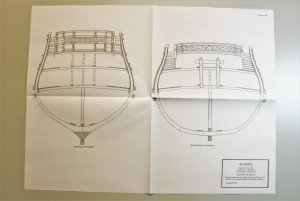

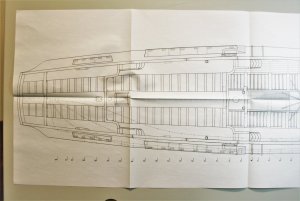

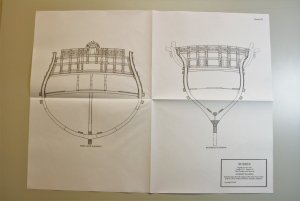

The Set of Drawings

IMG_38181.jpg IMG_38191.jpg

IMG_38201.jpg IMG_38211.jpg

IMG_38221.jpg IMG_38231.jpg







Attachments

  • Building_a_Navy_Board_Model_of_HMS_Sussex_1693__Gilbert_McArdle__WSMC_E_2011.pdf
    5.6 MB · Views: 120
  • Sussex Review.pdf
    727.7 KB · Views: 84
  • SUSSEX_NRJ_article.pdf
    2.3 MB · Views: 108
Last edited:

Jimsky

Administrator
Staff member
Administrator
Joined
Nov 3, 2018
Messages
7,455
Points
738

Location
Brooklyn, New York USA

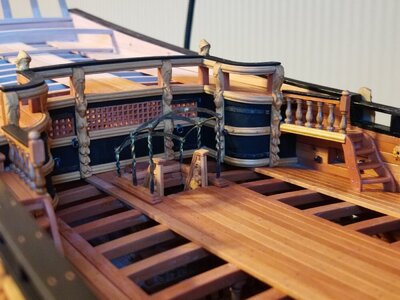

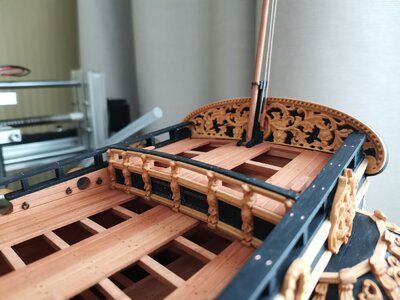

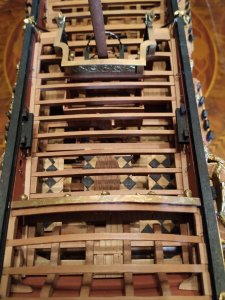

Construction of Poop deck and Poop Royal deck (Topgallant Poop deck) – Poop deck – Topgallant Poop deck
In naval architecture, a 'poop' deck is a deck that forms the roof of a cabin built in the rear, or "aft", part of the superstructure of a ship. The name originates from the French word for stern, la poupe, from Latin puppis. It is really funny how our program translate a 'poop' :)
