Can you identify these?

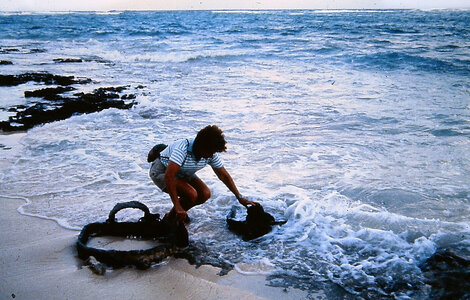

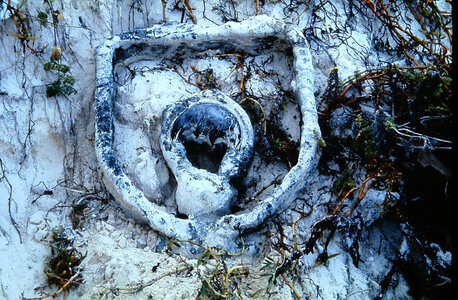

Allen, they are both about the same size. One is in the water, and the other is up some on the beach. One has the smaller hoop flipped inside the larger one and the one in the water has the smaller hoop flipped up. They are both from a shipwreck off shore.

CZM said:
Allen, they are both about the same size. One is in the water, and the other is up some on the beach. One has the smaller hoop flipped inside the larger one and the one in the water has the smaller hoop flipped up. They are both from a shipwreck off shore.
Click to expand...
Any reports of what ships had sunk over the years in that area of the ocean? Might help give a clue to size and type ship and rigging used.

CZ Have you contacted and sent photos to the curators at Preble Hall in Annapolis or RMG in Greenwich? If it is part of a ship, they may very well have answers for you. They have always been very helpful to me in the past although RMG sometimes takes a little while to respond as they are sometimes understaffed.
Allan

Some iron band around the mast top, with a fixed deadeye, like a mast cap...
but definitely it is looking like a stirrup of a saddle - do you have big horses around there?

Last edited:
Kurt Konrath said:
Any reports of what ships had sunk over the years in that area of the ocean? Might help give a clue to size and type ship and rigging used.
Click to expand...
Yes, many ships have sunk on that coast of Cozumel, from the early 1600s onward. I am working on a book about the shipwrecks of Cozumel right now. So far, I have over fifty reports of wrecks that are documented in some form or another, and around forty shipwreck sites that have been found. Only one has been identified so far. There are three wreck sites close to where the two pieces in the photographs were found. One has 18 cannons, four anchors and coins dated 1759. Another site has several cannons and an anchor with a coin dated 1742. Another has barshot, cannon balls, crude lead ingots, and a couple of cannons. If these two pieces were attached to a mast or spar, they could have floated along the coast for miles before landing on the beach, so they might not belong to any of those three wrecks.

AllanKP69 said:
CZ Have you contacted and sent photos to the curators at Preble Hall in Annapolis or RMG in Greenwich? If it is part of a ship, they may very well have answers for you. They have always been very helpful to me in the past although RMG sometimes takes a little while to respond as they are sometimes understaffed.
Allan
Click to expand...
Good suggestion. I will do that.

CZM said:
That looks like a very good candidate, but since there were two found very close to each other, it seems weird to have two similar pieces of two masts so close together (assuming there was only one of these per mast).
Click to expand...

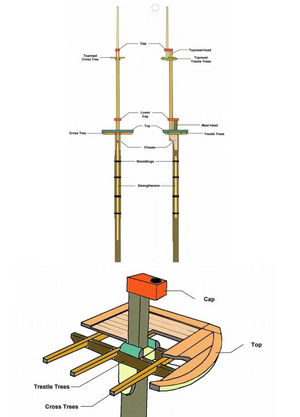

Usually these masts had two caps per mast - so what was found is maybe from one mast

Screenshot 2024-07-18 152800.png

www.modelerscentral.com

Guide To Masts, Yards & Booms On Model Ships

Learn How To Build Model Ships With The Modelers Central Blog. Read Through 100's of Articles From Master Modelers on How To Build Model Boats.
www.modelerscentral.com www.modelerscentral.com

And one is slightly smaller than the other! I think you hit the nail on the head, Uwe. One mast, two mast caps, an upper and a lower. Thanks!

Hi Velachero

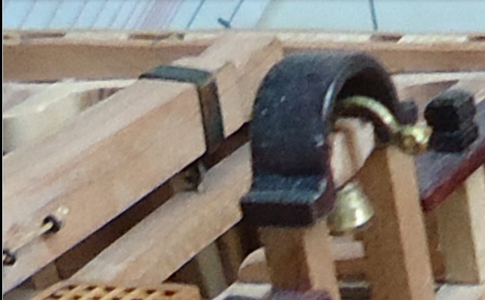

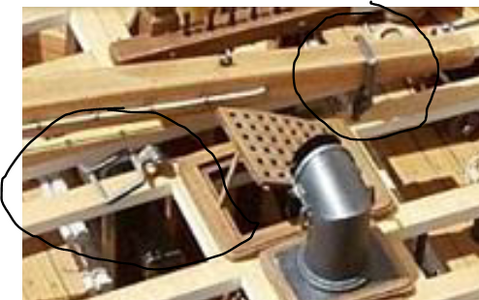

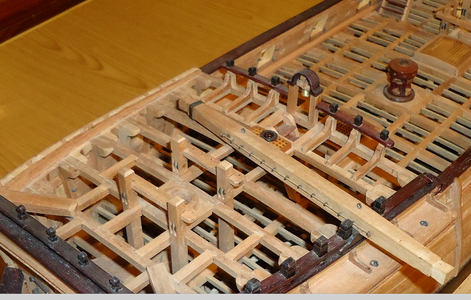

On an English ship these would be called 'span-shackles', and were fixed with long iron bolts that went down through the forecastle, and were fastened through the upper deck beam below. I have never seen them with a curved part, though, only straight-sided.
