Charles W. Morgan - 1:43 scratch

[Morghy]

Given the failure of my two previous constructions, I decided to abandon the path of imagination to undertake that of planning.
The choice fell on the Charles W, Morgan which from what I have read was the last sailing whaler.

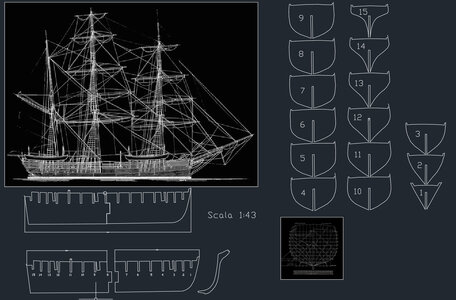

In another section I described the steps taken to transform a photo into a drawing. now I have transferred everything to CAD and transformed everything according to the 6 mm thickness of the plywood.
The scale was 1:43.
The choice of the ship is due to the fact that ... perhaps .. I understood how to make the boats that tradition called "Dory of the large banks".



[Morghy]

I found a drawing of the "Dory" and therefore I will transform it with CAD into something realizable.
In this regard, I ask you to post any drawings by Charles W. Morgan here. I find lots of photos but no drawings in acceptable dimensions. Any help is well appreciated



[Morghy]

I tried to wrap the "Dory" the right way, but I have to admit that it's a job beyond my capabilities.

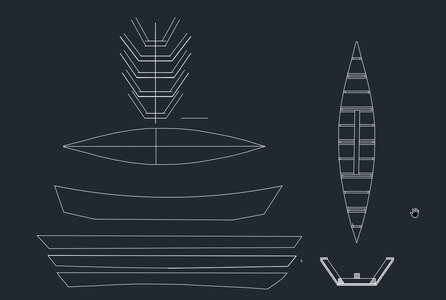

I therefore designed a simplified variant which is within my reach. Here is the drawing..
However, I still have the idea in my head of building the hull of the Dory in a vacuum... but for the moment it remains in the think tank.



[Morghy]

To be fair, I must say that I was inspired by this video...



[Morghy]

step 1



[Morghy]

prototype .... pre-series ... series

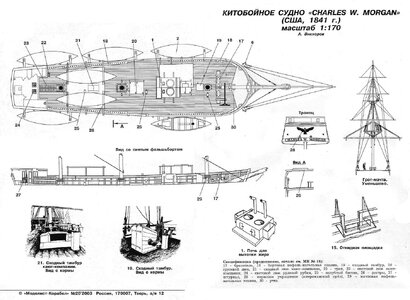

[Dave boatswain]

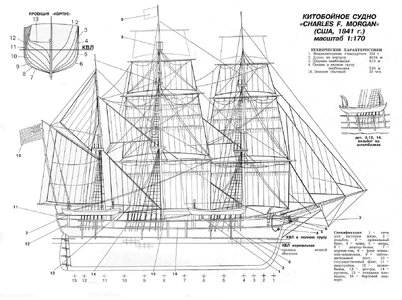

In this regard, I ask you to post any drawings by Charles W. Morgan here. I find lots of photos but no drawings in acceptable dimensions. Any help is well appreciated



[Morghy]

Thanks Dave,
Now I finally know what the whaler's deck looked like... without having to resort to any kits.
Thanks again



[Morghy]

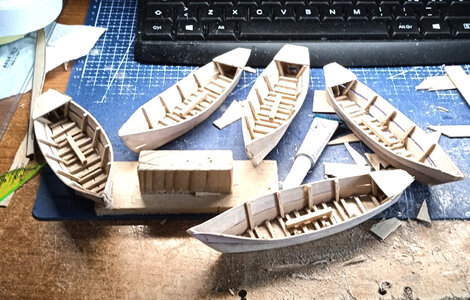

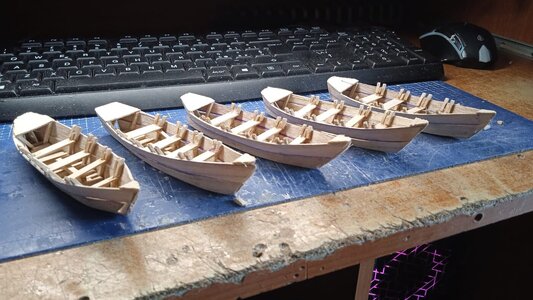

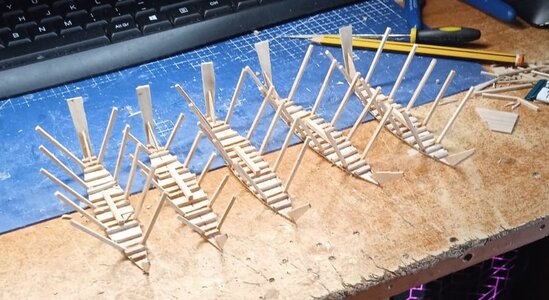

5 Dory



[WDO]

Interesting, will pull up a seat and observe your progress



[Morghy]

Interesting, will pull up a seat and observe your progress

cheers ....



[Morghy]

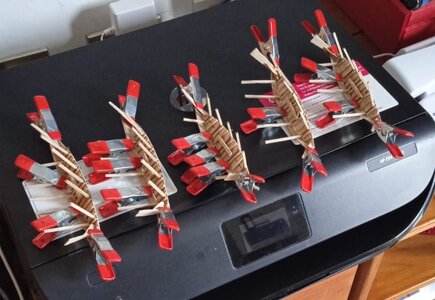

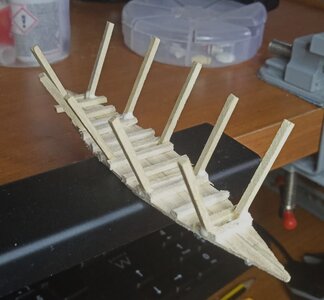

start of planking



[Morghy]

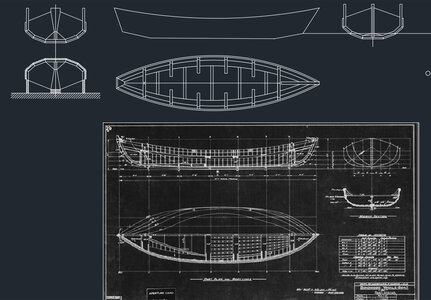

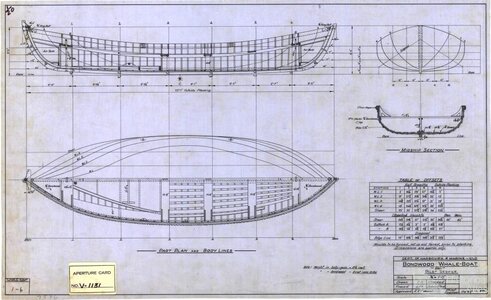

Diagram from which I derived the project for the Dorys... in my own way...



[Morghy]

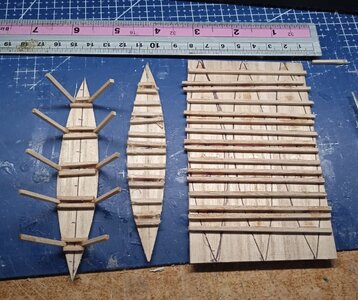

step by step



[Morghy]

penultimate step ... better third to last or more



[Morghy]

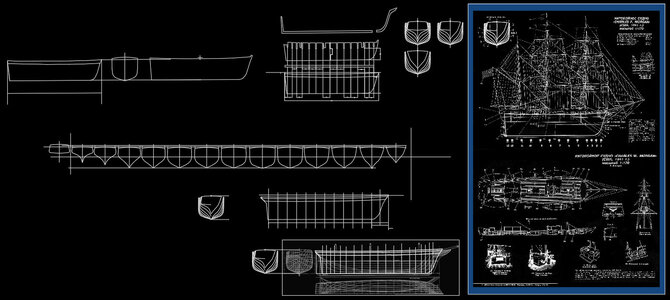

I continue the drawing of the ordinates, the previous version had some inaccuracies now I have almost finished the correct creation of the lines.
I designed them in A4 formats, so I can print them



[Morghy]

ALEA IACTA EST ...
as Cesare said... since I want to play at being a scratch builder, I decided to leave aside the suitability of other people's work.

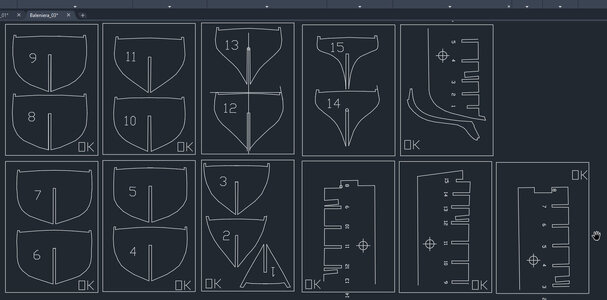

So, thanks to the drawings provided by friends, I started to completely design the frames and the false keel.
it's a long process of two steps forward and three steps back.
However, I proceed slowly.
On the other hand, I understood because they charge for the construction plans of the models.

Eugenio



[Morghy]

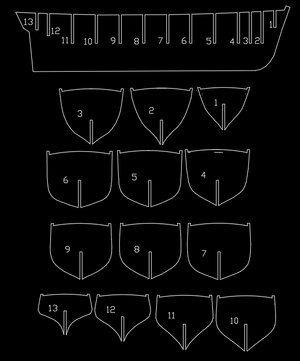

After 3 days of work... and a lot of second thoughts... I finally reached the end of the project. frames and false keel.
Having no previous experience, I had to what as they say in Italy.. "discovered hot water"..
However the biggest problem I encountered is shaping the curve of the deck correctly. .
In short, I think I'm on the road to becoming a new scratch builder.
Now I will have to decide which scaling ratio to use.
Overall... I'm satisfied.



[Morghy]

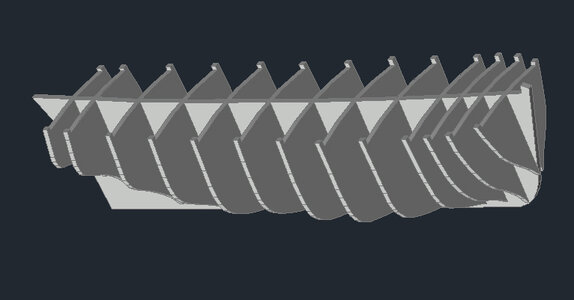

I confess that I have grown old without ever using the 3D function of CAD... but now I have time and I have decided to understand something about it.
I then transferred the 2D drawing to 3D... and I discovered that something in the last three frames on the right are not right... maybe I just reversed them... I'll check tomorrow... now I have to run to get my granddaughter... Hi everyone



[Morghy]

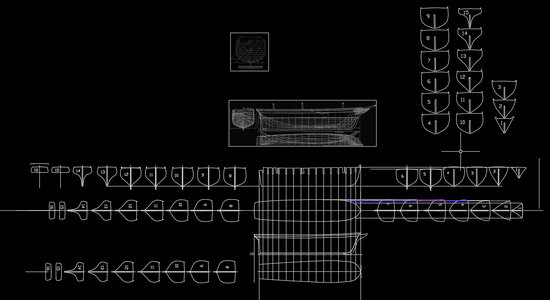

My path towards "scratch" continues.
The previous version didn't convince me and I therefore started the whole drawing again for the umpteenth time.
I increased the frames and completely redid the lines.
Now I have also drawn the side parapet.
I remain curious to see, one day, the construction plans made by the good ones.
