Contemporary Drawings and models of french Lugger

Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
18,428
Points
938

Location
Vienna, Austria
The french Lugger Le Coureur was captured by the british in 1778, so there are also some contemporary drawings in the NMM available



Scale: 1:48. A plan showing the body plan with stern board and decoration and name on stern counter, sheer lines with inboard detail modifications proposed in green ink, longitudinal half-breadth, and midship section showing the clinker framing, for 'Coureur' (1778), a captured French lugger, as modified to an 8-gun Schooner. Signed by John Henslow [Master Shipwright, Plymouth Dockyard, 1775-1784; later Surveyor of the Navy, 1784-1806].


Scale: 1:48. A plan showing the upper deck, and fore and aft platforms, with proposed modifications in green, for 'Coureur' (1778), a captured French lugger, as modified to an 8-gun Schooner. Signed by John Henslow [Master Shipwright, Plymouth Dockyard, 1775-1784; later Surveyor of the Navy, 1784-1806].


Collections - National Maritime Museum


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
18,428
Points
938

Location
Vienna, Austria

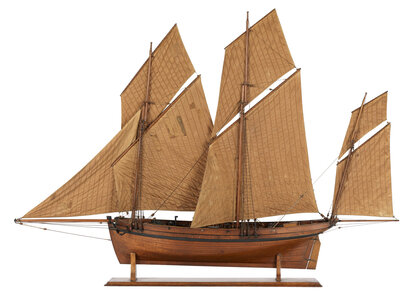

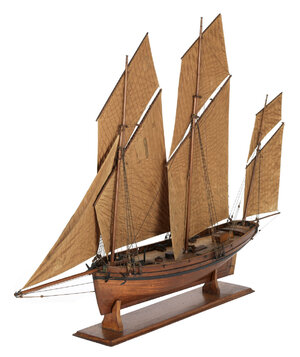

One interesting contemporary ship model of a french lugger



Object IDSLR0606
DescriptionScale: 1:24. A contemporary full hull model of a French 8-gun lugger (circa 1800), built plank on frame of clinker construction, and finished in the Georgian style. Model is decked, equipped and fully rigged, with sails set, both of which are original. At this scale the model represents a vessel measuring 76 feet overall by 20 feet in the beam and an approximate tonnage of 110 burden. This model closely represents the type of three-masted lugger used by French privateers during the Napoleonic Wars. The clinker-built hull has fine lines, and, with the tall masts, proved to be very fast and able to sail close to the wind.
Date madecirca 1800

CreditNational Maritime Museum, Greenwich, London, Caird Collection
Materialsmahogany; fruitwood; cotton; brass; iron; paint; varnish
MeasurementsOverall model: 1100 x 1623 x 277 mm; Base: 37 x 46 x 140 mm; Base: 16 x 46 x 135 mm

Joined
Mar 19, 2020
Messages
206
Points
213

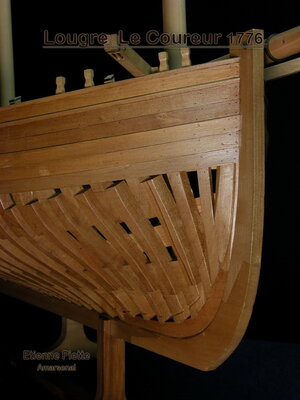

Thank you for sharing this Uwe. Stunning model! I have a question about the treenailing of the hull planking. The contemporary model above appears to have a single nail per plank per rib but the model by Etienne Piette appears to use the double nailing pattern
What is your view on the right pattern to use, both for the outside and inside hull planking?

Joined
May 15, 2020
Messages
753
Points
353

Location
Roskilde Denmark
Thank you for sharing this Uwe. Stunning model! I have a question about the treenailing of the hull planking. The contemporary model above appears to have a single nail per plank per rib but the model by Etienne Piette appears to use the double nailing pattern

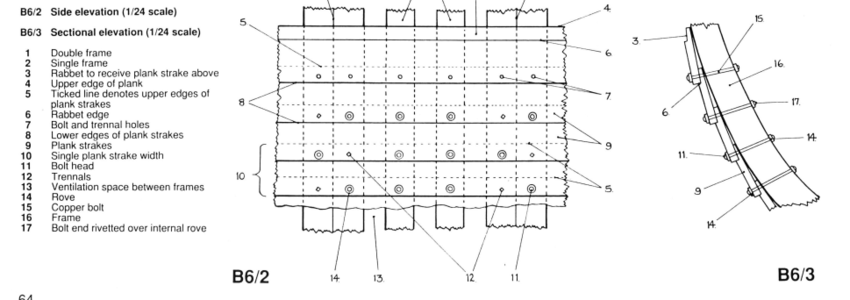

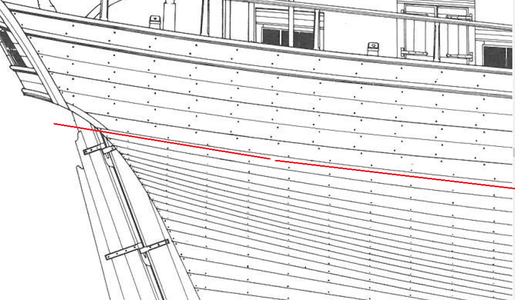

Maybe it is just 2 bolts in the top planks? Maybe 1 bolt is enough in planks where there is clinker, or maybe below the red line 1 bolt is hidden by the clinker?2020-10-10.png


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
18,428
Points
938

Location
Vienna, Austria

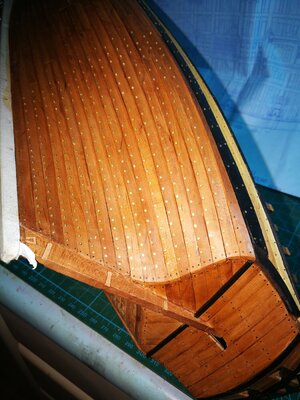

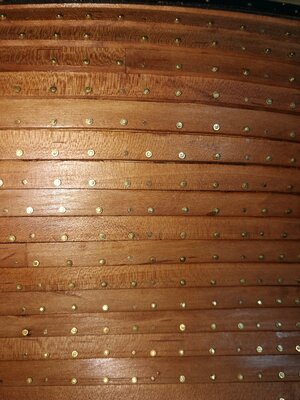

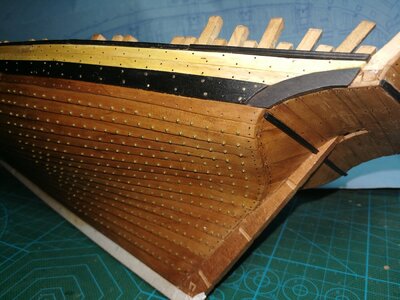

We should also take a look at the Alert built, the cutter was also clinker planked and our member @wang made here an amazing job in the planking

IMG_20200601_204939.jpg IMG_20200601_205411.jpg
