DIY soldering iron plank bender

Sid Barras

Well-Known Member
Joined
Jun 23, 2019
Messages
45
Points
68

I’m looking at pictures of the typical soldering iron made into a plank bender that is commercially available. $30 seems too steep for a tool I already have. The tip is the crux of this diy possibility. Has anyone here made one? I’m thinking a round cylinder of aluminium, around 1.5 inch o.d., perhaps 1 inch tall, drilled to accept a typical soldering tip; the two pieces brazed/soldered as one would a copper pipe to a fitting, using a propane torch and whatever type solder a plumber would use for high heat-proof situations. Any thoughts from the ‘been there’ folks?


Y.T.

Well-Known Member
Joined
Sep 3, 2018
Messages
231
Points
203

Location
Toronto, Canada
I never did DIY plank bender but I would like to alert you that with design you described you will be only able to do minimum 1.5" OD bends. You will find our you need much steeper bends too. I own a bender as shown on attached picture. I paid $50 US for it and I never regretted. It is out of production so a place to get it is hunt for used one on eBay.





Uwek

Admin
Staff member
Administrative
Blandford Group Build
Joined
Dec 25, 2017
Messages
9,411
Points
728

Location
Vienna, Austria
I never did DIY plank bender but I would like to alert you that with design you described you will be only able to do minimum 1.5" OD bends. You will find our you need much steeper bends too. I own a bender as shown on attached picture. I paid $50 US for it and I never regretted. It is out of production so a place to get it is hunt for used one on eBay.

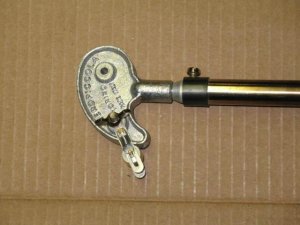

View attachment 103870
It is the "old" plank bender from Aeropiccola, or?

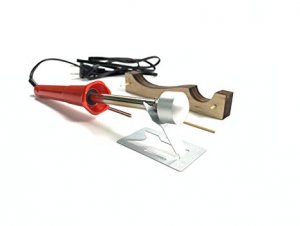

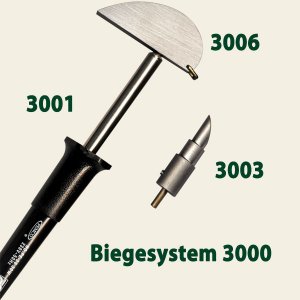

Amati revised the system later and produce this version

I would like to see more about the Sid-idea - do you have a small sketch by hand? Would be much easier to understand the idea


Norway

Blandford
Blandford Group Build
Joined
Dec 3, 2018
Messages
1,131
Points
433

Slightly poor picture quality, but very educational video
