Georgian Navy in the Beakhead Bulkhead Era - a survey of plans

Thanks for the explanation. I was curious to see how you actually went about building a hull. I remember the MSW before it failed (2 times) but I was too busy trying to raise a family and care for my special needs son.. until my damn strokes.
Corel Paint, or Draw or Technical drawing are all pretty pricy.. always have been.
Temp bond.. hmm no clear idea here unless CA was used.
Bassetts! well I was raised with them I can remember at least 6.. ha on following a new trail (tripping over ears at times). Wonderful dogs.
Lulu Bell comes to mind.. she had a real sniffer on her. We have had 2 ourselves.

Logs.. always a problem if you want to share, but *why not?*? keeping a long term log... for who? the last thing I want to be known as is a grumpy old man hugging his toys on his deathbed. The only reason I make models is for my joy and sharing it around if I can. Seeing a smile on a youngster or oldster's face is worth all the joy of the trip

Any way thanks for the response! and thanks for sharing anything of note and interest on making of models.

Guy

PS.. I use Autocad LT @ >$400 per year.. but its worth it.. it works. 2D only...
If I WERE to do 3D it would be with Rhino... (It covers Autocad LT and 3D) and has a great interface.. but costs a very dear ~$975

Guy

1733 Establishment

Suffolk 70 1739

151 x122 1 x 43 5 x 17 9 1224bm
O 35
K 36
L 39

Sister ship

Elizabeth 1737
Essex 1741
Prince Frederick 1740
Nassau 1740
Bedford 1741
Royal Oak 1741
Revenge 1742
Stirling Castle 1742
Captain 1743
Monmouth 1742
Berwick 1743

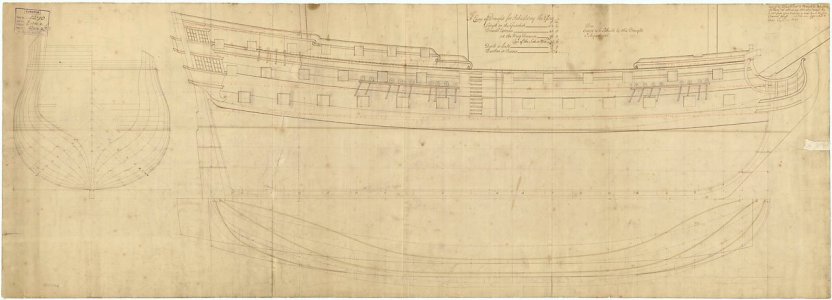

The plan

j2655 ZAZ1364.jpg

ZAZ1434

Other plans

ZAZ1364 WIKI
ZAZ1375 WIKI
ZAZ1393 WIKI
ZAZ1392 WIKI
ZAZ1355 WIKI
ZAZ1437 WIKI
ZAZ1368 WIKI
ZAZ14380 WIKI
ZAZ1433
ZAZ1436 WIKI
ZAZ1437 WIKI
ZAZ1438 WIKI
ZAZ1514
ZAZ1515
HIL0162

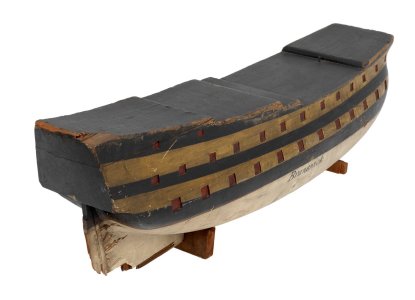

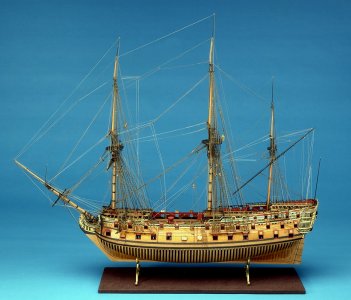

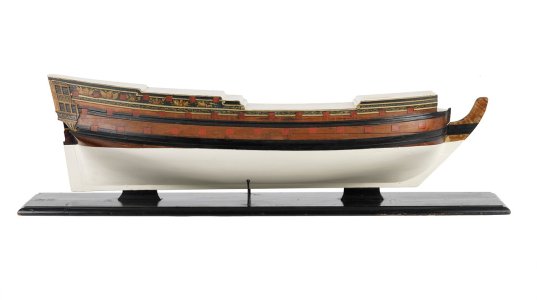

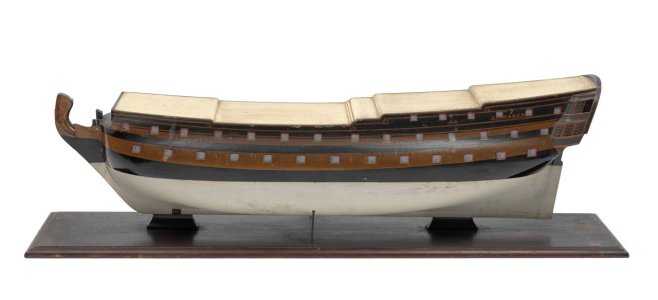

Models of the ship



Stations not at regular intervals
R&S varies
Floors varies

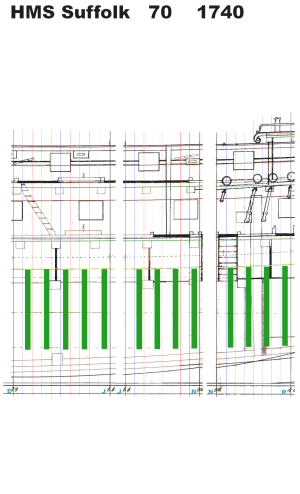

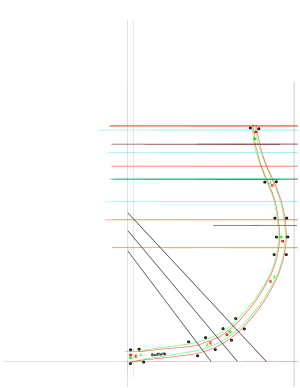

This is my midship framing plan and instructions and lofting steps

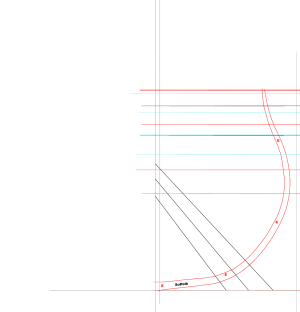

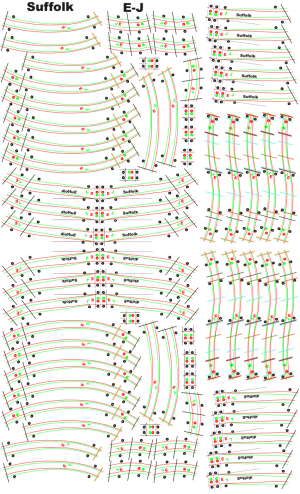

Suffolk Station frames 2.pngSuffolk HF 48 E .pngSuffolk HF 60 E-J.pngSuffolk Timbers E-J ii .png

1733 Establishment

St George 90 1740
166 x134 11 x 47 9 x 19 6 1623bm
165 9 x 134 x 48 3 x 19 6 1655bm
O 1733
L 1740

Routine fleet and flagship duties
trial of Adm. Byng 1756
BU 1774

Sister ship

Duke 1739


The plan

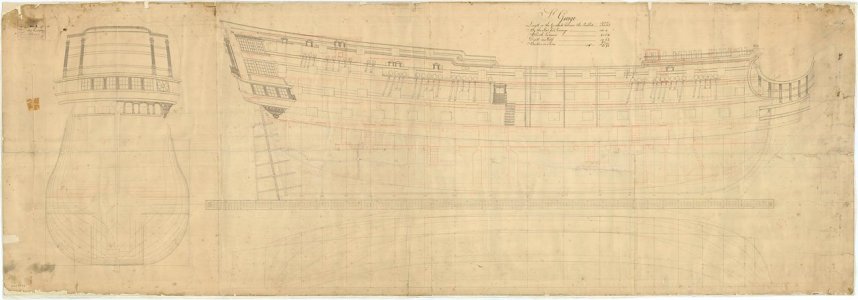

ZAZ0176 j1766 zaz0176.jpg

Other plans

ZAZ0220 - Duke full size @ WIKI Commons
ZAZ0177
HIL0039
HIL0040

Models of the ship

Stations
R&S 31"
Floors 18" - 17.1" - 16" - 14" - 12"
Stations at irregular intervals.

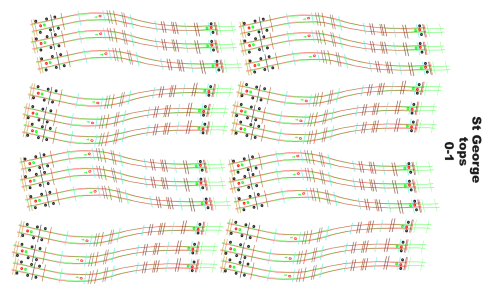

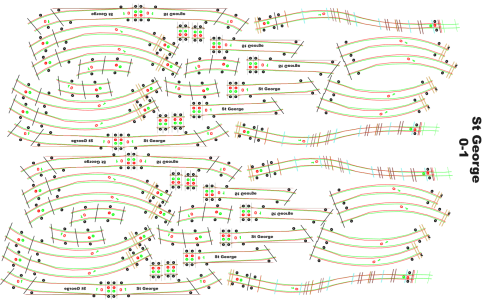

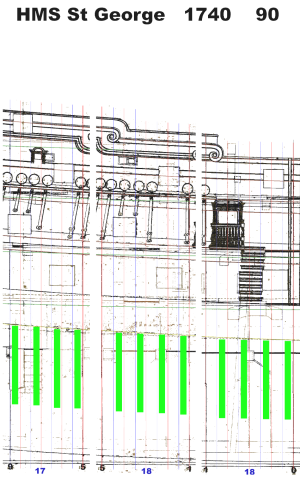

This is my midship framing plan and instructions and lofting steps

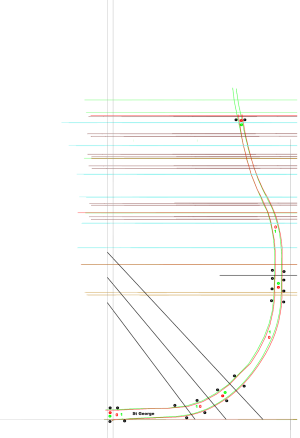

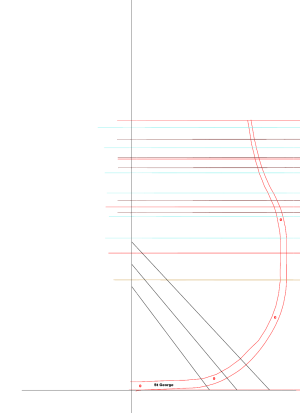

St George Station frames 4 .pngSt George HF 48 0  .pngSt George HF 0-1 .pngSt George Timbers 0-1 ii .pngSt George Timbers 0-1 tops ii .png
