This project is a "group project" but members can join anytime and of course work at their own pace.
The model will be built following the instructions provided through a construction manual / guide.
The project is really designed as a support group available to the members joining in.


From joining the built, you may learn something or you may just have fun.
Continue reading for information, and if you need more, just ask away…
_____________________________________________________

Our models are often built to accurately represent a historically correct piece,
but in some cases we should allow ourselves some liberties by allowing our own
creativity to take over in some way: and small crafts, such as canoes are perfect for that.

Somewhere, being creative is part of model building.

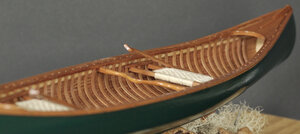

green 3a.jpg
The traditional look

The construction of the canoe is based on a somewhat modified hull design using a detailed and illustrated 68-page step-by-step guide: including 100+ colour photos): but it does look like a canoe (as seen in the introduction image). You may build exactly what is presented, but you also have the option of letting your imagination take over at some point … really, the sky is the limit, and this canoe can become your own personal piece of art.

This built is a fairly “simple” project. It is a good first time experience in model building from wood, but is also a fun project for the more experienced builder. Even the scratch builder or someone who want to take a short break from their current build.
The guide includes some ideas / options to make it a much more involved build, needing some extra material for features such as simulating fastenings, etc.. material readily available from most hobby shops.

Please note that the basic canoe will take approximately 30 hours to build.
It can be built as a 19” or 17” model using the same patterns.

_________________________________________________________________________​

So here is what is proposed:
Laser-cut parts are not provided for any parts; so some cutting will be required.
OPTION 1
The “semi-kit” version

For this option you will need (separately):
1) The Step-by-step guide
68-page illustrated guide (pdf document download): CAN $ 19.95 (for SOS members).
Link to info page : https://gkorent.wixsite.com/photography/sos-canoe-guide-page
You can contact me here or from the link to order your construction guide.
Along with the manual, you get full / unlimited support from the time you sign up for the project until your canoe is build.
Along with the Group Project page that will be created shortly, I have also started a Facebook group where you will be able to register as well, it may become handy at some point: as it is not limited to SOS members.

2)The lumber - and you have 2 main alternatives officially offered.
Alternative A

You may purchase a lumber package provided by The Lumberyard : https://www.dlumberyard.com/ in the US
This is essentially building as a "semi-kit"; the lumber is, for the most part, woodstrips and sheets / boards milled to specification.
This lumber package includes the following:
a) The building base: poplar – some tracing required
b) Sheets for the station molds: basswood – tracing and cutting required
c) All the lumber (24" in length) milled to specification needed to build the canoe: strips and sheet for all the canoe parts
The canoe can be built in either Red Cedar or Cherry – your choice…
You may your order your lumber package by emailing Eve at Mrs22wood@aol.com at The lumberyard
Lumber cost
The cost for the wood package is as follows (Tax and shipping not included):
aa) Single participant order: US $ 74.70
bb) 5 or more participants at a time -“grouped orders”: US $ 60.00 per wood package
cc) 10 or more participants at a time - “grouped orders” US $ 50.00 per wood package

Alternative B
You may purchase a pre-milled lumber package made available by @bibigon (Sergey) from Russia. You may contact him directly from SOS private messaging.
Due to limitation related to Sergey’s ability to ship lumber for the original canoe size, the vessel will be slightly shorter +- 17” (the shorter canoe is already an option available within the original construction guide).
This lumber package includes the following:
a) Building base material. (Made out of pine wood) - 20" in length
b) Station mold material (3 mm plywood)
c) All milled Pear wood strips and sheet wood necessary to build the canoe. - 20" in length

Lumber cost
The cost of the lumber package will be approximately 50 Euros including transaction fee (6% Paypal fee) and shipping to Europe - US and Canada add +- 5 Euros (Sergey will confirm shipping cost upon being contacted for your order).
**This price will include Shipping via regular mail so we do not know exactly what the delivery time will be.
Expedited shipping will be available at extra cost: Sergey can provide information regarding shipping.

You may also purchase your lumber from other sources: your choice


______________________________________

OPTION 2
The scratch builder

All you need is the step-by-step guide (see above), which of course includes station mold patterns and the list of material needed for the construction. The lumber can then be milled and you are on your way. And you still get the unlimited support you need during your build.
____________________________________________________________________________________________________​


Thank you all for your attention and participation.
G

To give everyone an idea as to your canoe would look like, you can check this link:


Canoe #002 b copy a.jpg
The classic natural woodstrip canoe


Last edited:
Joined
Feb 18, 2019
Messages
622
Points
353

Location
Pubnico, Nova Scotia, Canada
COME ON GUYS/ GALS, JOIN THE FUN SOMETHING DIFFERENT. GOD BLESS STAY SAFE. Don

Hi Don,
;) you should say a few words about the guide as you are pretty well the only person here who has seen it: at least the early 2nd draft version...... and you are the reason why some additions like graphics were made.
G

To All,
This is not something you will be able to do from your lumber package as the strip will be supplied either of these woods.
Red cedar: hull, ribs, gunwales, deck.
Cherry: trims, back seat (unfinished) and yoke.

There is really no limit as to what can be done if you have lumber left from other projects.
Accents of basswood, maple, pine also look very nice.

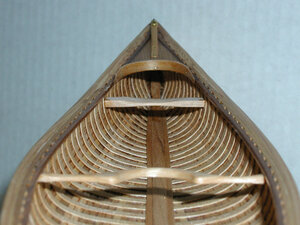

176insidedetail copy.jpg

Last edited:
Joined
Jan 9, 2013
Messages
4,021
Points
588

Location
CONWAY SPRINGS, KS
HI ALL, JUST A WORD ABOUT MANUEL I HAD A CHANCE TO LOOK AT IT, AND MAKE SOME SUGESTIONS TO CLARIFY CERTAIN ITEMS THAT I THOUGHT WOULD PRESENT PROBLEMS LIKE THE SPACING OF THE RIBS, THE MANUEL IS A SUBPERB PIECE OF WORK CLEARLY UNDERSTANDABLE TO SOMEONE LIKE ME (dyslexa), WELL DONE GILLES, WELL DONE COME ON EVERYONE LET US GET MORE PEOPLE INVOLVED IN THIS, THE MORE THE BETTER WE WILL LEARN FROM EACH OTHER AND ESPECIALLY FROM GILLES LOOKING FORWARD TO THIS. TO ALL GOD BLESS STAY SAFE DON
