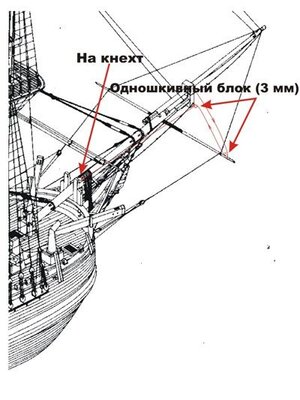

Maybe you could show us the rigging drawings for the complete bowsprit? Here we can see only an excerpt, so no guess in moment.
Or somebody who build the same model can explain (if he/she remembers).
Maybe @Anthony1 can answer .... he is building the same model in moment


Joined
Jun 23, 2020
Messages
48
Points
78

If I have a criticism of this kit it is the plans. That’s the only view. I have tied the lower block below the bowsprit and I’m going to tie off on post 66.


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
18,400
Points
938

Location
Vienna, Austria
If I have a criticism of this kit it is the plans. That’s the only view. I have tied the lower block below the bowsprit and I’m going to tie off on post 66.
Ok, I asked for more plans, because your photo is not showing the complete bowsprit

Joined
Jun 23, 2020
Messages
48
Points
78

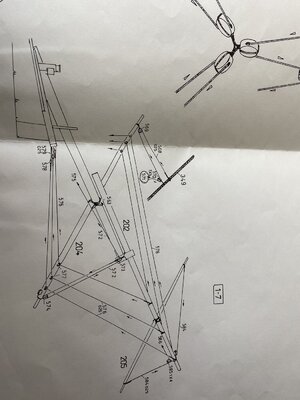

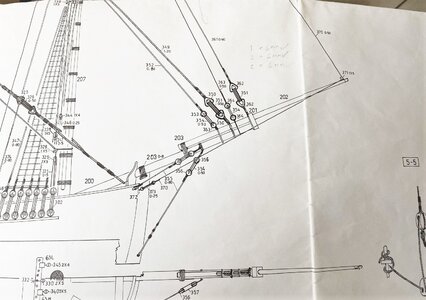

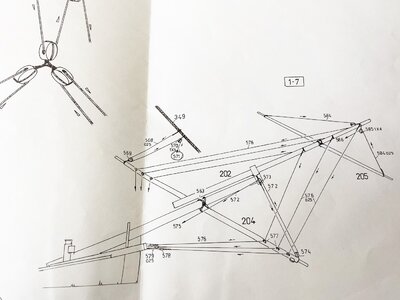

Thanks Anthony. I’ll see how tying off on the post looks and tie it off on itself if it’s no good. These are the only other diagrams of the bowsprit.




Attachments

  • 1C98DFAB-19DD-441F-8F82-B44FE77C4790.jpeg
    252.4 KB · Views: 4
  • 87FFA3AE-2BDF-4B74-A662-A02C57D3434F.jpeg
    211 KB · Views: 4
Last edited by a moderator:
Joined
Jun 23, 2020
Messages
48
Points
78

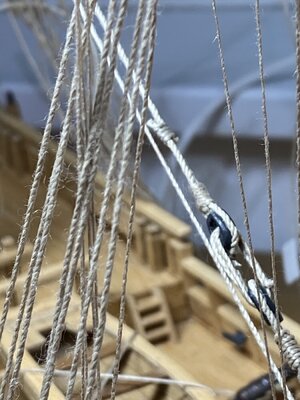

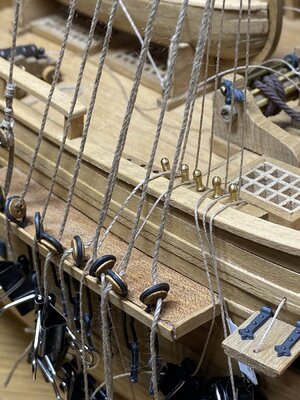

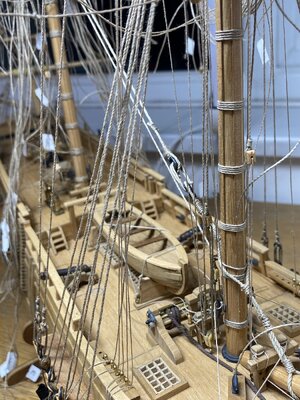

Hi guys. I’m back again. Confused. I have dry rigged my lower shrouds and the standing rigging to the outer belay pins to find that the standing rigging passes through the shrouds. I can’t see a way round it. Is this correct?

B44DB5BC-9D32-4507-AEC9-C22D230B32D8.jpeg7802F3E7-CA7F-4A4A-BC35-76048D2CB066.jpeg33761D24-557E-4263-9B94-54616740F303.jpeg


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
18,400
Points
938

Location
Vienna, Austria
It is unusual that the standing rigging is passing the shrouds (between the ratlines)
Can you show us maybe the belaying plan of the kit?

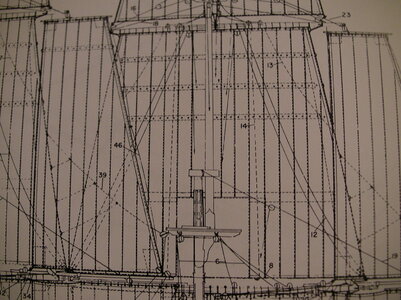

BTW: Do you know this book or the planset reivew of "HM BARK ENDEAVOUR - Her Place in Australian History" by Ray Parkin?
Maybe the photos of the drawings can help a little bit

Joined
Aug 31, 2019
Messages
301
Points
313

Location
Rüdesheim am Rhein, Germany
Hi Robster!

There is no running rigg rope running through the shrouds and ratlines. The ropes go parallel to the mast or behind the shrouds to the deck.
There are numeroues models in prestigious museums of the world that are not accurate and many kit manufacturers provide completely outdated model reconstructions.
In my opinion, Karl Heinz Marquardt' book is the best interpretation.

It is the German translation of the English original "Captain Cook's Endeavour", Anatomy of the Ship Series.

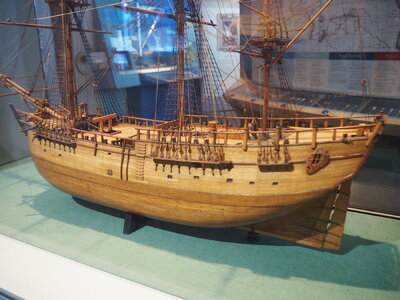

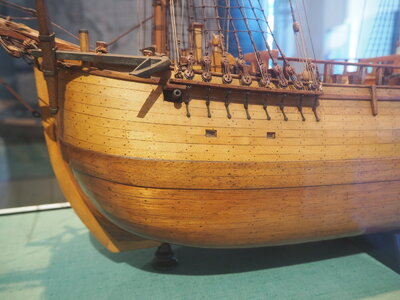

Model photos from Portsmouth, England.

Best regards
Thomas

Joined
Jun 23, 2020
Messages
48
Points
78

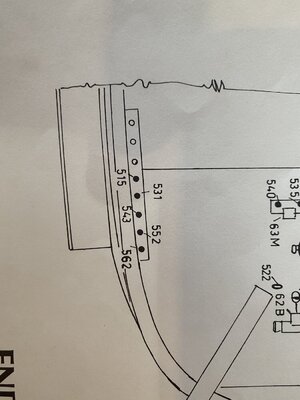

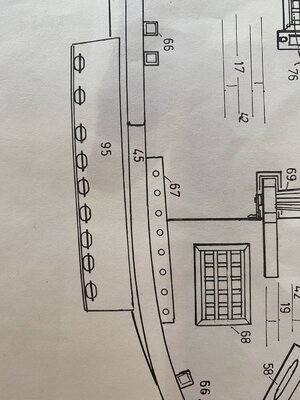

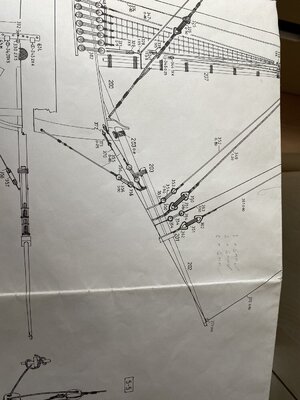

Here are the belay pin diagrams


Attachments

  • 927F9910-B786-4A06-8A5C-92EA0DB01D0D.jpeg
    232.9 KB · Views: 4
  • CFC68DFD-4546-42B0-AF31-33B25870E461.jpeg
    295.9 KB · Views: 4
Joined
Jun 23, 2020
Messages
48
Points
78

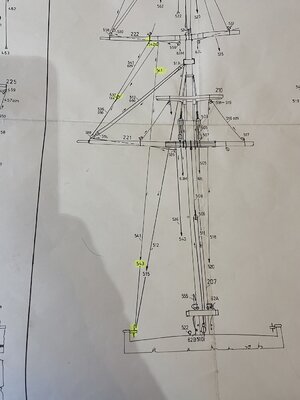

Hi everyone. I think I have managed to work around most of them except the line that ties off on belay pin 543 coming from block 542.


Attachments

  • 80E6C7A8-A723-418C-869B-18BF45A8E828.jpeg
    183.8 KB · Views: 10
  • 45BE28C4-F6B7-4524-A5B9-3AC891958149.jpeg
    232.9 KB · Views: 9
Joined
Aug 31, 2019
Messages
301
Points
313

Location
Rüdesheim am Rhein, Germany
Hi Robster!

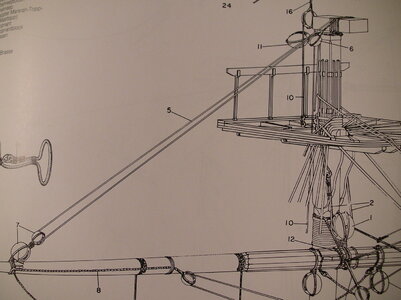

These are the clue-lines (12).

These are the Yard-Lifts (5).

The ropes run in the direction of travel in front of the shrouds but on their back side through the mast-tops to the belaying-pins. The Corel drawing is wrong. The ropes for the clue-lines of the forecourse or maincourse (mainsails) run in front of the shrouds.

Best regards
Thomas

Last edited:
Joined
Jun 23, 2020
Messages
48
Points
78

Thanks Thomas. After a day of scratching my head I have realised that my belay pin rack is in the right place the holes are not. I drilled the right amount of holes equal distance apart. If you look at the plan they aren’t. So my cunning plan is to drill an additional belay pin hole forward. Move all the tie down points one pin forward and it will all fit with maybe one of the rigging lines just kissing the forward shroud without passing through it. I think I said before I wasn’t happy with the plans but my wife did buy me the kit 20 years ago.

Last edited:
Joined
Aug 6, 2018
Messages
662
Points
298

Location
calahonda, mijas costa, malaga- spain

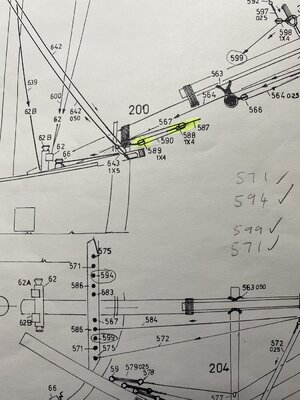

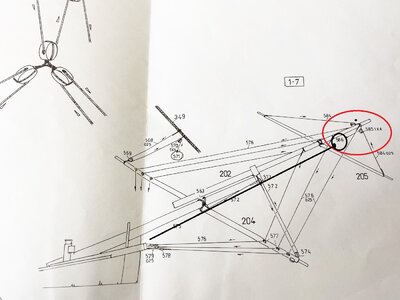

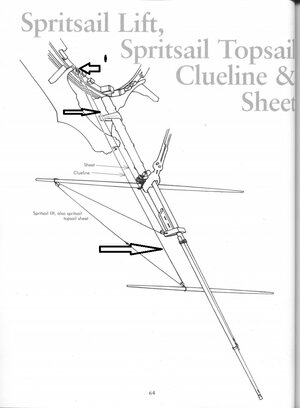

I know it is a bit late to answer -I lost your message - I have been through all the Images -some making more confusion than help. In one of the Images, I will attach, you can following the Rig. from564, 585, 586,588,589,590 . This all started with the upper Yard of the bows, and end on the pin rail. Your first drawing made it clear to me that it was either to fasten one of the two yars.


Attachments

  • EB569EA9-FAA2-416F-AE2E-75ACC6419533.jpeg
    268.9 KB · Views: 6
  • a7a277909c12dda836873297d822d45b.jpg
    36.4 KB · Views: 7
  • 87FFA3AE-2BDF-4B74-A662-A02C57D3434F.jpeg
    235.6 KB · Views: 6
  • 87FFA3AE-2BDF-4B74-A662-A02C57D3434F - Copy.jpeg
    87FFA3AE-2BDF-4B74-A662-A02C57D3434F - Copy.jpeg
    305.5 KB · Views: 7
Joined
Jun 23, 2020
Messages
48
Points
78

Thanks. It’s going well. I have rigged the bowsprit and should have the foremast rigged in the next couple of days. I’ll post some photos once that’s done.
