Endeavour - Corel SM41 build log

Joined
Mar 4, 2020
Messages
125
Points
78

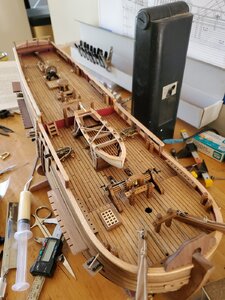

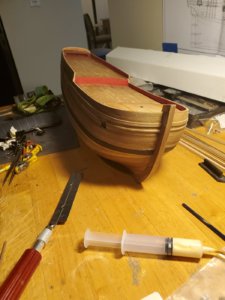

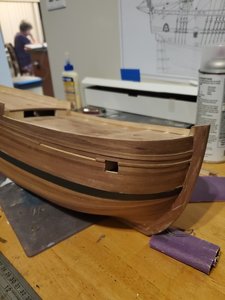

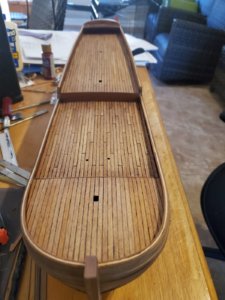

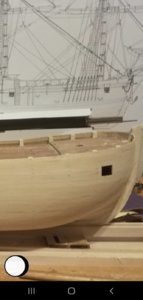

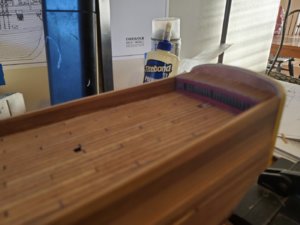

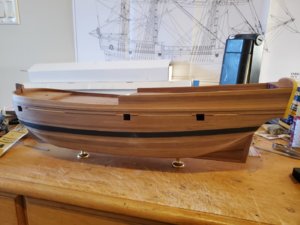

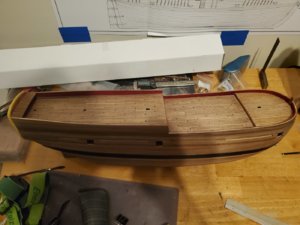

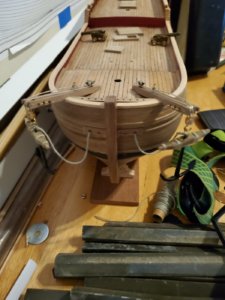

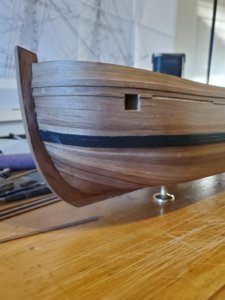

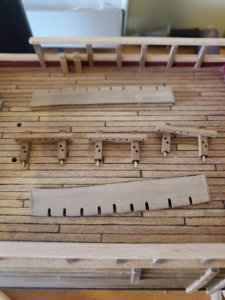

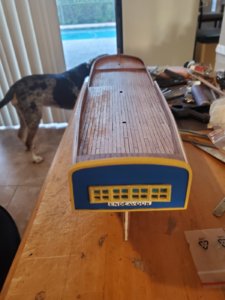

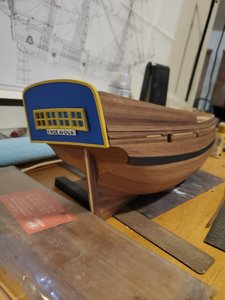

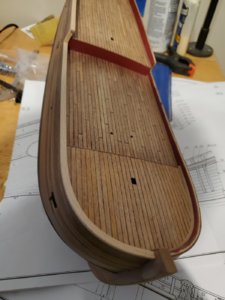

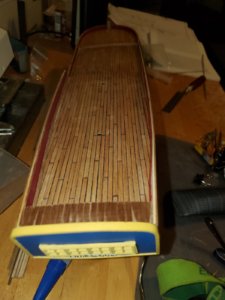

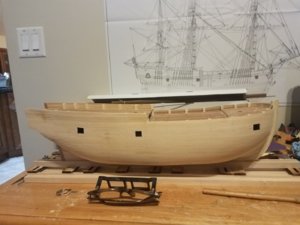

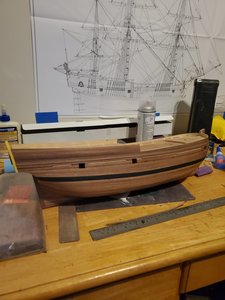

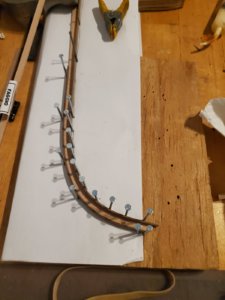

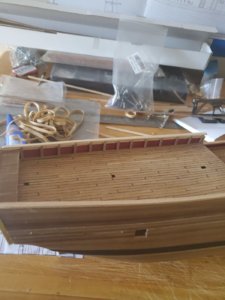

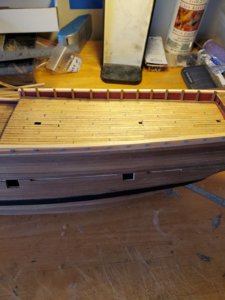

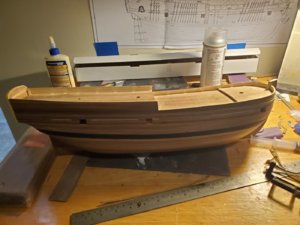

this is my first attempt at a build log , i have made several ships in the past but never had anyone look at them in any detail so i don't know how good or bad they are , anyway , i was encouraged by the forums admins to start one so here goes. i have already finished the second planking on the hull and i have started the detailing , i have a few pictures up till now which i will repost plus a few extra , there seems to be several different versions of the actual Endeavour but i am going to follow the corel plans and make a stand way off scale version of the ship
galaxy s10e 113.jpggalaxy s10e 113.jpggalaxy s10e 161.jpggalaxy s10e 182.jpggalaxy s10e 184.jpggalaxy s10e 185.jpggalaxy s10e 186.jpg20200302_071919 (1).jpg20200302_071934 (1).jpg20200302_071950 (1).jpg20200302_071957 (1).jpg20200302_072007 (1).jpg20200302_072019 (1).jpg20200304_205550 (1).jpg20200304_205610 (1).jpg20200304_205649 (1).jpg20200304_205702 (1).jpg20200310_073403 (1).jpg20200310_073417.jpg20200315_103936.jpg20200315_103946.jpg20200315_154612.jpg20200315_172321.jpg


Uwek

Administrative
Staff member
Administrative
Joined
Dec 25, 2017
Messages
12,311
Points
928

Location
Vienna, Austria
Looking very good - clean and accurate
Many Thanks for starting the building log - so we hope to see more and often some progress

Joined
Mar 4, 2020
Messages
125
Points
78

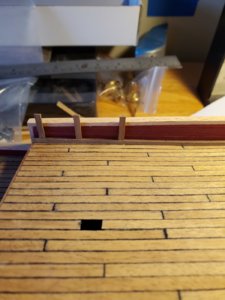

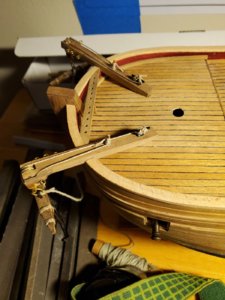

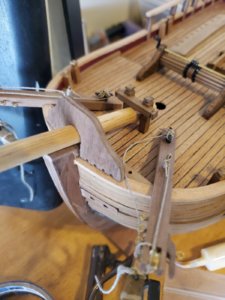

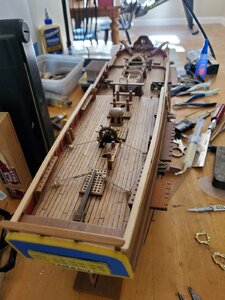

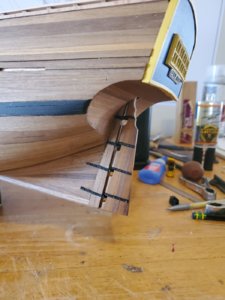

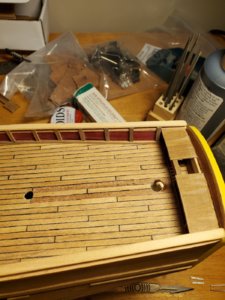

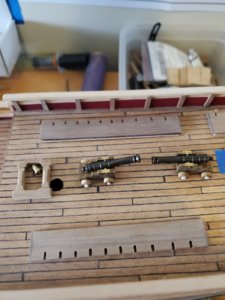

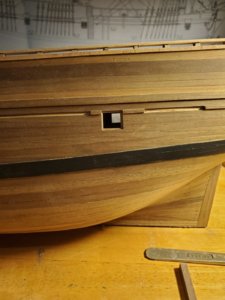

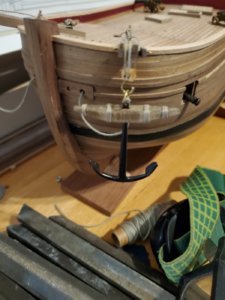

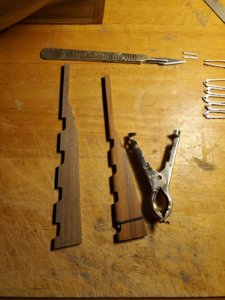

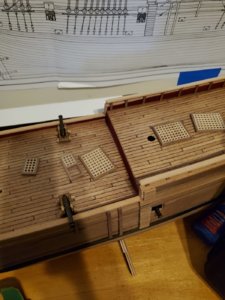

i have made a little progress and then i went backwards a little, there is a plan for the rudder , so i built it per the plan , when i came to fit it , it was about 1.5 times too big , luckily i had some scrap wood from a previous kit and built another to the correct size , when i came to install it , however , the pre drilled hole in the deck wasn't in the right place , it was only about 1.5 mm too far back but that would have meant a big hole in the deck , so i pulled up some of the decking and filled the jole a little and re drilled it into the correct location, the rudder is now installed and i am going to fix the deck soon, i also finished the gun port lids (not photographed) and lined the cannon port holes , 20200401_123544.jpg20200401_123544.jpg20200330_194322.jpg20200330_194341.jpg20200330_194409.jpg20200401_123544.jpg20200330_194322.jpg20200330_194341.jpg20200330_194409.jpg20200330_194409.jpg

Joined
Mar 4, 2020
Messages
125
Points
78

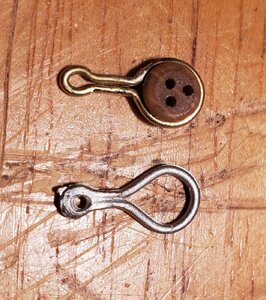

i'm onto the dead eye part of my build and was looking at the kit parts and didn't think that they look great , so i had a go at making my own , is this ok or should i stick with the kit part (the one without the deadeye in)


Joined
Mar 4, 2020
Messages
125
Points
78

if i'm not mistaken the black rope is for standing rigging and was some kind of tar coating to help preserve it , not sure if it was also used for the anchors , i'm sure someone with better knowledge can let us know what is correct


Kkonrath

Kurt Konrath
Staff member
Systems Administrator II
Joined
Feb 11, 2020
Messages
1,122
Points
383

Location
Oklahoma City OK
To blacken brass and other metals there are several brands of treatment available.

Google Brass Black, or Metal Blackening and you should get some input.

I think one brand I have seen listed is Jax Black, I am not sure if that is for just brass and copper or works on other metals as well.

You might just type "Blacken" in SoS search and see what all comes up.

Joined
Mar 4, 2020
Messages
125
Points
78

i have all my brass pieces and i have tried 2 different chemicals to blacken them , they both look really black until i rinse them in water and then most f the black comes off and they just look dull, am i better of painting them? OR SHOULD JUST LEAVE THEM DULL


Maarten

Moderator
Staff member
Moderator
Joined
Sep 10, 2017
Messages
1,777
Points
528

Location
The Netherlands
i have all my brass pieces and i have tried 2 different chemicals to blacken them , they both look really black until i rinse them in water and then most f the black comes off and they just look dull, am i better of painting them? OR SHOULD JUST LEAVE THEM DULL
Before burnishing them you polish the metal with some steel wool, then degrease with acetone or similar degreaser and burnish them again. This will help to get a nice black metal surface.
