Home made thickness sander

modelshipwright

modelshipwright

Well-Known Member
Joined
Apr 9, 2013
Messages
300
Points
168

Location
Newmarket, Ontario Canada

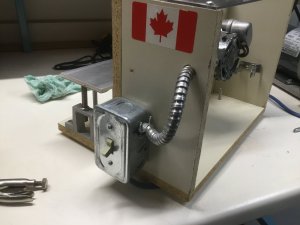

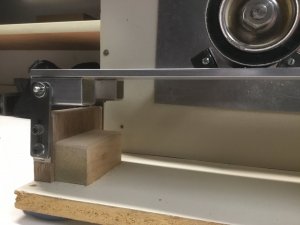

The next two photos show the base mounting for the sled table. You can see that both sides are adjustable to ensure the table is inline with the sanding sleeve to get a perfectly flat surface on your work.

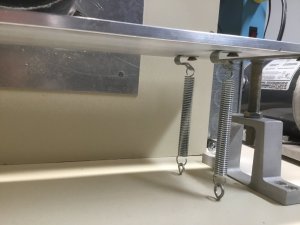

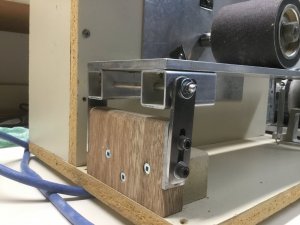

Next is the spring arrangement at the opposite end of the table which holds the adjusting nut down on the bracket under the table. The adjusting nut is threaded on a rod with fine threads to ensure micro adjustments in height.

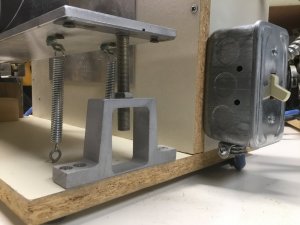

This photo shows the end view of this arrangement where the threaded rod is allowed to move up and down in a hole in the bracket. To adjust the table you lift the end of the table and screw the nut either up or down as required.


More to follow..............

Last edited:
modelshipwright

modelshipwright

Well-Known Member
Joined
Apr 9, 2013
Messages
300
Points
168

Location
Newmarket, Ontario Canada

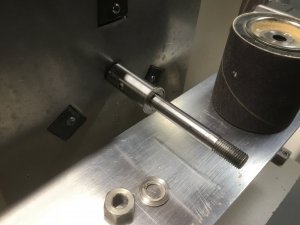

The next photo shows the shaft mounted on the motor shaft with set screws. This secondary shaft brings the arbor up to the size required for mounting the sanding sleeve.


This photo shows a front view of this arrangement with the sanding sleeve sitting on the table.

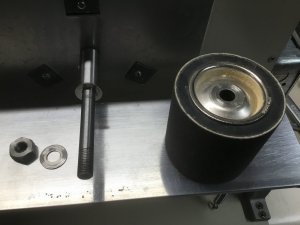

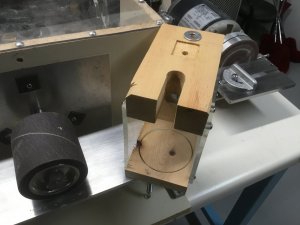

The next photo shows the sanding sleeve mounted on the shaft. The thread on the shaft is ‘left handed’ to prevent the nut from loosening when in operation. It also shows the dust collection cover sitting on the table. This arrangement virtually eliminates all airborn dust when in operation allowing me to use this indoors.

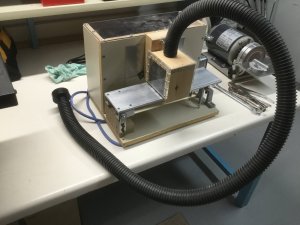

This photo shows the dust cover mounted in position with the vacuum hose in the hole in the top ready to plug into my Shop-Vac vacuum.


If you have any questions regarding the sander, please ask.

Regards,
Bill

Last edited:
MM2CVS9

MM2CVS9

Well-Known Member
Joined
Aug 21, 2011
Messages
45
Points
48

Location
Michigan
Very Nice. Thank you for posting this. I think I have the stuff (except the motor) laying around the shop to build one of these.

What horsepower rating is the motor you used?

EJ

Jimsky

Jimsky

Moderator
Staff member
Moderator
Joined
Nov 3, 2018
Messages
3,057
Points
578

Location
Brooklyn, New York USA
Great idea! You can use coarse grit on one side and fine on another. It definitely saves some time. Do you have motor specs by chance? Does anyone know what speed is required? I have built one long time ago, but never have success using it. I think I would need a faster motor...

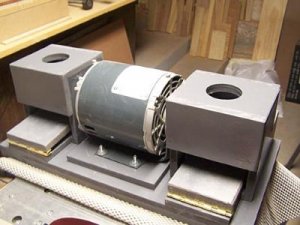

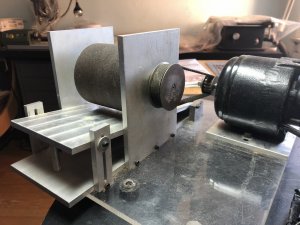

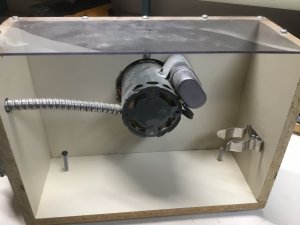

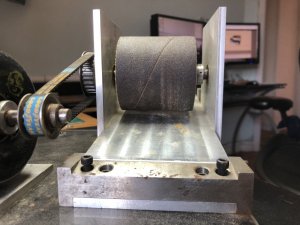

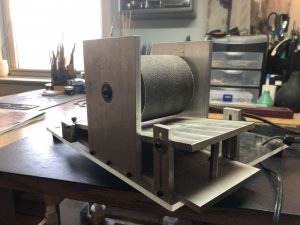

IMG_0459.jpeg IMG_0460.jpeg IMG_0461.jpeg

modelshipwright

modelshipwright

Well-Known Member
Joined
Apr 9, 2013
Messages
300
Points
168

Location
Newmarket, Ontario Canada
Jimsky said:
Great idea! You can use coarse grit on one side and fine on another. It definitely saves some time. Do you have motor specs by chance? Does anyone know what speed is required? I have built one long time ago, but never have success using it. I think I would need a faster motor...

View attachment 87186 View attachment 87187 View attachment 87188
Click to expand...
The motor speed on my sander is 3450 RPM. I find it makes a very smooth cut when taking off very fine increments of wood.

Regards,
Bill

Winston

Winston

Well-Known Member
Joined
Jan 4, 2017
Messages
148
Points
78

Location
Clinton, Ontario, Canada
From chatting with various professional wood workers I've come up with two basic considerations for motor selection to keep in mind. I'm sure there are many others but these two seem to stand out the most.

1. The heavier the motor you can use the better (i.e. a 1hp motor would be better than a 1/2hp motor.) The concept here is that you want to make sure that your sander has the power to complete the task at hand so that you are not facing premature motor burnout.

2. Multiple speed control. Different sanding grits sand better at different RPMs. I never really gave a lot of thought to this, until I started looking at high end sanders. I noticed that almost all of them have some form or speed control.

DocBlake

DocBlake

Blandford
Blandford Group Build
Joined
Jan 24, 2015
Messages
1,421
Points
483

Location
Pewaukee, Wisconsin
Hi Winston!

Although the variable speed feature is nice, it’ not critical if you pay attention to the depth of cut. The Byrnes thickness sander is single speed and works well.
