This is my third wooden scale boat, the previous two being kits from Corel.
This one is a scratch built model of the J-class yacht Enterprise, winner on Shamrock in 1930, based on plans found online at http://rcsailing.net/forum/index.php?threads/1-28-scale-enterprise-1930.5781/
drawn by user Claudio D, original drawings from the 'America Cup Yacht Design -1851-1986' of F.Chevalier & J. Tagland.

Claudio D’s blueprints scaled down to 1:48, to achieve a LOA of 800mm.

The J-class yacht Enterprise was originally built for Harold van der Bilt and designed by Starling Burges, Enterprise was the first J to win the America's Cup in 1930.

Original boat dimensions:
LOA 38.7 m
 LWL 24.4 m
Beam 6.7 m
Draft 4.4 m
Yard t.b.d.
Year t.b.d.

Build started in 2016 but layed dormant during some time
Prints were glued on 3mm plywood, hand cut to shape.

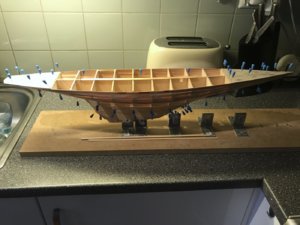

Construction layer of hull made of 1x10mmx1m pine.

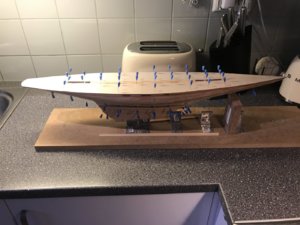

Construction layer of deck made of 1mm plywood.

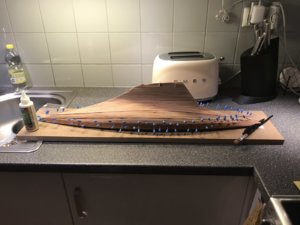

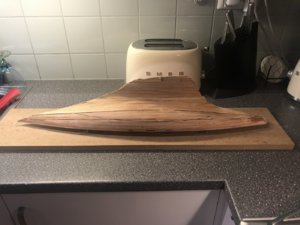

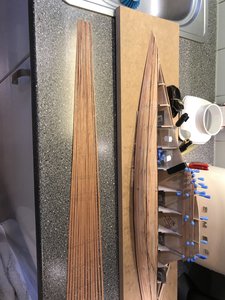

Hull and deck cladden in 0,6x5mmx1m mahogany.







86DEB9E6-0036-4A73-8CC1-0D2708569B29.jpeg683C3324-7E6A-48F7-94B4-CD76ACFCEA08.jpegEF59FD43-379F-4263-8F27-D5436C147C36.jpegA73F4EB6-BB00-4195-879D-3A2A9CDABB76.jpeg526DE9D5-BB98-4CB0-A307-A13BBFE78C82.jpeg89480D41-FE2D-414C-9A4C-3D4F352102ED.jpeg

Last edited by a moderator:

Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
17,247
Points
938

Location
Vienna, Austria
This is my third wooden scale boat, the previous two being kits from Corel.
This one is a scratch built model of the J-class yacht Enterprise, winner on Shamrock in 1930, based on plans found online at http://rcsailing.net/forum/index.php?threads/1-28-scale-enterprise-1930.5781/
drawn by user Claudio D, original drawings from the 'America Cup Yacht Design -1851-1986' of F.Chevalier & J. Tagland.

Claudio D’s blueprints scaled down to 1:48, to achieve a LOA of 800mm.

The J-class yacht Enterprise was originally built for Harold van der Bilt and designed by Starling Burges, Enterprise was the first J to win the America's Cup in 1930.

Original boat dimensions:
LOA 38.7 m
 LWL 24.4 m
Beam 6.7 m
Draft 4.4 m
Yard t.b.d.
Year t.b.d.

Build started in 2016 but layed dormant during some time
Prints were glued on 3mm plywood, hand cut to shape.
Construction layer of hull made of 1x10mmx1m pine.
Construction layer of deck made of 1mm plywood.
Hull and deck cladden in 0,6x5mmx1m mahogany.

View attachment 130947

View attachment 130949

View attachment 130950

View attachment 130951

View attachment 130952

View attachment 130953

View attachment 130947View attachment 130949View attachment 130950View attachment 130951View attachment 130952View attachment 130953

Hallo @hbn ,
we wish you all the BEST and a HAPPY BIRTHDAY
Birthday-Cake
Looking forward to see your progress on you project....

Joined
Jul 2, 2020
Messages
2,450
Points
488

Location
Eugene, Oregon
Hallo @hbn ,
we wish you all the BEST and a HAPPY BIRTHDAY
Birthday-Cake
Looking forward to see your progress on you project....
Great to see you pursuing the J-Class which I think embodied racing performance on the heels of the larger racing schooners. It would have been great yacht to at least crew if not helm. PT-2
