La Renommee (1744) - Sirene class 8-pdr frigate -> captured HMS Renown

Uwek

Administrator
Staff member
Administrator
Forum Moderator
Joined
Dec 25, 2017
Messages
31,903
Points
1,238

Location
Vienna, Austria
Several members of SOS know the Jean Boudriot monograph


and the POF kit developed by CAF



In this topic I want to summarize additional information about the ship

The Renommée was first commanded by the illustrious Captain Guy Kersaint and was captured when commanded under the command of Francois de Saint-Alouarn. After capture in 1747 she as first named the HMS Fame but before she put to sea she was renamed by the Admiralty as the HMS Renown. Her first English captain was Washington Shirley, the captain who had captured her. She was laid up in ordinance at Hamoaze from 1750 until 1756. At the beginning of the Seven Years Wars she was first used to patrol the Channel and French coast and also sent to the West Indies usually stationed at Port Royal. In 1766 she was out of commission again but put back to sea duty in the West Indies the following year. The remaining years found her on patrol as previously until she was broken up at Woolwich in 1771. She had many captures and actions and the list of her commanders contains some of the finest captains at sea, both French and English, of that age.

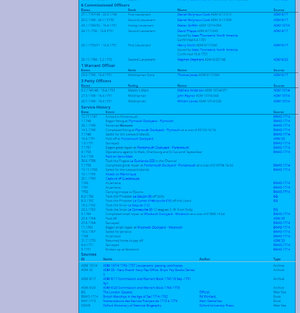

Screenshot 2024-07-04 153551.png

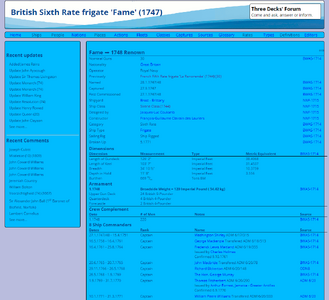

Screenshot 2024-07-04 153834.png

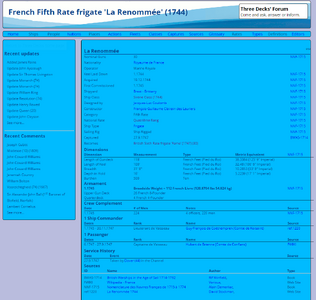

Screenshot 2024-07-04 154042.png

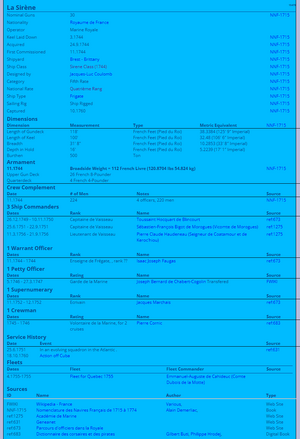

relatively unknown is her sistership La Sirene of the same class, which was captured at Cuba 1760

Screenshot 2024-07-04 154415.png



Renown (captured 1747)​

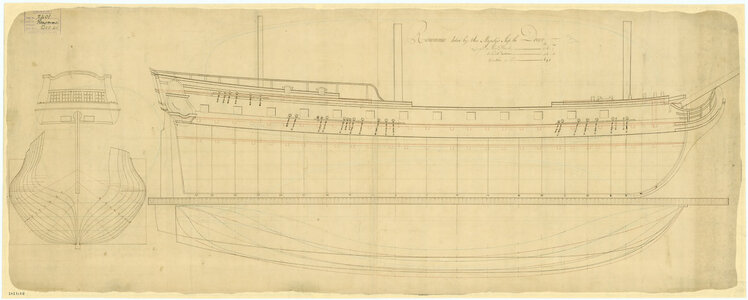

Scale 1:48. A body plan showing the stern board outline, sheer lines with some inboard detail, longitudinal half breadth for Renown (1747), a captured French Frigate prior to fitting as a 30-gun Sixth Rate Frigate.
Reverse: Scale 1:48. A plan showing the body plan outlines, individual waterline plans, for comparing the underwater shape of Renown (1747) and 20-gun gunships. Note that the dimensions for the 20-gun ship relate to the 1745 Establishment 24-gun ship of 113 foot.

NMM, Progress Book, volume 2, folio 294, states that Renomme arrived at Plymouth Dockyard on 12 November 1747 and was docked on 5 February 1748. She was undocked on 7 February and graved 23 March. She was undocked again on 4 April 1748, and sailed on 14 May 1748. Renomme was originally named 'Fame' by Admiralty Order on 23 November 1747, only to be renamed 'Renown' on 28 January 1748.




Renown (captured 1747), Ranger [ex Two Crowes] (1747)​

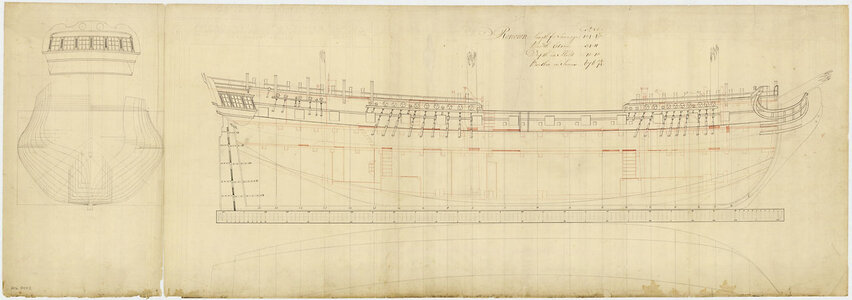

Scale 1:48. A body plan showing the stern board outline and sheer lines with some inboard detail, incomplete longitudinal half breadth (no waterline) for Renown, captured French Frigate before renaming, and fitted as a 30-gun, Fifth Rate Frigate.
On reverse: Body plan with outlines and individual waterlines plans with termination points for comparing the underwater shape through the water on Renown (1747) and Ranger (1747) and the new 20-gun gunship. The dimensions for the 20-gun ship actually relate to the 1745 Establishment 24-gun ships of 113 feet and explanation of the plan.

Both Ships at Plymouth from November 1747 to 5 March 1748 being fitted.




'Renown' (captured 1747)​

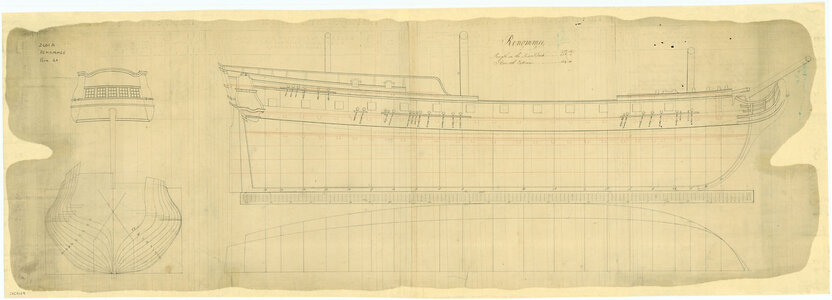

Scale: 1:48. A plan showing the body plan with stern board outline, sheer lines with inboard detail, and longitudinal half-breadth for 'Renown' (captured 1747), a captured French Frigate, as fitted as a 30-gun Fifth Rate Frigate.



Comment:
Interesting to see also the changes made at the stern area and on the standing rigging the british made after the capture




The Engagement off St Domingo, between three English & five French Ships of War Octr 2nd 1760, 1 the Boreas taking the Sirenne 2 the Lively taking the Valeur 3 the Hampshire defeating the Prince Edward & Fleur de Lis, the Duc de Choiseul only escaping. Engraved for Hervey's Naval History Vol V. Book VII. Chap.6
