L'Ambitieux Jean Berain 1/48

[WojtasS]

Hello

It's been a three almost four years since I started my first build log on SOS. Back then I had no idea what I'm getting into and It's rather a pleasant surprise
From a technical point of view, I'm almost on the same level of completion as I stripped most of planks on my French 118GS, but the amount of knowledge I gained through mistakes I made there will positively affect this build.

With a help of CNC I intend to fasten some things that stopped my work due to inaccuracy of standard machines. Some slight adjustments keel and and knee of the head were made much quicker and more pleasant.

As for the ship itself. This L'Ambitieux differs slightly from Master Jean Boudriot's as it's based on Jean Berain sketch. Main difference being beautiful figurehead of Apollo and open quarter galleries

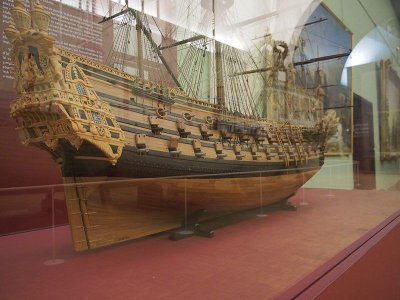

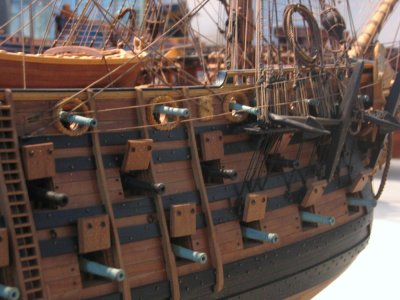

As many I'm deeply impressed by Bernard Frölich's L'Ambitieux unfortunately for me I didn't see all pictures of model and fell in love with this combination of wood color.

​

Which is not tru at least from different perspective. Same story as Tanneron Soleil Royal color of ship depends on camera of photographer​

In next post I'll cover how I got a color that is close(ish) to a boxwood with only acrylic paint and some wash​

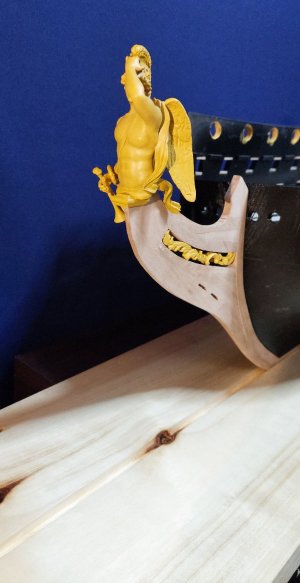

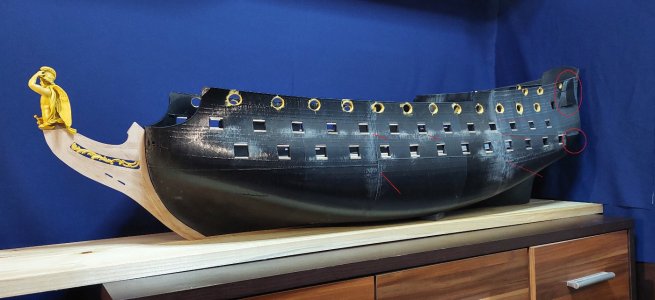

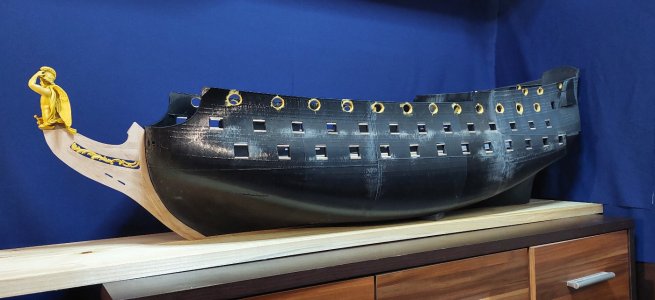

Here are actual photos of ship. Keel and bow is made from pear and only dry fitted​



[Mirek]

Witaj
Piękny start Wojtku będę oglądał z przyjemnością .Pozdrawiam Mirek



[WojtasS]

Dzięki Mirek. Mam nadzieję że nie zawiodę



[WojtasS]

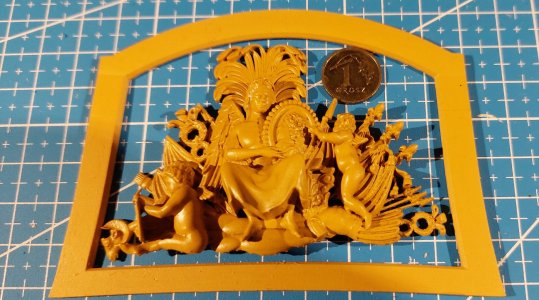

Painting 3d printed figurines.
As you see from pictures above they seem to be yellow. In reality I managed to get a more of honey tint . Unfortunetly camera lens can't notice the subtle difference between each stage of paint. That's why I show you what paints I mixed. I tried painting with only one color, but results didn't satisfy me.

After putting a first coat of gray primer. I made a mix of sand yellow and deep yellow as main ingredients. I had untoutched bottle of filthy brown which is now (at least in Poland) not available. [Heavy ochre might be an alternative, but for now I'm not sure whether is it as good]. Little bit of orange brown and we should get sth like this

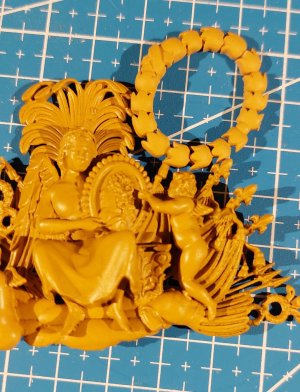

On a figurine looks like this​

​

Because vallejo paints are dosed with splashes I drew a estimated circle​

Second and next leyers proportions are very much the same just without orange brown. The mix will get more yellow-ish​

After at least two layers of wash I got a honey like color which is most alike to actual color in real life not distorted be camera lens or lightning​

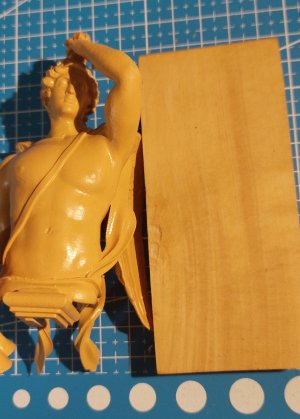

Apollo is the same color as sculptures above, but the camera makes him more sand yellow​



[Maarten]

Wonderfull work. Do you have already experience with the use of the 3d printed hull in combination with the pear wood keel stern and stem in relation to the changing ambient conditions on both materials?



[Mirek]

Witaj
Uzyskałeś Wojtku pięknych efekt zapowiada się piekny model czekam na dalsze ppostepy.. Pozdrawiam Mirek



[kuba91nt]

Osobiście nie podjął bym się budowy tego modelu, ze względu na ograniczone źródło historyczne. Będziesz miał spory problem ze skalowaniem objektów. Chętnie zobaczę jak to rozwiążesz.

Personally, i wouldn't attempt to build this model due to limited and low historical sources. You'll have significant problems with scaling. I'd love to see how you solve these problems.
