Liberty Ship

Started building the superstructure and needed to take some 'poetic license' to make it 3d printable. Still a ton of detail missing but it's looking good. I needed to print this and try it before I cut the deck for access holes (cargo hatches and main cabin access points) so I can layout the electronics.





Sorry if this is an interruption, but I was wandering down the hall and happened to see your post about decking.
Seeing you choices I wonder if you have considered using tongue depressor Birch?
Then I remembered that I bought a pack of Coffee stirrer Birch from TEMU. I just took my mic to one
7" 7/32" x 3/64" (5.35mm x 1.25mm) 900 for ~$10 stateside warehouse item.

Then I remembered putting around the James River ghost fleet when I was a kid and checked to see if there was still a Liberty or Victory ship still there - it seems not, but they bragged about one of their alumni John W. Brown - now living in Baltimore harbor.

Skipper1952 said:
Started building the superstructure and needed to take some 'poetic license' to make it 3d printable. Still a ton of detail missing but it's looking good. I needed to print this and try it before I cut the deck for access holes (cargo hatches and main cabin access points) so I can layout the electronics.

View attachment 613059

View attachment 613060

View attachment 613061

View attachment 613062
Click to expand...
The depressions on the sides of the first level are ostensibly for doorways. I believe they should be in the front and back. The sides will not be visible or accessible to crewmembers because they will be covered by the hull. Also, how are the vertical parapets (not sure of the correct terminology for ships, bulkheads?) to be attached? They will surround much of the second, third, and fourth levels.

Vfordyce said:
The depressions on the sides of the first level are ostensibly for doorways. I believe they should be in the front and back. The sides will not be visible or accessible to crewmembers because they will be covered by the hull. Also, how are the vertical parapets (not sure of the correct terminology for ships, bulkheads?) to be attached? They will surround much of the second, third, and fourth levels.
Click to expand...
There were so many variations between the ELY and the American Scout that I couldn't makeup my mind. Due to the fact that this is going to be RC I need to remove the entire 'superstructure' in one piece. Any upright supports have been eliminated for that reason, hense 'poetic license'. You are correct that the depressions are doorways and there are none in the front and back, only on the sides.

DAWarden-(Jaager) said:
Sorry if this is an interruption, but I was wandering down the hall and happened to see your post about decking.
Seeing you choices I wonder if you have considered using tongue depressor Birch?
Then I remembered that I bought a pack of Coffee stirrer Birch from TEMU. I just took my mic to one
7" 7/32" x 3/64" (5.35mm x 1.25mm) 900 for ~$10 stateside warehouse item.

Then I remembered putting around the James River ghost fleet when I was a kid and checked to see if there was still a Liberty or Victory ship still there - it seems not, but they bragged about one of their alumni John W. Brown - now living in Baltimore harbor.
Click to expand...

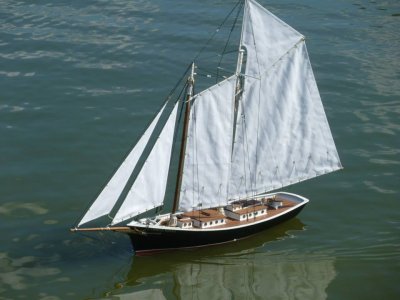

Most of my ships have wood deck planking but the C2 had a steel deck therefore the deck is 3/16" balsa that will be sealed before painting. Although it is soft there will be plenty of below deck supports to prevent warping. Here is an example of one of my other ships with the wood decking.Emma 1.jpg

Skipper1952 said:
Started building the superstructure and needed to take some 'poetic license' to make it 3d printable. Still a ton of detail missing but it's looking good. I needed to print this and try it before I cut the deck for access holes (cargo hatches and main cabin access points) so I can layout the electronics.
Click to expand...

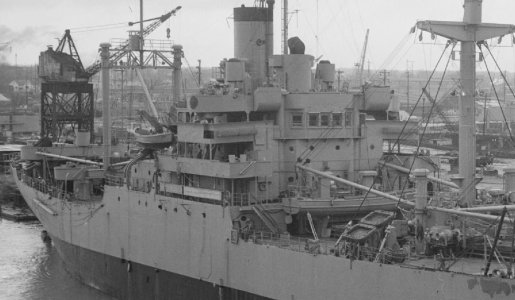

The superstructure, with a protrusion at the front, began to resemble the classic C2, but not the "Liberty". Is it worth doing this?


Two completely different ship designs. C-2 was designed by the US Maritime Commission (MARAD). They were considered “high end” ships with steam turbine power plants and, therefore, unsuitable for quick mass production.

The Liberty Ships were based on the British Economy Ship designed by a Northeastern English shipbuilder ( Thompson or DoxfordI don’t remember which) at the height of the great depression in part to keep their design staff busy. These were coal fired, powered by triple expansion engines and had a different hull form than the American designed C-2’s.

President Roosevelt overruled recommendations for a MARAD designed high end ship like a C-2 in favor of a quick and dirty” vessel that could be mass produced. It was not expected that these ships would last beyond the end of the war.

The New York based naval architecture firm Gibbs and Cox was hired to adapt the British Economy Ship for American construction work included:

Welded in lieu of riveted construction.

Redesign of the midships bridge/cabin structure from two separate ones to one.

Oil instead of coal firing.

So, other than the fact that they both floated the Liberty ship was not related to the C-2. Instead, it sounds like you’re building a “Generic American Built World War II Cargo Ship.

Roger

A ship is always recognizable by the silhouette of its above-water part. Check out the EC2 hull. Perhaps it could be converted to a C2 class by changing the hull ends. This would make it easier to rebuild it into the correct ship type.
I think interest in viewing this thread may decline if the ship model's historical accuracy isn't restored.
( I once managed to rebuild a long-hulled Essex from WW2 in this way, to build it under the SCB-125А program.)
