Scratch built Wianno Senior “Catharine “

Grandpa

Active Member
Joined
Oct 23, 2017
Messages
6
Points
43

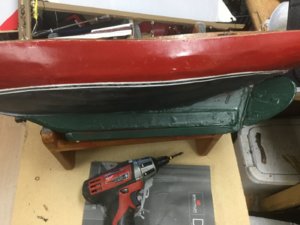

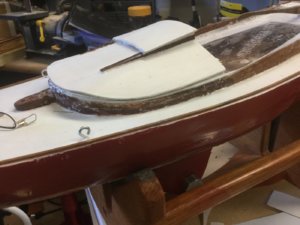

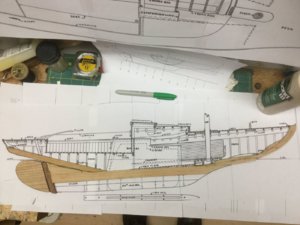

After receiving the two drawings shown in first photo, I used AutoCadLt to make drawings for bulkheads, keel, and many other parts. The build took most of the winter of 2018. Doyle Sails sent me material to use to make the sails.

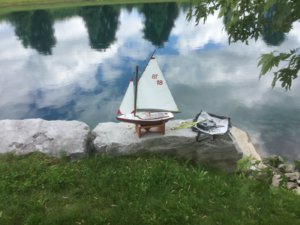

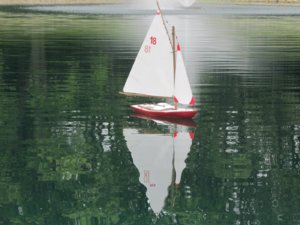

The Wianno Senior Association gave me permission to use their drawing to make this RC model built 1”=1’ it is not a 100% scale reproduction, just a pretty sailboat for my own enjoyment!

54792007-ECC8-4002-B052-0E895E639067.jpeg424A8D30-20F0-466A-B671-3FAC08096078.jpeg1F8B2E83-159E-489C-A3E3-F38BEF761ABF.jpeg145DECFE-1411-4D75-8C0C-402F21B3DFB3.jpeg07B49726-AB3A-45B6-AC23-DB4AF346F335.jpeg


Grandpa

Active Member
Joined
Oct 23, 2017
Messages
6
Points
43

Hi Jim, Are you asking for a photo log of the building process? I have some photos. Is there a particular place on this site to post those photos?

Last edited:

Jimsky

Moderator
Staff member
Moderator
Joined
Nov 3, 2018
Messages
2,477
Points
528

Location
Brooklyn, New York USA
Hi Grandpa! All build logs were alone with photos you describe the building process will go to The Shipbuilders logs. You can choose the appropriate thread for scratch or kit builds.


Completed builds, will go to completed builds (you already put your pictures there!!!)


You can also put your photos in our Media section: SOS Galery


Hope this will help! Enjoy!
