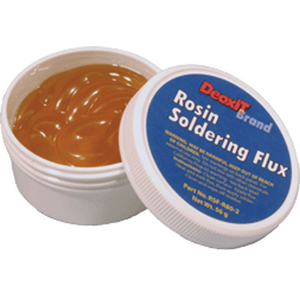

What is soldering flux? Flux is a chemical cleaning agent used before and during the soldering process of electronic components onto circuit boards. ... The flux also protects the metal surfaces from re-oxidation during soldering and helps the soldering process by altering the surface tension of the molten solder.
View attachment 290459

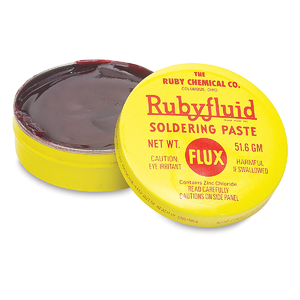

What is soldering paste?
Solder paste is a mixture of minute solder spheres held within a specialized form of solder flux. As the name indicates it has the texture of a paste, hence the name. The fact that it is a paste means that it can be easily applied to the board during PCB assembly. The solder particles are a mixture of solder. Traditionally this used to be tin and lead, but legislation has been introduced around the world, to only use lead-free solder. These may be made from a variety of mixtures. One is 99.7% tin and 0.3% copper, whereas other mixtures include other metals including tin.
View attachment 290460
So...what is the difference between soldering flux and soldering paste?
Solder paste contains solder particles and flux. It helps ‘tin’ a surface with a coating of solder, resistant to oxidation.
Solder Flux is just ‘flux’, a chemical to clean the surface, ready to accept solder. Solder has to be added to make the joint or tin surface.
Hope this will clear some doubts...
