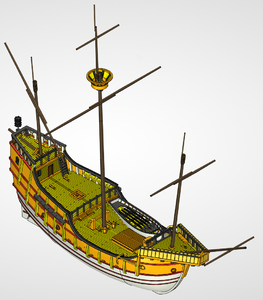

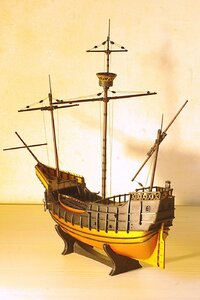

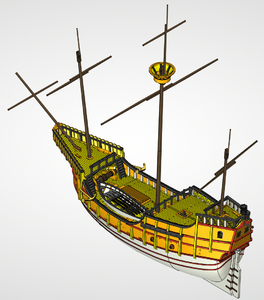

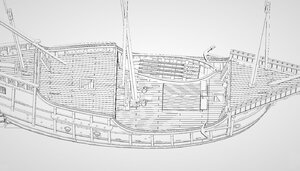

T-Flex cad can be used for 3D printing, with this software I construct carrack.

This ship was printed on the Prusa I4 printer with PETG plastic, the nozzle - 0.4 mm.
Model sizes: Length from bowsprit to aft outrigger - 451 mm, height from keel to clotic - 415 mm, width along mainmast yard - 220mm.
Assembly instruction : http://parus-3d.ru/instruction/karakka_en.pdf



[zoly99sask]

We need more of this ,please keep going



[Parus3D]

We need more of this ,please keep going

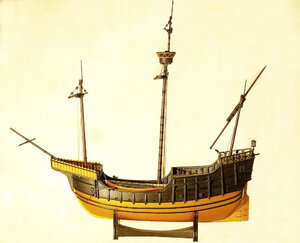

In design of model I was oriented to this Santa Maria from Adametz plans - https://photos.google.com/share/AF1...?key=MmdOQmdXTGpxRE9yZHFyS3ItWTV3RlhVdWJ6eXVn

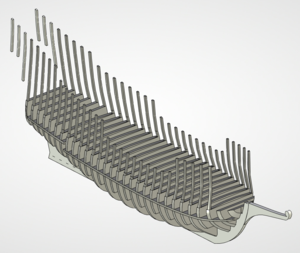

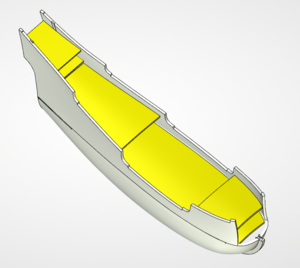

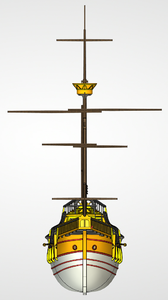

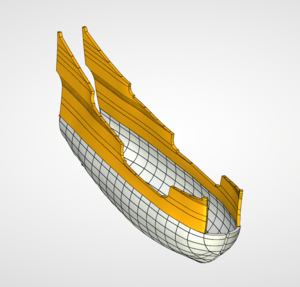

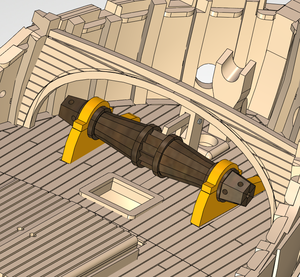

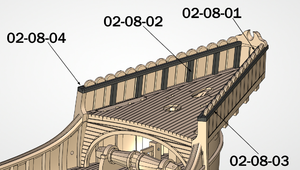

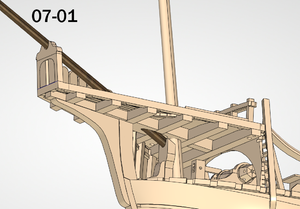

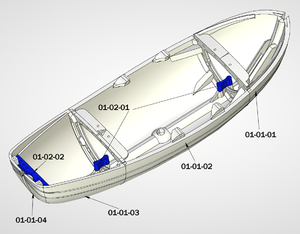

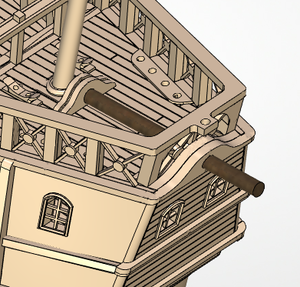

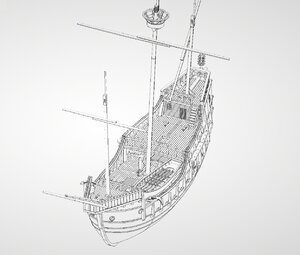

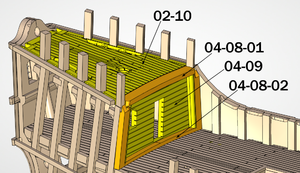

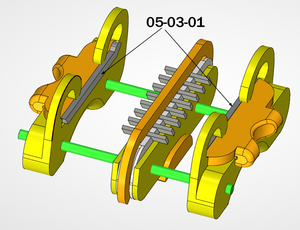

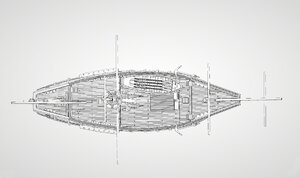

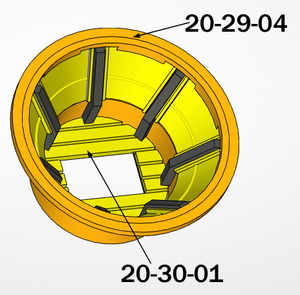

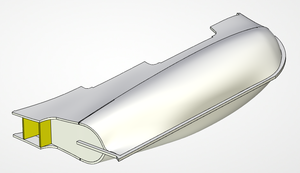

And, return to 3D design, here some pictures:

​



[Parus3D]

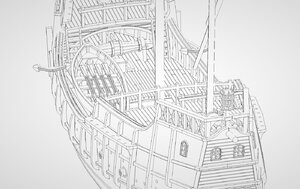

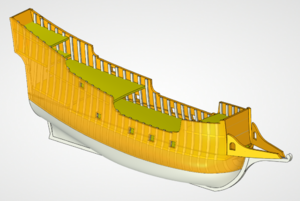

At present time I start to construct Golden Hind to 3D print.



[Parus3D]



[Kurt Konrath]

looking good, keep it up.



[Parus3D]



[Parus3D]



[Parus3D]

.



[Parus3D]



[Parus3D]

And modern warship:



[Parus3D]

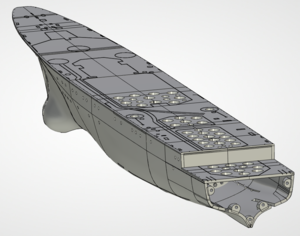

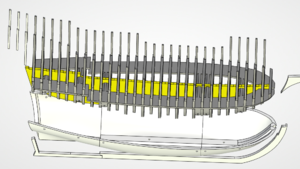

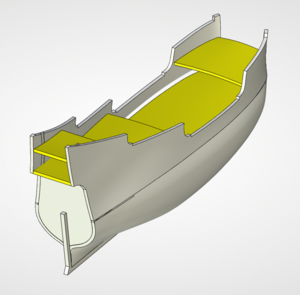

"Sevastopol" battleship



[Jimsky]

"Sevastopol" battleship

What about Sevastopol, Parus3D? Do you CAD this ship for a future build or you just CAD modeling?



[Parus3D]

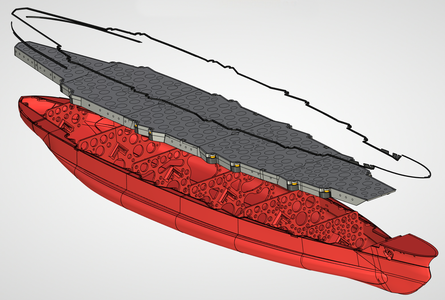

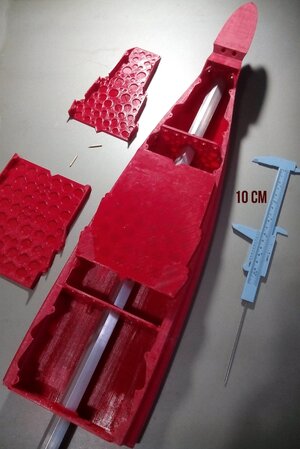

It was printed using this CAD model, length - 915 mm.:



[Jimsky]

Wow! Great results! Almost 1 meter long!!! What scale the hull is? 1:200?



[Parus3D]

Yes, 1:200. It is build for DeAgostini partwork.

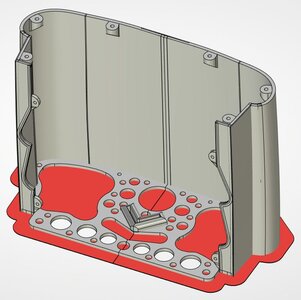

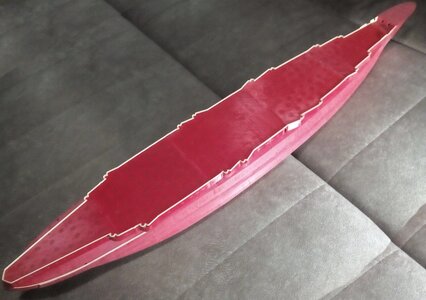

The hull has some afterprint deformations on the bottom side of sections 5-7. It can be easy repared by putty.
Inner structure of flat sections( at bottom) must be redesigned. Stiffeners must be added or double bottom.



[Parus3D]

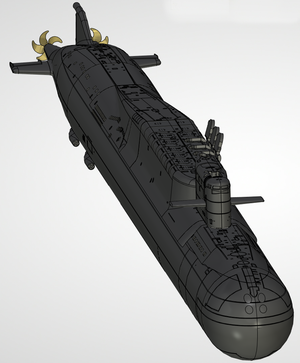

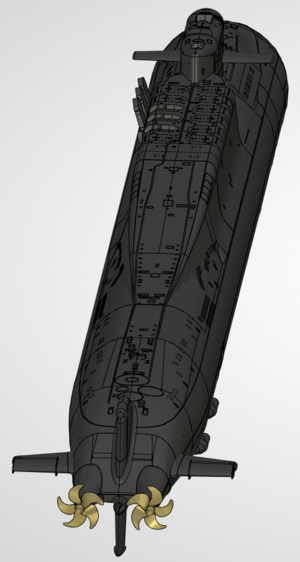

Delta IV Delfin submarine.



[Piroscaf]

Good program! I have been working in T-Flex CAD for 17 years.



[Parus3D]

And free for non-commercial use.
