USS Constitution 1:70 Scratch

mtbediz1 said:
My work on the bowsprit and jib boom continues. On the bowsprit, I cut notches where the iron bands and the gammoning rope will sit. For the gammoning, I decided to use rope instead of chain. Afterwards, I completed the fabrication and installation of the iron bands, chocks, and fairlead on the bowsprit, and finally painted it white.

I also finished the jib boom. First, I tapered a 5 mm round strip according to the plan’s dimensions. Using my milling machine, I shaped the aft section into an octagon, while the forward section was turned on the lathe as per the plan. At both ends, I applied my usual method to represent the sheaves. Additionally, I milled the underside of the aft octagonal section to match the plan, so that the jib boom can be secured onto the saddle on the bowsprit. Finally, I fabricated the jib boom saddle itself.

View attachment 569396

View attachment 569397

View attachment 569398

View attachment 569400

View attachment 569401

View attachment 569402

View attachment 569403

View attachment 569404

View attachment 569405

View attachment 569406

View attachment 569407

View attachment 569408

View attachment 569409

View attachment 569410

View attachment 569411

View attachment 569412

View attachment 569413

View attachment 569414

View attachment 569415

View attachment 569421

View attachment 569422

View attachment 569423
Click to expand...
So far your work continues to be mind blowing. Excellent precision and workmanship. Thumbsup

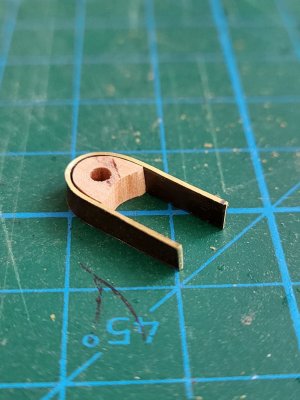

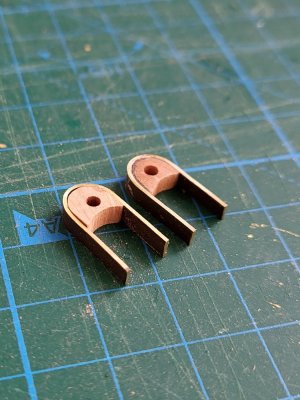

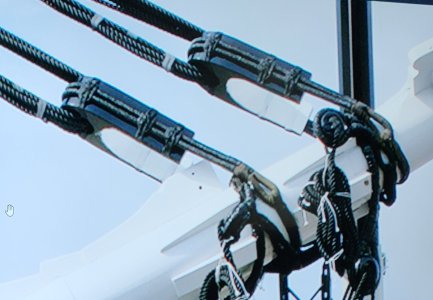

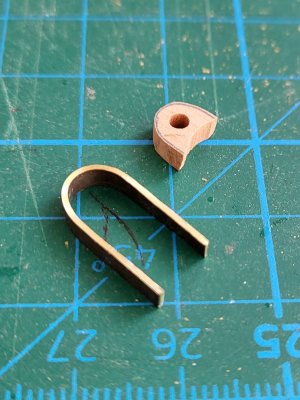

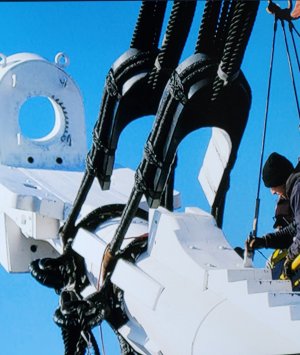

I’m currently working on the open hearts that connect the fore stays to the bowsprit, using photos of the actual ship as reference. At first, I tried making them entirely out of wood, but the side extensions were so thin that they kept breaking during construction. So I abandoned that approach and came up with a hybrid solution, which turned out really well.
This hybrid structure combines brass sheet and wood. Once the open hearts are painted white, the mix of materials is practically invisible—unless you look very closely with a magnifying glass.
:)

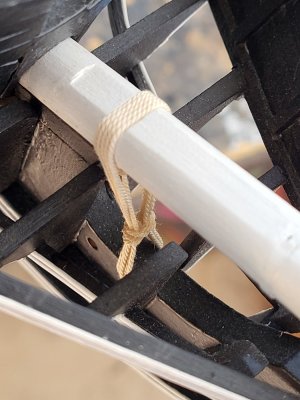

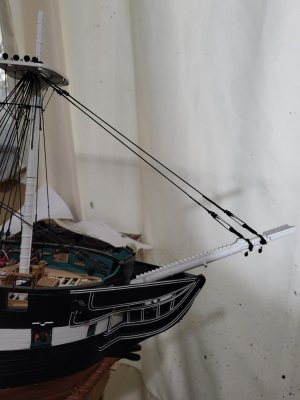

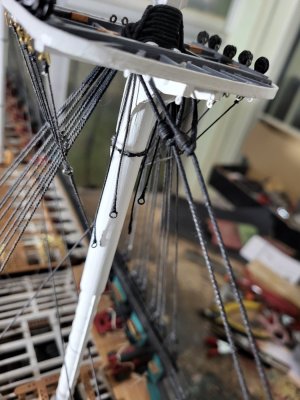

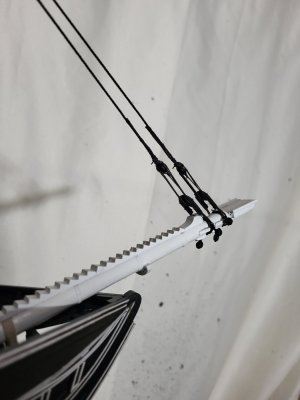

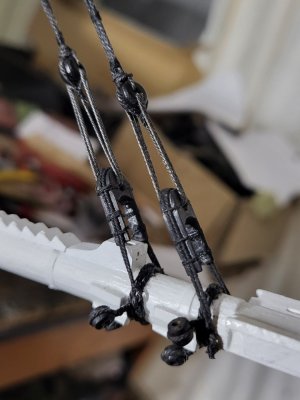

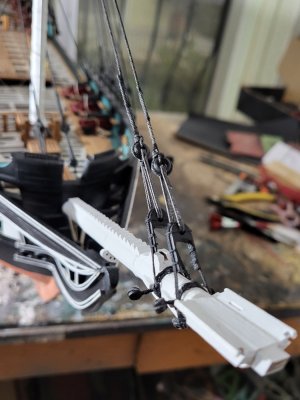

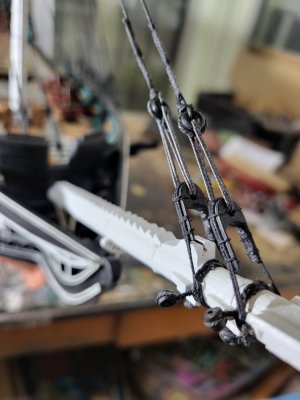

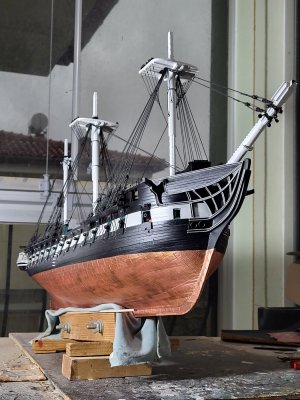

I’m back at the shipyard, continuing from where I left off. I’ve mounted the bowsprit in place and secured the gammoning. As mentioned earlier, I decided to use rope instead of chain. After that, I glued the steps onto the bowsprit. Finally, I prepared the fore stays and connected them to the hearts on the bowsprit











mtbediz1 said:
I’m back at the shipyard, continuing from where I left off. I’ve mounted the bowsprit in place and secured the gammoning. As mentioned earlier, I decided to use rope instead of chain. After that, I glued the steps onto the bowsprit. Finally, I prepared the fore stays and connected them to the hearts on the bowsprit

View attachment 574261

View attachment 574262

View attachment 574263

View attachment 574264

View attachment 574265

View attachment 574266

View attachment 574267

View attachment 574268

View attachment 574269

View attachment 574270
Click to expand...
Looks amazing fantastic details, I'm starting my rigging but having a bit of trouble deciphering the drawings.
Tony

Tony H said:
Looks amazing fantastic details, I'm starting my rigging but having a bit of trouble deciphering the drawings.
Tony
Click to expand...
Thanks Tony. Since I have already rigged a few ship models before, I don’t find it very difficult, as the rigging systems are quite similar to each other.
