X, Y Milling table use

[Philski]

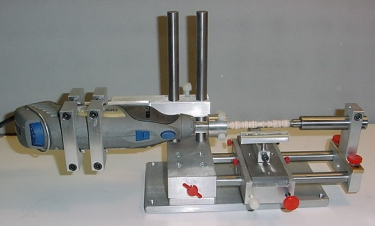

Truth be told, that sounds like what you need isn't an X-Y table, so much as a lathe with a decent taper attachment (or a tailstock that you can move from side to side, although that's a royal pain to set up.) Turn the round sections to the desired length and taper, leaving the sections to be squared standing proud. The take the spar and mill the flats as required. Actually, once you've turned the round tapered sections, you can work the flats with a decent hand plane very easily. You might want to mount a plate or piece of wood to the side of your plane to ensure 90-degree angles, or whatever other angle you desire.

If you have access to a machinist's lathe with a #2 Morse taper in the tailstock, the below offsetting taper turning device is worth its weight in gold: https://www.ebay.com/itm/176398188759 About $70.00 on eBay.

View attachment 520756

They have these attachments on Amazon at varying prices.



[Jim Fortnam]

I have a lot of 3mm and 4mm spars to make in addition to 6.5mm masts.
The materials provided are 8.5mmdowels for the mast and 6mm for the spars.
I want to milk these close to size.
Some of the masts have squared ends and some spars have to be octagonal in the centers.

That’d a really good task to add some accuracy into.

But in those sizes, and tapered, it’s a big ask.

However, it’s an everyday requirement when making, say, fly fishing rods, so why not adapt that type of solution?

First off, find or allocate a No60 ½ block plane, look for a decent old one, made by Stanley or Record or another good maker. If you have milling machine, mill a lengthwise V groove the length of the sole using a cutter canted 45 degrees or your choice of alternative, such as mounting the plane on the crossslide and the cutter in the lathe chuck.

You now have a plane which will self guide itself down the length of a spar producing an even chamfer. By starting with a square section you can easily make it octagonal in 4 passes.

Now we deal with the taper.

Imagine a long open topped box, with the sides adjustable so that they can move to be narrower at one end than the other. That’s what we need. The top, inner corners, are chamfered enough to allow a spar blank to sit there. A stop is an across the far end.
Place your blank in the adjustable groove, and open one end enough to let the spar sit down at its narrow end.

Run your plane along it. It will stop cutting when it has done enough. Turn the spar and repeat until happy.

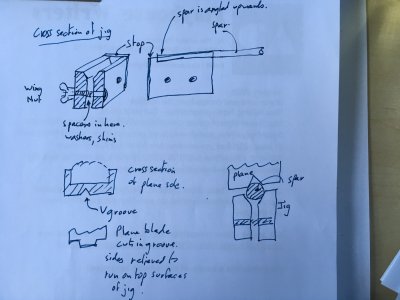

Here, I’ll try sketching it.


The jig portion is held in a vice on the workbench. Adjust with shims until the degree of spar material you need to remove is showing. then use your grooved plane to remove the excess. Because the spar is supported along its full length, it should be distortion free. Your plane blade will be about surgically sharp, using the ScarSharp method or whatever, and if set for a light cut, should manage against any grain run out.

I have a device of this type on a much larger scale, and this is on the list of items to make once the masts are in place.

Apologies for the poor quality sketch. I'm around for further questions.

Jim



[Ted Robinson]

They have these attachments on Amazon at varying prices.

I would love to get a lathe, milling machine and sander but don't have the room.
I gave up my second bedroom, where I was setting up shop, to my handicapped step daughter who was struggling living on her own. I now work off a table in my bedroom since I was banished from the living room by the Commendant and her Lieutenant. That's a joke.

That’d a really good task to add some accuracy into.

But in those sizes, and tapered, it’s a big ask.

However, it’s an everyday requirement when making, say, fly fishing rods, so why not adapt that type of solution?

First off, find or allocate a No60 ½ block plane, look for a decent old one, made by Stanley or Record or another good maker. If you have milling machine, mill a lengthwise V groove the length of the sole using a cutter canted 45 degrees or your choice of alternative, such as mounting the plane on the crossslide and the cutter in the lathe chuck.

You now have a plane which will self guide itself down the length of a spar producing an even chamfer. By starting with a square section you can easily make it octagonal in 4 passes.

Now we deal with the taper.

Imagine a long open topped box, with the sides adjustable so that they can move to be narrower at one end than the other. That’s what we need. The top, inner corners, are chamfered enough to allow a spar blank to sit there. A stop is an across the far end.
Place your blank in the adjustable groove, and open one end enough to let the spar sit down at its narrow end.

Run your plane along it. It will stop cutting when it has done enough. Turn the spar and repeat until happy.

Here, I’ll try sketching it.

View attachment 520889
The jig portion is held in a vice on the workbench. Adjust with shims until the degree of spar material you need to remove is showing. then use your grooved plane to remove the excess. Because the spar is supported along its full length, it should be distortion free. Your plane blade will be about surgically sharp, using the ScarSharp method or whatever, and if set for a light cut, should manage against any grain run out.

I have a device of this type on a much larger scale, and this is on the list of items to make once the masts are in place.

Apologies for the poor quality sketch. I'm around for further questions.

Jim

Thank you for the details. I'm going to get some wood t make a v groove first



[Jim Fortnam]

My daughter is disabled. I understand your situation.

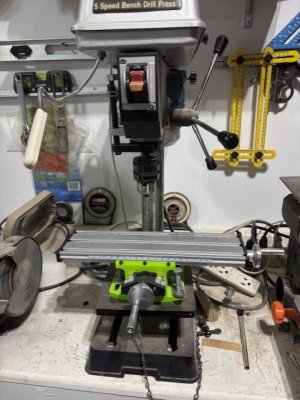

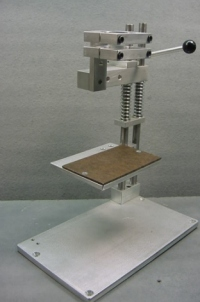

So the compound table is going to do duty as an accurate vice? Right, we're off and running. Roger was correct in talking about V blocks. What I was trying to describe was in effect an elongated V block, equipped with the means of altering it to widen the fee at one end. By guiding a sharp plane along the horizontal, you have a taper.
Alternatively scratch stocks could be your friends here. using a profile of about a 1/3 circle, they can refine small material into being circular, though a bit fiddly. Back to the elongated v block - equipped with a sacrificial top running surface (PTFE tape might work) you can produce the tapper you need.

Only you can say how accurate you want the dimensions to be. The naked eye isn't too good at distinguishing between a scale 12" diameter or 18" diameter at the end of a spar, as long as it looks thinner than the centre.


J
