HMS Enterprize 1774 by arban007

AllanKP69 said:
Love those clamps!!! Your teacher did you a huge favor. I learned about these from master shipwright, author, and friend Ed Tosti when he gave me a couple many years ago. They are easy to make and really work well.

Allan
Click to expand...
FWIW, very similar clamps are available commercially, not particularly expensive.I have used them for a while. Have to remember where I sourced them but the bolts fit between most frames, mandatory for outside planks IMHO.

Tim

TRS7139 said:
FWIW, very similar clamps are available commercially, not particularly expensive.I have used them for a while. Have to remember where I sourced them but the bolts fit between most frames, mandatory for outside planks IMHO.

Tim
Click to expand...
Where are they available at? :)

Corsair said:
Where are they available at? :)
Click to expand...
ZHL model, China.
Shipping was fairly quick.
I also have their “scrapers” which have multiple shapes to make moldings.
They work pretty good, harder the wood, better they work, i.e. boxwood
ideal.
Tim

Thank you. Your joinery is absolutely beautiful !
I'm almost at that same point. I'll probably install the last piece of the Keelson today. :)

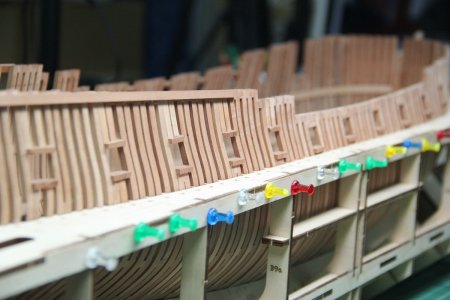

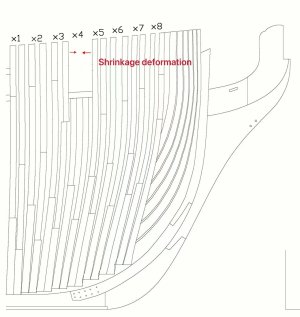

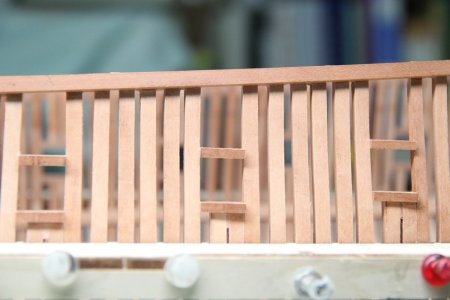

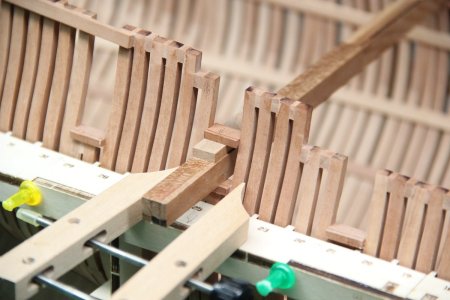

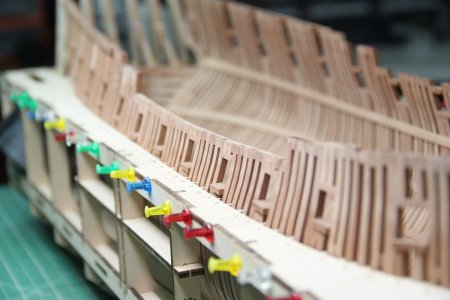

While preparing to attach the third layer of side beams, I suddenly noticed that the gunports had warped upward due to stress. The stern section, protected by reinforcing strips, was relatively unaffected, but the gunports at the bow and along the hull were significantly deformed. Therefore, I temporarily decided to prioritize adjusting the gunports this week！23-1.jpg23-2_副本.jpg23-3_副本.jpg23-4_副本.jpg23-5_副本.jpg

Catching up on you build. Very nice and superb execution a pleasure to watch. I have the 1:96 version but have not started yet. Gaining POF experience with the bluenose first.

arban007 said:
While preparing to attach the third layer of side beams, I suddenly noticed that the gunports had warped upward due to stress. The stern section, protected by reinforcing strips, was relatively unaffected, but the gunports at the bow and along the hull were significantly deformed. Therefore, I temporarily decided to prioritize adjusting the gunports this week！View attachment 564779View attachment 564780View attachment 564781View attachment 564782View attachment 564783
Click to expand...
Just a hint from me regarding the Inner planking below the Thick Stuff on 11 (10 inner)
I find it stops the Hanging Knees butting up against the Frames
It would be intereting how you get around this
So Clean

arban007 said:
While preparing to attach the third layer of side beams, I suddenly noticed that the gunports had warped upward due to stress. The stern section, protected by reinforcing strips, was relatively unaffected, but the gunports at the bow and along the hull were significantly deformed. Therefore, I temporarily decided to prioritize adjusting the gunports this week！View attachment 564779View attachment 564780View attachment 564781View attachment 564782View attachment 564783
Click to expand...
Fabulously crafted. Just wow. Cheers Grant
