18 Inch Sharpie Practicum

Joined
Oct 19, 2018
Messages
175
Points
143

Location
Pawley's Island, SC

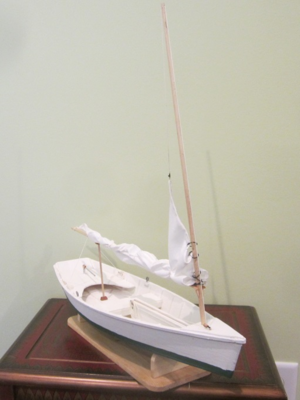

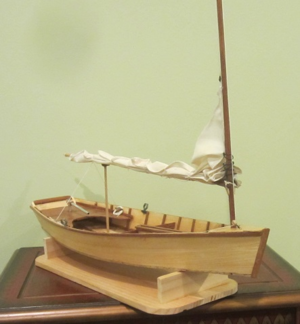

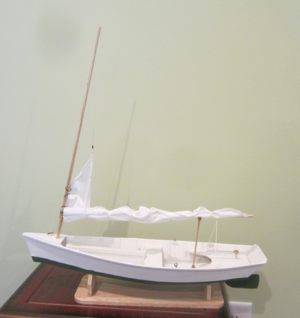

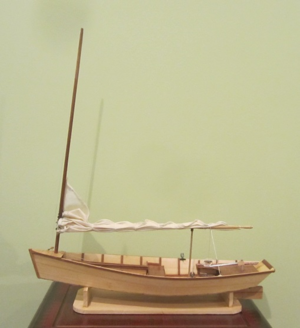

Some of you may remember my build log on building the 18 Inch Sharpie. Doc Blake and I got together and have developed this practicum for building a model of it. It is jammed packed with photos and instructions. Here are some photos of the completed models built from the practicum:

Hope you like the model and instructions for building it. If you build it, let us see you completed model. Be sure and post any questions you may have.





Attachments

  • 18 Inch Sharpie 3-14-1.pdf
    4.7 MB · Views: 72
Joined
Sep 9, 2017
Messages
355
Points
238

Location
Fredericksburg, VA
Awesome! I really like doing these type builds as a welcome break from the complexity of three masted double deckers with eight thousand rat line knots! :) Thanks!

Joined
Jan 24, 2015
Messages
2,167
Points
538

Location
Pewaukee, Wisconsin
Bill: looking at the plans, both of the scale model and the original, I make the bevel angle between the transom and the sides at about 15-20 degrees. Is that correct? Can you check on your model with a protractor? Thanks!

Joined
Jul 2, 2020
Messages
2,196
Points
488

Location
Eugene, Oregon
Some of you may remember my build log on building the 18 Inch Sharpie. Doc Blake and I got together and have developed this practicum for building a model of it. It is jammed packed with photos and instructions. Here are some photos of the completed models built from the practicum:

Hope you like the model and instructions for building it. If you build it, let us see you completed model. Be sure and post any questions you may have.

View attachment 220751

View attachment 220752

View attachment 220753
View attachment 220754
Well done practicum for this Sharpie. Thanks for your joint time. Rich

Joined
Oct 19, 2018
Messages
175
Points
143

Location
Pawley's Island, SC
Bill: looking at the plans, both of the scale model and the original, I make the bevel angle between the transom and the sides at about 15-20 degrees. Is that correct? Can you check on your model with a protractor? Thanks!
Doc,
My first model is right on 15 degrees and the second is somewhere around 13 degrees. Does that help?

Bill...

Joined
Aug 21, 2019
Messages
385
Points
323

Seems like a labour of love. A good "in between" project or something for a not-so newbie

Joined
Jul 2, 2020
Messages
2,196
Points
488

Location
Eugene, Oregon
Seems like a labour of love. A good "in between" project or something for a not-so newbie
Another learning/practice type can be found in the strip canoe group for the 19 and 17 inch strip canoes which were my starting point in learning how to lay down those strips and close them off on the bottom which was needed for my Bluenose deck planking. I did both sizes and benefited greatly. Just an idea. Rich (PT-2)
