Hello friends,

to get a progress with my craft working skills (NOT kills!!!) I decided to restart my whaling ship's project I started in early 2019.


Some told me not to do the third step before the first so I redraw to a smaller simpler project of less complexity. It is an us-American whaler of Provincetown from the year 1855 (Sorry for this correct is the year 1853!). Not ot too much is known about her I did got some information from the Provincetown libary about several of her journeys. Till now I was unable to research the owner's company flag or colours.

A Whaler of this time is a first fish industrial gfactory on sea. At this time nearly the half of the sighted whales escaped an d a quater to one third of their hunters were killed. So it was pretty fair battle.


Our sources are very simple as these are two:
Howard Irving Chapelle
American Fishing Schooners p.80. She appears in this book as she is relatived to the Grand Banks Schooners.

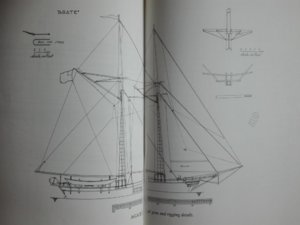

Chapelle gives a fine set of drawings to us - telling us she was built for whaling especially. Traditionally she was the last vessel of large size (Lpp 74"-10' 1/2) built at Essex/Mass. built from local white oak and pine.

The second source is also a book... the wellknown
V.R.Grimwood tells us in American shipmodels and how to build them
some quite simpler drawing - but added some details
and stem decor to us

plus details of the galion. There are added

deck features and some basic details.

I managed to glue the centerboard's plan onto a 4mms plywood - and I managed to explore it again in the workshop.

here the bulkheads...


Here the frames plan from after...


from the front bulkheads.

Here the galley an the plan by Howard I. Chapelle.

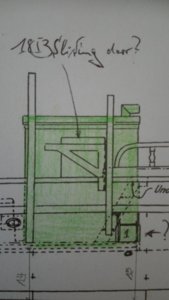

Here my drawing of the galley's sliding door ... taken from photographs collected by Church's famous book.


Here my drawing of the galley.

a closer look to the details of the galley. IMG-20190719-WA0041.thumb.jpeg.794f034ac04347d7786ab7056b4cd2c1.jpeg

my idea of the galleys wall. IMG-20190719-WA0030.thumb.jpeg.8cdabfc9763c2237c6a6b0b7f42f0ced.jpeg

And the top galley's framing scaled in millimeters for 1/64.


So for the detailled build of the whaling boats I do have bought this interesting book - as I am always better in theory than craftmansship...

Here my trial in 1/48 and 1/64...


in 1/64 does meet the shelf board with rigging...

...in 1/48 it is a more tight fit.

This is the situation (the Greenwood and the Chapelle's drawings clamped together) at the shelf itself; by the way
the "redly" tanned sails are wrong and only for European ships - the American cotton was cheap and so sails were white on the ships.

(Now I have to get the drawings from my archiv - but that has moved its position in the shipyard and the documents were spread over several strage boxes... :confused: )

Hope you like this little fit for better results - project.

Last edited:
Joined
Sep 17, 2018
Messages
259
Points
238

Location
Berlin/Germany
The Model Shipwright N°92 of June 1992 came to me with an article by

Peter Rogers about his 1/30 RC-Model of AGATE starting at p.8 and at p.28 a nice Bedford Beetle Whaleboat at 1/24 gives additivly to the Ronnberg (kit's booklet to the 1/16 whalingboat) information about the detailing.

Joined
Sep 17, 2018
Messages
259
Points
238

Location
Berlin/Germany
Here my major sources:

On the (up)left;) we have got:


So I am prepared by literature for the building of the boats, too. The paintings do give some very nice references.
Plus the well kown Timeline Series Book

s-l300 (1).jpg
"Whailing" giving a low tier starting point to my wife, who is interested in building AGATE,* too... :)
So I am going to get a backup by moral sewing and she gifted me a pet in form of a first prey:
So let's go to the dusty inside of my archiv - pick out those plan set - making that reboot!
________
*her book is the German translation.

Last edited:
Joined
Sep 17, 2018
Messages
259
Points
238

Location
Berlin/Germany
And so elsome hours later I did managed to figure out hiw to be able to find the
prototype for the bulkheads in 1/64 and a complet enlarged set of copies in 1/48...

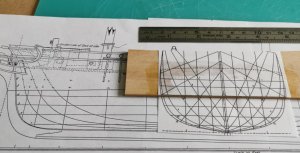

But also the original frostpaper drawing and my "SOS-steel lineal" (imperial and metric gauge) reappeared.

So we have collected all we ne for the start (and I do have now to walk calmly to my copyshop to multiplicate the bulkheads drawings).

I have to recognize that proper archivation really isn't my top skill, too.

See you later!

Last edited:
Joined
Sep 17, 2018
Messages
259
Points
238

Location
Berlin/Germany

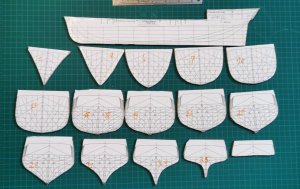

Cutting out the bulkheads copies and

gluing them on to 4mms thick beechwood ply boards was the last step for today and till next week.

Here some very much less spectacular transom than those I dealed with before.

Take care of you and enjoy your weekend.

Last edited:
Joined
Sep 17, 2018
Messages
259
Points
238

Location
Berlin/Germany

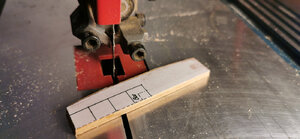

THE BANDSAW

Today I tested my band saw - and had to figure out how the hell to fit in a new sawing band into the machine...

and in what direction? The last time I did it was 34 years ago :eek:


So I am very happy with the result as the band saw ist more accurate and doesn't swing and shake so much as the electric jigsaw so - here todays output.

THE DECK'S LNE

Due to the fact that I am unshure how to constuct the deck I did not cut my reference-line gone & away as I am unshure how thick the deck will be. I have got a good pile of marpel vaneer. The thickness is 0,7mm but I still think about the underconstruction of the deck - what thickness of the plywood is best? And certainly I am still dreaming of an open staircase for a bit of a view downwards.

SHIPYARDS'S OUTPUT

But the result is amazingly fine when trying to cut ON the line - I am pleased with the result very much.

so there is not too much to sand away.

In the curve I did left some wood as a sanding additive.

I have got the Proxxon UHZ at ebay and
want to construct a miniature table and a kind of drum sander with my Proxxon hand drill. Has any body of you build something like this and has still got the drawing of the construction?

Thanks for the likes and your tolerance it really helps me out of my darkgrey times...

Last edited:
Joined
Sep 17, 2018
Messages
259
Points
238

Location
Berlin/Germany
Hello friends,

here some news about the recent progress from the band saw:

Wonderfull machine but lagging an arm problem....

SHORT ARMS

Do you guess why???


Due to the length of the centerboard :oops:
of 370mm* I do run in troubles... *
So I decided to spray the backside black precut the lines on the Proxxon small table saw and

"Let's krack on!" (Thanks to Charly Bishop from Chadwick learning me moddrn English!)

DECK'S RULER
Now I have to build a decks curve ruler to saw out the decks line what is only drawn in until the main frame... after this it dissapieared...

So I decided to pick up Nigel's idea and build it from scrap piece of cut off.

And to work more precicely I used water line N°4 as my lower point of reference. I do get by this the other side of my "decks ruler" I have to take allways a refrence to the distance +/- to this walerline



Here you can see the clear wet parts from using Uhu to fix and getting a hardened surface.

And before the 2nd sanding I think I will "dipp" ;) the curved part into superglue to give it some extra hard surface - hopefully.

Now I have to wait for the glue to go**...

________
*At TONNANT/SAINT PHILIPPE the centerboard is about 830mm!!! I have no idea how to deal with this - so it was a good idea to stop and start some smaller model in the same scale I start to think more and more.
**Interstingly nobody ever told me*** where the glue is going to... Do you know?
***...there is also the very unanserwed question:
"How many pints are in a nautical mile?"

Last edited:
Joined
Sep 17, 2018
Messages
259
Points
238

Location
Berlin/Germany
Here the next step from the decks ruler:

Sanding on the disk sander is the lower line the upper line is done with 600 grain sanding paper by hand.

Praise the handcrafted work!IMG-20200430-WA0029.jpeg
Freshly dipped by superglue to get some more egalitarian surcace.

Joined
Sep 17, 2018
Messages
259
Points
238

Location
Berlin/Germany
1st STEPS WITH THE WHALING BOAT TRIO

Hello,

this evening I got the possibility to reduce my copies of the whaling boats for the ship - plans from Willits D. Ansel's book THE WHALEBOAT A Study of construction design and use from 1850 to 1970. As there will be three boats (a pair in the side davits ond on the beams over the transom). I decided to build one of them on a mould from cardboard or vaneer. As I have got no experience I was terrified by the idea to work on such tiny boats:

But I decided to use the drawing of the 28'8-3/4" restored whale boat from Mystic Seaport for several reasons...

So as the length of the whalingboats aboard is given by the author by 28ft - the nearly 3/4ft is a tolerance I hopefully can live with. But is this right to do so - as the bboat might have been called "29ft whalingboat"? As you are natural speakers what is sd our opinion due to the length of a boat?

The rigg will be a spritsail this example is from 1845 quite close to AGATE's birthday in 1855. So I will combine the most simple and oldest given sailing rigg with the best documented boat I was able to find. But is this correct from the historical point of view?

As in the collection of 8 plans within the beautyfull and vwry helpfull book it is the plan with a complete wooden plan - so I thought I couldn't go wrong with this, couldn't I?

Here the frames plan that looks quite identical fore and aft.

But there is one very irritating thing to think about...

THE SCALE QUESTION
I cut off the 1/64 scaled ruler from the very reliable plan of H. I. Chapelle of AGATE and I have got the spread sheet from Finescale modellers download site is telling me I would have to reduce the scale from the given 1'=1" or 1/12
down to 1/64 by using 18,7%. As the copying machine only reduces down to 25% I did reduce it down to 50% and than again to 37,4% - or with this machine 37%

and I had to admit the given boat does fit quite nice to the 1/64 side view. So it does looked well untill I did the Polish_20200430_222248400.jpg
scale ruler comparison and failed completly!!!

Has anybody any idea why the boats size does fit but not the scale rulers? So why do the ruler's measurements not going to match in any way?

What did I do so terrebly wrong?

Last edited:
Joined
Sep 17, 2018
Messages
259
Points
238

Location
Berlin/Germany
Hello as I am refitting the mast's slots I have to
figure out where the deck openings are


and how many degrees the fall of each mast has to be and what diameter is the the right one for each mast.


Here the pair of grooves for both masts. Daily target archived!

Todays surplus is told to me to be sanding in beautyful golden glitter:

And I am so happy!

The thickness of this nail sander is 4,0mm exactly as the grooves have to be. Sometimes Fortuna is our figurehead!

Last edited:
Joined
Sep 17, 2018
Messages
259
Points
238

Location
Berlin/Germany
Thanks for your interest and likes from all of you!

HIDDEN RULER

As my old decks shape "ruler" just wasn't as good as I wanted him he run away dissappeared and has hidden somewhere in my shipvyard's workshop so let's make a new & better one:

Joined
Sep 17, 2018
Messages
259
Points
238

Location
Berlin/Germany
Now it is time to apply the frame stoppers precisely:
so I can fix the steel ruler on the center board and glue the Stoppers onto it. In the middle you can see the very fist conter-stopper glued onto frame 31BELOW warerline N°4 (coloured in orange).

Here todays final output it will dry its way over the weekend and on monday we will look at the very result - hopefully.

As you have seen the WLn°4 is bent... so I corrected it by placing the steel ruler to get a straight line of stoppers. The stoppers are straight now - so the decksline will be a millimeter less low than drawn by Chapelle.

IMG-20200508-WA0052.jpegI hope Thisis the very result of this at the main frame. Due to the differences in the hight I hope and think I can handle this by sanding the decks line a bit more towards the main frame to come closer to a correct decksline.

What do you think?

P. S. :

I just couldn't withstand to do a first testfit.

Last edited:
Joined
Sep 17, 2018
Messages
259
Points
238

Location
Berlin/Germany
So here I am with the topic of the transom. There is a convex area bent 1,5mm in hight and with a edge of 64, 5° to the WL.


The area is between 23mm at the sides and 26mm in the middle high. On the top runs a beam 1,2mm high:

So the transom is a tricky bit of a part of the hull's construction.

I copied my technique from the whaling boat's frames to

fold the second half of the paper under the frames line...

...along the CL by scratching a groove into the paper...

...and cut the line of the frame out as exactly as I am able to do.

...the I glued it onto the beech plywood's fitting cutoff...

...cut off what wasn't needed...

...used the little additive wood for sanding machinery work...

...and got my upper horizontal transom's frame.

The lower frame had had to the curved in the very same way...

So I used the upper frame as a curved ruler, took the triangle of the lifting onto the other side and wasvby this able to copy my line from the portside in a second run...

... cut it off the paper and glued it on the same pice of cutoff and after doubling my same procedure from above I got the lower horizontal transom's frame.


Here we do see both frames together...

the length is right at the upper and the lower boardside and...

...also the curves do look quite parallel.

So I hopefully can put these parts aside to use them later on.

My idea is to fill them like a multi breadslips sandwitch with layers of softwood. So I want to sand this pile of wood with hardwood fames into shape. What I was affraid of disappeare immediadly when I calculated that the angle of inclination of the hull's sides will come into the construction by this sanding, too.

So I will get a solid "transom block" that will give the sides planking a good surface where they will be bond onto.

Are my ideas right or is there any error in my future's calculation. Or are there in this construction any mistakes I did not be aware of?

Last edited:
Joined
Sep 17, 2018
Messages
259
Points
238

Location
Berlin/Germany
Yes I did something absolutly braindead and completly wrong...

The upper frome is pircing the deck with the half of it's body. So I am in real trouble!

What is to do about this horrible mess?
