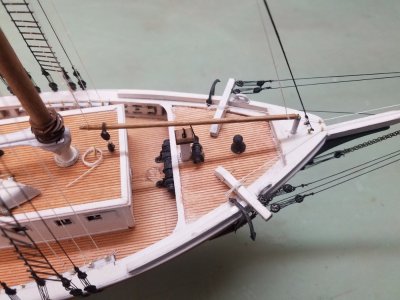

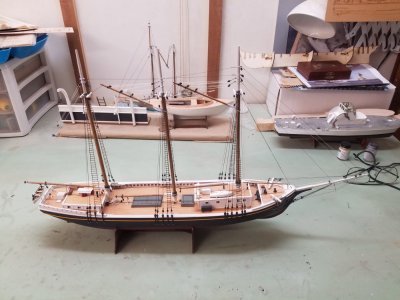

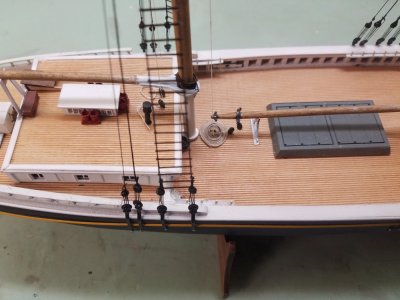

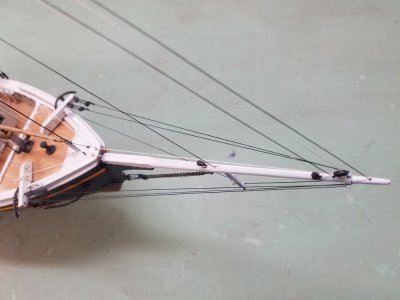

BlueJacket Shipcrafters West Coast Lumber Schooner kit

[alross2]

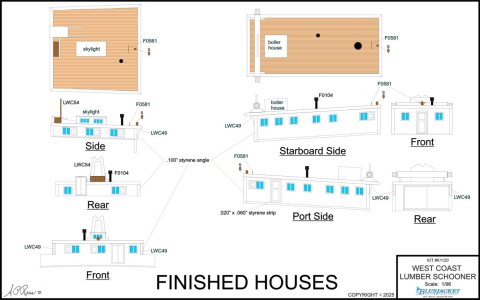

Plans #2. This will be followed by a standard set of side view/top view plans for both houses.



[alross2]

Third set of drawings completed. Have started the "sticks" plans and will probably have them done today.



[alross2]

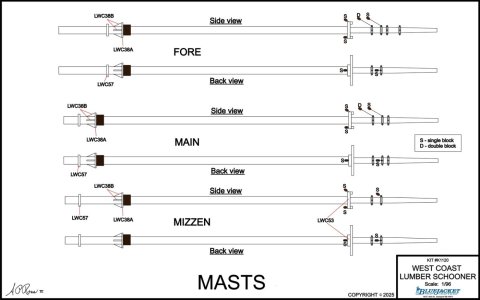

The "sticks".



[alross2]

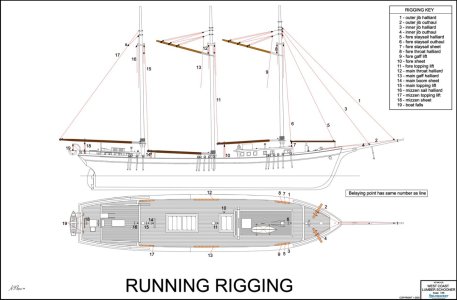

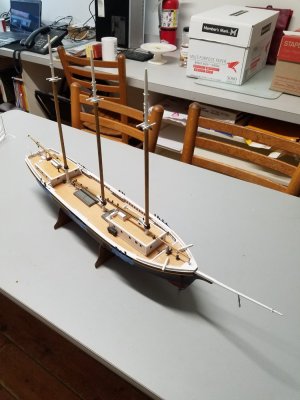

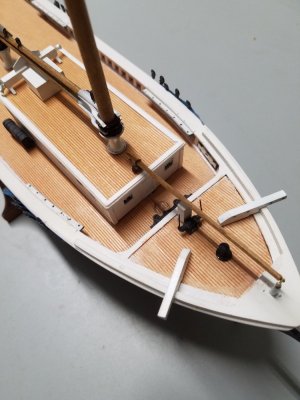

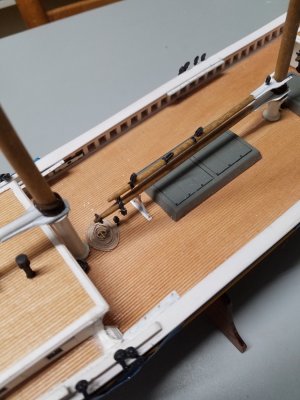

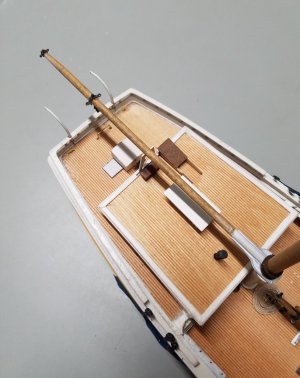

Guess it's time to start rigging.



[alross2]

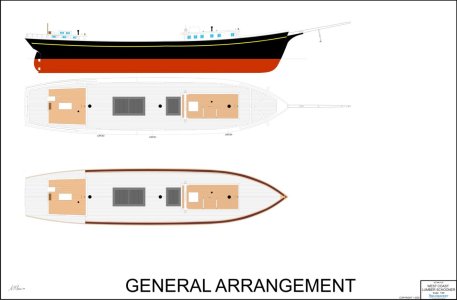

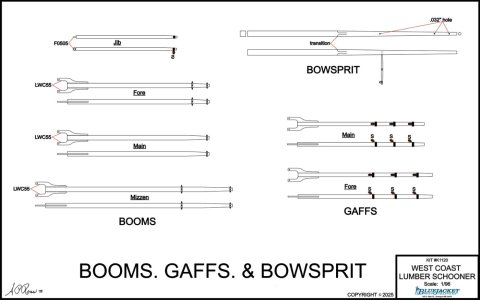

Some of today's drawings at reduced scale. They will be full size on the kit plans which will be 36" wide.



[alross2]

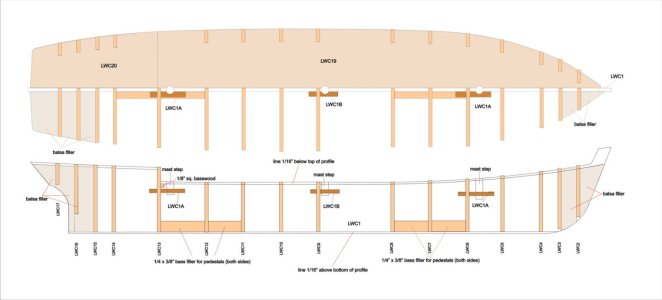

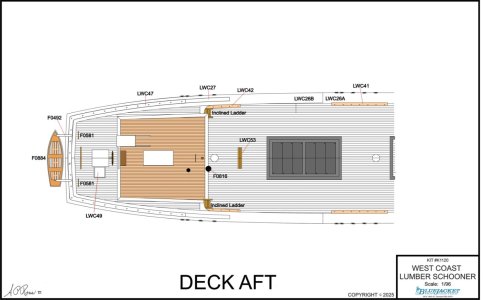

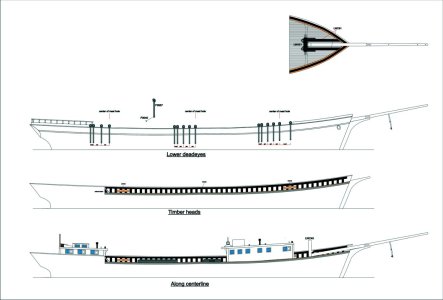

Added the top view of the framing. Port side just shows subdeck applied, starboard side shows actual framing, fillers, etc. I do like the ability to add color to the drawings to differentiate the parts.



[alross2]

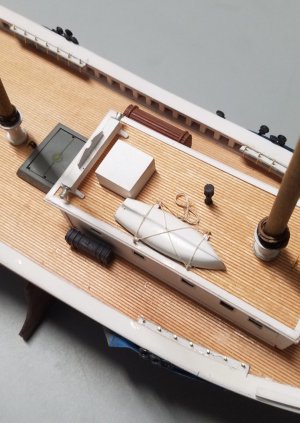

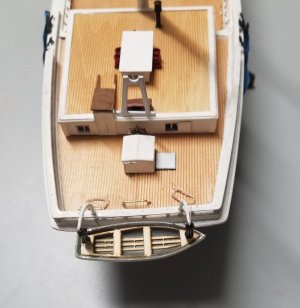

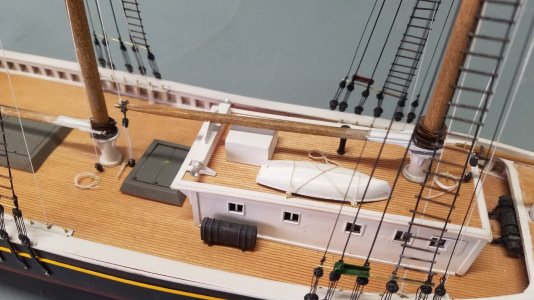

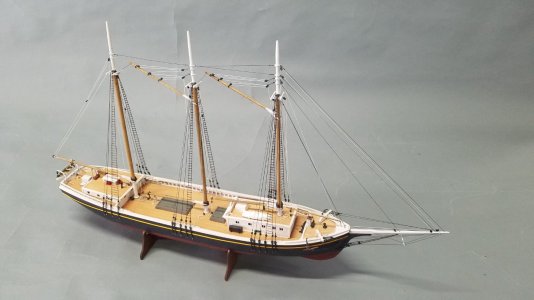

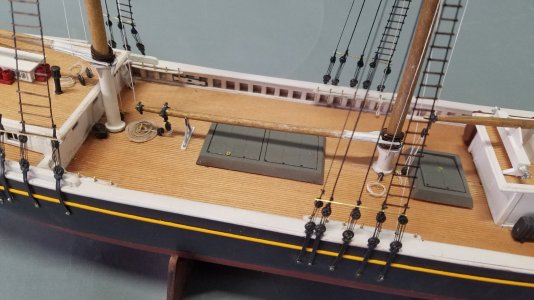

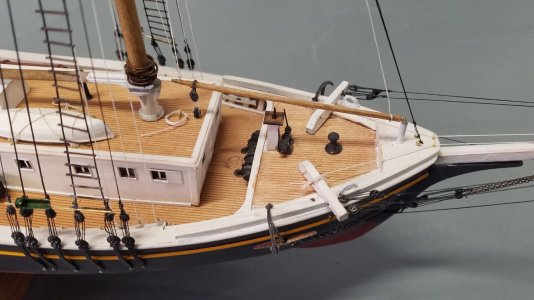

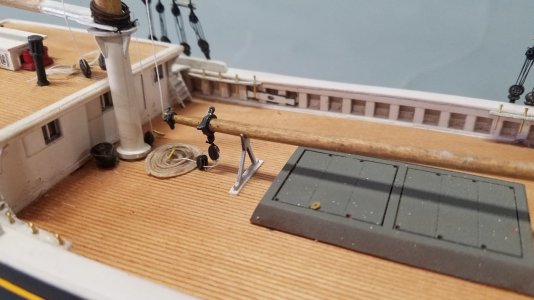

A few more details added. The boat on the davits has lasered floorboards and thwarts added and fire buckets have been placed around the skylight. Another boat with lashings has been added to the fore house roof.



[Roger Pellett]

Very nice Al. The ship’s boat hanging on davits from the stern actually looks like a schooner yawl boat, not the often kit supplied generic warship boat.

Well done

Roger



[alross2]

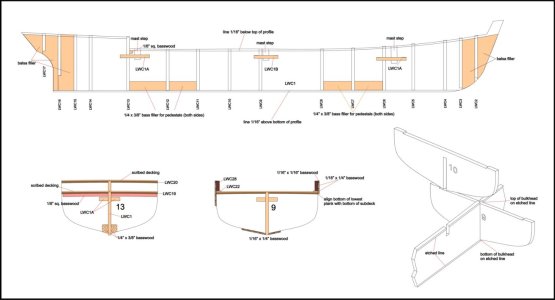

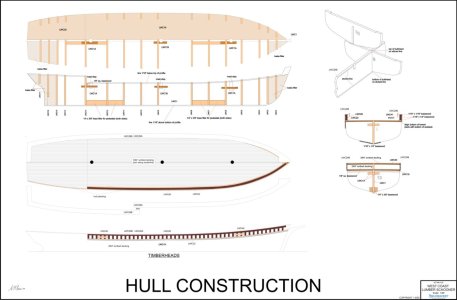

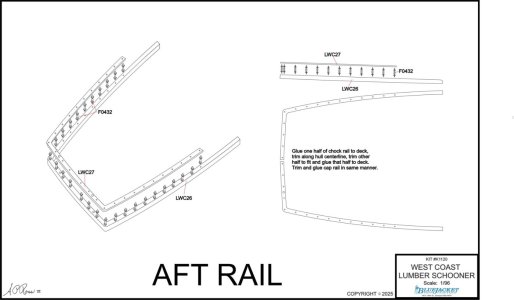

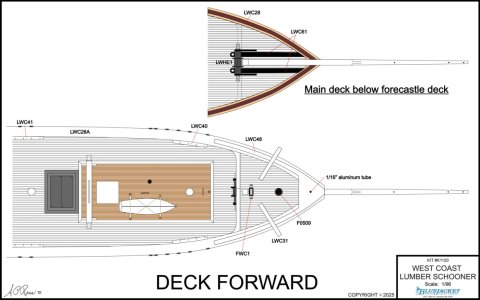

This week and next (at a minimum) will be spent drawing. I've been creating the plans by importing the laser drawings as a base which speeds up the process and also gives me another fit check. These two will probably be rearranged several times before they're done. These are the 24" x 36" sheets.
