Boston Schooner Harvey 1847 1:96

Joined
Jan 2, 2021
Messages
19
Points
48

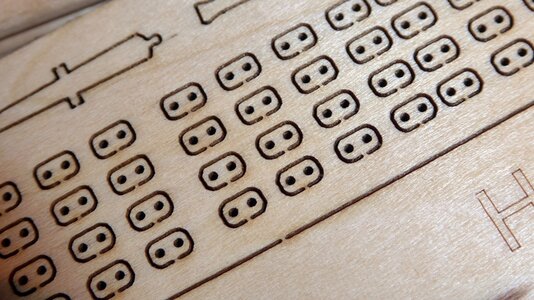

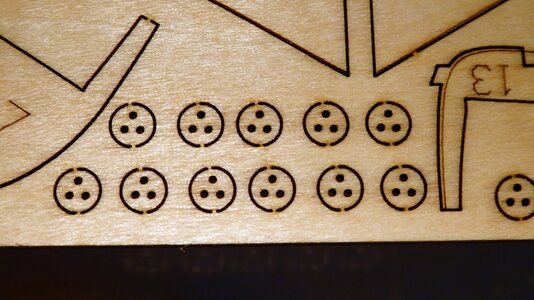

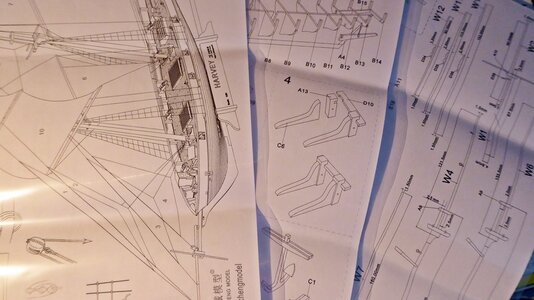

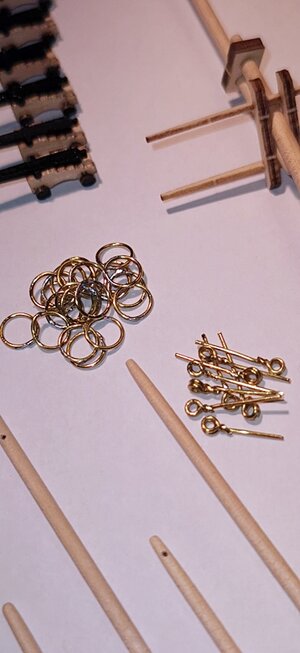

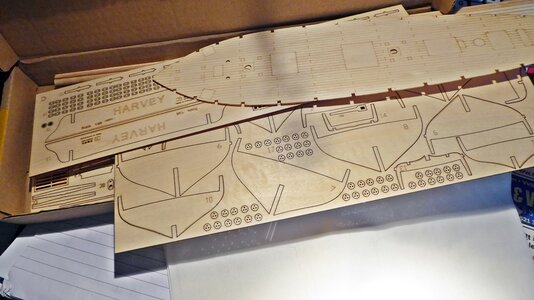

Today, the kit came from China. At first glance, everything seems fine. A big difference compared to before (Halcon 1840 1: 100). 6 pages instruction, pre-cut sails, Deadeye`s, single pulley´s etc. Gradually I will supplement with cannons, rings ect. I post my Build logs afterwards, but it may take the time it takes.

P1010003.JPGP1010004.JPGP1010005.JPGP1010007.JPG P1010006.JPG

Joined
Jan 2, 2021
Messages
19
Points
48

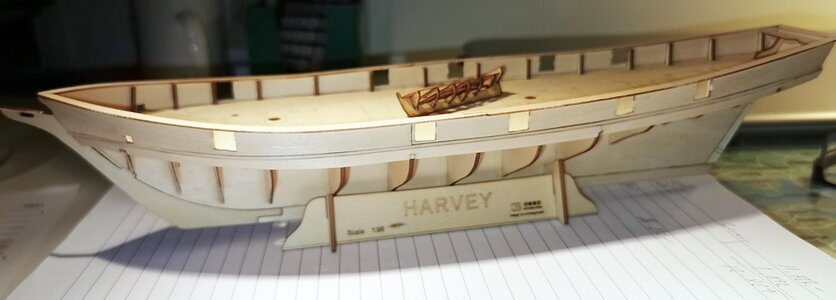

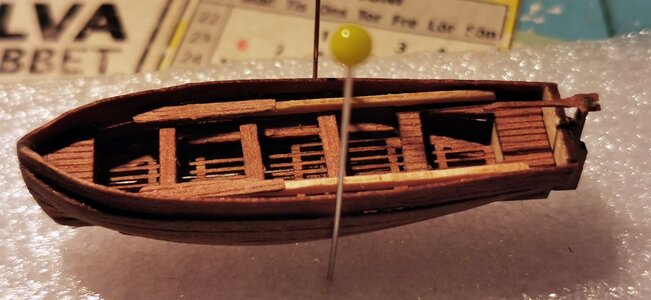

Then I got started a little bit. I take it easy and let the glue dry properly. The fit is not really 100% but it is still easy to fix. At the same time, I have started with the lifeboat, which is really a challenge. It is only 55 mm long and 15 mm wide.



Joined
Jan 2, 2021
Messages
19
Points
48

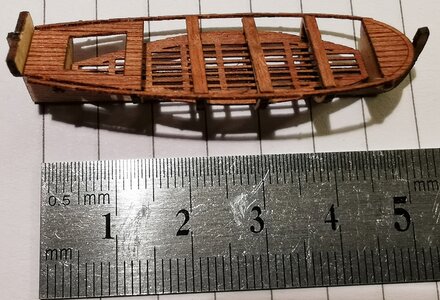

I have finally finished the lifeboat. I was afraid I would not be able to handle the leaf-thin details. Some broke but I was able to fix it with some glue. Now I have started with "planking" of the ship, but the lengths are too short so I have to splice. My first was cut diagonally but it might be easier to cut straight off. Anyone have a tip for splicing as nicely as possible?


Joined
Jan 2, 2021
Messages
19
Points
48

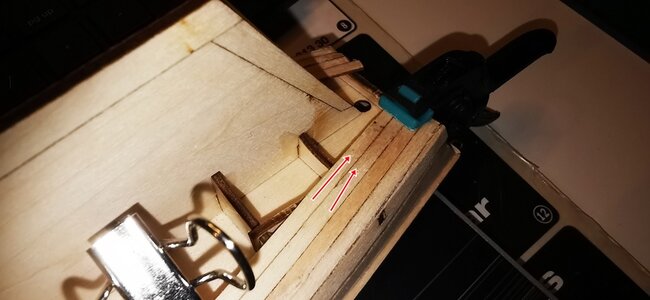

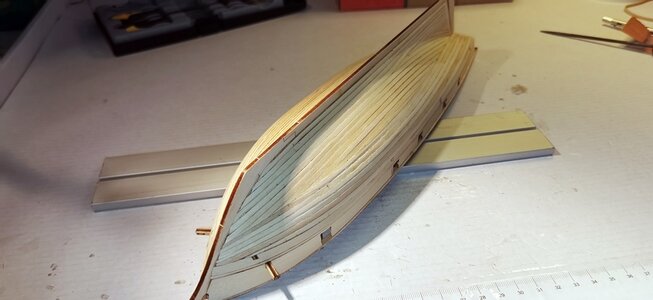

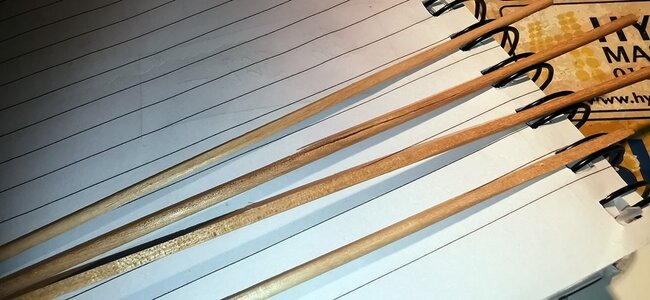

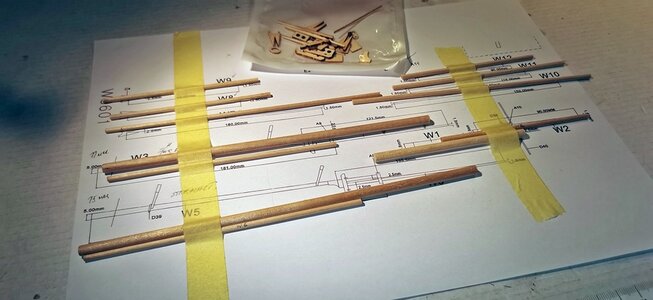

There is a bit of a problem with the quality of my kit. "plank´s" are too short so I have to splice. I have found a way to cut diagonally and extend the plank. See picture with the arrows pointing to the extension. Works well but is time consuming. During a review of the material in the kit, I found a number of sticks that are incorrect and broken.



Joined
Jan 2, 2021
Messages
19
Points
48

Hi "Pianoforte". Thank you for your compliment. Now I'm finally done with "planking". Sanding and some wood filling remains. I found an aluminum profile that fits exactly to the keel of the boat. It makes it easier when I have to work with the masts and rig. The boat is steady as a rock. Has started preparing for the masts with accessories. I have a bit of a problem with the heights of the "lower / upper" topsail yard, but I try to calculate the height ratio from the drawing and pictures.


Joined
Jan 2, 2021
Messages
19
Points
48

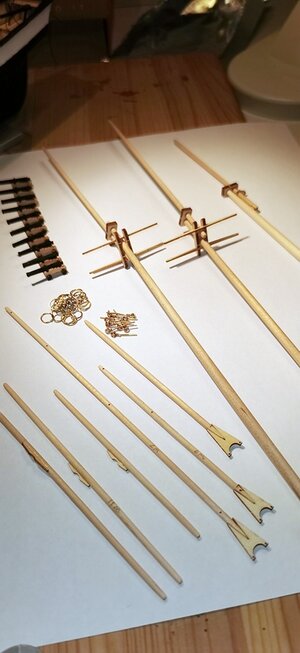

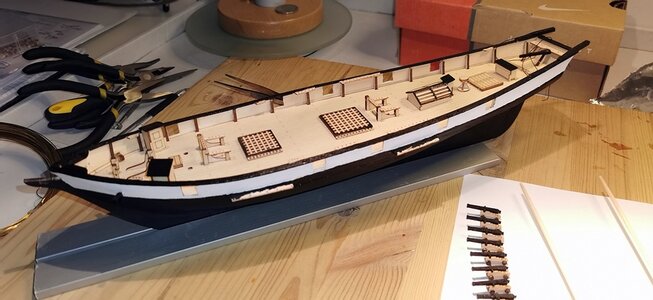

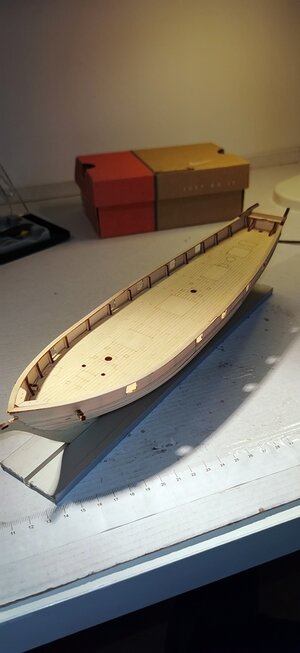

Ok now the hull is almost finished. It requires a little extra improvement here and there regarding the painting. Masts and Bowspritt are prepared and must be provided with holes and loops. I have made rings for the masts to be able to attach the sails and try to make loops for the masts.


Joined
Jan 2, 2021
Messages
19
Points
48

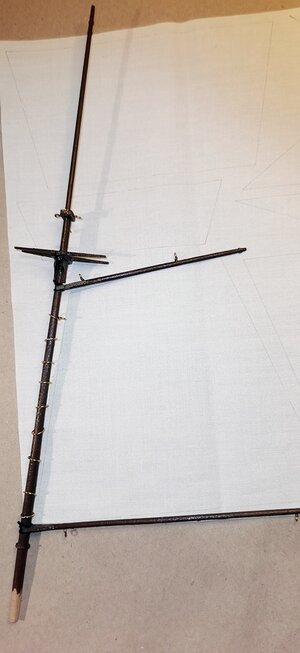

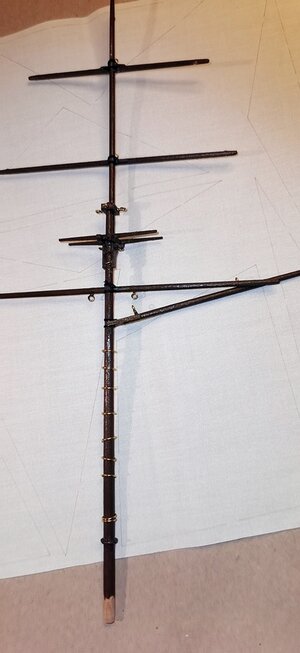

Has now worked with the masts and tested against the pre-cut sails. It was almost perfect (if you look very closely you can see the contours of the sails). If anyone sees and reads this I would be happy for tips on a good alternative for rig ropes. Have tried artificial fiber before, but the knots do not hold. Maybe cotton ropes are a better alternative.

IMG_20210214_165343.jpg IMG_20210214_165021.jpg

Joined
Jan 2, 2021
Messages
19
Points
48

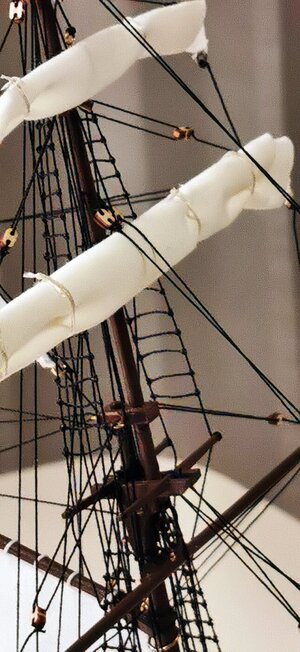

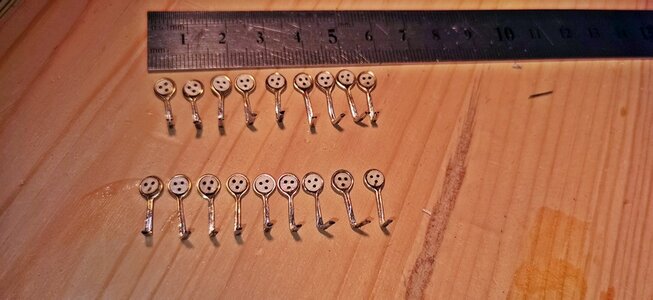

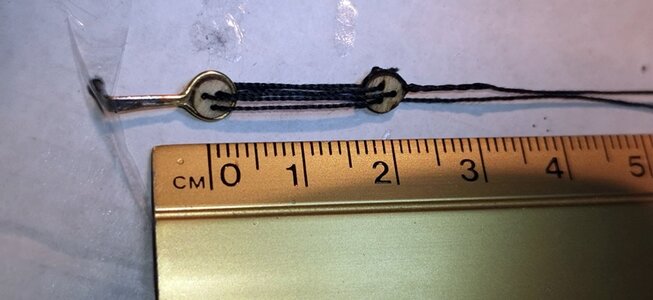

Has now worked with "Shrouds" and prepared those who will sit in the hull. It is not easy as they are only 4 mm in diameter. Now the equivalent is waiting to be fastened with ropes. I have tested and may be able to make it work if I have enough life time. I have to build a template that can attach Lower and Upper Shrouds and attach these in between which will then also continue to "Ratlines" In addition, I plan how to attach sails and rigs in the best way. The two large sails will be attached while the masts are loose. Then it is easier to fix the rig.


Joined
Jan 2, 2021
Messages
19
Points
48

Finally I have all Shrouds ready for assembly. Together 36 with 4 mm diameter and holes that are 0.5 mm. Now a template will be built where the assembly and tying "Ratlines". I make the whole line with Shrouds and ratlines in one piece before it is attached to the hull.



Joined
Jan 2, 2021
Messages
19
Points
48

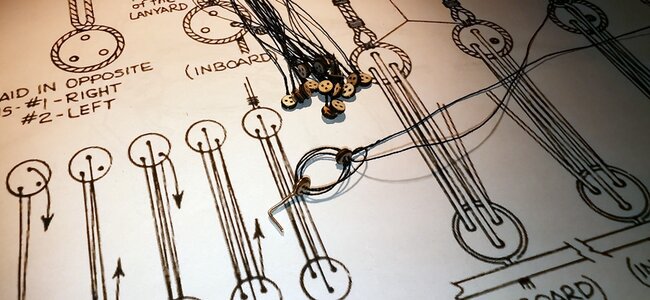

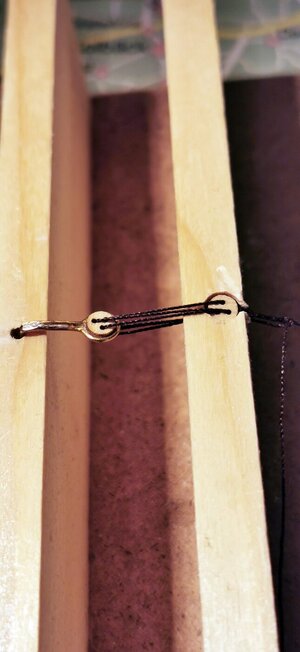

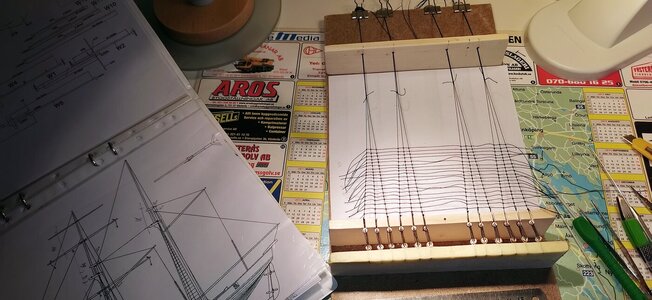

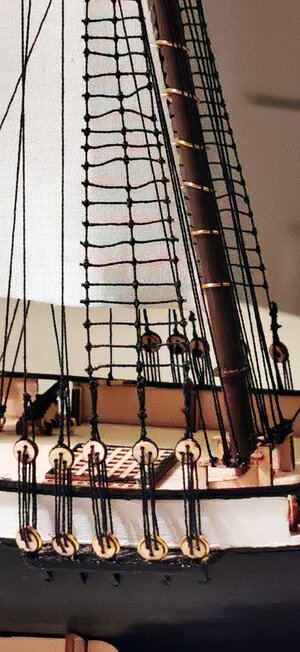

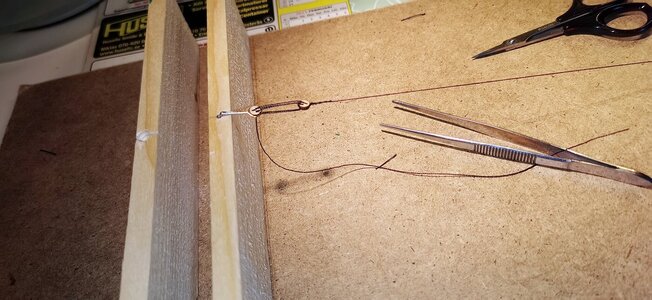

I made a template so I could make the whole package at once as it would not be possible to first mount "shrouds" and then run of the lanyard thru the Deadeyes and put together with ratlines. Now I could do everything in one. It also became quite easy to assemble.


Joined
Jan 2, 2021
Messages
19
Points
48

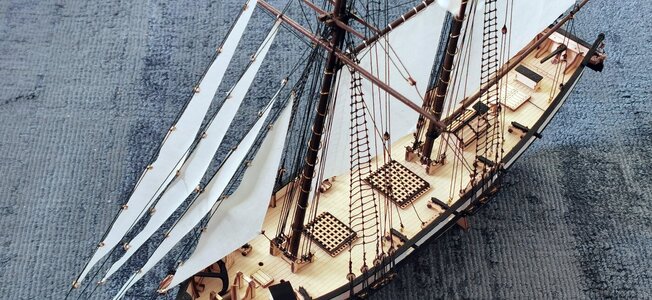

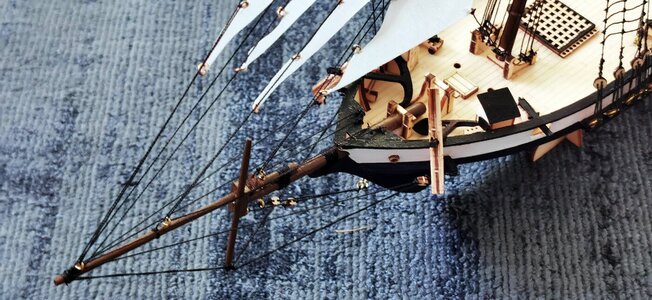

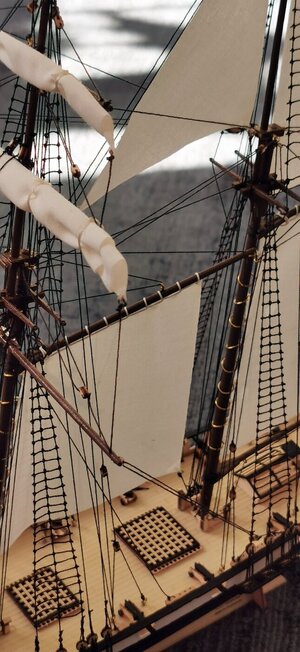

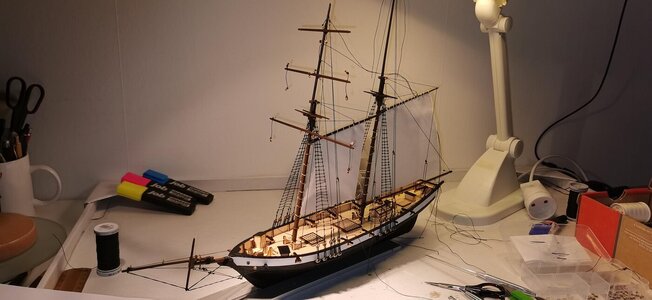

Now my Harvey 1847 scale 1:96 is almost finished. There are some adjustments here and there and that the anchor chain is missing. Will order if I find someone black under 2 mm. I hereby leave the project and thank you who have shown interest and encouraged me.
Goran Hoglund

210314.jpgIMG_20210325_122911.jpgIMG_20210325_122901.jpgIMG_20210325_122849.jpgIMG_20210325_122826.jpgIMG_20210325_122704.jpgIMG_20210324_193711.jpgIMG_20210324_193628.jpg


Jimsky

Administrator
Staff member
Administrator
Joined
Nov 3, 2018
Messages
7,158
Points
738

Location
Brooklyn, New York USA
Great idea to make ratlines, yet another useful jig! Many thanks for sharing!

BTW, Congrats on your model completion, Goran! Well...almost completion... ;)


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
17,215
Points
938

Location
Vienna, Austria
Today, the kit came from China. At first glance, everything seems fine. A big difference compared to before (Halcon 1840 1: 100). 6 pages instruction, pre-cut sails, Deadeye`s, single pulley´s etc. Gradually I will supplement with cannons, rings ect. I post my Build logs afterwards, but it may take the time it takes.

View attachment 204943View attachment 204944View attachment 204945View attachment 204947 View attachment 204946
Hallo @Gorhog
we wish you all the BEST and a HAPPY BIRTHDAY
Birthday-Cake

Joined
Apr 23, 2021
Messages
24
Points
48

Great job man.
I really love the result.
Your photos are a nice help for my build.

Joined
May 8, 2021
Messages
24
Points
48

There is a bit of a problem with the quality of my kit. "plank´s" are too short so I have to splice. I have found a way to cut diagonally and extend the plank. See picture with the arrows pointing to the extension. Works well but is time consuming. During a review of the material in the kit, I found a number of sticks that are incorrect and broken.

View attachment 209290

View attachment 209291
Excellent job on the splicing, I wouldn't have noticed only u said it.

Joined
Jan 2, 2021
Messages
19
Points
48

Thanks for the positive comments and thumbs up. After building my "Harvey" 1847 scale 1:96 finished, there was a very big difference on my first build a "Halcon" 1840 scale 1: 100, where there were many mistakes that I could correct on my Harvey. The Halcon kit had no information about mast lengths, sail sizes or rigs, so it turned out as it did. In the end, I decided to cut everything above the hull and rebuild. I had to drill out of the masts and remove a number of details (some broke but I managed to fix most of the parts). The masts and rig became completely new. The masts with details are made of residues from the two ships. The sail is an old washed-out T-skirt. So it was a few more weeks of boat building. Now it's soon summer and we are Corona vaccinated so now it's other interests that apply. I have started thinking about what I could build in the coming autumn and winter.

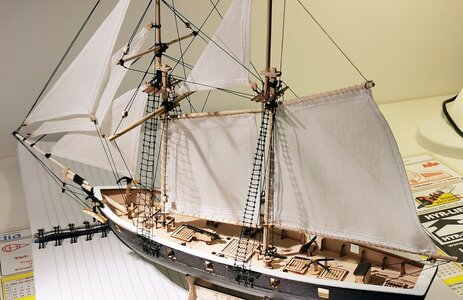

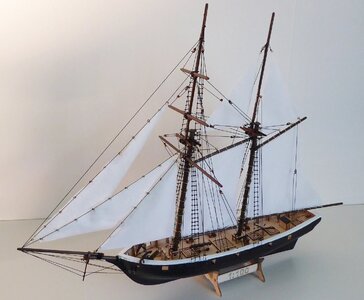

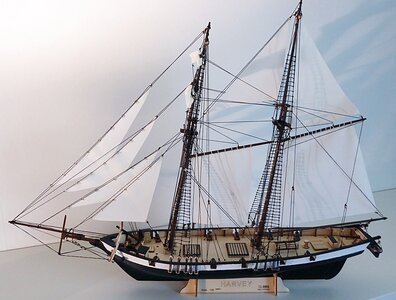

HARVEY 1847 Scale 1:96 China kit with pretty good instruction and dimensions.




Halcon 1840 Scale 1: 100. Everything over the railing is newly made from scrap from the kits.
