Cactus model Q1 plus mini tug - converted into a norwegian fishing boat

Joined
Jun 4, 2018
Messages
91
Points
103

Location
Oulu, Finland

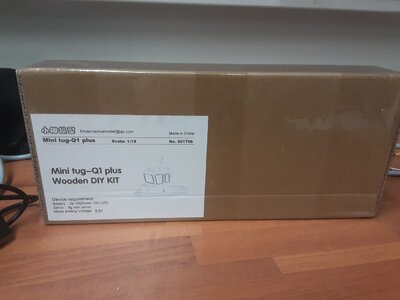

i just couple of days got my hands on this cute little rc boat kit. it is half wood, half plastic. i am of course not going to build it out of the box - i will make some modifications on the design to make it into a caricature version of a norwegian fishing boat. let us see what i can come up with! more photos to follow on upcoming days. this will be a slow project.


Attachments

  • 20210108_145819.jpg
    128 KB · Views: 9
Joined
Jun 4, 2018
Messages
91
Points
103

Location
Oulu, Finland

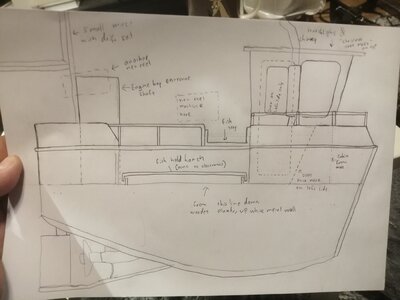

I made a quick 'n dirty sketch of what this thing might look like when done. it is gonna require quite a lot of modifications and hack & slash on the hull. probably the nose needs to go a slight bit more forwards to have enough room for battery etc. inside.


Attachments

  • IMG_20210113_183815.jpg
    123.1 KB · Views: 9
Joined
Aug 6, 2019
Messages
84
Points
113

Location
Bellevue, Nebraska USA
I'll be watching your build with great interest. I've been looking for plans for a tug/mini tug to scratch build and have been looking all over the internet for free plans. Most of the plans I find are RC plans and I have no interest in the RC world. I finished the Manuta 738 Victory... very big. Looking for something much, much smaller. If I find a good set of plans of a tug, I'll probably just compress the length to model a mini tug. Good luck with your build!

Last edited:
Joined
Jun 4, 2018
Messages
91
Points
103

Location
Oulu, Finland

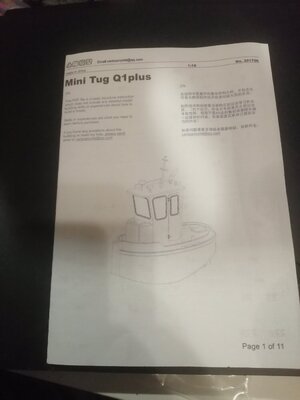

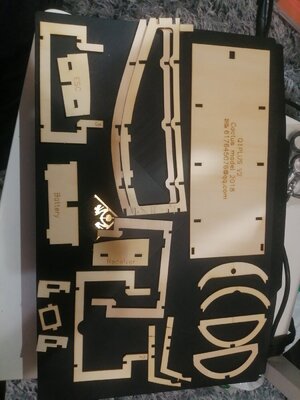

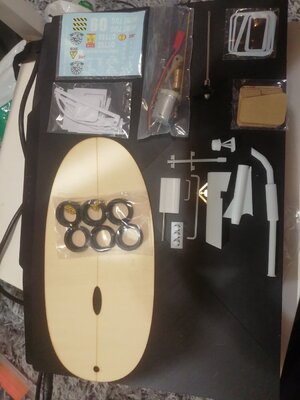

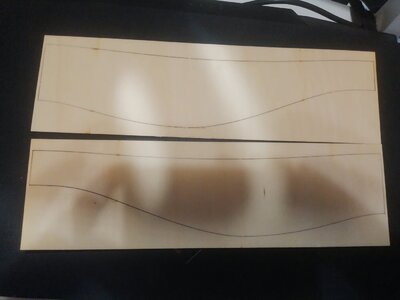

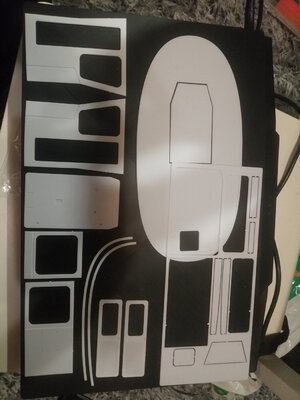

Here are images of the kit parts. hull is mainly wood, while the steering hut and gunwales are plastic, as well as axle housing and rudder. i will use only the plastic cabin and the small gittings on cabin roof, i will make a new deck from probably plywood, and new gunwales, but i'm not yet sure if they will be wood or plastic yet.
IMG_20210115_193149.jpgIMG_20210115_193313.jpgIMG_20210115_193621.jpgIMG_20210115_193910.jpgIMG_20210115_194009.jpgIMG_20210115_194058.jpg

Joined
Jun 4, 2018
Messages
91
Points
103

Location
Oulu, Finland

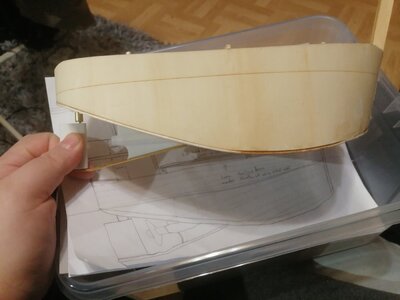

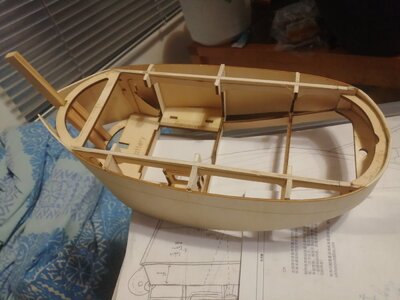

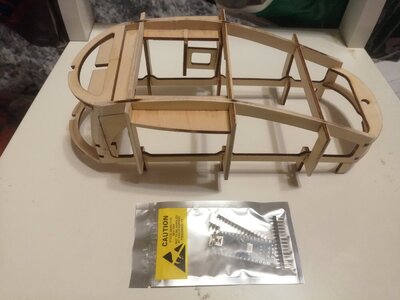

Got some more bodywork done, and glued on the bow. it's overly long, i'll cut it to size when i get the bottom of the hull, main deck and the front former and deck glued in. i also glued two support beams next to the bow for the front hull sides to attach to, they will be glued in tomorrow.i don't mind too much about the look of the fuselage's outer sides, as they will be covered with planking later on.

Joined
Jun 4, 2018
Messages
91
Points
103

Location
Oulu, Finland

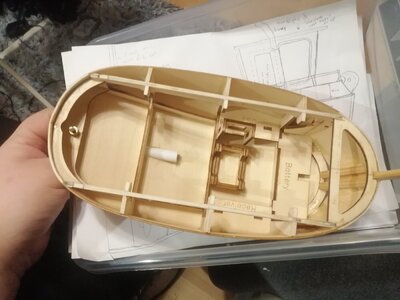

Bottom plate, bow panels & Propeller shaft tunnel/keel and rudder glued in, next to make theglue seams watertight with epoxy. then i can make the two nose formers for front deck, but can't glue them in yet. then i have to wait until i get back to my home in Oulu to be able to glue the deck on as i have to install the servo and motor beforehand.
