Combat Station 2 bridges 1:32 English 17th centuries
Draft model for novice and intermediate
A (Navy Board Model)
Build December 2018 - February 2019

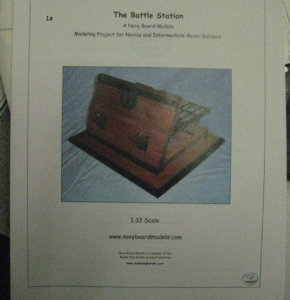

Well this model is basically a model on plan that you can download free here (in English and imperial measurement) 1-a
http://www.modelshipbuilder.com/e107_images/custom/Battle Station Practicum - 1-32 Practicum.pdf

On this site you will find a number of ship plans that are free.
In my case I order the wood kit for this model on the same site + - kit a $ 160 cdn it was a good decision not having the necessary equipment to make certain cut in the thicknesses required.
The instructions include 28 pages of assembly instructions 2 pages for the list of material and 10 pages of drawing on the scale
Now what is provided with the kit is the wood needed for the construction of the station.
Cherry, poplar, African oak, walnut, pear, and beech

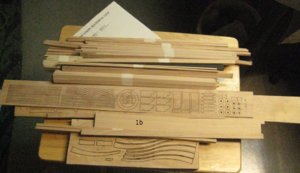

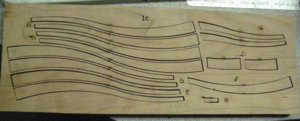

And the 3 gun stands (Plastic and 3 laser cut sheet 1-b
1-d is the reason I ordered the kit not having the equipment to make a precision cut in a thickness of 20 and 10 mm in cherry wood

Last edited:

Charles QC

Well-Known Member
Joined
Aug 16, 2019
Messages
685
Points
343

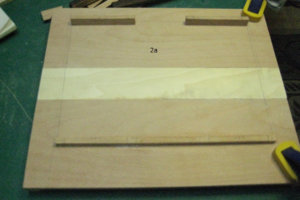

2a Building the base

Use a plank of maple with a 20mm bracket to make the base


2b put the support of the first bridge has test to check the dimensions

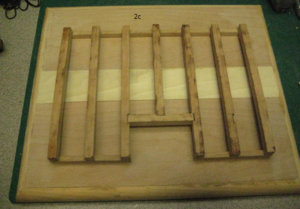

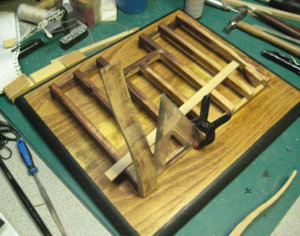

2c structure of the first bridge made and sanding to remove the black from the laser

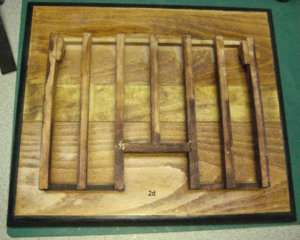

2d a black painted border for the base and application of a varnish on the structure


Charles QC

Well-Known Member
Joined
Aug 16, 2019
Messages
685
Points
343

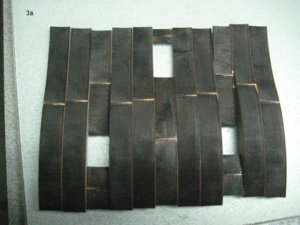

The wall provided laser cut 3a

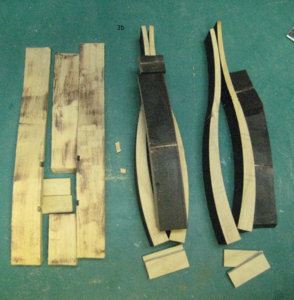

Sanding the black of the laser cut 3b
Laying of the first section at one end square to respect the 90dg 3c

Both ends pose and make a template for laying the following cuts 3d

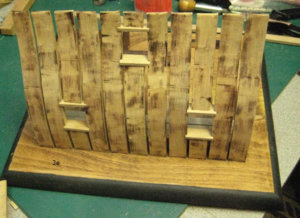

The 11 cuts install with the defined placement of the gun 3e


Charles QC

Well-Known Member
Joined
Aug 16, 2019
Messages
685
Points
343

The scale of this project requires that the peg be apparent
So first attempt on edge of the support of the first floor

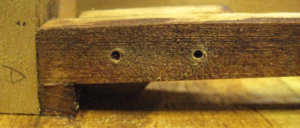

Drill 1/8 '' or 1.5mm holes 4 a
4 a.JPG

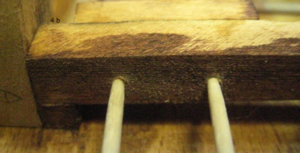

Place round tooth pick 4 b
4 b.JPG

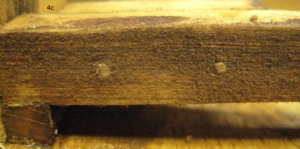

Sanding and varnishing 4 c
4 c.JPG

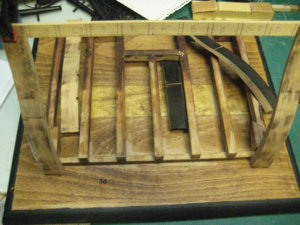

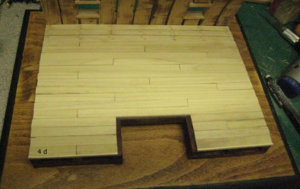

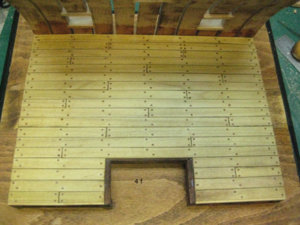

Laying the floor of the first bridge 4 d
4 d.JPG
All the pegs of the deck pose 4 e
4 e.JPG
First bridge finish
Sand and dye using a light spring oak stain 4 f
4 f.JPG


Charles QC

Well-Known Member
Joined
Aug 16, 2019
Messages
685
Points
343

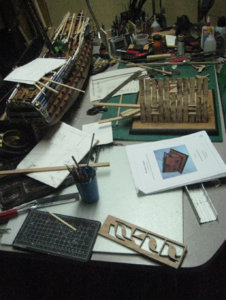

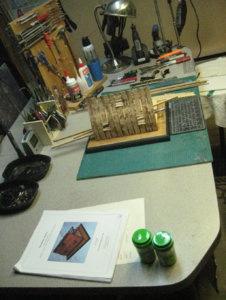

Okay I start by cleaning up my working table is as my environment minister says an ecological disaster and my Louis is on the way
And cleaning done
1-5 a.JPG
1-5 b.JPG
The front wall must be made before making the upper bridge

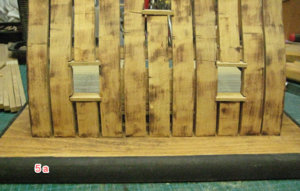

5 a.JPG
Beginning of the wall the first plank laid.

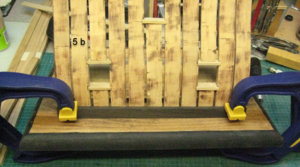

5 b.JPG

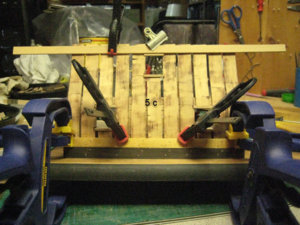

Beginning of the laying of the upper part working on the bottom part in the same time

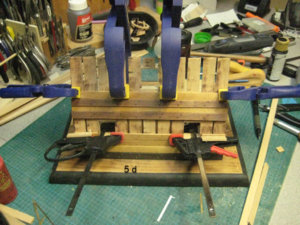

5 c.JPG
5 d.JPG

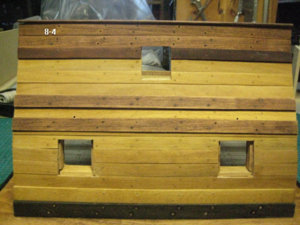

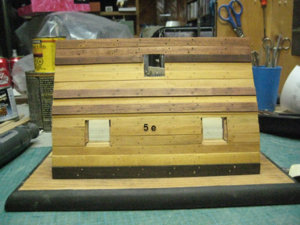

Here the wall complete still the gun door and decoration to do
5 e.JPG
Next step lower inside wall and support for the second deck
Dye use
Spring oak and
Red Mahogany


Charles QC

Well-Known Member
Joined
Aug 16, 2019
Messages
685
Points
343

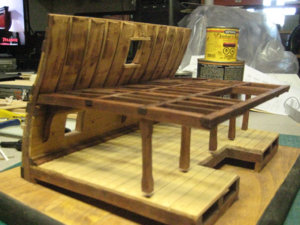

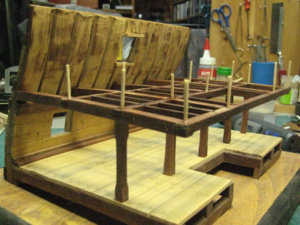

Internal structure

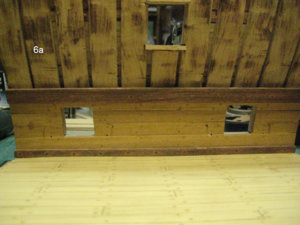

Laying the first boards of the inner wall of the lower part of the station 6a

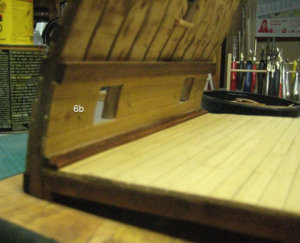

And installing the gutter 6b

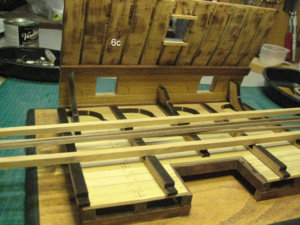

Preparation of the parts that will constitute the floor of the upper deck to give me an idea of how to proceed 6c

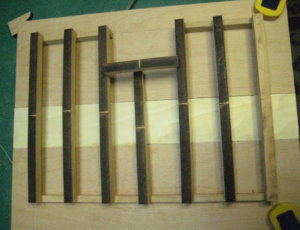

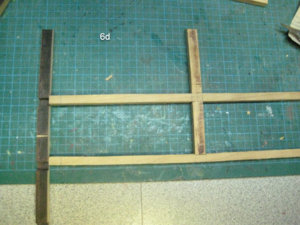

Beginning of shaping horizontal supports which must fit perfectly 6d

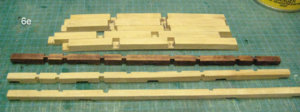

6e

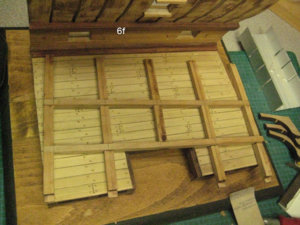

Test to see if everything fit 6f

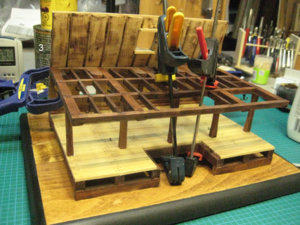

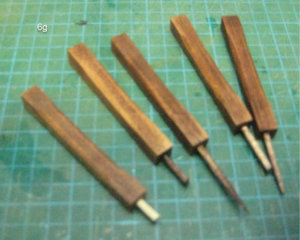

Manufacture of 5 support columns 6g

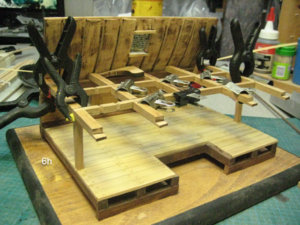

Dry mounting 6h
Dyeing and laying of the peg 6i
Finish and temporary pose 6j6k.JPG


Charles QC

Well-Known Member
Joined
Aug 16, 2019
Messages
685
Points
343

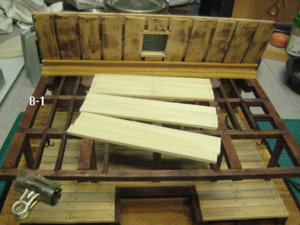

Parts to be manufactured and installed before the bridge is laid

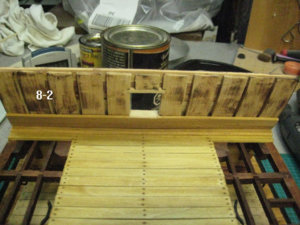

They will be used to connect the 2 opening pulleys of the gun port 1 - 2
Laying the bridge structure 3
There is 2 gratings one on each deck

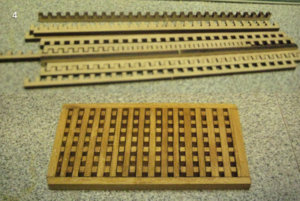

Here is the first 4

And my problems start because the kit at first sight only provides what is needed to manufacture only one
Ok no problem I will do them by hand

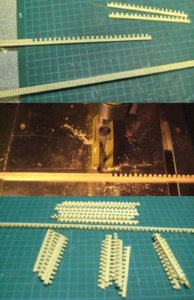

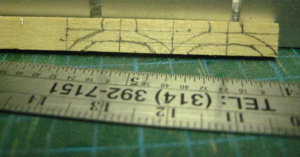

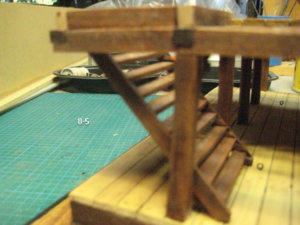

Measure and cut 5 and all are made
The result is not good

Good here the solution and you will have a good laugh at my depend
It was 2 days stuck with this problem (that's when I decided to do the Somua) I'm in my bath and think nothing special when suddenly the idea of genius
Since I never throw anything (my environment minister does not like that)

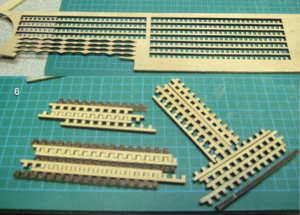

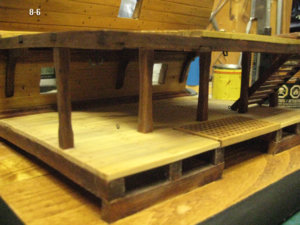

I have keep the laser cutting cuts that coincide wonderfully 6

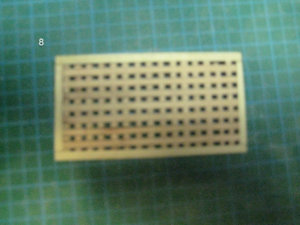

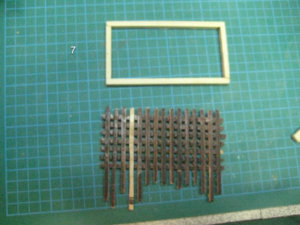

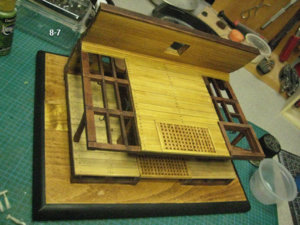

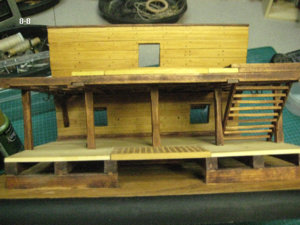

Here is the second finish and identical to the first 7 - 8


Charles QC

Well-Known Member
Joined
Aug 16, 2019
Messages
685
Points
343

Construction of 2 gun ports inside and outside

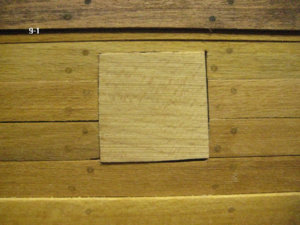

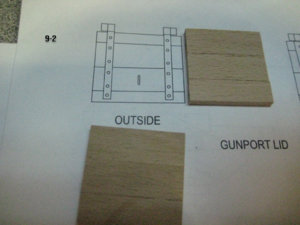

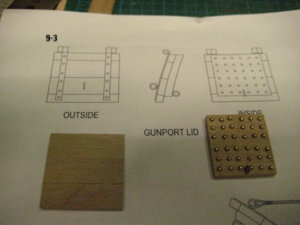

9-1, 9-2, 9-3

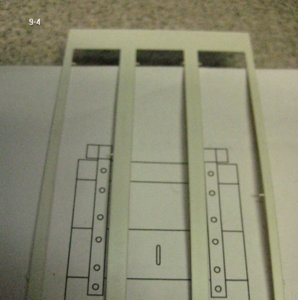

Fabrication of hinges

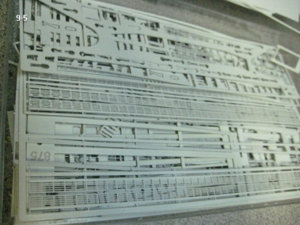

As I have kept the tree of the PE of the France and River Boat I will use this to make my hinges and the pieces on the guns the width is perfect just cut and bend

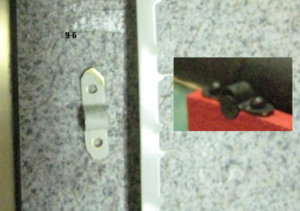

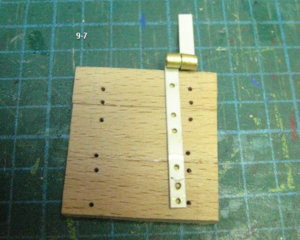

9-4 @ 9-7

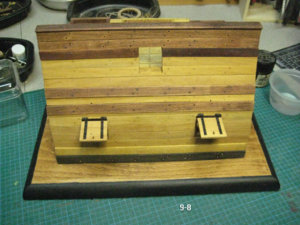

Gun port install 9-8

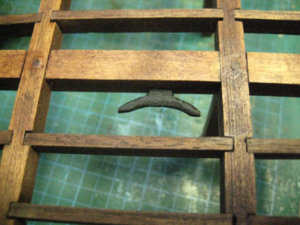

There is a decoration for the barrel of the upper deck on the front wall

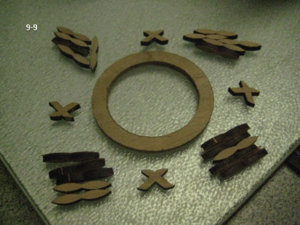

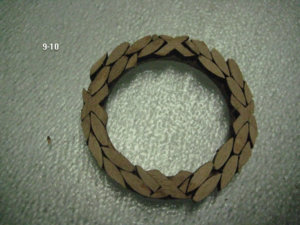

9-9 the parts provided and the result 9-10

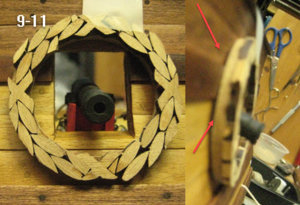

9-11 I do not have to miss my shot
I have to adjust the pieces on the wall, one chance only to make the adjustment properly

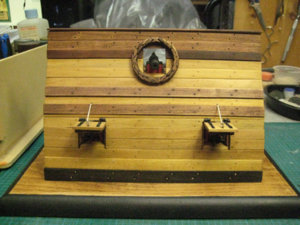

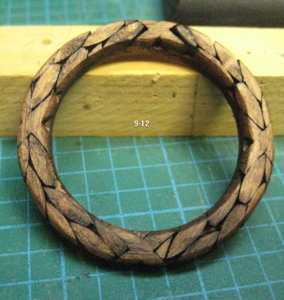

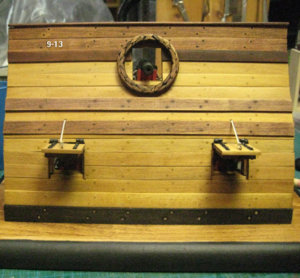

Here I am satisfied the finish is good 9-12, 9-13


Charles QC

Well-Known Member
Joined
Aug 16, 2019
Messages
685
Points
343

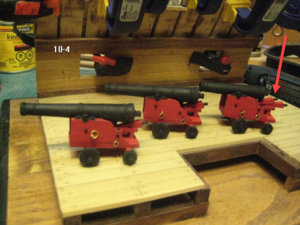

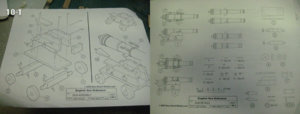

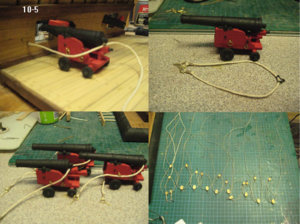

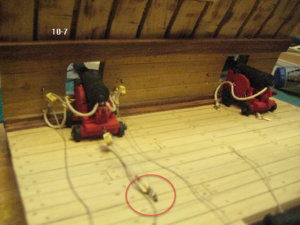

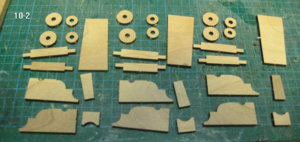

This part was actually done a little early same time as the construction of the second deck
The necessary adjustments and temporary placement done before installing the second deck

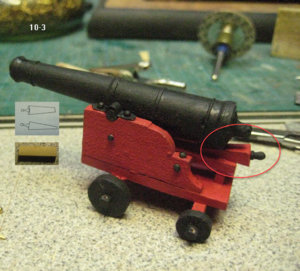

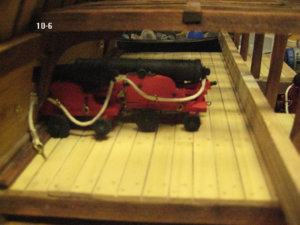

The instructions do not provide a recoil pulley for guns.
I add them by calculating the necessary distance


Charles QC

Well-Known Member
Joined
Aug 16, 2019
Messages
685
Points
343

The racks for the cannons balls

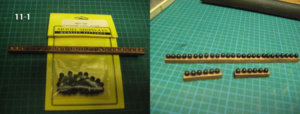

I order them of the right dimensions and made the 3 racks 11-1

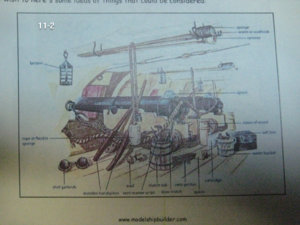

11-2 the photo that comes with the instructions to add details
Note that it gives no information dimensions or other
I'm going to do of a lots of guest work here

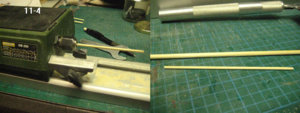

Evaluate the size of the rods according to the length of the barrels and the diameter of the jaws, cut and turn to bring them to the correct diameter 11-3, 11-4
In my box I had barrels that will do but I need 3 smaller ones

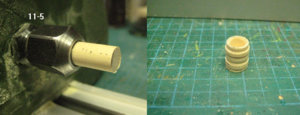

Return or tour and manufacture 11-5

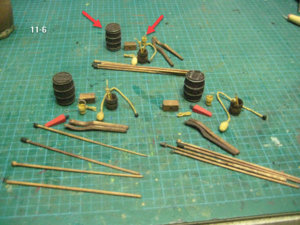

Here all the accessories are made apart from the big barrel and 3 small pall all had to be made 11-6


This kit that I do not consider to be really a kit is what is in the Anglophone mode call a Garage kit there are dozens like this available
A plan of wood and sometimes some pre-fabricated parts.
In this case the guns are an artisanal molding probably 3D printer and yes probably not a representation that corresponds to the time.
Honestly I must confess that I did not do any research to have the historical value of this model only the visual aspect was taken into consideration


Charles QC

Well-Known Member
Joined
Aug 16, 2019
Messages
685
Points
343

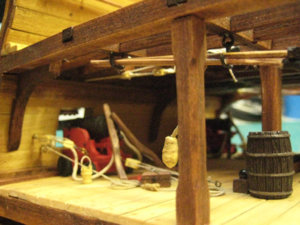

Installing the gun

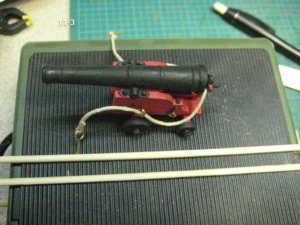

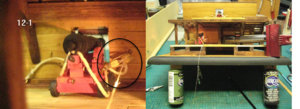

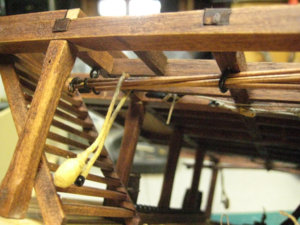

Ok not realize that I did not have the space to pass my hands and the deep was to great for my pincer or my hook to hang the inner side of the pulley inside of the gun emplacement 12-1 not obvious and it took me 2 hours to succeed not dare to take off the barrel to avoid damaging the bridge

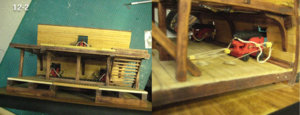

Right side put the hooks before gluing the gun in place 12-2

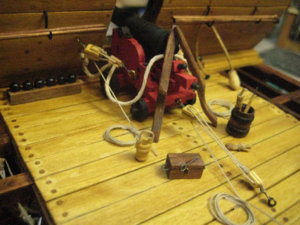

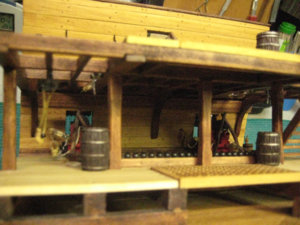

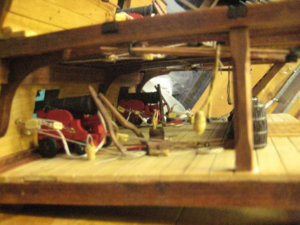

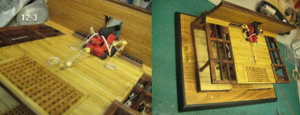

The guns are in place on the 2 bridges 12-3


Charles QC

Well-Known Member
Joined
Aug 16, 2019
Messages
685
Points
343

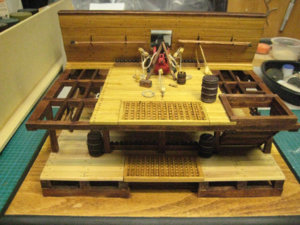

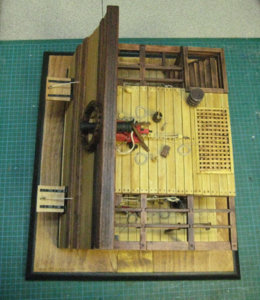

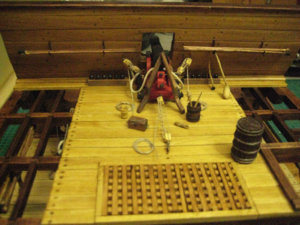

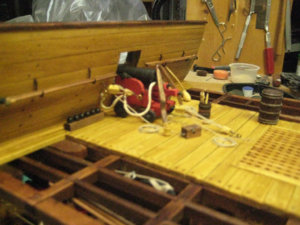

That's it!
All accessories in place.
Beginning December 19, 2018 end February 20 2019
Total 117h of assembly

I still have to get me a nice display.

The kit
The instructions by itself are quite clear and precise
I had the wood supplied enough that I think I could make a 2em except for laser cuts of course.
The assembly is 30% kit the rest is scrach which in my case made me out of my comfort zone.
In the end I have a beautiful model a friend wants it, its going to depend on my minister of external affairs (she likes this montage) and as I told my friend that he brought the kit (any way he wants to pay me) I will make another one without all the mistakes I made on it and there are several, and this time leave part of the outer wall to see the vertical couples as suggest on a French forum
