Planset Review:
Fortuné Joseph
ALLÈGE D’ARLES

1833
a flat-bottom 1833 river tartane

by Franco Fissore translated by F. Fougerat

IMG-3628a.jpg IMG-3629a.jpg

The Arles lighter and a flat-bottom 1833 river tartan from Provence.
The historic and graphic documentation allowed for the design of all the details of the structure and the furniture.

available in scales 1:48 or 1:36 in english, french, italian or spanish language directly by ancre

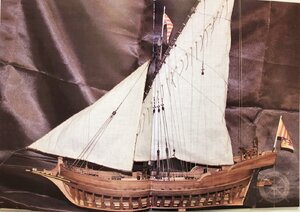

model made by the author Franco Fissore




Here you can find a step by step photo report of the model construction:



Size of the model



SYNOPSIS:

As I had previously published four monographs of Mediterranean vessels, the 1903 Puna from the Western coast of Liguria, the 1863 tartan Gemma, the 1759 felluca Nostra Senioria del Rosario, and the 1759 Mediterranean pinky Santa Caterina, I thought of building another wooden boat, but this time a French river boat, the Arles lighter of 1833, a fl at-bottom tartan.
A small Mediterranean sailing ship that was very common in past centuries, it was rigged with a masthead cap (calcet) a lateen sail and a jib called a “polacre” on a short bowsprit. It could also carry a small square sail bent on a yard under the mast cap. Hoping to please all the readers and modelers who have followed my previous works, I am adding this small boat to the collection of Mediterranean vessels, in an attempt to expand the knowledge about a commercial and fishing fleet that was important in the French and Ligurian coastal areas and has been represented but little in our modeling world. The availability of documentation relating to this small vessel, the French maritime culture and its rich archives allowed me to collect the necessary information.

This information consists in pictorial records, documents, and manuscripts. We have collected suffi cient documentation to put together a monograph that will provide for the construction of a beautiful and well detailed and designed built-up model. The historic and graphic documentation allowed for the design of all the details of the structure and the furniture. Finally, and not least, for the addition of stern decoration, the very soul of these vessels.


CONTENT:



COMPOSITION OF THE MONOGRAPH

A 144-page booklet in 23x31 cm format including 80 pages in full color, on the construction of model, along with 60 drawings and 280 color photographs.
The monograph contains the 16 plates at the 1/48 and 1/96 scales necessary for the construction of the timber frame.


1 Schematic elevation, plan view
2 Horizontal, vertical and cross-sections
3 Fore-and-aft structure broken down into elements
4 The frames in true size
5 Horizontal, vertical sections and crosssection
6 Horizontal, vertical and cross sections clamps and clamp liners
7 Horizontal, vertical and cross-sections
8 Beams, brackets, knees and mast steps
9 Beams, brackets, knees, mast step and deck
10 Deck furniture
11 Section
12 Completed hull
13 Detailed drawings of all pieces of furniture
14 Sails
15 Details of the running rigging
16 Allege d’Arles lighter under sail

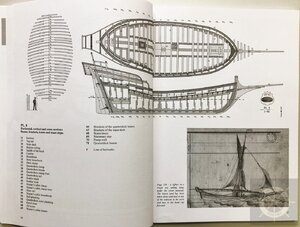

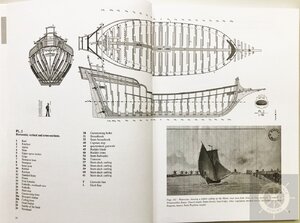

Look Inside of the booklet:


IMG-3634a.jpg IMG-3635a.jpg

IMG-3636a.jpg IMG-3637a.jpg

IMG-3638a.jpg IMG-3641a.jpg



For more please take a look at the following post


Attachments

  • ALLEGE_arles en anglais bd (1).pdf
    867.9 KB · Views: 13

Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
18,364
Points
938

Location
Vienna, Austria
Planset Review: PART II
Fortuné Joseph
ALLÈGE D’ARLES

1833
a flat-bottom 1833 river tartane

by Franco Fissore translated by F. Fougerat


included are also a building log of the authors work on his model

IMG-3643a.jpg IMG-3644a.jpg


IMG-3645a.jpg IMG-3646a.jpg

IMG-3647a.jpg IMG-3648a.jpg

IMG-3649a.jpg IMG-3650a.jpg


LOOK INSIDE of the Drawings

IMG-3653a.jpg IMG-3654a.jpg


IMG-3655a.jpg IMG-3656a.jpg

IMG-3657a.jpg IMG-3658a.jpg



Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
18,364
Points
938

Location
Vienna, Austria
Hallo @Javier Baron my friend,
I am pretty sure, that this flat bottom tartane would be a very good project for your collection?
Or do you work already on this mode?

Joined
Oct 16, 2017
Messages
8
Points
23

Im not happy about it but i have to give fair warning to anyone who wishes to buy the plans that there are once again a number of fairly glarring inaccuracies. Not the excusable, historical kind but fairly basic stuff like making sure that the lines and drawings match with each other over several plans and the like.
One must wonder if Ancre still bothers with properly editing their works.

Joined
Jan 13, 2020
Messages
12
Points
48

Location
Kansas City
Im not happy about it but i have to give fair warning to anyone who wishes to buy the plans that there are once again a number of fairly glarring inaccuracies. Not the excusable, historical kind but fairly basic stuff like making sure that the lines and drawings match with each other over several plans and the like.
One must wonder if Ancre still bothers with properly editing their works.
Can you give some specific examples of the inaccuracies you have found that we should be aware of? Do they render the plans useless or can they be worked around?

Joined
Oct 16, 2017
Messages
8
Points
23

Can you give some specific examples of the inaccuracies you have found that we should be aware of? Do they render the plans useless or can they be worked around?

The most obvious issue are the floor timbers which do not have the correct height and need to be corrected.
There are some further inconsistencies on the plans themselfs (like the floor of frame 1 which is wider than the actual middle frame and im not realy certain about the beveling lines) but they are not useless, they just require extra work which might have been ok with handdrawn Boudriot plans from 30 years ago but today?
Tk11 on modelshipworld had a rather in depth look into the plans but he appears to think that despite being less than perfect, they are workable.
My problem is that the monograph costs almost a hundred bucks yet has plans that, despite being CAD drawn,
were done in a way that can only be described as sloppy.
