Furling Sails

Joined
Feb 8, 2021
Messages
6
Points
3

I am working on the Mayflower and have come to the sails. I would like to furl them. Is there any help out there???


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
23,354
Points
1,038

Location
Vienna, Austria
I am working on the Mayflower and have come to the sails. I would like to furl them. Is there any help out there???
Hallo and a warm welcome here on board of our forum
Take a look at this topic, where we deiscussed the possibilities of furling a little bit more in detail.

Joined
May 6, 2020
Messages
260
Points
168

Location
Melrose, Scotland

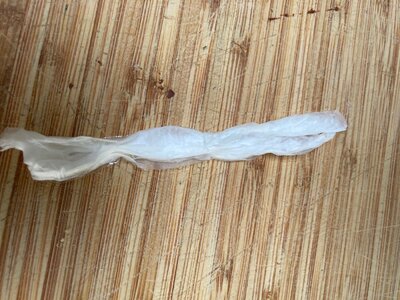

Here's my first experiment at a technique. It involves tissue and dilute PVA. I haven't gone near a ship with it yet, it was just a proof of concept. Don't laugh.
It produced a sail that is easily manipulated for a long time. The fluid dripping out may be an issue if the yards are already mounted. The colour can be altered by adding dye/paint or whatever. The finished article is a rubbery consistency. Next step is to try using string to make the furl more realistic - this one just got prodded with fingers. This is about 6 inches long. The transparent glue edges would need to be trimmed off.IMG_8561.jpg


Donnie

Administrator
Staff member
Administrator
Joined
Aug 21, 2011
Messages
4,289
Points
688

Location
Madison, MS
Do a “forum search” for Trinidad and user Donnie. In the list it returns should have like
Santisima Trinidad completed w pics.
go to that build log and you will see step by step into the log how I fureled my sails.

Joined
Aug 6, 2019
Messages
100
Points
113

Location
Bellevue, Nebraska USA
Go to my build and see the results on my HMS Victory. Go to the last page as the first attempts were not done with silkspan. Follow Tom Lauria's silkspan youtube video. Very easy to do. Silkspan can be gotten at Bluejacket

Joined
Jul 13, 2020
Messages
80
Points
88

Location
Berwick, NS Canada
Welcome aboard you will find this forum a great source of information. As for furling sails you may want to look at this video by Tom Lauria regarding making and furling sails. He uses silk span and paints the material with acrylic paint. You end up having a fairly strong material that is thin enough to manipulate and furl.

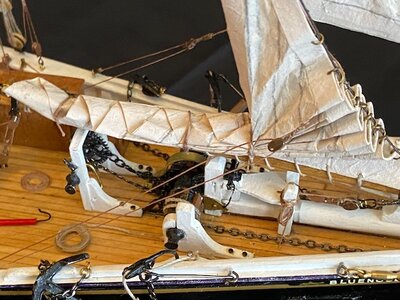

I followed his instructions and I think it looks great. These sail were off the Bluenose.


Joined
Aug 6, 2018
Messages
941
Points
353

Location
calahonda, mijas costa, malaga- spain
Welcome aboard you will find this forum a great source of information. As for furling sails you may want to look at this video by Tom Lauria regarding making and furling sails. He uses silk span and paints the material with acrylic paint. You end up having a fairly strong material that is thin enough to manipulate and furl.

I followed his instructions and I think it looks great. These sail were off the Bluenose.
Hi all, For a short time ago, I mentioned that their es NO questions, but many stupid answers to a question, so in this case, I will -instead of an answer- make a few other questions to Pkloui, as there is absolutely no more info than you will like to furling sails. Question nº1: which type of sail? Squiersails or the Latina Sails.
2: Have you make the sails already, or how far are you with the building. I have a lot of information about this on ships from about 1750 to 1850mnabout on a bigger warship- 74 Gunner. here we have a Cargo Ship? from 1620 with a different riggen- only two squaresail on the foremast and main, so I do know this type of riggen. I will add some info -but not going into making the sails, as this was not part of your question - but before that, I was furling my sails- mainly the lower one, as in the real-life, as I have had all types of ships around my hole lite. I have in fact been onboard "LILLA DAN" a topsail schooner as a member of the crew.


Attachments

  • 1284-PALO MAYOR-MAIN MAST-YARDES (22).JPG
    1284-PALO MAYOR-MAIN MAST-YARDES (22).JPG
    175.2 KB · Views: 24

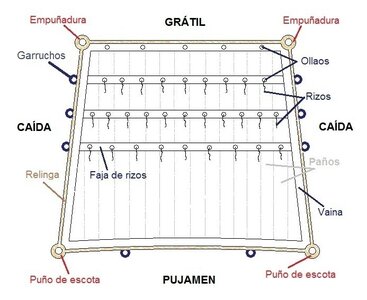

  • 1702--SAIL-SQUAR.jpg
    69.7 KB · Views: 24

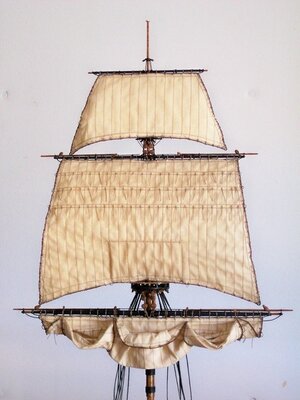

  • 1803-square sail816-.jpg
    1803-square sail816-.jpg
    79.5 KB · Views: 26
  • midsize (1).jpg
    midsize (1).jpg
    73.1 KB · Views: 31

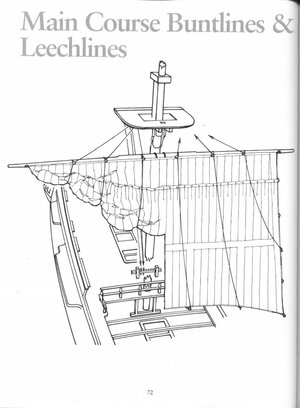

  • 1852-MAINMAST- RIGNING (3).jpg
    1852-MAINMAST- RIGNING (3).jpg
    186.2 KB · Views: 24

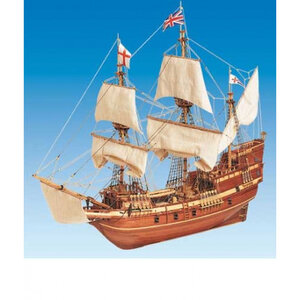

  • constructo-s12680819-mayflower.jpg
    50.4 KB · Views: 20

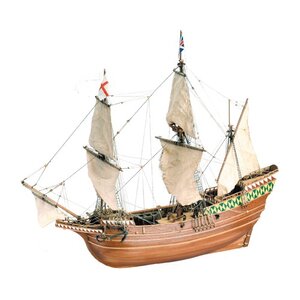

  • mayflower-wooden-model-ship-kit.jpg
    37.5 KB · Views: 18
  • midsize.jpg
    77.5 KB · Views: 24

Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
23,354
Points
1,038

Location
Vienna, Austria
I am working on the Mayflower and have come to the sails. I would like to furl them. Is there any help out there???
Hallo @Pkloui
we wish you all the BEST and a HAPPY BIRTHDAY
Birthday-Cake
How is the work on the sails going? Maybe once you show us the result
