HMS ENTERPRISE 1774 by RichardJJS 1:48 scale. New Kit from M.D

While wating for bit of drying i am building the Fore Orlop Platform
Can find any doors or brass hinges surely these are included
Ive built the bulkheads
This is getting stupid
Surely if its in the instruction it should be included
Detail like this is impossible to replicated
Doors .jpg

Last edited:
Direction/Kit part mismatch? Probably.
Again...refer to Victor's build. I built mine from strip....no windows.
wasn't thrilled with anything resembling a hinge....sourced resin hinges from Chuck @ Syren Model.
FWIW when done almost impossible to see anyway.

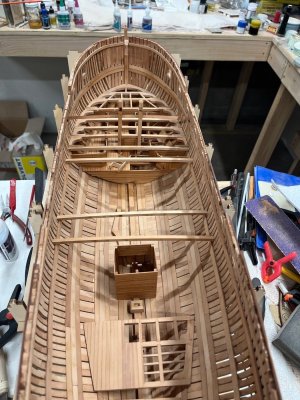

Did a few lower planks/carlings. Still have to sand knees/carlings flush to beams. About done here, now time to go to aft platform , and final positioning of well before running more.
Ended up notching planks for carling fit.......probably better than the laminated planks.

Tim


Ive been looking at the Bulkheads on the Orlop DEck
The Bulkheads are built with Door Frames Nothing else
No Doors NO Hinges or LOcks
I am 3D Printing a standard door which i will make as a set
If any one wants a set let me know - STill finalising them and trying to get a filament that looks like or matches Pear

will find out post costs but cant imagine it will be much to Spain so not worried

I can do White Black or Grey Guess grey is possibly easier to pain
not perfect but better than nothing



Really need to look at designing matching ones from the instructions

incidentally the Ships wheel just fall apart so will need a brass or wood one

will add photos tomorrow

Sure, I'll take a set Richard !
Thank you very much for offering.
I'll send you a PM with my address and you can let me know what the cost is too.

Thanks again !

i am looking at printing clear then we can paint to colour (color) required This is too large (Top Window)
Have made them smaller just need to adjust to size
Nearest I could get
Needs at bit more details on back but does have hinges
If we need the on Upper DEcks i will design some

Might even do light wood to see if its OK


Last edited:
Is the mast step and/or the well fixed in place yet or just sitting for the time being? Regarding the mast steps' dimensions, the following may be of interest regarding their sizes.

Allan
From the contract

MIZEN STEP ….. The Mizen Step to be sided 14 ½ ins, of sufficient Depth on the Keelson, The Arms 5ft 6ins long each, & bolted with 6 bolts of 1 ⅛ diar.



MAIN STEP ….. The main Step to be sided 1 ft 11 ins and 15 ins deep on the Keelson and of a length to slide easy by the Stantions of the Well.



FORE STEP ….. The Fore Step to be sided 1 ft 9 ins, in Length 10 ft 6 ins, bolted 6 bolts of 1 ⅛ diar

Last edited:
AllanKP69 said:
Is the mast step and/or the well fixed in place yet or just sitting for the time being? Regarding the mast steps' dimensions, the following may be of interest regarding their sizes.

Allan
From the contract

MIZEN STEP ….. The Mizen Step to be sided 14 ½ ins, of sufficient Depth on the Keelson, The Arms 5ft 6ins long each, & bolted with 6 bolts of 1 ⅛ diar.



MAIN STEP ….. The main Step to be sided 1 ft 11 ins and 15 ins deep on the Keelson and of a length to slide easy by the Stantions of the Well.



FORE STEP ….. The Fore Step to be sided 1 ft 9 ins, in Length 10 ft 6 ins, bolted 6 bolts of 1 ⅛ diar
Click to expand...
does that mean the Main Step can move
