HMS Fowey 44 - Gun 1744 by AllanKP69

[AllanKP69]

I drew and printed the stem onto label paper as it does not stretch or run the ink like water based glue and I hate rubber cement.
Allan



[Thukydides]

Hi Richard,
Iron bolts would not work under water for very long. Copper bolts were used on the scarphs below the waterline according to Peter Goodwin, The Construction and Fitting of English Ships of War, page 7. I looked at a dozen contracts and scantling from the Establishments and while they give size and number of bolts none that I can find give the material used for making the bolts. It was much later, but bolts in the Victory keel were found to be copper. Barring any contemporary information explaining otherwise, I am pretty sure copper is appropriate.
Allan

Ah so I can enlighten you on this subject. It is around the early 1780s that you get widespread use of copper alloy bolts and fasteners below the waterline.

Now copper alloy bolts may have been used sometimes before this point, but it certainly wasn't widespread. I have a whole bunch of letters from the period where middleton is experimenting with the use of copper bolts below the waterline and arguing that they should be more widespread.

The tone of the letters suggest that prior to that point iron was the norm. Give me some time and I can go dig back into my notes on the subject. I have only transcribed a few of the documents at this point, but the thrust seems pretty consistent.

Now this is all in the context of copper sheathing and the problems of the interaction between copper and iron (which they didn't understand at the time). But given the much higher costs for copper I would be hesitant to say any ship before this had copper bolts unless you found some sort of positive evidence to suggest they were used.



[DAWarden-(Jaager)]

Well, Just about every ship history in Winfield that had a life of any length is full of "small repair" and "great repair". Replacing rusted fasteners = a part of the repair process?
They do seem to try to waterproof the iron fasteners. Environmental fluctuation dooms that to fail.
I think that the keel assembly is an area where what waterproofing they could do would not fit.

It is a lesson still unlearned. Reinforced concrete with any possibility for exposure to water infiltration - If there was economical rebar that is immune to oxidation - It would cost jobs in the repair and replacement field and reduce content for some TV shows.



[RichardG]

Ah so I can enlighten you on this subject. It is around the early 1780s that you get widespread use of copper alloy bolts and fasteners below the waterline.

Now copper alloy bolts may have been used sometimes before this point, but it certainly wasn't widespread. I have a whole bunch of letters from the period where middleton is experimenting with the use of copper bolts below the waterline and arguing that they should be more widespread.

The tone of the letters suggest that prior to that point iron was the norm. Give me some time and I can go dig back into my notes on the subject. I have only transcribed a few of the documents at this point, but the thrust seems pretty consistent.

Now this is all in the context of copper sheathing and the problems of the interaction between copper and iron (which they didn't understand at the time). But given the much higher costs for copper I would be hesitant to say any ship before this had copper bolts unless you found some sort of positive evidence to suggest they were used.

Thanks,
I guess copper mining was a mature industry becuase of the need for bronze in earlier cannons.



[Albert Mary]

Interesting idea. Then again, I have spools of copper wire that are ten years old that have no protective coating yet they are not tarnished at all.
Time will tell....... as Dean said, rust never sleeps......
Allan

I can confirm this statemet: the copper wire I bought and installed in my Hoy ist still perfectly bright, then I suppose the greenish patina needs outer, aggressive envirovement to settle down.



[AllanKP69]

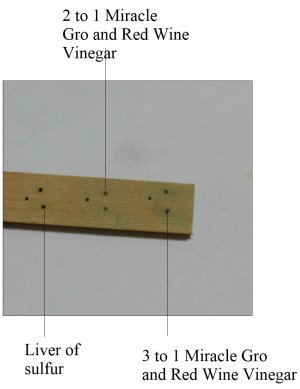

Test piece. Thanks to the paper Thukydides sent to me I am comfortable with iron bolts as well as copper for 1744. Copper bolts became the predominant material below the waterline with the advent of copper bottoms due to the accelerated corrosion caused to iron bolts from bi-metallic action of the plates laying against the bolts in the keel and elsewhere.
Allan

The hole to the left of each pair is empty



[DAWarden-(Jaager)]

Allan,

Looking at your experiment:
one - the effect on copper is almost a mono layer, entirely superficial, prone to sloughing off.
two - it put me in mind of Bamboo doing the same job.
three - then I thought - Bamboo is a bundle of rods and about half are dark - for planking they can never not show contrast with planking.
four - then I thought - the rods are actually straws. They will suck up a concentrated dye solution. Even if the dye is in water - Bamboo grain will not be raised and if they do it will be sideways. wood or Bamboo never gets longer. The color will be a deep part of the Bamboo, no sloughing
(Now, the wood of the keel will expand and contract with temp and water vapor concentration changes. Both copper and Bamboo may stand proud if conditions cause the wood to contract.)

My suggestion: use Bamboo dowels - dip them in stamp pad black or India ink if black is what is desired = iron.
A mixture of blue and green aniline dye - saturated conc. for verdigris.
File and sand the end to final surface before dipping. Make the hole a push fit - shellac or PVA "knotting" (Underhill's term I believe) makes a lubricant before I becomes a bonding agent. Any loss of color during insertion will be fixed with a micro drop of dye on the end of a pin.

Dean



[AllanKP69]

From what I could find, the green will stay put if coated with an acrylic clear. In the end I decided to go with copper darkened with liver of sulfur.

And now the fun begins with joinery. The scarfs are not so difficult but the boxing joint is still as difficult as ever. They were lined with material so I went with blackened glue to represent the material used on the actual joints. The black is 0.56" thick. I have no idea what the thickness of the material that was used but I think is was far less than 1/2" when squeezed together. If I do redo it thinner I may just go with a clear joint. Still have time to soak it in alcohol and dismantle and go with plain glue. On one hand I want it to be clearly visible, on the other hand nearly invisible.
Allan



[Thukydides]

I like to mix burnt umber heavy body acrylic paint in a 50-50 mix with my wood glue for these black joints. I find the brown towns down a little from the black which can stand out a bit much.

That being said the joint looks good, the only issue I would say is that the joint for the two stem pieces is almost invisible, but the boxing is very visible. I would say you should have them both look similar. Or is the stem joint not glued yet?



[AllanKP69]

the joint for the two stem pieces is almost invisible

Thanks Daniel,
Consistency is indeed an important thing. Then again, with the bottom being painted white, I sometimes wonder why I go to all this trouble. The only reason I did not make the stem out of a single piece is that I did not have a board wide enough to fit it all on one slat. The strength from using more than one long grain piece is not a concern at this scale using a tight grained wood like castello. I am playing with the joint again now, and will share the outcome.
Allan



[AllanKP69]

A note as an aside. I learned only recently that the HMS prefix did not come into use until later in the 18th century. 1789 (The First Recorded Abbreviation): The earliest documented use of the initials HMS in an official Royal Navy context was applied to the frigate HMS Phoenix. Not that it matters that much, but I don't know how to change the title of my build log.....
Allan
