wife and I took a 5 hour sailing cruse aboard the Niagara

here are a few fun facts

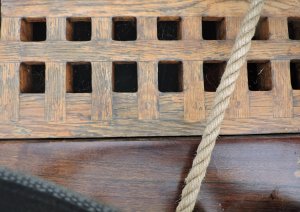

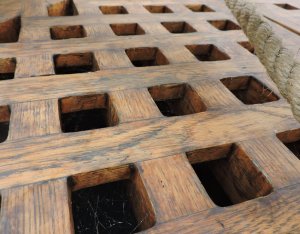

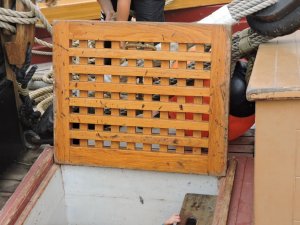

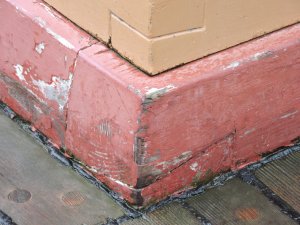

the corners on coamings are not like a 45 degree like picture frames they have a lap joint

coaming corner.jpg

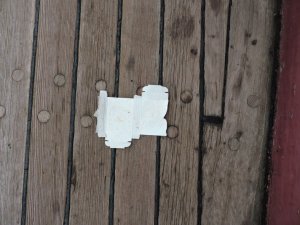

many model builders plank their decks in stark white Holly actually the color of a deck is far from white. I took a raisin box and opened it up flat.

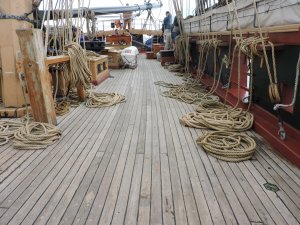

decking does not run straight it follows the curve of the ship

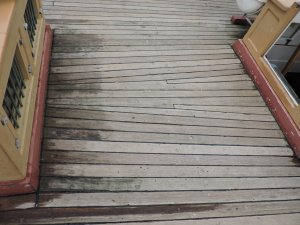

the deck planking at the stern meet in the middle as a wedge shape


there is a statement from forums "the inside of the bulwarks were painted red so sailors could not see the blood" WRONG the inside of the bulwarks were painted green. I did ask the historian in the museum about it and she said from records there is no reference to red bulwarks red if used was as a trim.

Last edited:

Dave Stevens (Lumberyard)

Moderator
Staff member
Moderator
Sponsor
Joined
Dec 1, 2016
Messages
1,792
Points
478

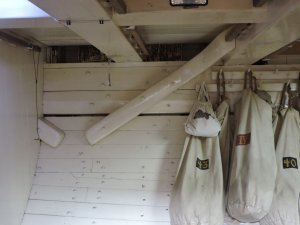

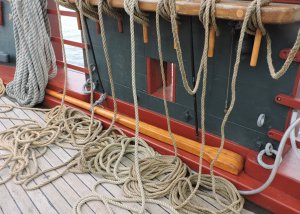

does anyone know what the pole sitting on the waterway is?

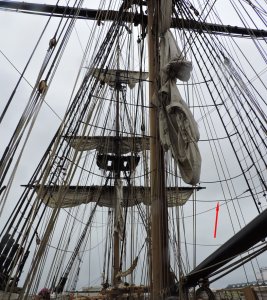

did you know the ratlines were tied to one another the red arrow shows the line



Dave Stevens (Lumberyard)

Moderator
Staff member
Moderator
Sponsor
Joined
Dec 1, 2016
Messages
1,792
Points
478

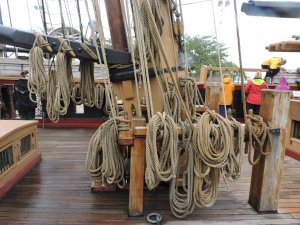

a day sail aboard the Niagara was something inspiring indeed to see the spread of sail above your head and not a minute went by without the captain yelling commands to the crew who not for a moment stood still.

by the way guys the ships crew were well see for yourself


even the gun crew


to walk the length of the deck it was like you were drunk holding on to whatever you can grab. Then the look outs standing in the ratlines and on top a post on one leg ok maybe it was me or maybe they had their sea legs. This crew was out on the lake for the last 2 weeks.


Last edited:

Dave Stevens (Lumberyard)

Moderator
Staff member
Moderator
Sponsor
Joined
Dec 1, 2016
Messages
1,792
Points
478

buy the way this is no pleasure sail you have to sign up as part of the crew and the captain does put you to work hauling line and it is not that easy


Dave Stevens (Lumberyard)

Moderator
Staff member
Moderator
Sponsor
Joined
Dec 1, 2016
Messages
1,792
Points
478

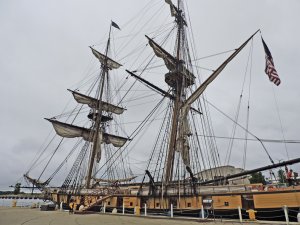

the Niagara 1812

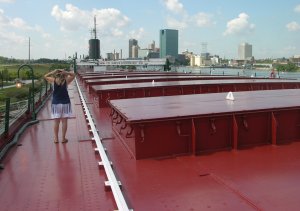

and Evelyn who owns and runs the lumberyard for model shipwrights she sailed the lakes from a 1,000 foot ore freighter to the Niagara and has been
aboard many a wooden ship


Last edited:

zoly99sask

Admin
Staff member
Administrative
Blandford Group Build
Joined
Apr 13, 2015
Messages
4,092
Points
578

Location
Saskatoon,Canada
Also look at the withd of the planks on the decks,most kits gives you at least 4-5 wider timbers for the decks,completely out of scale.


Dave Stevens (Lumberyard)

Moderator
Staff member
Moderator
Sponsor
Joined
Dec 1, 2016
Messages
1,792
Points
478

good point I was just telling dave on his build deck planking was close to square in cross section.
you are not going to bend planking edge wise to conform to the hull shape BUT you can bend a deck plank if it were 4 inches wide and 2 1/2 inches to 3 inches thick

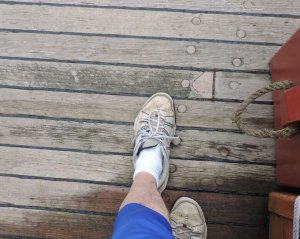

that is my shoe and when I measured the length of my shoe it is 12 inches so a deck plank is 4 inches wide

plank width.jpg

Last edited:

Dave Stevens (Lumberyard)

Moderator
Staff member
Moderator
Sponsor
Joined
Dec 1, 2016
Messages
1,792
Points
478

deck planking on most all ships in North America was Southern Yellow Pine
it only takes a few months out doors and wood will turn grayish silver


Uwek

Admin
Staff member
Administrative
Blandford Group Build
Joined
Dec 25, 2017
Messages
9,900
Points
728

Location
Vienna, Austria
deck planking on most all ships in North America was Southern Yellow Pine
it only takes a few months out doors and wood will turn grayish silver
It depends realy very much, where the ship was build and which kind of timber was used at this time.
Also the width of planks depends on the tree, from some sorts you can not cut bigger widths in enough length and number....

If you compare the deck of the Victory you can see, that the width of the planks was much bigger, than compared to the Niagara

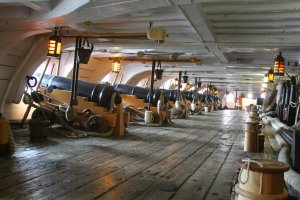

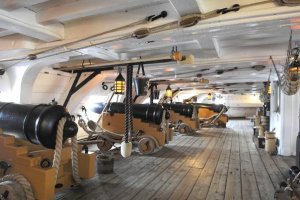

here the gun deck
HMS Victory 32-Pounders on Lower Deck (5).JPG HMS Victory Gun Deck General e vers_2.jpg

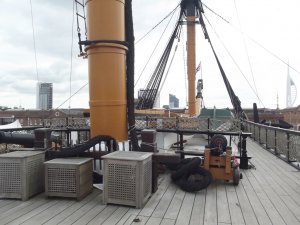

and when we go outside you can find the same width (but looks like to be restorated)

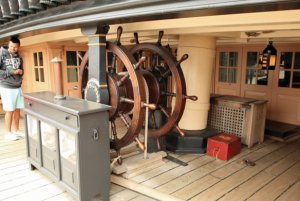

if you compare the colour of the planks ...... photo with steering wheel is weather protected, and in the following unprotected - it appears much lighter, and grey!

BTW: great information in this thread - thanks for sharing with us


Dave Stevens (Lumberyard)

Moderator
Staff member
Moderator
Sponsor
Joined
Dec 1, 2016
Messages
1,792
Points
478

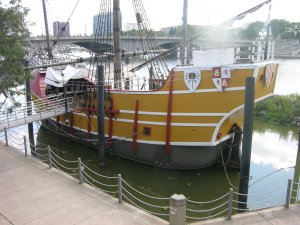

on this vessel granted this is a reconstruction but the people who do such reconstructions do in depth research.

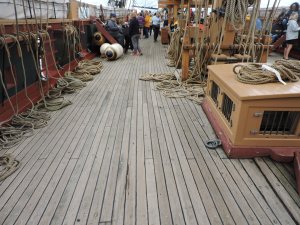

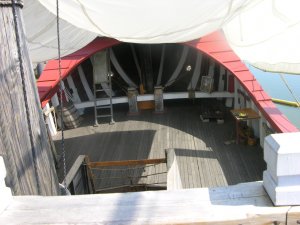

look down on the deck again the deck planks are narrow and gray colored. i have been on almost every ship in North America from 1,000 foot freighters to yachts and I have yet to see a white deck. I have seen Teak decks, Oak decks and pine decks and they are all not white


I have noticed decks inside the hull do have wider planks and all I have seen are dark brown


so this thing with stark white decks is a stylized modeling thing and not a reality. oh yes Ev again aboard another ship.


ron0909

Well-Known Member
Joined
Jul 8, 2018
Messages
132
Points
103

Location
Ottawa, Canada
does anyone know what the pole sitting on the waterway is?

View attachment 47271

did you know the ratlines were tied to one another the red arrow shows the line

View attachment 47272
That pole looks like it was made for leverage of some kind if it was flipped over...Its tied down but that could possibly just be to keep folks from playing with it or to keep it in place. That's my uneducated and far from being nautical mind talking. I could definitely have it 'arsey-versey' :)


Dave Stevens (Lumberyard)

Moderator
Staff member
Moderator
Sponsor
Joined
Dec 1, 2016
Messages
1,792
Points
478

actually Ron you are on the right track with leverage

I asked a crew member and she said it was an anchor spoon personally I never heard of it nor do I know how it works nor did she


ron0909

Well-Known Member
Joined
Jul 8, 2018
Messages
132
Points
103

Location
Ottawa, Canada
I would have never guessed it had anything to do with an anchor! Perhaps to pry it away from the ship's side while being secured. I was thinking to lift or wedge barrels or casks on their side.
