OCCRE BEAGLE BUILD LOG

[Kedennis]

Well, Haven't had time to do any building as of late, have a sick Wife to take care of. Finally got some time and put my Occre Bounty Sloop aside and started on the Occre Beagle. Have always loved this ship and it's history and, as a bonus, there are some great build log videos online so hopefully I can manage this build. Most of it is not a problem, just the hull planking. I'll do my best though. Now, on to the false keel and bulkheads,



[Kedennis]

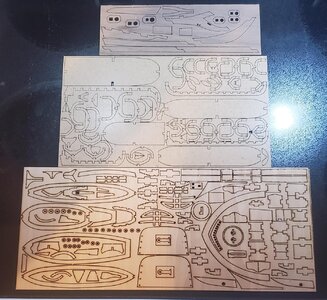

Well, for prosperity, or just foolishness, I'll post the kit contents first. Several sheets of laser cut parts, bundles of strip wood, a sheet of die cut copper parts, a bundle of different size dowels, a box of misc. accessories and thread and all the pre-cut sails. Looks like a real nice kit. This should be fun.



[Kedennis]

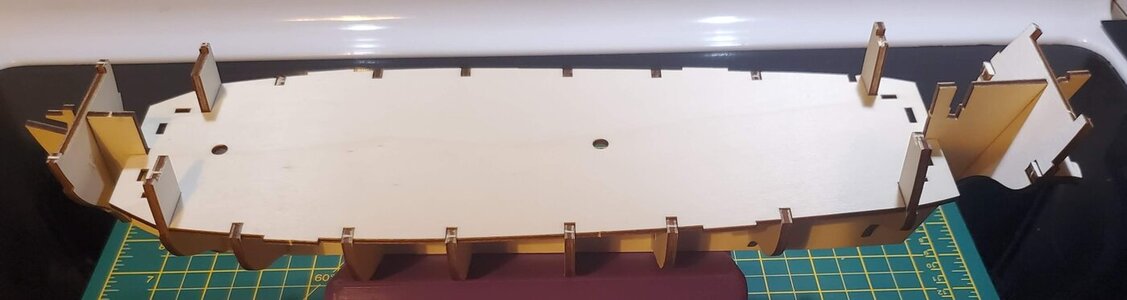

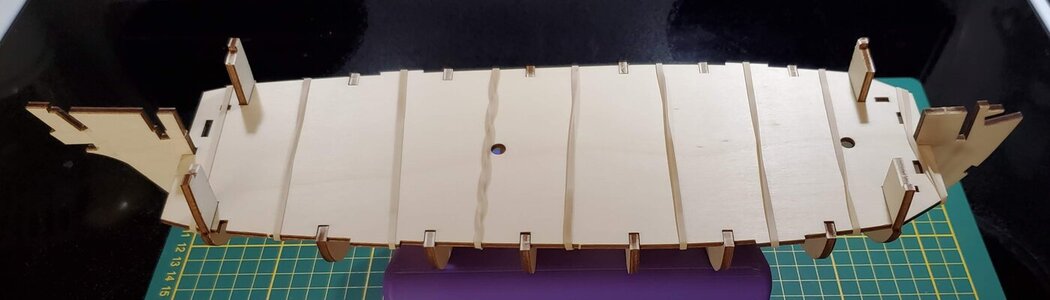

Here I numbered and cut out the false keel, all the bulkheads and the false deck. I sanded off the little tick marks that the laser left and dry fitted it all together. Everything seems to fit nicely.



[Kedennis]

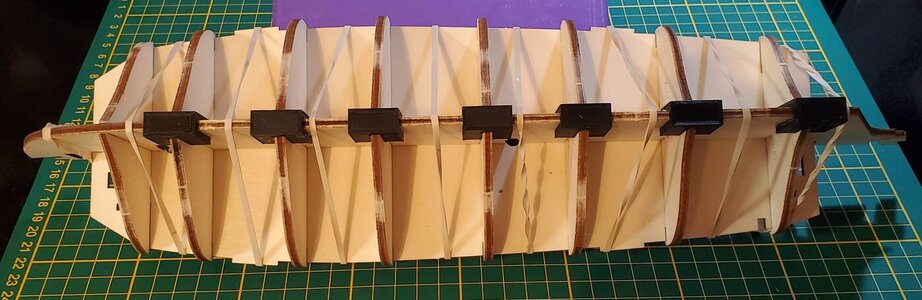

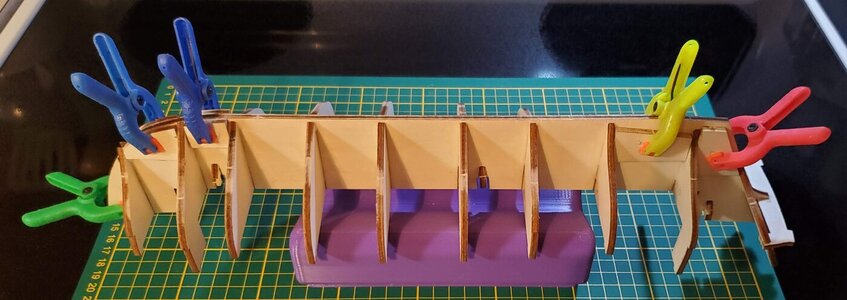

I wanted everything to line up nicely, so I decided set all the bulkheads in place and to rubber band the deck in place so I could tack the bulkheads in place with a touch of white glue to make sure it all line up well.



[Kedennis]

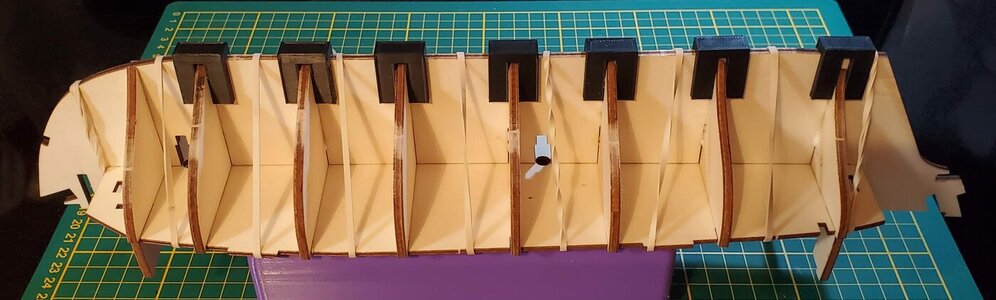

Well, me being me, I like to combine hobbies so I designed and printed an "Alignment tool" to make sure the bulkheads were correct. Once glued together the bulkheads visually and by rule lined up, as far as I can tell so far, perfectly. The I added the stiffeners. The instructions and pictures are a bit nebulous on these, but it looks close. Now I am printing a custom jig to keep the keel straight before I glue the deck in and start planking. But, first, I need to plank the deck. Will start on that soon.......



[Kedennis]

So, I printed a jig to keep the keel as straight as possible. Once I put this jig on the deck literally falls into place. 99.9% sure I have everything aligned just right. I'll keep this jig on until I place the deck and a couple boards. Should keep everything straight.



[Kedennis]

So I looked up the best way to cut planks for the deck and saw a bunch of balsa wood choppers ranging in price from $40 to $110 dollars. Nope. Couple hours on Fusion 360, 20 hours print time and about ~$5 in filament and I have a table. Took less than 30 minutes to cut 120 pplanks all exactly the same size.



[StumpyJack]

Kedennis,

You're not alone in worrying about planking ........ I have a Panart Armed Sloop that I've been planking over the past 5 years .... probably 2 planks per week!!
I do like your "chopper" .. any chance of a link to your .stl files?



[rick robbins]

WOW! I think your build will be close to perfect....& beautiful when finished!

Rick1011



[Kedennis]

Kedennis,

You're not alone in worrying about planking ........ I have a Panart Armed Sloop that I've been planking over the past 5 years .... probably 2 planks per week!!
I do like your "chopper" .. any chance of a link to your .stl files?

I'll let ya know when I up load it.



[EZ Duz It]

I'm finishing up Old Ironsides 1/100 plastic. Every time I work on it I see my beagle kit sitting on the shelf just calling my name. You have some reallt great ideas. WTG



[Kedennis]

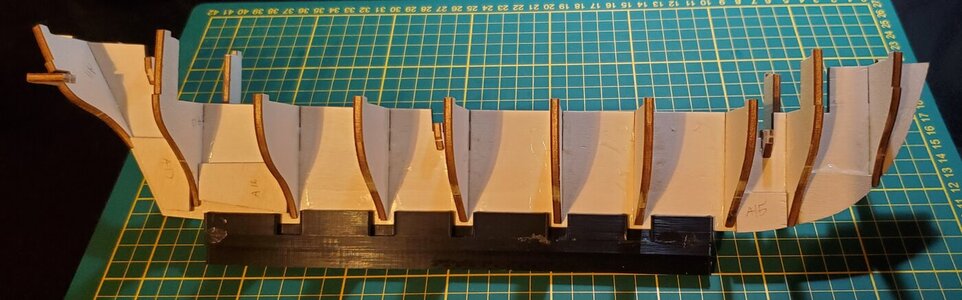

While I work on the deck I tried to come up with a way to keep the keel straight until I get a few planks on. I wanted to be able to hang it in my vise and still be portable. I came up with this.The keel was a bit warped and after a couple days wearing this it's straight now. Now, on to finish planking the deck.

Edit: the first one I printed was too deep and got stuck. Lol. And I couldn't put it in a vise.



[Kurt Konrath]

I like the 3D keel clamp, a nice way to hold the keel with vise and not damage the wood beneath.

Please let us know when you post the files, I have a new 3D printer on order and need some good test objects to learn with.

Maybe the Admins can set up a central files location for such tool related files deposits.



[Kedennis]

And, I have a deck. Perfect? No. Good pin patter? Maybe not. But, I like it! Time to glue it in.



[Kedennis]

Here are the stl files for my "CHOPPER TABLE" if anyone wants it. I designed this with 4-40 cap head bolts and it requires a standard razor blade. It will print fine on a 230 X 230 print bed. The second set of towers the arm goes thru are for a better alignment and it has a hole thru so you can stick something thru it and lock the arm in place for safety.

Also, I printed everything at .20 layer height except the arm. I printed it at .12 layer height because it has a very small outline that the razor blade locks into and .20 probably will not print it very well.



[NOVICHOK]

Hi.you have a very serious and thorough approach.I'm thrilled.



[StumpyJack]

Here are the stl files for my "CHOPPER TABLE" if anyone wants it. I designed this with 4-40 cap head bolts and it requires a standard razor blade. It will print fine on a 230 X 230 print bed. The second set of towers the arm goes thru are for a better alignment and it has a hole thru so you can stick something thru it and lock the arm in place for safety.

Also, I printed everything at .20 layer height except the arm. I printed it at .12 layer height because it has a very small outline that the razor blade locks into and .20 probably will not print it very well.

Kedennis,

Thanks very much for this ... appreciated.

Stumpy



[Kurt Konrath]

Thanks for the files, I will download and wait on my new printer to try my hand when it arrives.



[Kedennis]

Thanks for the files, I will download and wait on my new printer to try my hand when it arrives.

If you need any help printing let me know. Slicer settings can be overwhelming at first.



[Kedennis]

Got the main deck glued in as nd the walls and upper deck dry fitted. Everything is fitting well so far.
