Thank you Roger, Jerome and others who have posted real world experience with similar ships and other advice to help me get this project right, the input is very helpful and definitely appreciated. Hopefully I'll have some time today between other projects to make more progress on the hull, I'll post photos as progress is made.
And Jerome thanks so much for the rigging diagrams! This is my first ship build so I'm not very familiar with the rigging - those drawings will be incredibly helpful!
And Jerome thanks so much for the rigging diagrams! This is my first ship build so I'm not very familiar with the rigging - those drawings will be incredibly helpful!
Fantastic project, photos, and all information from others watching this site.
Jim
Jim
- Joined
- Jun 29, 2024
- Messages
- 1,416
- Points
- 393
To add a little to my piping story. As fabricators of the piping our responsibility ended when the piping was delivered to the dock down the street from out shop. But to our surprise, several specialists hired by the shipper arrived to oversee loading and our conference room became their office.
A stowage expert. This guy literally mapped out every piece of piping loaded within the ship’s cargo spaces. This included leaving one hold empty, but piping stowed on deck. I believe that the empty hold was later flooded to get under the Detroit River bridge
Cargo surveyors. These guys inspected the cargo to certify that it was in good condition when shipped.
The manager of the port’s stevedoring company. His guys did the actual loading. I believe that this included operating the vessel’s cargo gear.
A representative of the company insuring the cargo.
There were others that I don’t remember. My point is that shipping this piping was carefully planned by knowledgeable people within the marine shipping industry. I would assume that the same thing happens all of the time at ports around the world.
Roger
A stowage expert. This guy literally mapped out every piece of piping loaded within the ship’s cargo spaces. This included leaving one hold empty, but piping stowed on deck. I believe that the empty hold was later flooded to get under the Detroit River bridge
Cargo surveyors. These guys inspected the cargo to certify that it was in good condition when shipped.
The manager of the port’s stevedoring company. His guys did the actual loading. I believe that this included operating the vessel’s cargo gear.
A representative of the company insuring the cargo.
There were others that I don’t remember. My point is that shipping this piping was carefully planned by knowledgeable people within the marine shipping industry. I would assume that the same thing happens all of the time at ports around the world.
Roger
Last edited:
Roger,
Thanks again for the info. All this talk of cargo loading is making me think I should build my ship the same way Howard Lloyd did - with an open cargo hold, crates and stevedores inside loading/unloading...

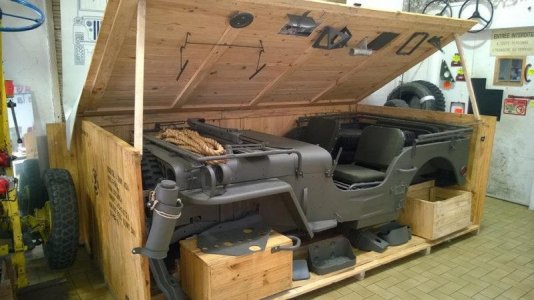

Since I'm an independent product designer and I've done products for more than a half dozen Jeep and offroad trailer companies, maybe my load should be WWII crated Jeeps.
Your work is much cleaner than mine. My bulkheads weren’t numbered so I had to guess where they went. Several crumbled as I cut them, and I had to make new ones from scratch. I love your progress. Hopefully you can see some of my mistakes so you know how to avoid them.
This is great info! I can use it in mine as well.

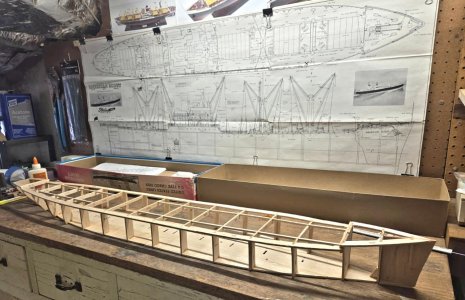

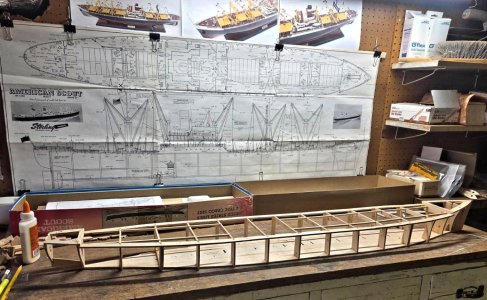

The basic hull structure is complete. According to the kit instructions, the next step would be to build the lower part of the hull but since I'm doing this as a waterline model, my next step will be to add a 1/4" plywood base. I'll shape it to match the wider profile of the bottom of the hull that resulted from shortening the bulkheads 3/4" at the bottom.

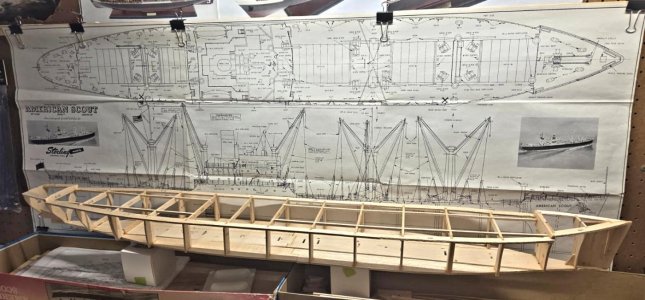

Comparing the hull to the plans to see how tall the finished ship will be with the masts and rigging:
After adding the plywood base I'll perfect the fairing of the hull - the kit parts are fairly accurate but not absolutely perfect so some work to make sure the hull is faired correctly is in order.
Comparing the hull to the plans to see how tall the finished ship will be with the masts and rigging:
After adding the plywood base I'll perfect the fairing of the hull - the kit parts are fairly accurate but not absolutely perfect so some work to make sure the hull is faired correctly is in order.
