Fore sure I enjoyed this build-log of building this nicely details machines, François. And installing it on both sides of the plexiglass is a well thought idea. I hope you will post some pictures of the completed diorama.So, my part in this project is done. Tomorrow, I'll be tranfering it to the diorama guy. Here are some pictures showing a bit how everything came together.

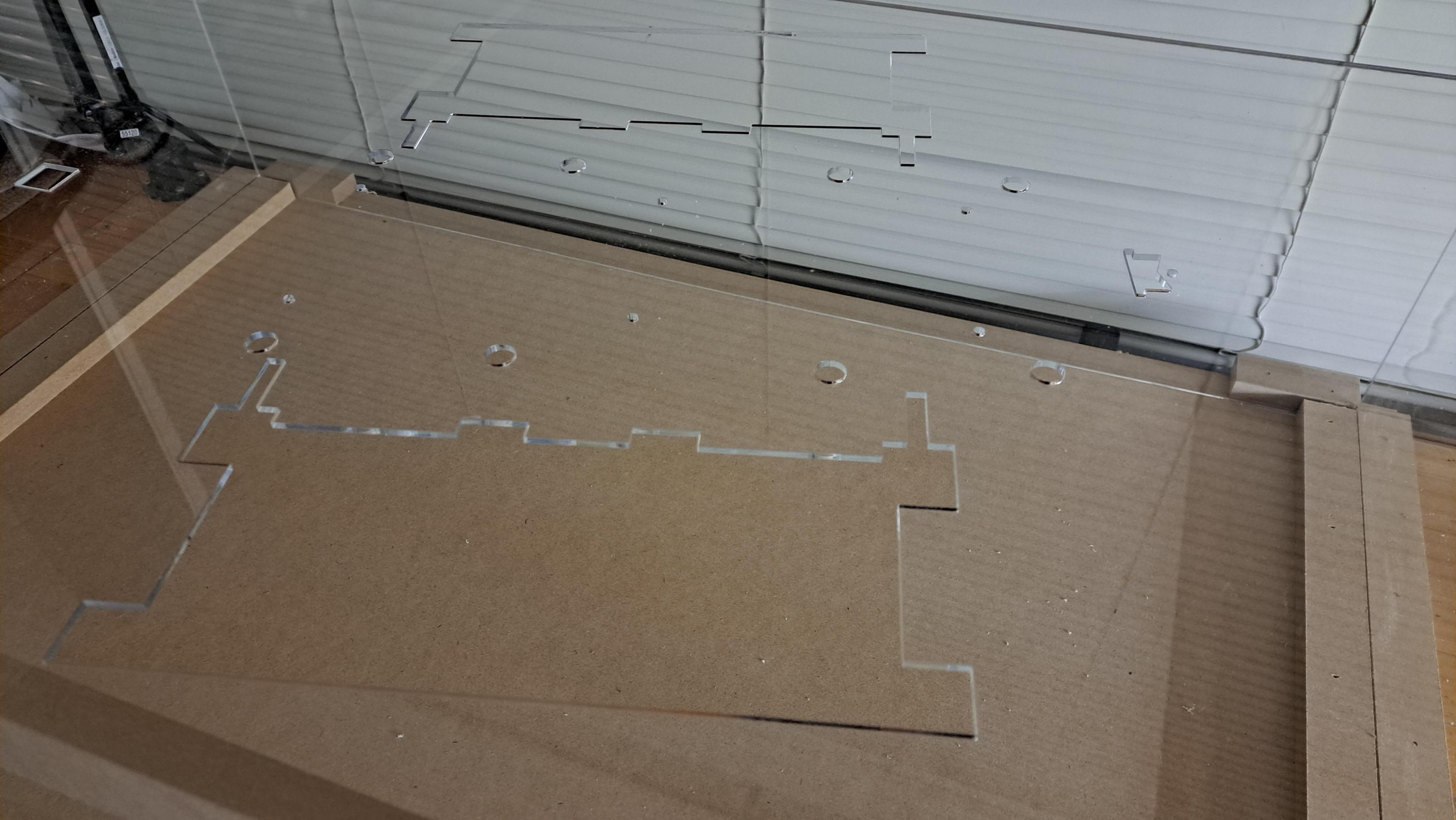

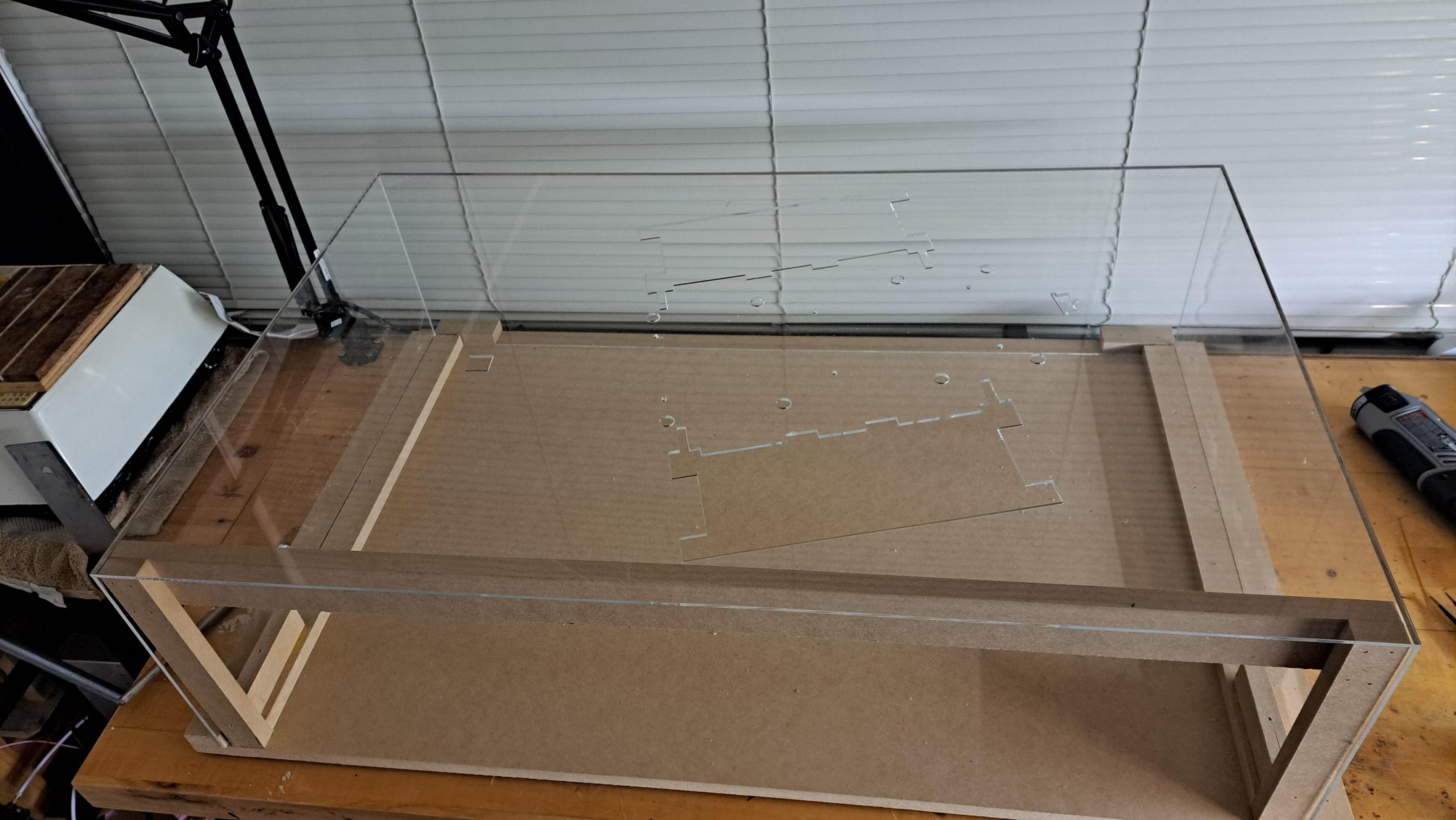

The inner plexiglass with laser cut openings mounted in a temporary frame

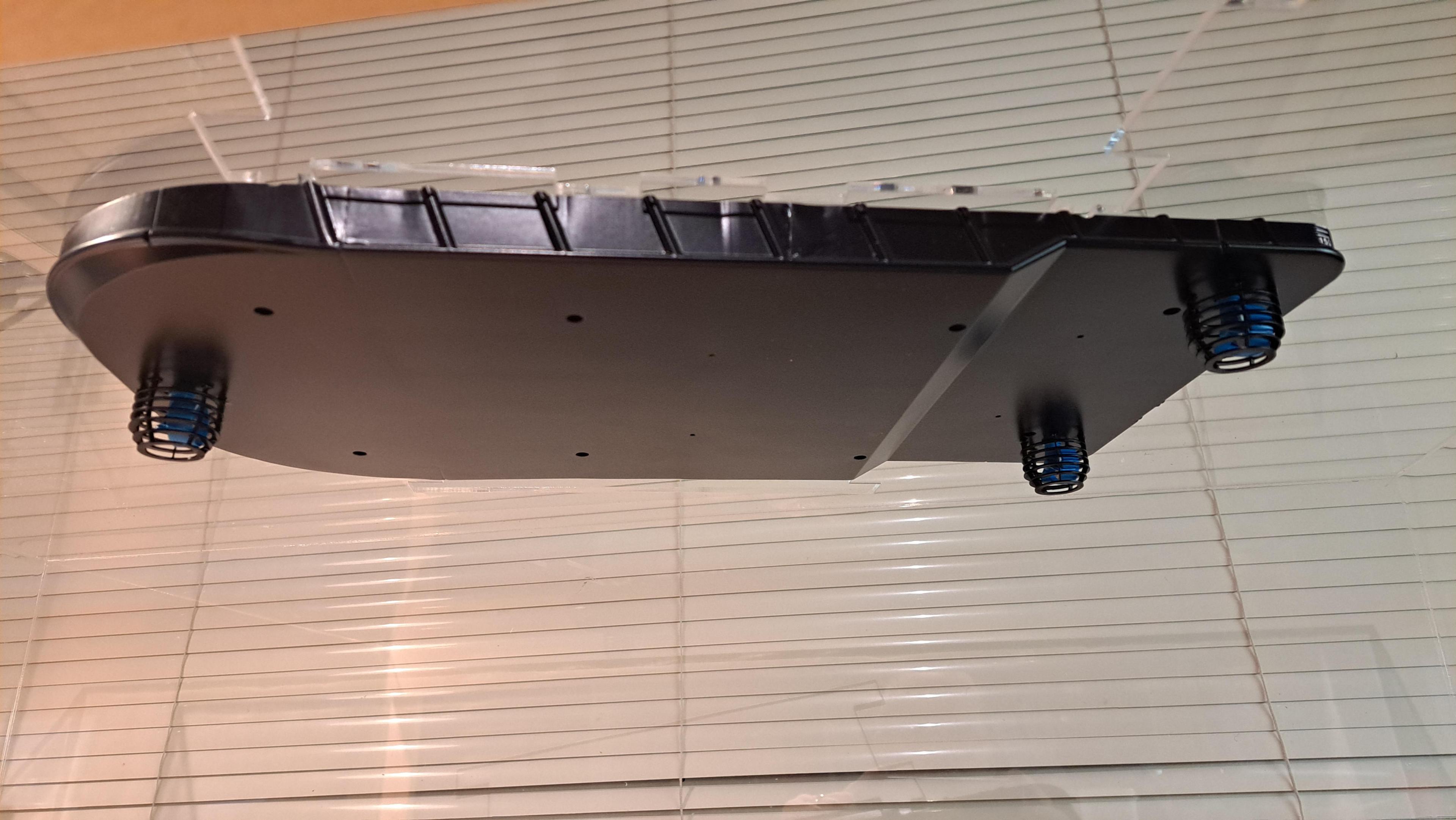

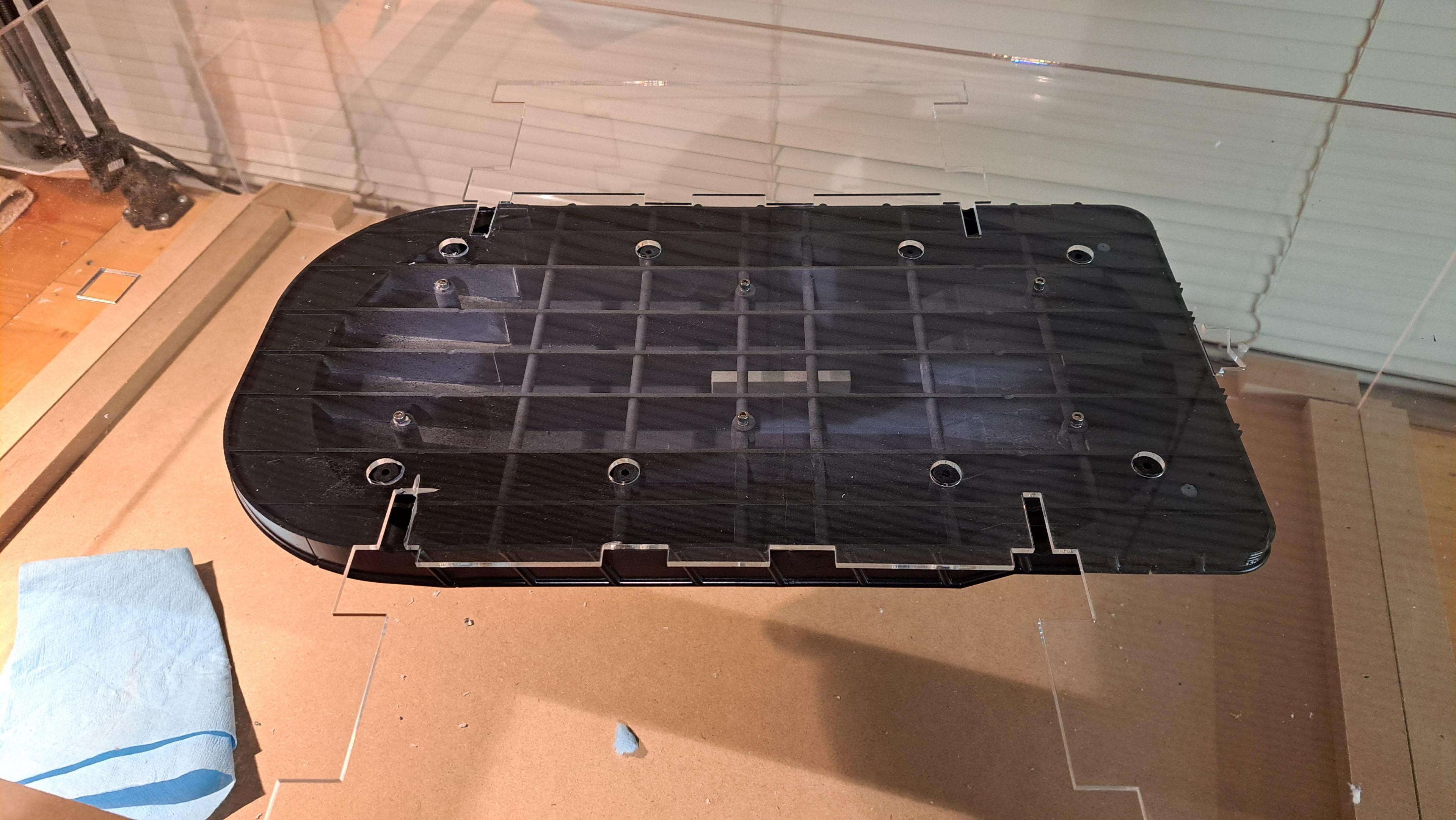

Bottom half screwed in place

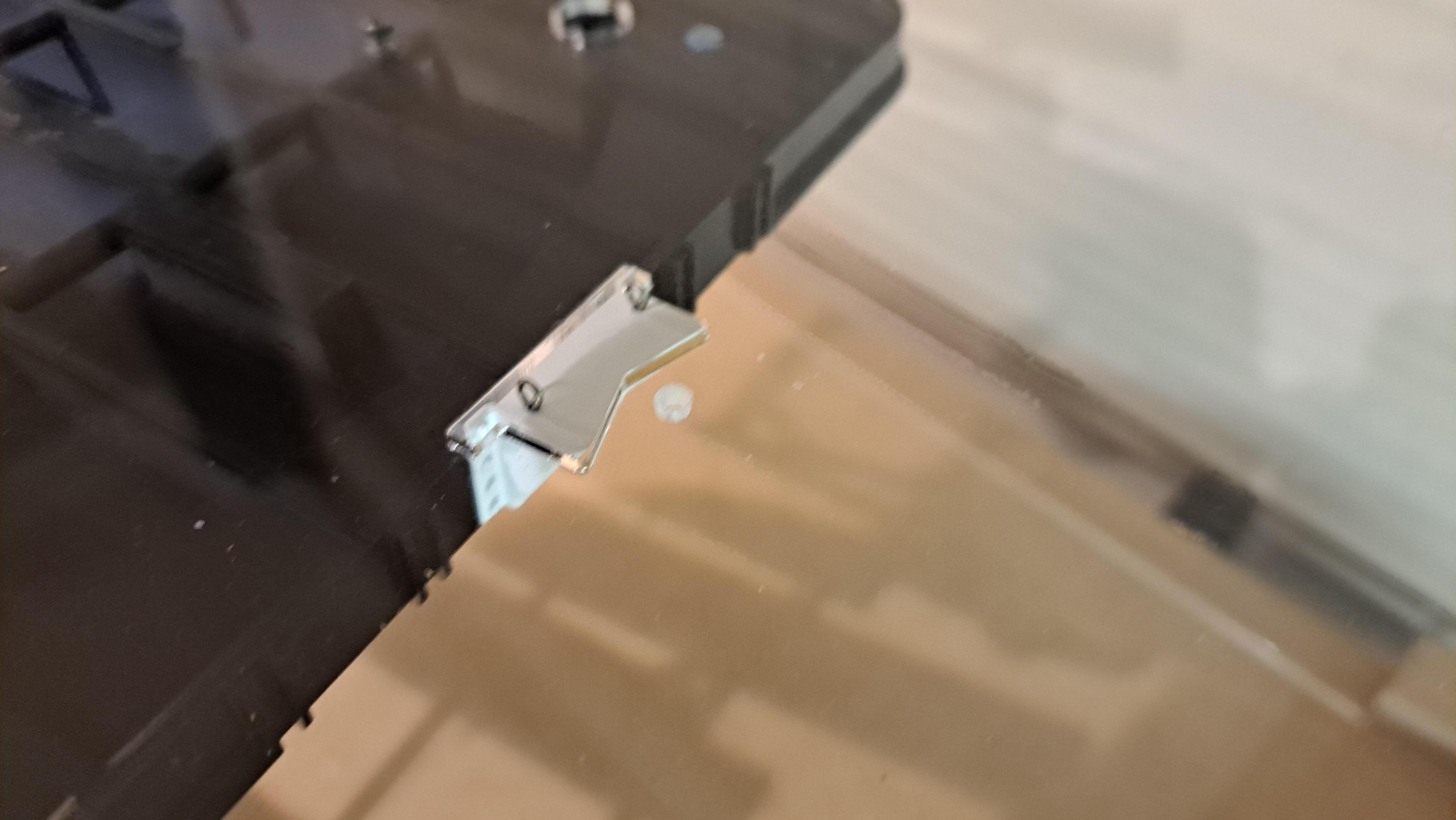

deflector installed

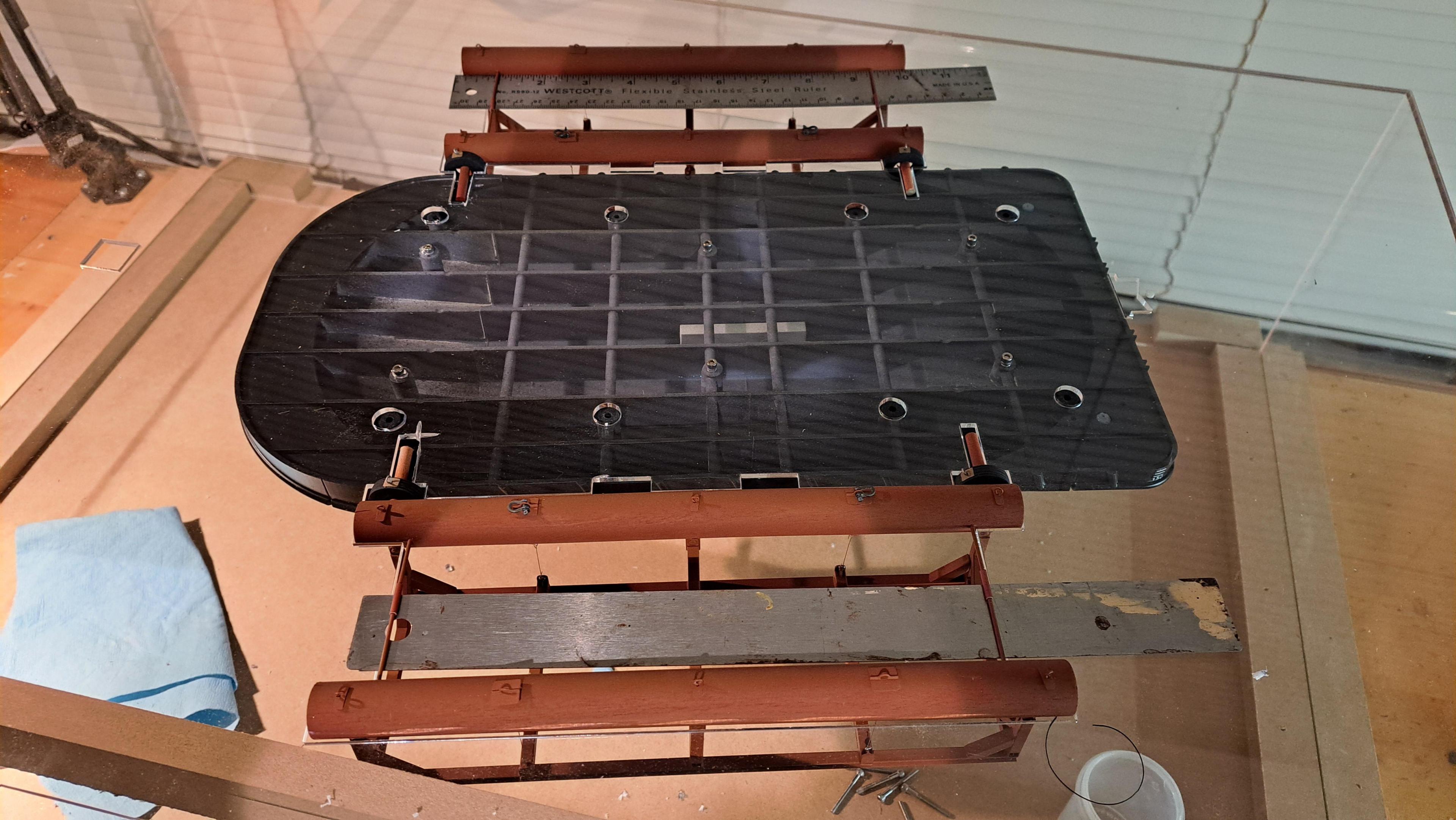

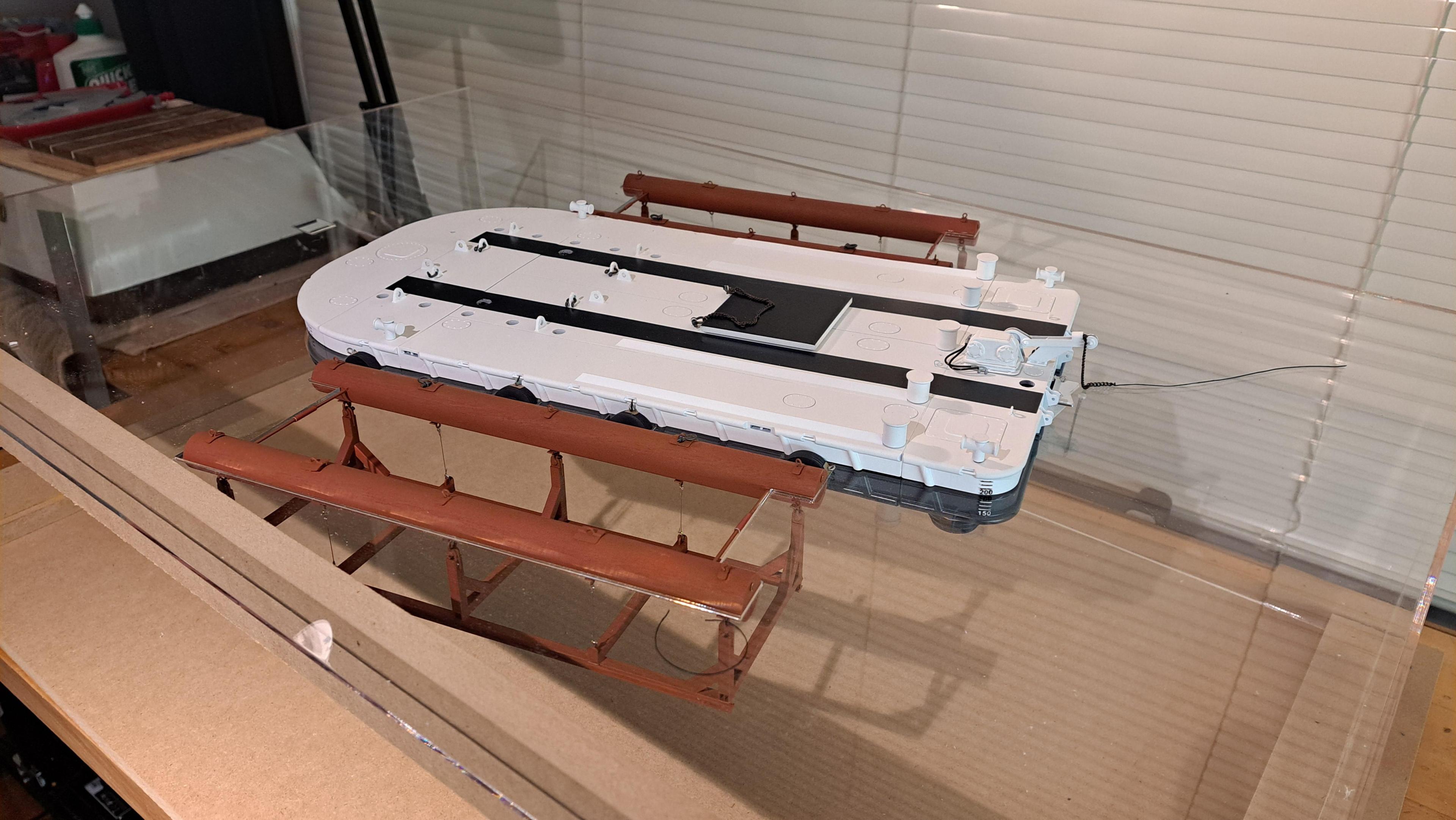

Both bunks in place
Top half screwed from underneath thru bottom and plexiglass thus locking the bunks in place

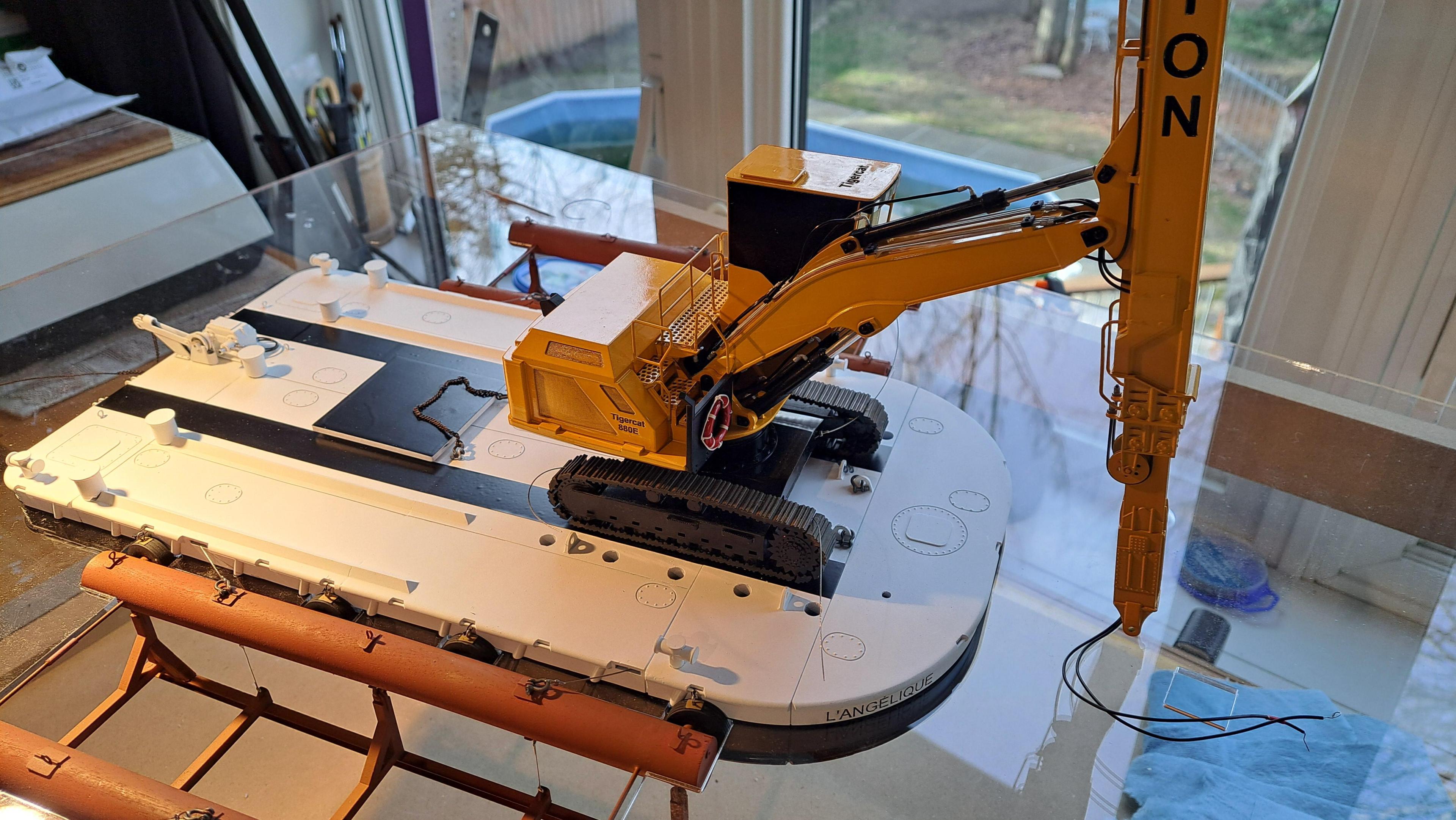

Tigercat glued onto the top surface

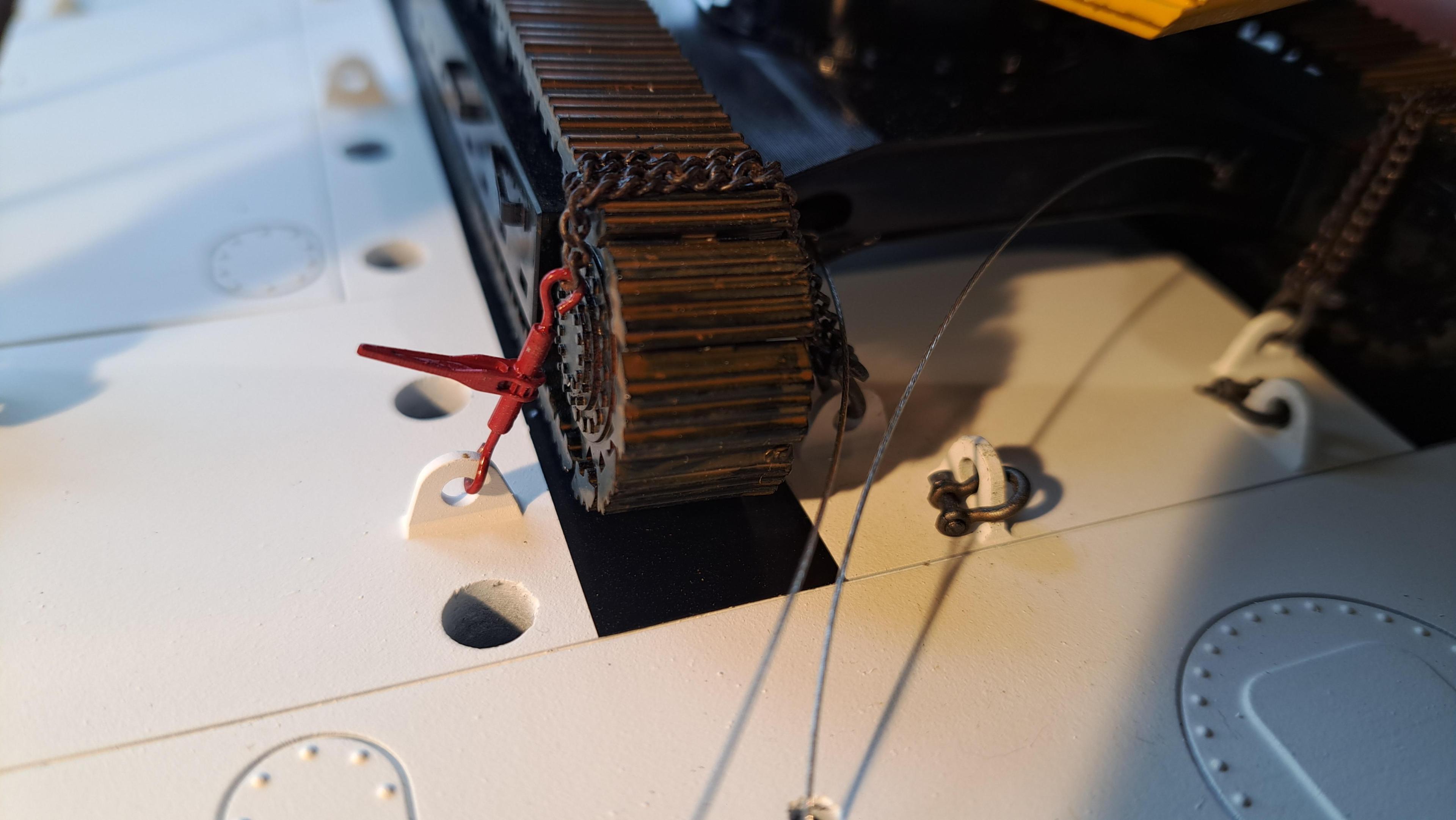

Firts chain ratchet binder installed

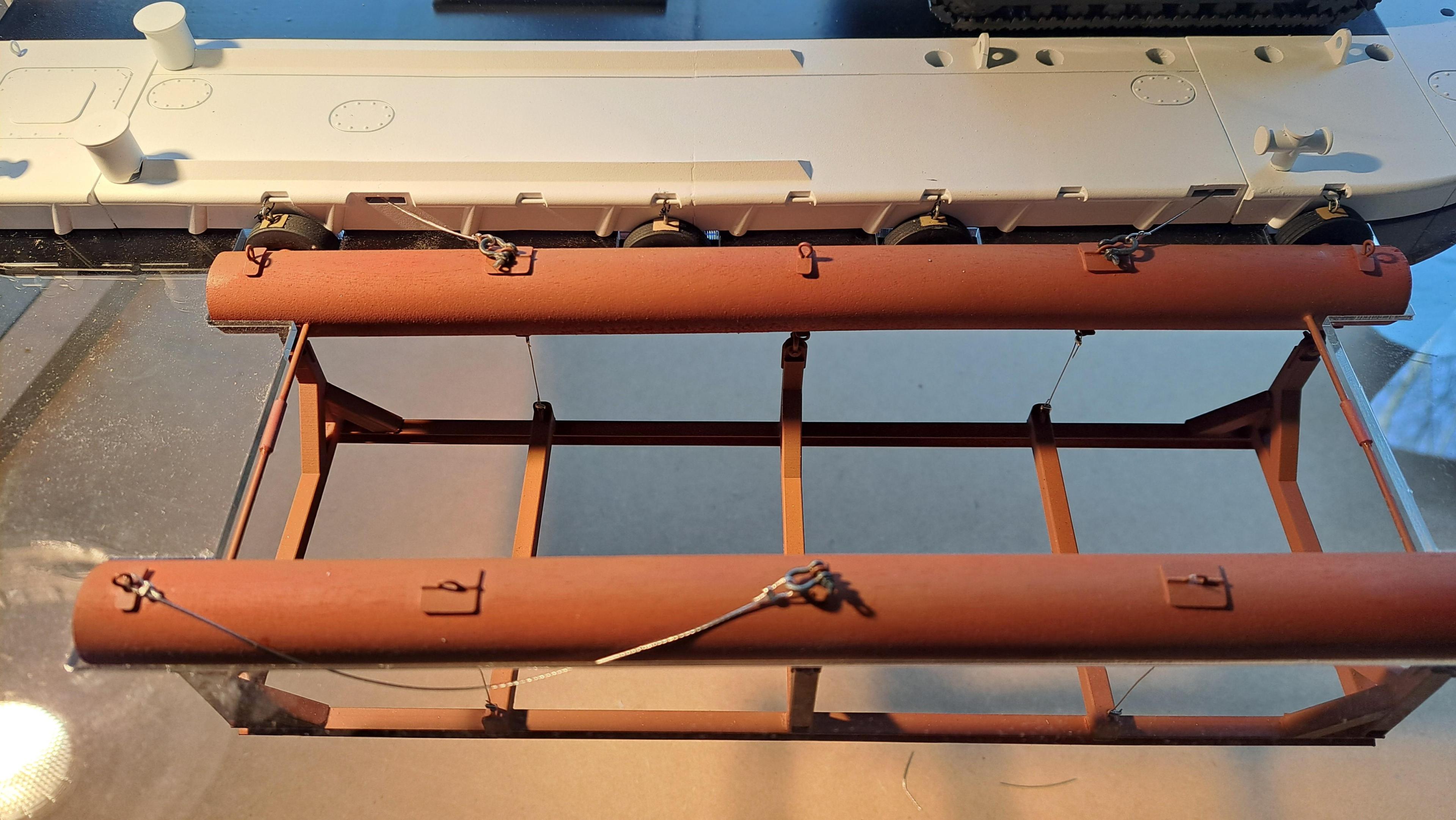

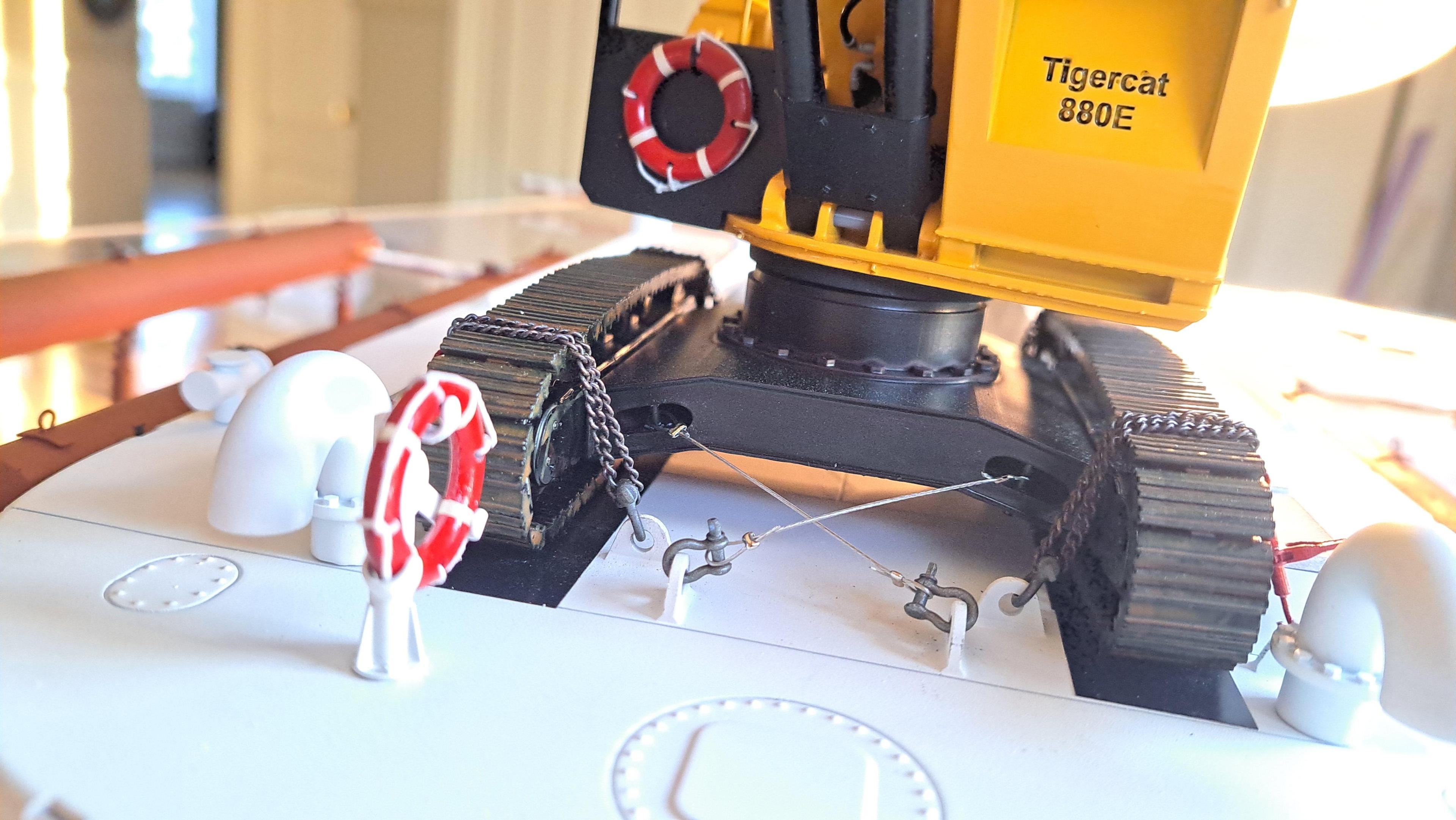

Both binder and cross braking cable installed at one end (same was installed at other end of Tigercat)
Tool boxes, front vent and front buoy installed

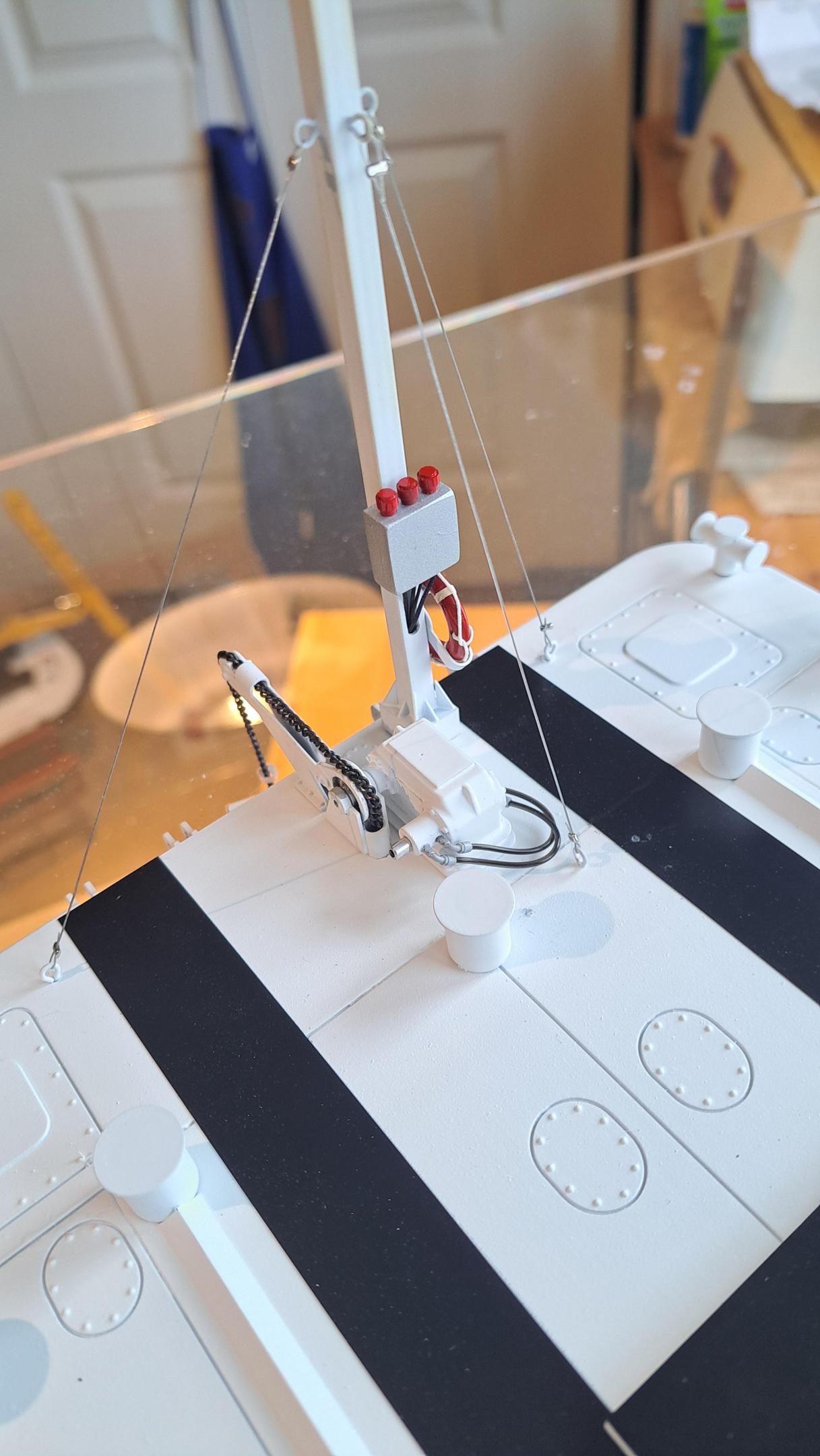

Mast glued in place

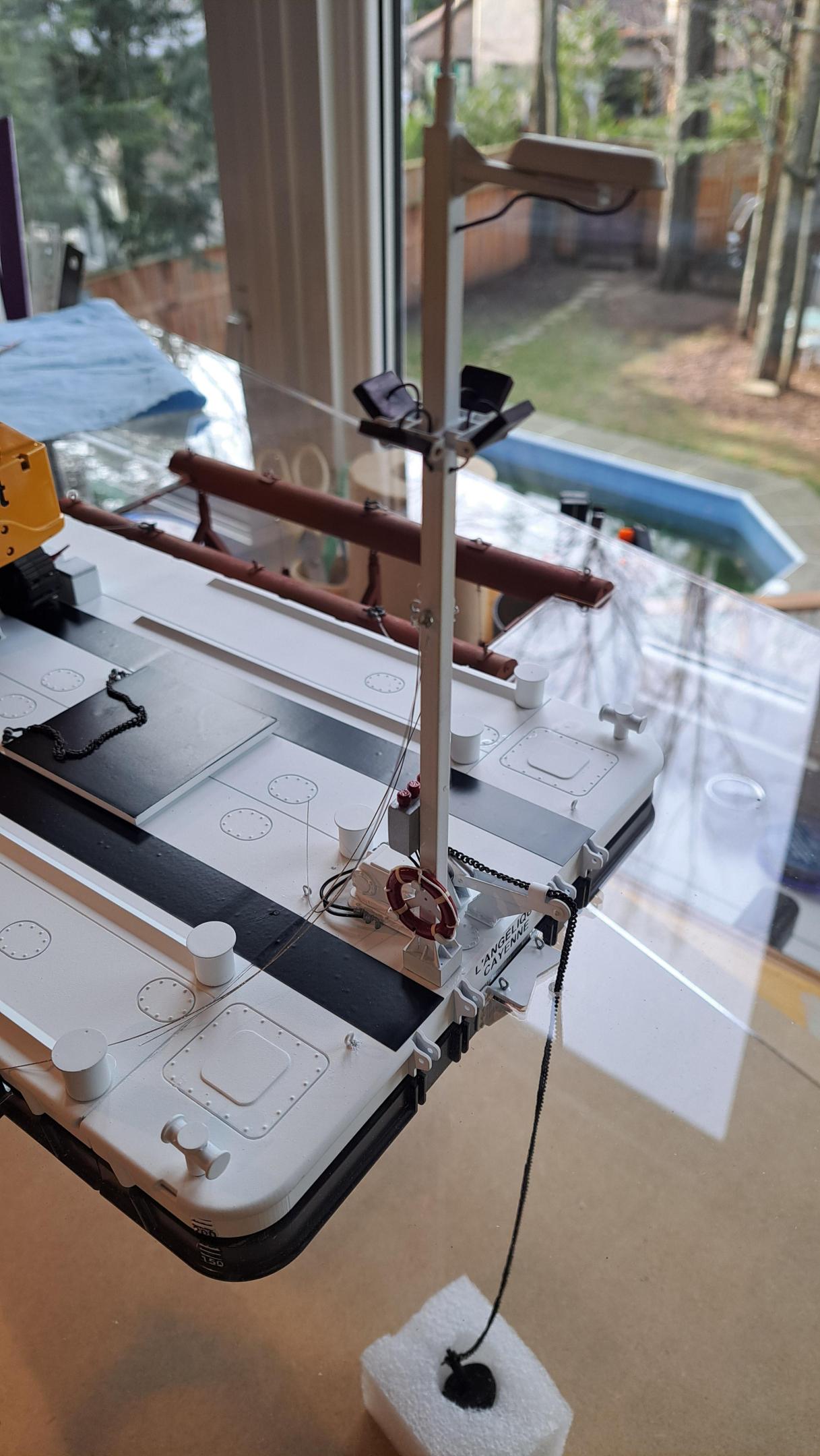

And 3 retaining cables attached

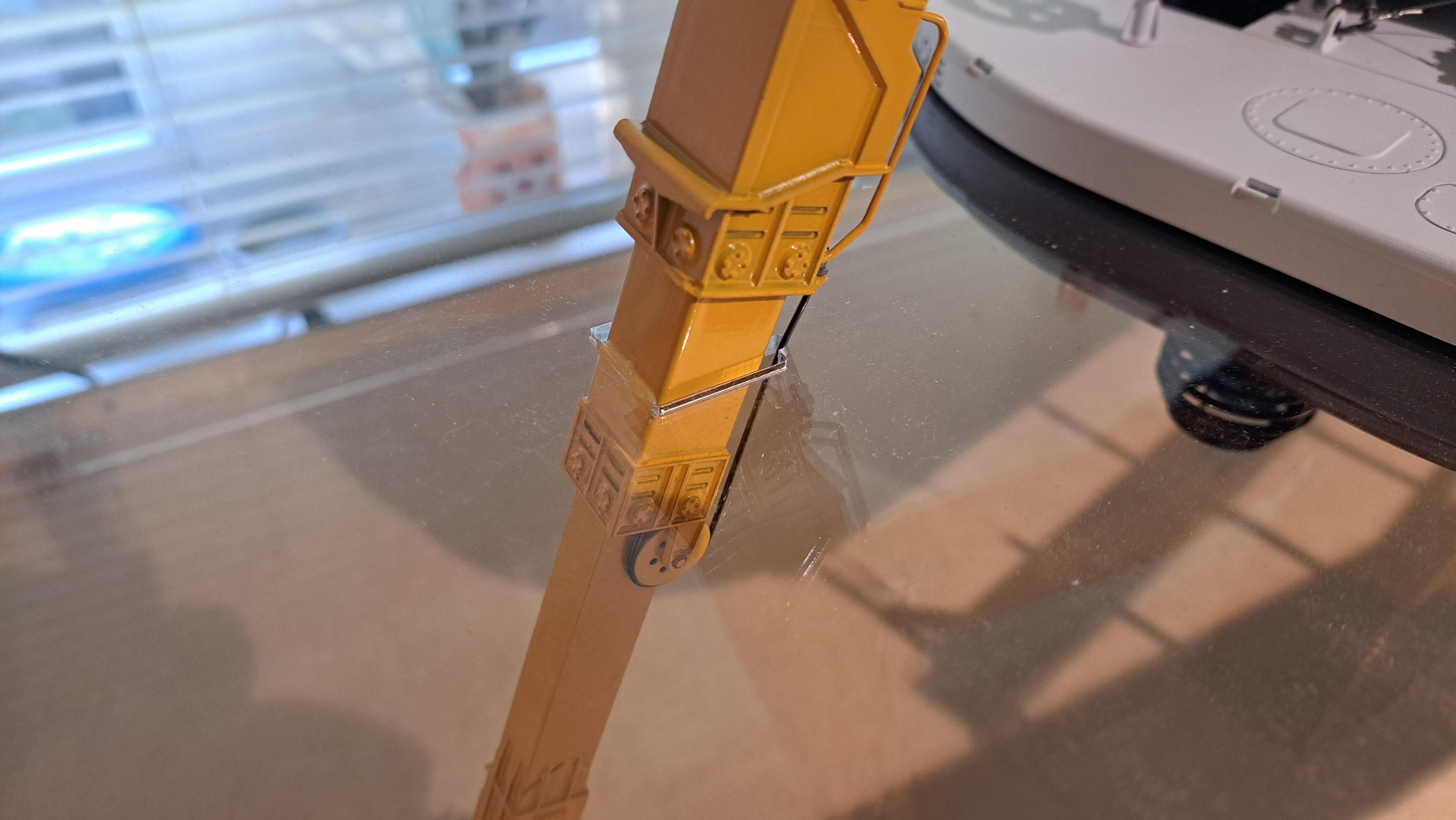

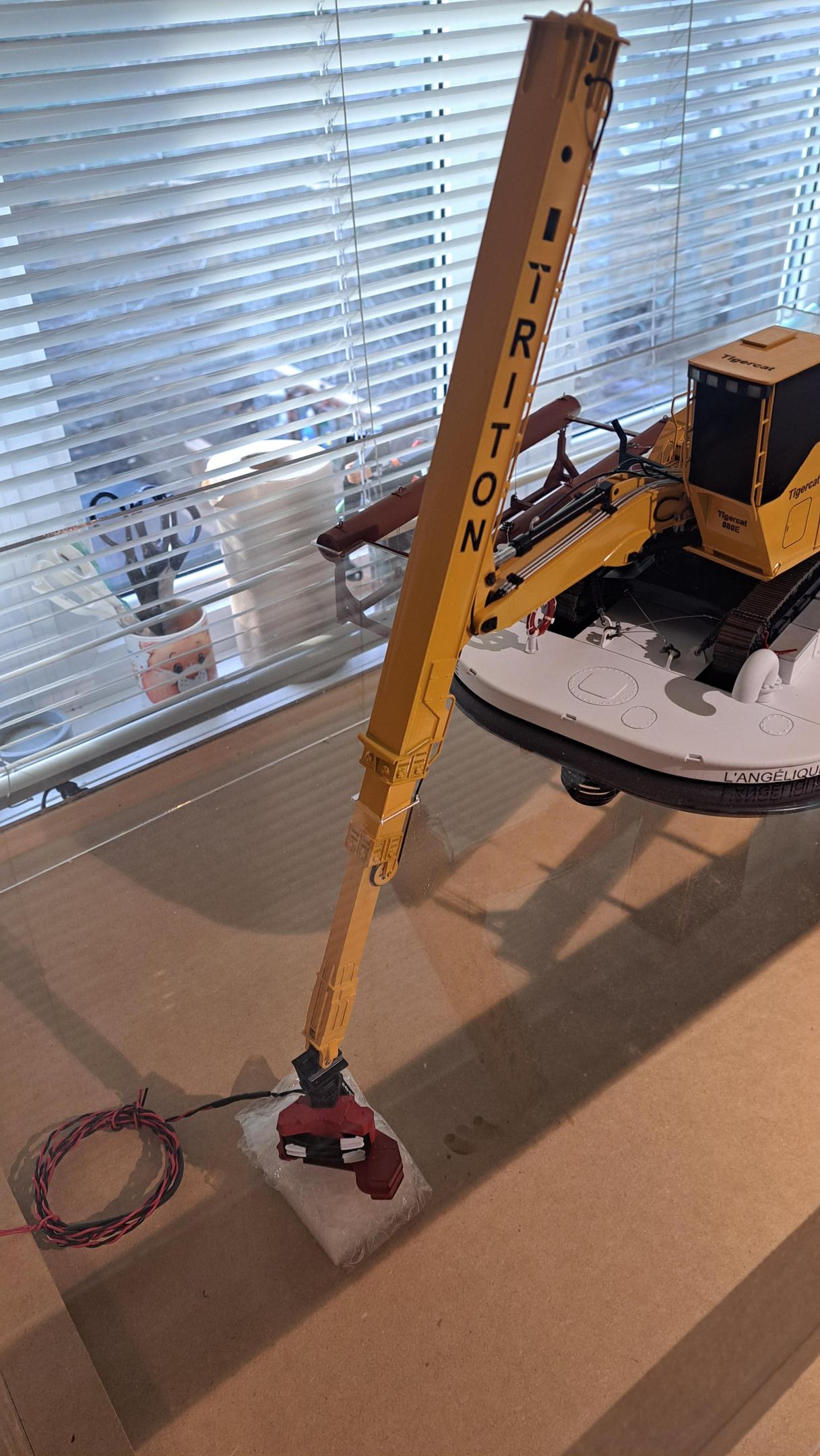

Triton arm inserted thru plexiglass and glued in place (all pivots were also glued to eliminate any movement and rigidity the assembly)

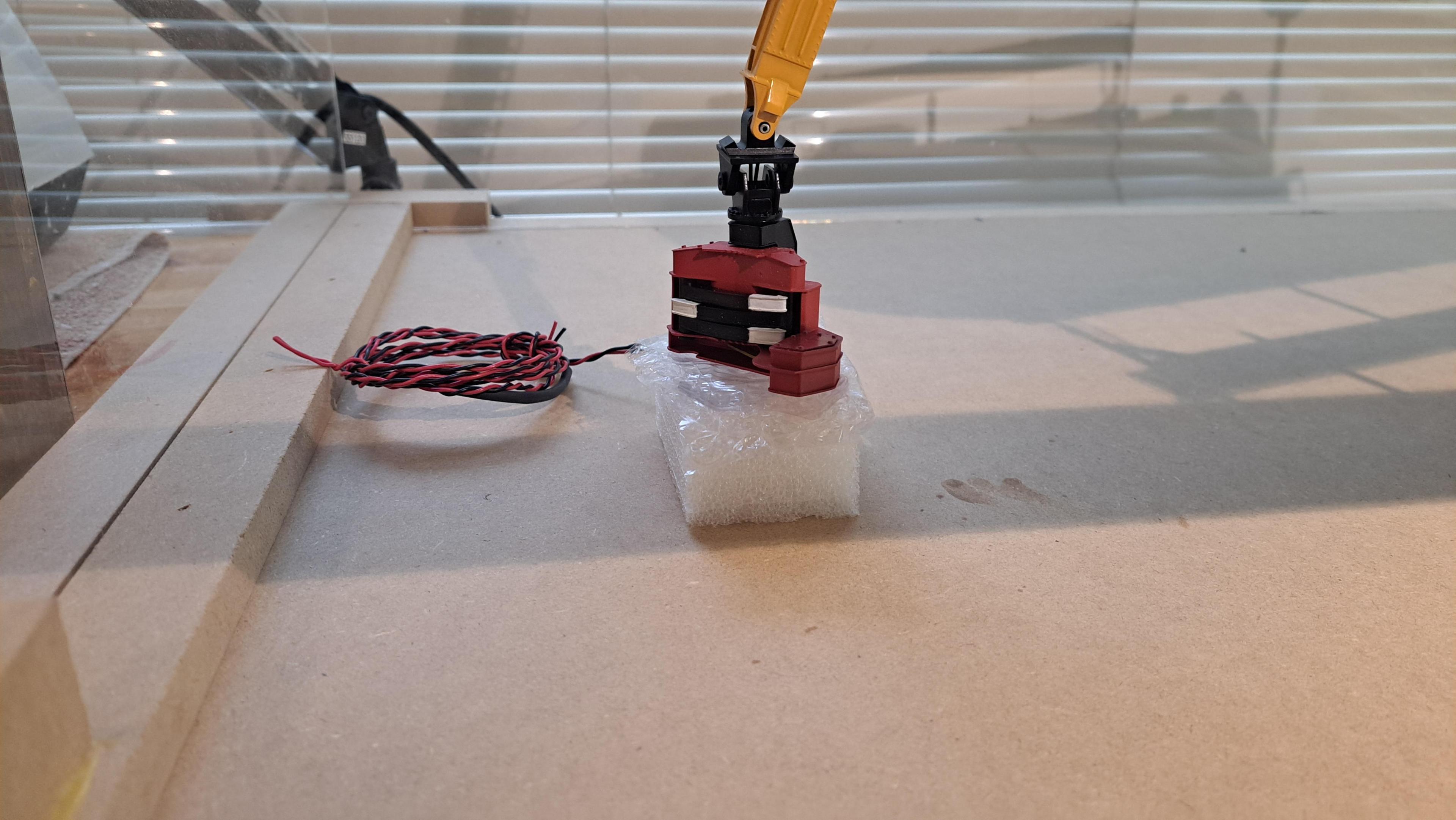

And finally, the harvesting hand was installed after passing the cab lights wires thru

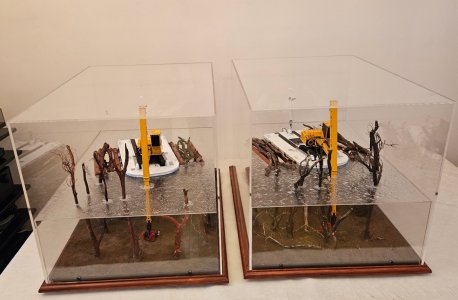

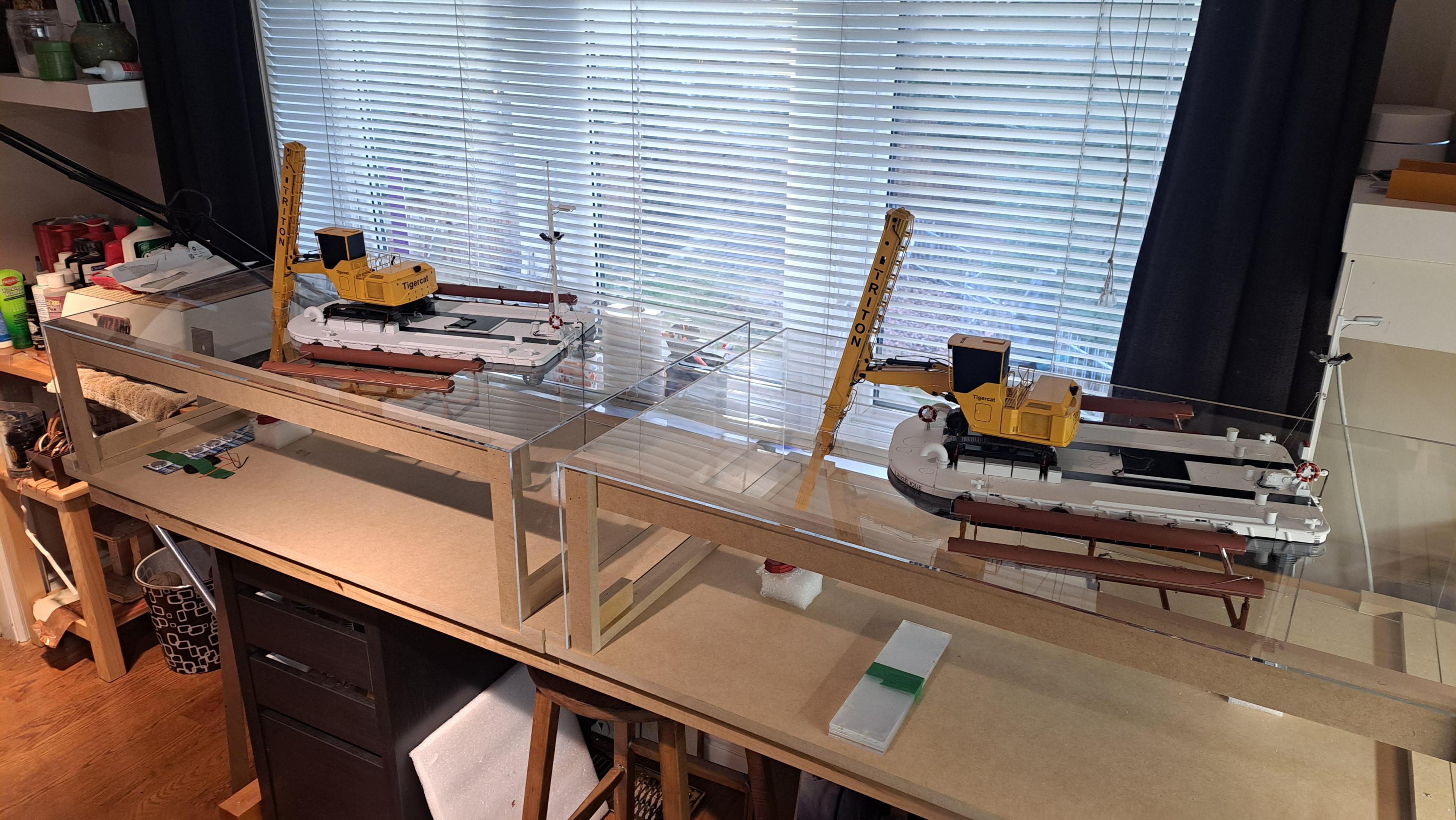

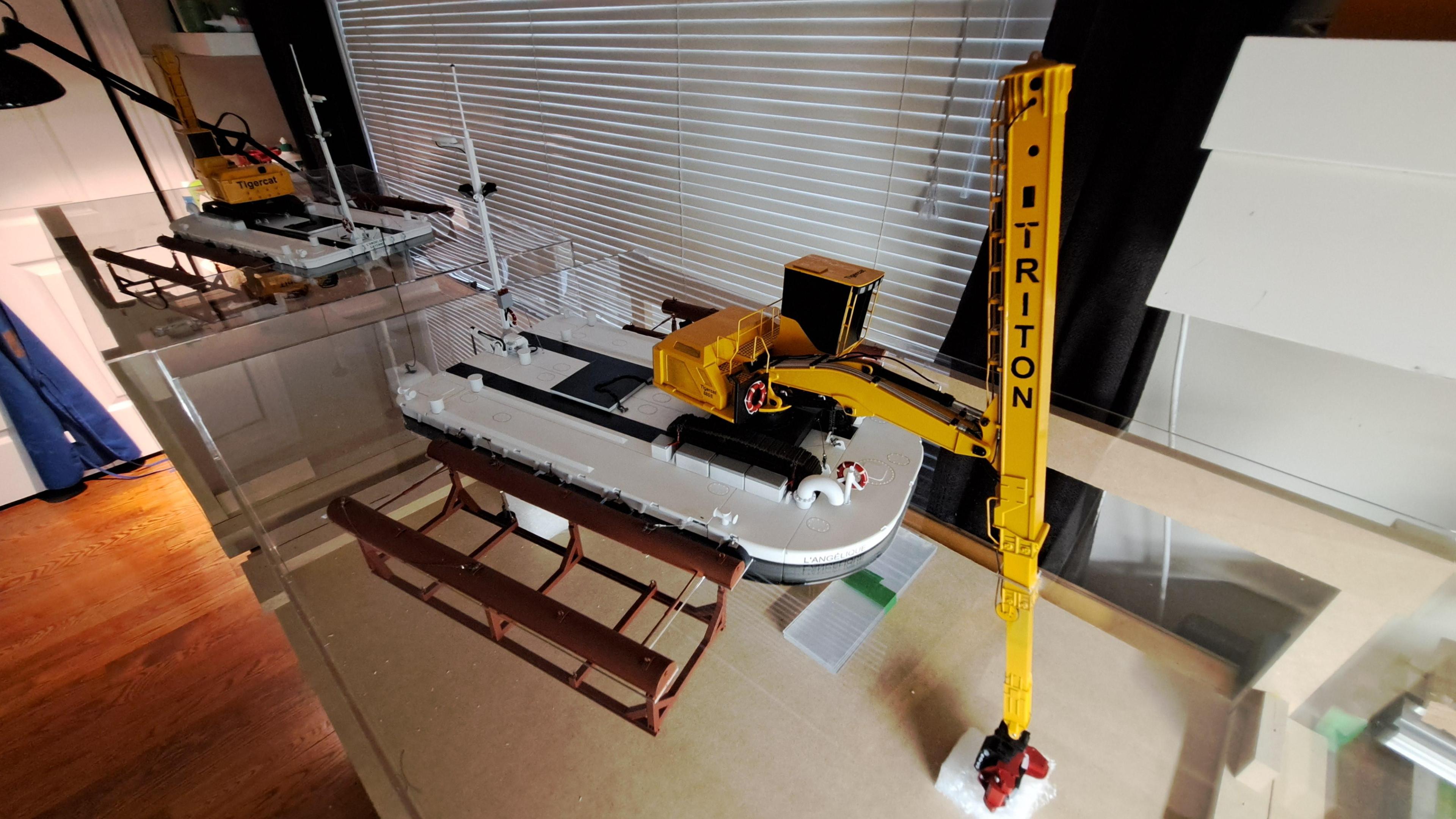

A few shots of the completed models
Hope you enjoyed following this build half as much as l enjoyed making it.
Regards, Peter
