USS Constitution scale 1:186 first build

D

Danno71

Guest
Good morning Zoltan,
It's 1:186 - I purchased the plans from, http://www.bestshipmodels.com/ , To sets - 7 prints "USS Constitution" and 13 prints "USS Constituation2"
I've probably bit off more than I can chew. Detail will be simplified but still difficult.

I will gladly accept any recommendations or suggestions you may have. Once again, not new to modeling in general but very new to ship building.
Regards,
Dan

D

Danno71

Guest

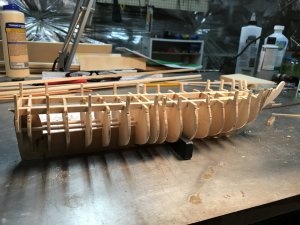

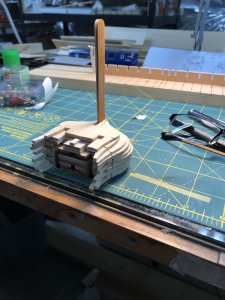

I had to jig the bulkheads in a stack to ensure no movement during glue-up. I did this by positioning the bulkheads in a symmetric top view stack. I then tack glued the edges. After drying I drilled two holes 3.75mm through all bulkheads to accept bracing dowel rods during assembly. I’m pleased with result. It’s straight!


D

Danno71

Guest
The build has taken a tragic turn. One sheet of my plans were one scale while the second sheet was off by approx 10%. It could be that the printer service made a mistake or a misfortunate key stroke in Paint Shop. Needless to say the decking is 10% larger than the hull. I know the real reason, lack of patients and attention to detail.
Therefore, this build is scrapped and off to find higher caliber plans for the Constitution.
Regards,

Joined
May 26, 2019
Messages
68
Points
113

That's a shame but it happens with scratch build, when you have plans made say from a print each plan might be slightly different. I find nothing is exact so adjustments have to be made, that's what scratch building is about. You have to be a bit of a bodger like me. The end result is important. Nobody can see under the wood. Paul
