Vasa 1628 - Billing Boats 1:75 Modified

[Krister_L]

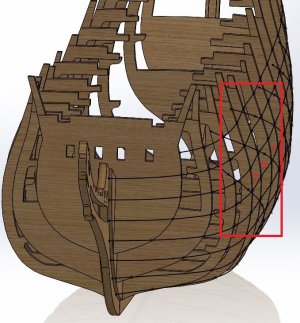

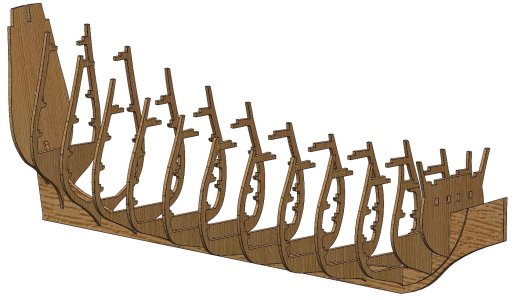

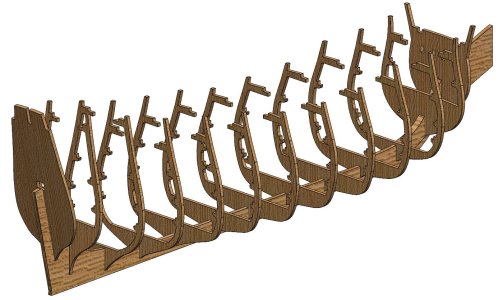

So, now starting to get somewhere. I drew the keel, stem, stern and frames (bulkheads) up in SolidWorks and mated them together. After checking with 3D curves, I realize that a couple of frames need some minor adjustments, but otherwise no big issues.

As I now have material enough for making new frames, I think I will start cutting them and and make a dry fit to see if it's okay before I take a trip to the museum, guess some further questions will pop up as I go along



[Krister_L]

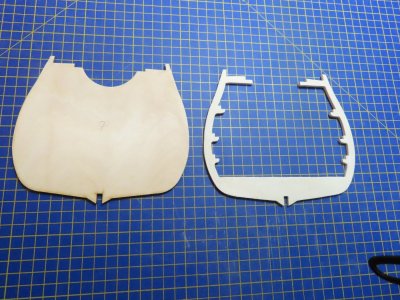

Had to make a test. My version of frame no 22 in the Vasa drawings and original bulkhead no 7 in the Billing Boats drawings



[mellpapa]

Had to make a test. My version of frame no 22 in the Vasa drawings and original bulkhead no 7 in the Billing Boats drawings

View attachment 550450

Krister_L, hello
I'm very interested in the Vasa.
Adding the gun deck—this is an exciting project.
I look forward to the next steps.
Best regards.



[Krister_L]

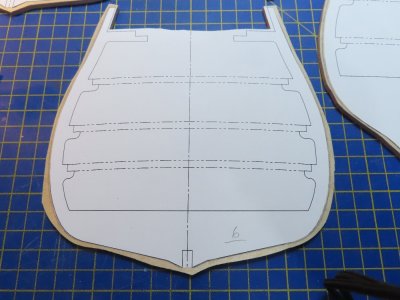

Vasa 1628 skala 1:75 update. Finally after many ifs and buts I'm back on track again with my modified Vasa project. First I had the wrong kind of plywood so I had to order new sheets. Second: Got the new sheets, but in wrong thickness, Third: had to go down to Poland again for more work. Fourth: Ordered new plywood again, and my "home built scrollsaw" broke down. Fifth: bought a new scroll saw, and the correct plywood arrived. I have now drawn up all bulkheads in my cad-program, printed them, glued them to the plywood and cut one of the frames out. Twelve more to go and I think this will keep me busy for while now



[Papatotalos]

Suc6 with your build Krister.
And best wishes for 2026.



[Krister_L]

Thank you Pap, and the same to you.



[mellpapa]

Vasa 1628 skala 1:75 update. Finally after many ifs and buts I'm back on track again with my modified Vasa project. First I had the wrong kind of plywood so I had to order new sheets. Second: Got the new sheets, but in wrong thickness, Third: had to go down to Poland again for more work. Fourth: Ordered new plywood again, and my "home built scrollsaw" broke down. Fifth: bought a new scroll saw, and the correct plywood arrived. I have now drawn up all bulkheads in my cad-program, printed them, glued them to the plywood and cut one of the frames out. Twelve more to go and I think this will keep me busy for while now

View attachment 567550

View attachment 567551

View attachment 567552

View attachment 567553

Dear Krister_L,
Happy New Year.
It's a real bummer that my homemade scroll saw broke.
So you're cutting with a new scroll saw now, huh?
That's a really beautiful frame.
I'm really looking forward to seeing the next steps.
Keep up the great work!



[Krister_L]

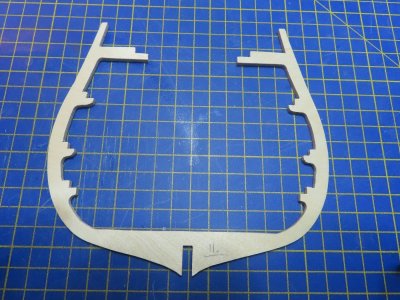

Vasa 1628 update: Between all snow shoveling sessions I managed to cut out all 13 modified frames/bulkheads for Vasa. I'm going to put in the two battery decks, but haven't made up my mind about the hold yet. I'm going to cut out the battery decks first and dry fit them, then we'll see



[Krister_L]

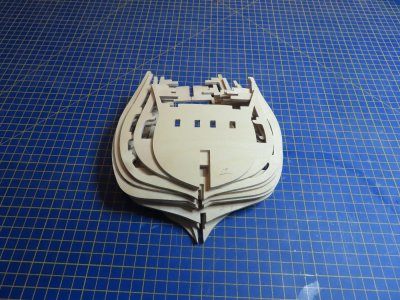

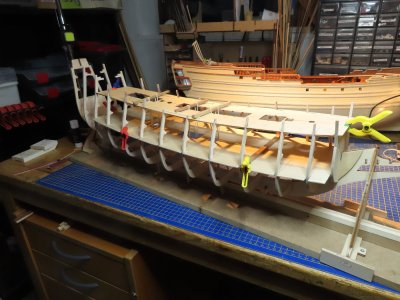

Vasa 1628 (modified) skala 1:75 update: The workshop has opened again, been a bit lasy lately but also occupied with other stuff. Anyhow, started today with dry fitting the lower gundeck for minor adjustments and final shape of the outer contour. Looks like I'm on the right way, think there's hope for it.



[etubino]

Vasa 1628 update: Between all snow shoveling sessions I managed to cut out all 13 modified frames/bulkheads for Vasa. I'm going to put in the two battery decks, but haven't made up my mind about the hold yet. I'm going to cut out the battery decks first and dry fit them, then we'll see

View attachment 568872

View attachment 568873

Excellent job!



[Krister_L]

Excellent job!

Thanks, Etubino
