Yikes! Help! Removing Copper parts from sheets of copper.

Sid Barras

Well-Known Member
Joined
Jun 23, 2019
Messages
74
Points
78

Shipwrights,
On my second build. It's a Mantua Cutty Sark 1:78. This is probably a kit manufactured in the early 90s. I'm finished with first layer of hull planking. The next step is to lay the copper sheathing at the top edge of hull, all the way round the ship.
Unfortunately, this sheathing, plus all the windows and miscellaneous stuff like decorative name plates are simply part of these copper sheets, sort of like how you'd get photo etch parts included with or add ons to plastic model kits. With one giant exception. They are not precut. These parts are defined by being shaped and formed as "thicker" parts of the copper sheets.
And of course, none of the lines are straight...
I still suspected I'd have no trouble removing them: simply get my x-acto razor knife and carefully cut along the raised edge of the part to separate it from its sheet.
First problem is: the copper sheets are rather thick to begin with. And I've spent the last 20 minutes carefully scoring the line with my very sharp knife of the very first part I'm attempting. After multiple draws across the line/edge, I'm not close to creating a cut. And yes, I've begun to exert some serious pressure as I get more confident the cut is not going to wander as I draw the blade across.
Second problem: the parts are too close together to even think about using sturdy scissors. Plus I suspect scissors would deform the shape of these parts too much to make them usable.
My next attempt without any advice from folks that have solved this issue already is to try the dremel tool with a cut-off wheel. But I suspect this will be less than ideal, as I know how "tough" copper is, from my experience of drilling copper buss bar many times as an electrician in my youth.
Hoping somebody here has solved this issue in the past...


Uwek

Admin
Staff member
Administrative
Blandford Group Build
Joined
Dec 25, 2017
Messages
9,829
Points
728

Location
Vienna, Austria
Hallo Sid,
maybe it would be good, if you could show us a photo of the copper sheets, so we can get a better understanding of the problem (you described it well, but often a photo is helping in addition)

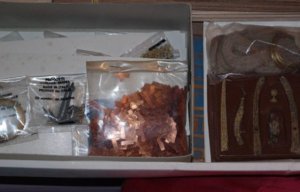

Normally the copper sheeting plates of this kit are already separated in a small bag, like this one here

BTW: I found some photos on a web-page showing some working steps of the coppering:


Sid Barras

Well-Known Member
Joined
Jun 23, 2019
Messages
74
Points
78

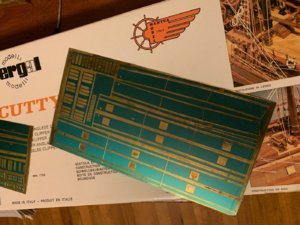

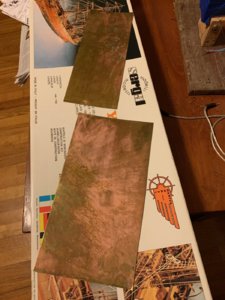

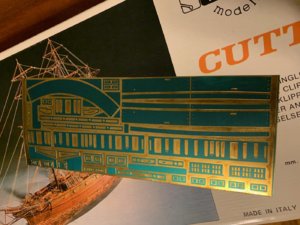

Here's pictures of the parts I'm stumped as to how to safely cut them from the sheets...
I contacted Mantua because this same model now is shipped with precut, even embossed examples of these parts. They gave me a quick reply, but it's looking like it would cost around 179 pounds to buy and ship from Britain. Yikes again. Didn't look up the exchange rate but I'm feeling its well over $200 american...IMG_0498.jpgIMG_0497.jpgIMG_0496.jpg


Jolley Roger

Well-Known Member
Joined
Sep 4, 2018
Messages
69
Points
103

Location
Johannesburg, South Africa
Hi Sid,
I would suggest you replace the copper sheets with copper tape and make your own - i have listed an example: Copper Tape , but there should be many other places selling it in different widths and lengths.
The photo etched stuff is a different kettle of fish - a jewelers coping saw or a scroll saw and a steady hand might do the trick.
Good luck


pebbleworm

Well-Known Member
Joined
Jul 26, 2013
Messages
173
Points
78

Get a carbide scriber and scratch along the edges. They should pop out. Micro mark mini tin snips are pretty maneuverable as well:


danielsje

Well-Known Member
Joined
Sep 9, 2017
Messages
35
Points
68

All good suggestions...but the 179 pounds is sounding mighty good considering the worth of your time and patience! The current exchange rate makes it $231.52


Sid Barras

Well-Known Member
Joined
Jun 23, 2019
Messages
74
Points
78

All great suggestions folks. Alas the paper guillotine won't work coz of zero straight lines. Carbide scriber, perhaps... But the item the piqued my interest was the mini tin snips. I know certain types of scissors would work, but at the cost of distorting the materials, I fear. I am going to pop over to the micro mark site and take a look. I may also invest in a scroll saw at some point. I just wonder if any scroll saw would handle copper sheets without securing the material to prevent the "stickiness" of copper from gumming up the teeth plus stretching the item to be cut. I don't know of course, I've never attempted it. I only know the experience of working with copper (cutting, drilling, bending) when I was a young electrician working on electrical distribution equipment.


danielsje

Well-Known Member
Joined
Sep 9, 2017
Messages
35
Points
68

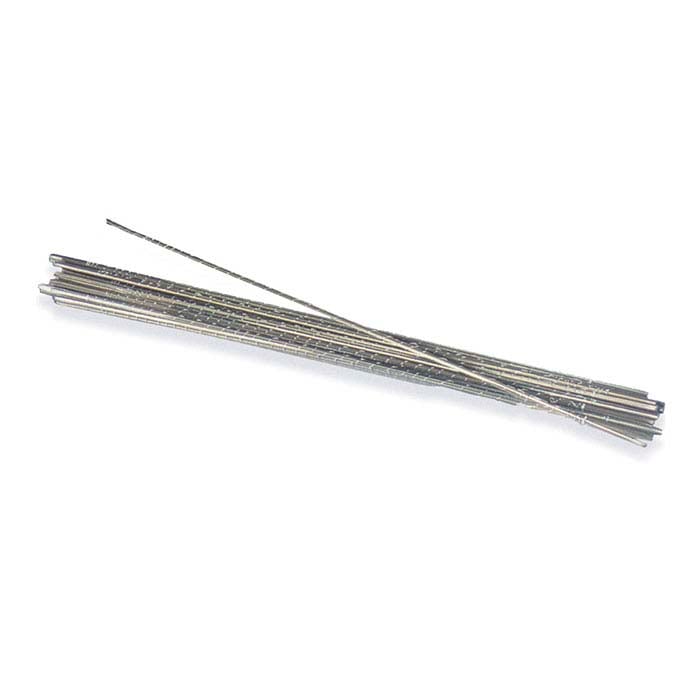

Scroll saw would work very well...just get the right blade...very fine teeth with very low offset if any. There are also diamond abrasive blades with no teeth. It will all be in the blade...


firedog5213

Well-Known Member
Joined
Nov 2, 2019
Messages
25
Points
48

Location
Atlanta Metro
was doing a search and ran across the, maybe it would work for what you need


Sid Barras

Well-Known Member
Joined
Jun 23, 2019
Messages
74
Points
78

Thanks for your research!!
