New kit 1:160 midship cross-section of the HMS Enterprise 1774

Unicorn models said:
Hi guys, this is Unicorn Model and I bring you a new kit, a 1:160 midship cross-section model of the HMS Enterprise frigate designed by my colleagues. Perhaps some of you have already seen the stern cross-section of the Enterprise, which has a longer and more complex midship section compared to stern, and also carries three boats. Although it is miniature size, its details are remarkably rich, including every deck structure and cabins, as well as extremely tiny metal parts such as guns, hammock cranes, ladder stanchions, etc., there are many jigs in the kit, which are convenient for the making and fitting of small parts, but you must be very careful, because the parts are very weak and easy to break, This is a work that challenges one's own hands.

View attachment 540152
View attachment 540153View attachment 540154View attachment 540155
View attachment 540156
View attachment 540157
View attachment 540158
View attachment 540159
View attachment 540160
Click to expand...
The stern section is already in a drawer of my building desk as a future build. For sure this midship section will come a wait there as a next-future build.
Regards, Peter

借助夹具定位和安装货仓甲板↑

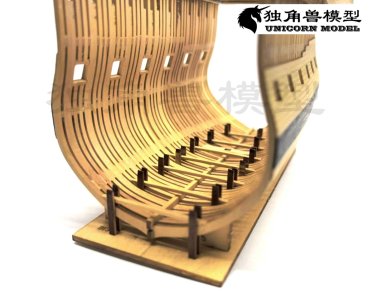

The hold deck beams are located and glued in place according to the jig

将货仓甲板边缘磨成斜面以适合船体曲面↑

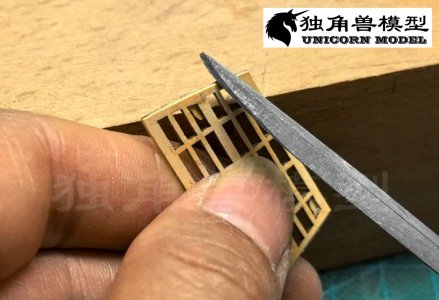

The both edges of the hold deck are being beveled to fit with the inner hull

借助定位夹具安装货仓甲板↑

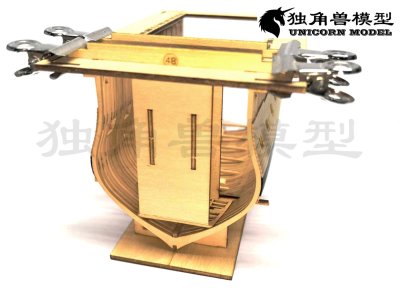

The hold deck is being located and glued in place with the help of a jig

磨掉最下层甲板的炭黑↑

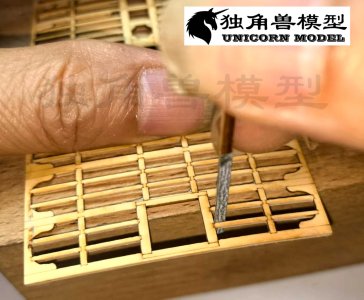

The black carbon on the orlop deck is being removed with a sandpaper block

借助几个模板将最下层甲板定形为弧面↑

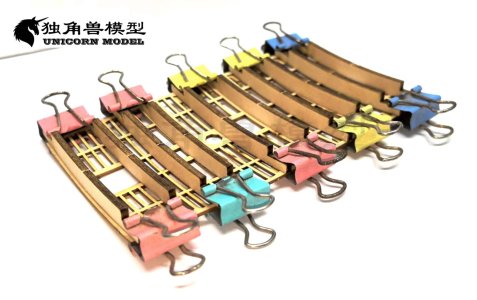

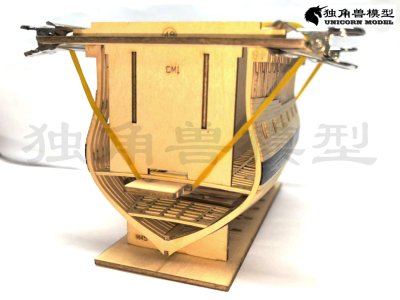

Several templates are clamped under the orlop deck to shape it into an arc surface

借助定位夹具安装最下层甲板↑
The orlop deck is being located and glued in place with the help of a jig

安装最下层甲板舱室↑

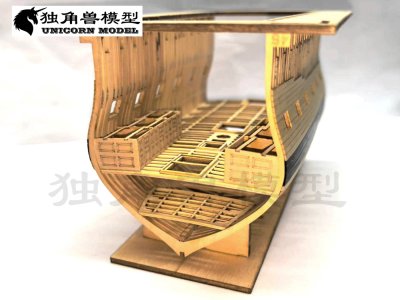

The cabins are glued on the orlop deck

上层甲板↑

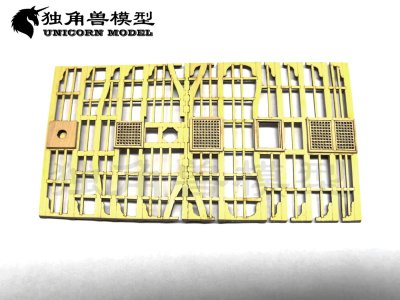

The upper deck

同样借助定位夹具安装最下层甲板↑

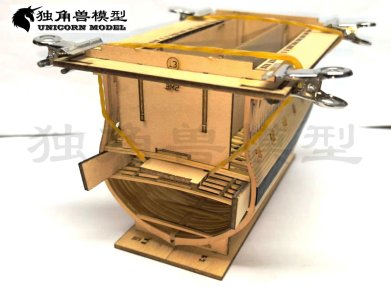

In the same way, the upper deck is being located and glued in place with the help of a jig

打磨竖梁肘材的炭黑↑

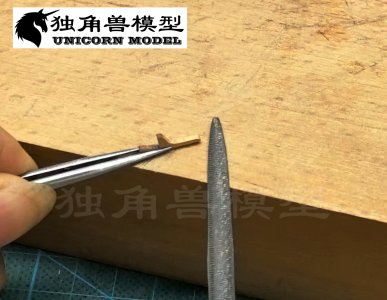

The carbon black on the hanging knee is being filed off

用一个特制工具调整竖梁肘材的位置↑

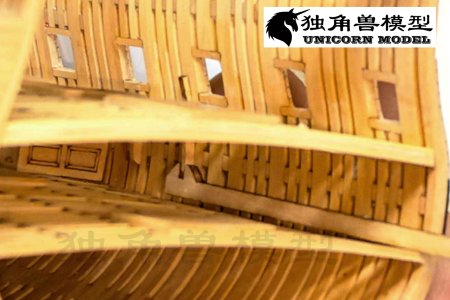

A special tool is used to adjust the hanging knees to vertically and then the knee is glued firmly to the hull

竖梁肘材安装到位后，用小刀把延伸段切掉↑

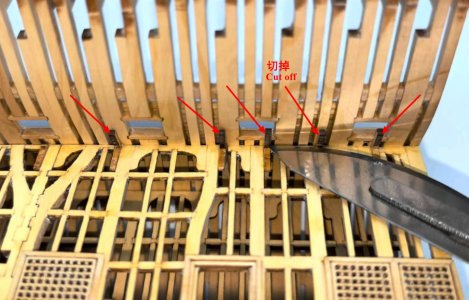

After the hanging knees are fitted in place, the extension sections of the knees are cut off with a knife

待续...
To be continued...

Hello,

where can you buy the stern section and how much does it cost? I am the specialist for small ships ... ;) :p

No, seriously! Really nice and I would be happy to hear from you where I can order this stern...... Gladly also by PN.

Best regards

Günther Ship-1

Last edited:
Dematosdg said:
The issue for USA are the tariffs. If I am correct we will need to add a 50%, shipped from China. All your kits are shipped from China , Will you be able to ship it from Canada ? The Tariffs are smaller for Canada.

Thank you !!!
Click to expand...
Thats not how it works.The tariff is $25% and it does not matter where it is shipped from,the Country of Origin matters

Dematosdg said:
The issue for USA are the tariffs. If I am correct we will need to add a 50%, shipped from China. All your kits are shipped from China , Will you be able to ship it from Canada ? The Tariffs are smaller for Canada.

Thank you !!!
Click to expand...
The tariffs for Canadian products are higher than for Chinese made products ,it is 35%
