Computer Aided Drafting

jbradford

Member
Joined
Aug 1, 2014
Messages
51
Points
38

I had run across a few threads back when I was active. This was maybe 3 years ago. I tried using the search feature at the top of this site, but CAD is too short and Computer Aided Drafting failed to produce any results for me. Do any of you have links to using CAD to work with existing plans or to create plans for model ship building? I have a student copy of Autocad 2020 for my online class I am currently taking and trying to relearn the application. I used to use an older version of Autocad and also Bentley Microstation way back.
Thanks,

Jeff


davef

Active Member
Joined
Jul 22, 2014
Messages
38
Points
48

Hi Jeff
If you have done autucad before, it really doesn't change much from year to year. Oh yes some wiz bang kid comes up with placing the , fly outs as I call them, or where some features are in a different position than what you maybe used to.
I started just after the 14 version and finally settled at believe it at Autocad version 2014.
It is no different as I said except just icons and flyouts in different positions.
I am sure there are many members who use or have used cad that can help you along the way.
Dave


jbradford

Member
Joined
Aug 1, 2014
Messages
51
Points
38

I guess what I am looking to learn how to do, is to locate some drawings or plans and then be able to draw them up using Autocad. I am looking online now for some decent drawings with measurements that I can take to learn with.
Jeff


MystRacing

Well-Known Member
Joined
Jul 22, 2019
Messages
42
Points
68

Location
Western Colorado, USA
Jeff,

Here's the way I did it.

The Danish national archives has a ton of plans you can download for free. The files are large photoshop images. You can get them here.

https://www.sa.dk/ao-soegesider/da/other/index-creator/40/3353816/17149179

Find a body plan "A 100" is a body plan.

Use the "image" command to insert the image into autocad. Then scale it up to whatever you want to work with. You can scale it to 1 unit is a foot or to inches. I scaled mine to 1:48 because that is what I wan't to build my model in. Of course it doesn't matter other than if you want to think about what wood stock you're using for each part etc.

Then go to this site


Download the US Brig Eagle (1814) Practicum. It's a pdf file that does a good job of explaining how the plans are layed out and how to turn them into something that makes sense.


jbradford

Member
Joined
Aug 1, 2014
Messages
51
Points
38

Thank you Jodie!
I believe that this is exactly the sort of information I was looking to learn from.
Jeff


zoly99sask

Admin
Staff member
Administrative
Blandford Group Build
Joined
Apr 13, 2015
Messages
4,010
Points
578

Location
Saskatoon,Canada
Hi

also you can look around in these categories too,lots of links to ship plans and drawings




Dave Stevens (Lumberyard)

Moderator
Staff member
Moderator
Sponsor
Joined
Dec 1, 2016
Messages
1,734
Points
478

Do any of you have links to using CAD to work with existing plans or to create plans for model ship building?

I have a collection of plans that you can import into CAD for tracing, also have a collection of DWG plans you can use to get started with developing a set of drawings from.

let us know what you want to do and we will do our best to help you out


jbradford

Member
Joined
Aug 1, 2014
Messages
51
Points
38

Thank you for that Dave.

My past work with CAD involved taking some existing drawings and adding or modifying road layout, overhead cabling and other infrastructure. I have also taken hand drawn sketches with measurements and created a CAD of those. I am trying to use my educational version of Autocad 2020 as I am taking an online class from a nearby university. I am unable to locate the raster tools that are discussed in some Autodesk forums. So, I have emailed customer support for assistance. I am open to any assistance from all you you regarding this. I was able to get the .jpg inserted into a layer and have been working on scaling it. But, my next step was to convert the raster to vector to modify. I do not look forward to tracing all of the body lines, but that maybe something I should learn to do anyway.

Thank you again for all your support.

Jeff


Dave Stevens (Lumberyard)

Moderator
Staff member
Moderator
Sponsor
Joined
Dec 1, 2016
Messages
1,734
Points
478

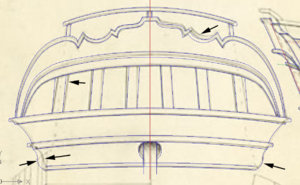

it is a good idea to trace a raster image and not use the original because just about every original drawings of ships are distorted as you can see on this tracing of a stern. i traced the left side and mirrored it to the right side you can see where the arrows are pointing the original drawing is off.

stern tracing2.jpg


MystRacing

Well-Known Member
Joined
Jul 22, 2019
Messages
42
Points
68

Location
Western Colorado, USA
There's also a second problem with just converting the drawings from raster to vector, and that is the consideration of sizes of wood your going to use to build the model. Unless your going to laser cut or mill every piece of wood to match the size the computer produces you'll need to adjust the sizes of things as you design the model plan. No raster to vector program is going to produce nice even 1/4" thick keel, or a 1/16" rail cap etc.


Dave Stevens (Lumberyard)

Moderator
Staff member
Moderator
Sponsor
Joined
Dec 1, 2016
Messages
1,734
Points
478

There's also a second problem with just converting the drawings from raster to vector, and that is the consideration of sizes of wood your going to use to build the model. Unless your going to laser cut or mill every piece of wood to match the size the computer produces you'll need to adjust the sizes of things as you design the model plan. No raster to vector program is going to produce nice even 1/4" thick keel, or a 1/16" rail cap etc.
this is true converting a drawing will not work as a set of modeling plans.

i consider the original as nothing more than an artists rendition of a ship and NOT as working plans.


mrshanks

Blandford
Blandford Group Build
Joined
Sep 5, 2017
Messages
446
Points
268

Location
Charlotte, North Carolina, USA
There is nearly as much work in drawing up working model plans/designs as in actually building a model. It is then another entire process/skill all together to fabricate parts based on computer created plans. Unless the person has significant computer experience, I would not suggest it for a novice unless you decide this to be your primary hobby (i.e. versus building kits).

Just my two cents, speaking from experience.


davef

Active Member
Joined
Jul 22, 2014
Messages
38
Points
48

Mike and Jeff
I have spent two years drawing up plans. It depends on what you want to draw and what you include.
As an example decks, and x section basics to adding frames and other details.
If you just want the plans so you can build it yourself you can take some short cuts, But if its for others there is a lot more.
but lets not forget the I did it factor. A lot of satisfaction and what I learned is its not perfect but I did it.
Dave F.


Donnie

Systems Administrator
Staff member
Systems Administrator
Joined
Aug 21, 2011
Messages
2,376
Points
428

Location
Madison, MS
Dave, for lack of better terms, how did you get the "french curves" done like that in CAD.


MystRacing

Well-Known Member
Joined
Jul 22, 2019
Messages
42
Points
68

Location
Western Colorado, USA
Just for another option. I use the "polyline" in Autocad to draw curves like that. In Autocad once you start a polyline command you can type "A" to draw an arc tangent to the last entity. Or as the first entity you just have to type "S" for the second point of the initial arc. Once you are drawing an arc you can type "S" for the second point of the next arc if you don't want it to be tangent and when you want to go back to a straight line you just type "L" while still in the active polyline command. It's worth playing with if you use Autocad, or your program has the same functionality.

Like others on here, I've been using Autocad since version 9, and there's about 10 different ways to do about everything. Funny thing is for 2d drafting there really isn't all that much different between Autocad 9 and 2019 other than the windows environment and a billion little icons. I still type most of the commands with an alias because it's faster than picking icons or menus.
