Hello,
I start the design of the model "De Zeven Provincien". This is my second trial, I was not satisfied wit the first attempt.
Short and meaningful information about "De Zeven Provincien" once written by Ab Hoving, which I will use as a quote:
"... De 7 Provinciën was built in 1665 in Rotterdam as the new flagship for the famous Dutch admiral Michiel de Ruyter (1607-1767), who sailed it from 1666-1674. Its measurements were 163 x 43 x 16.5 Amsterdam feet ( 46.13 x 12.17 x 4.67 m), it carried 80 guns, its displacement was 1600 tons and there was a crew of 420 men aboard.
The name was chosen because of the seven counties that fought the 80-years war of liberation against the Spanish from 1568 to 1648. The united country had also freed itself from the Catholic Church and nobility and the name is a tribute to an organization, which proved its right of existence without a ruling king between 1649 and 1672. In that year stadtholder Willem III, Prince of Orange, the later king of England William III (1650-1702), returned to Holland.
The ship fought in the second (1665-1667) and third (1672-1674) Anglo-Dutch Wars and took part in the Four-Days Battle (1666), The Two-Days Battle (1666), the Chatham Raid (1667) , the Battle of Solebay (1672), the Battle of Schooneveld (1673) and the Battle of the Texel (1673). In 1674 the ship even visited the West-Indies. In 1692 she fought in the Battle of Barfleur and was broken up in 1694.
The lines of the model were reconstructed by Ab Hoving, Herbert Tomesen and drawn by Cor Emke in 2006. They were based on both contemporary Dutch shipbuilding literature and specification contracts of comparable ships of those days. Also earlier publications by G.C Dik and O. Blom were used in the new design. It was intended to rebuild the ship that was put on the stocks of the Bataviawerf in Lelystad, Holland, in 1996 which project appeared to fail in the beginning of this century. Though great progress was made in the first three years the revived project was stopped because of a lack of money ... "
So let's sail now!

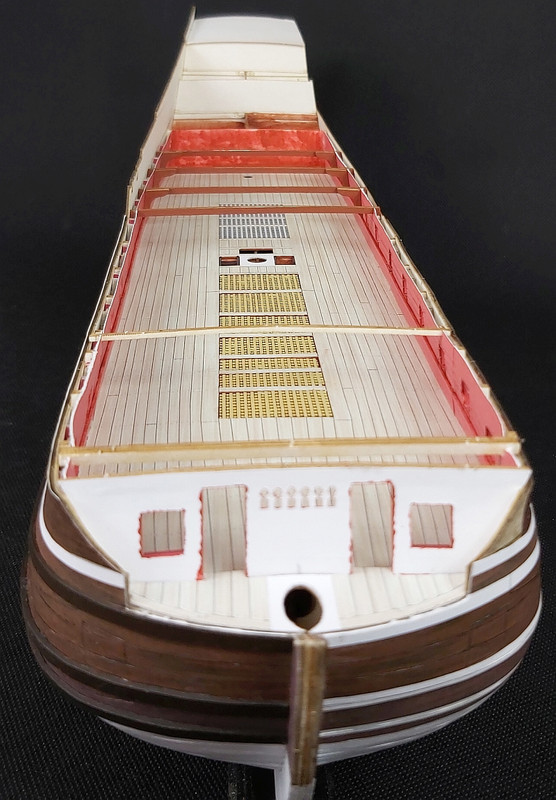

The frame made of millimeter cardboard up to the height of the deck with the graceful name verdek. The next higher decks (halfdek and bakdek) will be added later and supported on beams and posts.
Below is the overloop deck with the heaviest artillery and the lowest one, which is invisible. So I painted these interios that will be visible through the open gun ports and pasted there simplified gun carriages. The guns will be seen only on the left side, the the right one will be "closed".
First vertical plating:
I wanted to reproduce the thickness of the boards (on a scale of about 1.0 mm), which edges will be visible, e.g. in open gunports, and that is why I put two layers of longitudinal plating. The first made of cardboard of 0.5 mm thickness, into which I fitted the gun port frames ...
... and then a second layer of cardboard 0.7 mm ....
Only now I glued the final colored planks on such a "double -underplanking". It is not perfect, there are places where my skills have simply let me down and in the unfavorable light you can see small faults between the neighboring boards. The effect would be much better if I treated the hull with a putty, but ...

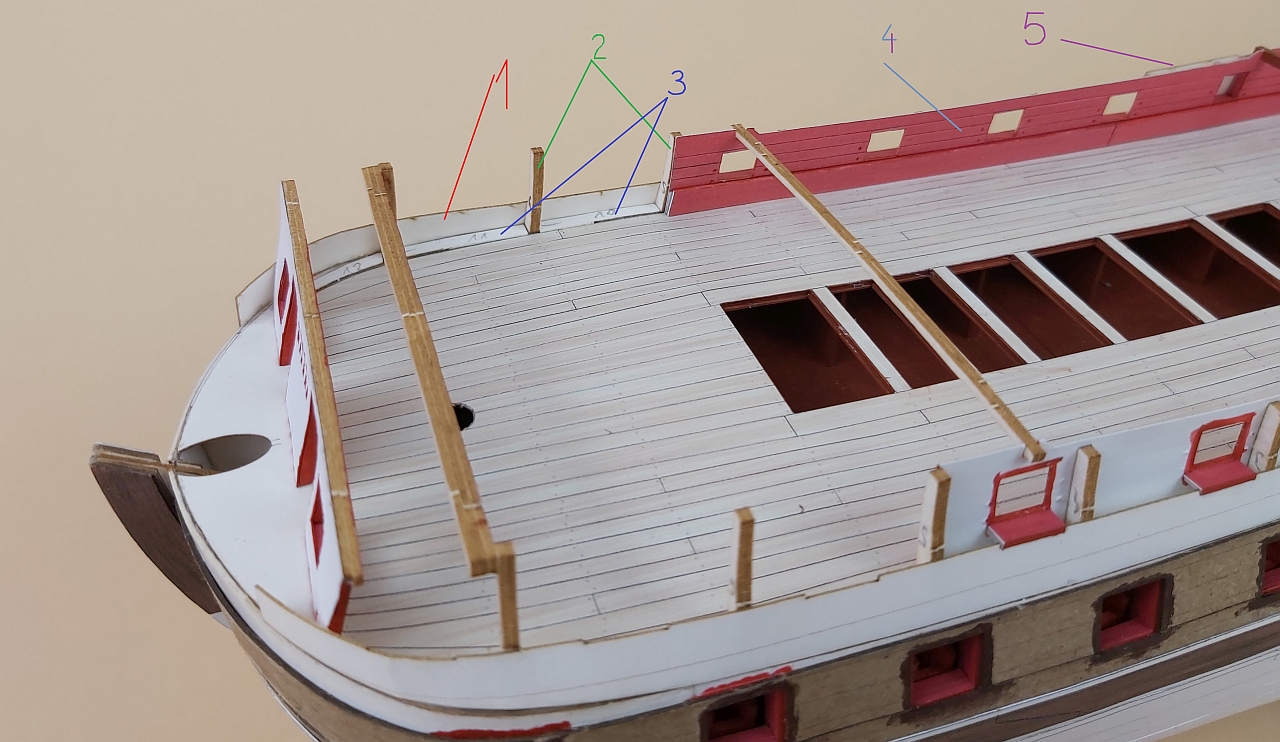

In order not to destroy the model by continuous rotation / sliding / squeezing in subsequent stages, if possible, I will "wander" gradually upwards, which is why I started with the rudder and transom.
That's all for now.
Best
Tomek
