On this forum I found a wonderful plan set review of LE FLEURON 64-gun Ship by Joseph & Blaise OLLIVIER – 1729 by Gerard Delacroix and Jean Boudriot

https://shipsofscale.com/sosforums/threads/planset-review-le-fleuron-64-gun-ship-by-joseph-blaise-ollivier-1729-by-gerard-delacroix-and-jean-boudriot.2885/

Almost convinced me to commit to build that ship. However, I always wanted to build Hms Victory but I’m looking to get a very good planset as detailed as Le Fleuron one.

I consider buying this book: H.M.S. Victory. Building, restoration & repair 1966

However, would someone be able to confirm if those 2 volumes be everything, I need to build the model, I want to build it in 1:50 scale preferably.

All I heard is that it is incredibly good book, but I couldn’t find any satisfactory description of it and of what it contains.

I understand that this book obviously is about building and restoration of the Nelson’s ship. However, does it contain plans, pictures sufficient to build the model or it is more like supplementary position treating about history of the ship so I still would need to acquire the plans elsewhere?

Last edited:

Uwek

Admin
Staff member
Administrative
Blandford Group Build
Joined
Dec 25, 2017
Messages
9,038
Points
728

Location
Vienna, Austria
On this forum I found a wonderful plan set review of LE FLEURON 64-gun Ship by Joseph & Blaise OLLIVIER – 1729 by Gerard Delacroix and Jean Boudriot

https://shipsofscale.com/sosforums/threads/planset-review-le-fleuron-64-gun-ship-by-joseph-blaise-ollivier-1729-by-gerard-delacroix-and-jean-boudriot.2885/

Almost convinced me to commit to build that ship. However, I always wanted to build Hms Victory but I’m looking to get a very good planset as detailed as Le Fleuron one.

I consider buying this book: H.M.S. Victory. Building, restoration & repair 1966

However, would someone be able to confirm if those 2 volumes be everything, I need to build the model, I want to build it in 1:50 scale preferably.

All I heard is that it is incredibly good book, but I couldn’t find any satisfactory description of it and of what it contains.

I understand that this book obviously is about building and restoration of the Nelson’s ship. However, does it contain plans, pictures sufficient to build the model or it is more like supplementary position treating about history of the ship so I still would need to acquire the plans elsewhere?
Hallo Miroslaw,
First of all many thanks for the kind words about my Plaset Review of the Le Fleuron I made. This ia my intention to give the members an overview and a detailed information about the Content of the Books and Plansets - Happy, that it was helping for a decision to buy or not to buy.

Related to the book written by Arthur Bugler, which I have also in my library. It is a two volume book. One text book and one volume with drawings. I was stuying this book years ago, but will take in the next days once more a detailed look on it.
I can offer you, that I will make as soon as possible a detailed review of this book and will post it here in SOS.......Hope this will help to make your final decision.


Miroslaw57

New Member
Joined
May 9, 2019
Messages
2
Points
3
Thank you zoly99sask and Uwek for your replies.

I had a look through the Anatomy of the Ship The 100-Gun Ship Victory by John Mckay

I also checked out Alex’s HMS Victory, beautiful model it is, and I am looking/aiming to build something like that.

I am not sure what zoly99sask means by saying that I need to decide what part I want to build…

I think to build the whole ship in scale 1:50 (actually the appealing range is more like 1:48 – 1:70) Starting with hull and finishing with rigging and sails.

Uwek: your offer to post a review is indeed very generous and I will be grateful for a brief description what I can expect from that book not mentioning a detailed one, that would be even better.


If I could add few words about myself…
Model building was my youth passion I was spending all my free time making models. When I was finishing my high school over 40 years ago, I was building HMS Victory in 1:50 scale. I had to stop because of exams and work so it stopped after I completed the hull. Unfortunately, later the model was stolen.

Throughout the years I didn’t have many occasions to build any model. The last time was almost 20 years ago when I had time off work, I built USS Constitution but because of limited time it was from plastic kit. Now I don’t work anymore so finally I have time to commit to an advanced long term project.

https://1drv.ms/f/s!AijfnZ3cJQigga0tJDEOnM-LZwRjKA

I apologize for horrible image quality but clicking on the link you should be able to view those photographs of my USS Constitution. I would upload better images, but the model is in my house in Poland and I don’t live in Poland now.

I write about all of this because I have experience with long projects (HMS Victory 40 years ago for example) as well as wood works of different kinds, (therefore I believe that I have most of the necessary tools). Because I’m coming back to the subject of model making after so long, I feel a bit lost especially because all the books about model making I had, were in polish and left in Poland.

I need to gather some good plans and reference books that will allow me to construct detailed ship. Because the project will take most likely over 3000 hours, I translate it for 3-6 years.
I need to know if the 2-volume book include the plans or maybe where could I buy some good plans. The plans can make the building process difficult and tedious or much simpler if everything on them was already to scale.


zoly99sask

Admin
Staff member
Administrative
Blandford Group Build
Joined
Apr 13, 2015
Messages
3,732
Points
578

Location
Saskatoon,Canada
Hello

So if you want to build the full ship,the plan set for the Victory would cost at least $750 US dollars

I have the email address of McKay but lately he is not responding to emails


Uwek

Admin
Staff member
Administrative
Blandford Group Build
Joined
Dec 25, 2017
Messages
9,038
Points
728

Location
Vienna, Austria
I had saved once the list of the drawings from McKay, but I have to say, that I never had the chance to take a look on these drawings, so I can not say something about the quality.......but it seems, that these drawings are the same like in the book, but in scale 1:48 or 1:96

John McKay, Fort Langley, Canada:

status of the listing 2011

H.M.S. Victory - Drawings:

- 45 Drawings as listed and similar to as Published in Anatomy of the Ship: The 100 Gun Ship Victory by Conway Maritime Press Ltd., London
- All prices are in Canadian dollars.
- Orders under $100.00 please add 15% (Shipping and handling)
- Orders over $100.00 please add 10%
- The price is subject to change without notice and includes mailing costs (By surface - air mail or courier shipment by arrangement) in a rolled format.
- Sheet Sizes: 34’ x 60” - Yielding a scale of 1 to 48 to hull drawings, 1 to 96 to rigging drawings. Price - $15.00 (Canadian) per sheet.
17” x 30” - Yielding a scale of 1 to 96 to hull drawings, 1 to 192 to rigging drawings. Price - $10.00 (Canadian) per sheet.

H.M.S. VICTORY - Drawing List:

Sheet No. Drawing

HULL SERIES
1 Outboard Profile.
2 View of Bow, View of Stern.
3 Poop Deck Plan, Quarter deck Plan, Ship’s Boats.
4 Upper Deck Plan, Middle Deck Plan.
5 Lower Deck Plan, Orlop Deck Plan.
6 Hold Plan.
7 Inboard Profile.
8 Cross Section at ‘U’ - Foremast.
9 Cross Section at ‘3’ - Mainmast.
10 Cross Section at ‘21’ - Mizzen Mast.
11 Cross Sections at ‘&’, ‘Z’, ‘X’, ‘S’, ‘Q’, ‘O’, ‘M
12 Cross Sections at ‘H’, ‘F’, ‘D’, ‘B’, ‘(F)’, ‘(D)’, ‘(B)’ and ‘Ø’.
13 Cross Sections at ‘5’, ‘7’, ‘9’, ‘11’, ‘13’, ‘15’, ‘17’, and ‘19’.
14 Cross Sections at ‘23’, ‘25’, ‘27’, ‘29’, ‘31’, and ‘32’.
15 Stern Cabin Details.
16 Entry Port Details, Miscellaneous Details.
17 Miscellaneous Bow Details.’ and ‘K’.
18 Miscellaneous Deck Details.
19 Anchor Handling Details.
20 Steering Details, Lantern Details.
21 Ordnance Details.

FRAMING SERIES
22 Outboard Profile: Framing, Framing Plan.
23 Inboard Profile: Framing, Keel Details.
24 Quarter Deck Framing Plan, Poop Deck Framing Plan, Bow Framing, Stern

Framing.
25 Upper Deck Framing Plan, Middle Deck Framing Plan.
26 Lower Deck Framing Plan, Orlop Deck Framing Plan.

MASTS AND YARDS SERIES
27 Bowsprit Details.
28 Foremast Details.
29 Mainmast Details.
30 Mizzen Mast Details.

RIGGING SERIES
31 Outboard Profile: Standing Rigging.
32 Outboard Profile: Running Rigging.
33 Rigging Sections.
34 Rigging Plan, Rigging Details.
35 Rigging Schedule.
36 Rigging Schedule.

ISOMETRIC SERIES
37 Keel.
38 Frames.
39 Wales and Planking.
40 Beams.
41 Decks.
42 Hull.
43 Masts and Yards.
44 Standing Rigging.
45 Running Rigging.


zoly99sask

Admin
Staff member
Administrative
Blandford Group Build
Joined
Apr 13, 2015
Messages
3,732
Points
578

Location
Saskatoon,Canada
I had saved once the list of the drawings from McKay, but I have to say, that I never had the chance to take a look on these drawings, so I can not say something about the quality.......but it seems, that these drawings are the same like in the book, but in scale 1:48 or 1:96

John McKay, Fort Langley, Canada:

status of the listing 2011

H.M.S. Victory - Drawings:

- 45 Drawings as listed and similar to as Published in Anatomy of the Ship: The 100 Gun Ship Victory by Conway Maritime Press Ltd., London
- All prices are in Canadian dollars.
- Orders under $100.00 please add 15% (Shipping and handling)
- Orders over $100.00 please add 10%
- The price is subject to change without notice and includes mailing costs (By surface - air mail or courier shipment by arrangement) in a rolled format.
- Sheet Sizes: 34’ x 60” - Yielding a scale of 1 to 48 to hull drawings, 1 to 96 to rigging drawings. Price - $15.00 (Canadian) per sheet.
17” x 30” - Yielding a scale of 1 to 96 to hull drawings, 1 to 192 to rigging drawings. Price - $10.00 (Canadian) per sheet.

H.M.S. VICTORY - Drawing List:

Sheet No. Drawing

HULL SERIES
1 Outboard Profile.
2 View of Bow, View of Stern.
3 Poop Deck Plan, Quarter deck Plan, Ship’s Boats.
4 Upper Deck Plan, Middle Deck Plan.
5 Lower Deck Plan, Orlop Deck Plan.
6 Hold Plan.
7 Inboard Profile.
8 Cross Section at ‘U’ - Foremast.
9 Cross Section at ‘3’ - Mainmast.
10 Cross Section at ‘21’ - Mizzen Mast.
11 Cross Sections at ‘&’, ‘Z’, ‘X’, ‘S’, ‘Q’, ‘O’, ‘M
12 Cross Sections at ‘H’, ‘F’, ‘D’, ‘B’, ‘(F)’, ‘(D)’, ‘(B)’ and ‘Ø’.
13 Cross Sections at ‘5’, ‘7’, ‘9’, ‘11’, ‘13’, ‘15’, ‘17’, and ‘19’.
14 Cross Sections at ‘23’, ‘25’, ‘27’, ‘29’, ‘31’, and ‘32’.
15 Stern Cabin Details.
16 Entry Port Details, Miscellaneous Details.
17 Miscellaneous Bow Details.’ and ‘K’.
18 Miscellaneous Deck Details.
19 Anchor Handling Details.
20 Steering Details, Lantern Details.
21 Ordnance Details.

FRAMING SERIES
22 Outboard Profile: Framing, Framing Plan.
23 Inboard Profile: Framing, Keel Details.
24 Quarter Deck Framing Plan, Poop Deck Framing Plan, Bow Framing, Stern

Framing.
25 Upper Deck Framing Plan, Middle Deck Framing Plan.
26 Lower Deck Framing Plan, Orlop Deck Framing Plan.

MASTS AND YARDS SERIES
27 Bowsprit Details.
28 Foremast Details.
29 Mainmast Details.
30 Mizzen Mast Details.

RIGGING SERIES
31 Outboard Profile: Standing Rigging.
32 Outboard Profile: Running Rigging.
33 Rigging Sections.
34 Rigging Plan, Rigging Details.
35 Rigging Schedule.
36 Rigging Schedule.

ISOMETRIC SERIES
37 Keel.
38 Frames.
39 Wales and Planking.
40 Beams.
41 Decks.
42 Hull.
43 Masts and Yards.
44 Standing Rigging.
45 Running Rigging.
Hello Uwe ,I have PMd these info the Miroslaw and the contact email too


Uwek

Admin
Staff member
Administrative
Blandford Group Build
Joined
Dec 25, 2017
Messages
9,038
Points
728

Location
Vienna, Austria

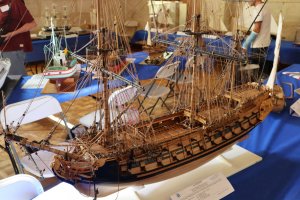

A Victory in scale 1:48 could look like this one........more photos of this model with the link

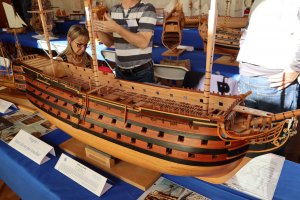

and this is a Le Fleuron in scale 1:48......



If you ask me......go for the french Le Fleuron


zoly99sask

Admin
Staff member
Administrative
Blandford Group Build
Joined
Apr 13, 2015
Messages
3,732
Points
578

Location
Saskatoon,Canada
From an unconfirmed source ,John McKay passed away,that gives me the answer why he is not responding to emails.


Uwek

Admin
Staff member
Administrative
Blandford Group Build
Joined
Dec 25, 2017
Messages
9,038
Points
728

Location
Vienna, Austria
I just finished the Book Review and Look Inside of the McGowen / McKay book.
If you are interested please take a look:




Uwek

Admin
Staff member
Administrative
Blandford Group Build
Joined
Dec 25, 2017
Messages
9,038
Points
728

Location
Vienna, Austria

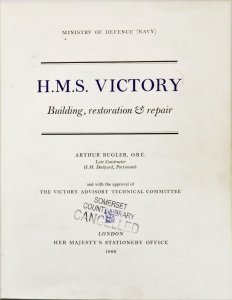

and today I published the Look Inside of the Arthur Bugler book-set (with text and drawing volume) .....
if interested take a look at:


IMG_25611.jpg IMG_25631.jpg


michaelws

Member
Joined
Jun 21, 2019
Messages
7
Points
23

Thanks Uwek...I just found and bought a copy of H.M.S. Victory. Building, restoration & repair on eBay UK. Great price and the guy has excellent feedback ratings. Should arrive here in the middle of August. Thanks for your review. Price including shipping was under $260. Beats the other prices I found... $750 on Amazon and $350 plus shipping on Abe Books.

D

Danno71

Guest
Thank you zoly99sask and Uwek for your replies.

I had a look through the Anatomy of the Ship The 100-Gun Ship Victory by John Mckay

I also checked out Alex’s HMS Victory, beautiful model it is, and I am looking/aiming to build something like that.

I am not sure what zoly99sask means by saying that I need to decide what part I want to build…

I think to build the whole ship in scale 1:50 (actually the appealing range is more like 1:48 – 1:70) Starting with hull and finishing with rigging and sails.

Uwek: your offer to post a review is indeed very generous and I will be grateful for a brief description what I can expect from that book not mentioning a detailed one, that would be even better.


If I could add few words about myself…
Model building was my youth passion I was spending all my free time making models. When I was finishing my high school over 40 years ago, I was building HMS Victory in 1:50 scale. I had to stop because of exams and work so it stopped after I completed the hull. Unfortunately, later the model was stolen.

Throughout the years I didn’t have many occasions to build any model. The last time was almost 20 years ago when I had time off work, I built USS Constitution but because of limited time it was from plastic kit. Now I don’t work anymore so finally I have time to commit to an advanced long term project.

https://1drv.ms/f/s!AijfnZ3cJQigga0tJDEOnM-LZwRjKA

I apologize for horrible image quality but clicking on the link you should be able to view those photographs of my USS Constitution. I would upload better images, but the model is in my house in Poland and I don’t live in Poland now.

I write about all of this because I have experience with long projects (HMS Victory 40 years ago for example) as well as wood works of different kinds, (therefore I believe that I have most of the necessary tools). Because I’m coming back to the subject of model making after so long, I feel a bit lost especially because all the books about model making I had, were in polish and left in Poland.

I need to gather some good plans and reference books that will allow me to construct detailed ship. Because the project will take most likely over 3000 hours, I translate it for 3-6 years.
I need to know if the 2-volume book include the plans or maybe where could I buy some good plans. The plans can make the building process difficult and tedious or much simpler if everything on them was already to scale.
Miroslaw,
The photos of the plastic Constitution you built, are the sails cloth? If so, how did you make them! Last two pictures are fantastic!


Navyman

Member
Joined
May 16, 2019
Messages
6
Points
23

Thanks Uwek...I just found and bought a copy of H.M.S. Victory. Building, restoration & repair on eBay UK. Great price and the guy has excellent feedback ratings. Should arrive here in the middle of August. Thanks for your review. Price including shipping was under $260. Beats the other prices I found... $750 on Amazon and $350 plus shipping on Abe Books.
Make sure you bought both volumes 1 and 2, because this price is too low.
