Water for the buckets Stu, buckets were for swabbing out the cannons :) Perhaps some clear bathroom caulk with a blue-ish painted bottom of the bucket?


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
17,176
Points
938

Location
Vienna, Austria
You are on a good way with you Harvey.
I have a small hint and comment if it is allowed.....
Due to the fact, that you installed the guns already completely, I interpret this, that you do not want to blacken the muzzles and will keep them in the brass color.
What I would is maybe to color the trunnion cap / cap square in black
I marked this part with the red arrows - on original carriages it was much shorter and bended, in order to take over the round trunnions of the muzzle. Here the detail of the kit is (let us say in this way) incorrect
2020-08-31 @ 20-01-10 - 001.jpg

a gun and carriage was looking like this
60e38ed0796d5d17e41d7d50b48ed2ad.jpg 50578029_2191158431201273_921381604385882112_o.jpg

with some paintwork the wrong form of the caps will be not so prominent

Joined
Jul 10, 2020
Messages
29
Points
68

Location
Cheltenham, England, UK
You are on a good way with you Harvey.
I have a small hint and comment if it is allowed.....
Due to the fact, that you installed the guns already completely, I interpret this, that you do not want to blacken the muzzles and will keep them in the brass color.
What I would is maybe to color the trunnion cap / cap square in black
I marked this part with the red arrows - on original carriages it was much shorter and bended, in order to take over the round trunnions of the muzzle. Here the detail of the kit is (let us say in this way) incorrect
with some paintwork the wrong form of the caps will be not so prominent

Thanks Uwek! That's really helpful actually. I can easily sort that out and remove the trunnion caps. I wasn't aware that they looked like that so really good to see the images. I will sort it out and let you have a pic once it's done. My OCD will never let that go once I know it's wrong ;)

I must admit I just assumed that Harvey's guns were small enough to have been cast in bronze as opposed to iron. I guess not so painting would be sense. All these things to think about before putting them all together. Anyway given I'll be taking the caps off anyway, it will be simple to paint the guns. I'm assuming I paint them? As opposed to some other method of blackening?


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
17,176
Points
938

Location
Vienna, Austria
Thanks Uwek! That's really helpful actually. I can easily sort that out and remove the trunnion caps. I wasn't aware that they looked like that so really good to see the images. I will sort it out and let you have a pic once it's done. My OCD will never let that go once I know it's wrong ;)

I must admit I just assumed that Harvey's guns were small enough to have been cast in bronze as opposed to iron. I guess not so painting would be sense. All these things to think about before putting them all together. Anyway given I'll be taking the caps off anyway, it will be simple to paint the guns. I'm assuming I paint them? As opposed to some other method of blackening?
Good, that you try to improve them - you will realize the difference afterwards.
Blackening: often modelers are painting such metal parts like the muzzles, caps etc.. When they are made out of brass often these parts are blackened on a chemical way......
a relative good overview of the possible stuff you can find in this thread:

BTW: The wheels of naval gun carriages were made out of wood, so maybe you will treat them also

BTW2: There are a modelers, who like the appearance of the shiny brass, and do not like to blacken them - although it is technically not correct
-> a pure question of taste.....

Joined
Jul 10, 2020
Messages
29
Points
68

Location
Cheltenham, England, UK
45 Hours in Total

Good, that you try to improve them - you will realize the difference afterwards.

Well Uwek I've been working on the guns again this week and this is where I've ended up. Thanks so much for pointing out where I'd gone wrong.

I first had to bend the Trunnion caps so I used a nail and my small square with a steel rule to get that right as below.

Initial bend to find centre and just ensure the brass doesn't move.

2020-09-06 @ 20-41-20 - 002.jpg

Then getting the "crimp" into the brass and making sure I get a nice edge on it using the small square on one side and steel rule on the other.

2020-09-06 @ 20-42-22 - 001.jpg

This got me a reasonable result with the trunnion caps

2020-09-06 @ 20-42-47 - 001.jpg

Then just making sure they were flat and taking the edges off

2020-09-06 @ 20-43-03 - 001.jpg

I decided to paint the brass rather than etch it. I must admit trying to get all of that kit going for a few bits of brass seemed a bit too much for me :). Anyway I have had reasonable success with the paint and I'm happy with the way they've turned out. Just need some final finishing - shortening a few bits and some filing with a last touch of point to cover any spots and I'm there I think.

2020-09-12 @ 13-33-48 - 001.jpg

I am going to leave the wheels brass as buying the right paint to get them wooden would mean I've got a lot of brown paint left over. Maybe next time!

I'll post a completed gun when I'm done and they are "bang on"

Joined
Jul 10, 2020
Messages
29
Points
68

Location
Cheltenham, England, UK
And a quick update on the hull too. I managed to insert a drop plank which I'm pretty happy with. Bit of a fuss to get it right but I enjoyed it, made logical sense and Harvey is really about teaching me the basics so I wanted to get this right.

Doing ok with the rest so far. Need to start on the garboard plank now and work my way up from there I believe.

2020-09-12 @ 13-13-51 - 001.jpg2020-09-12 @ 13-13-53 - 001.jpg2020-09-12 @ 13-14-16 - 001.jpg

Joined
Jul 10, 2020
Messages
29
Points
68

Location
Cheltenham, England, UK
And then for those interested in the deck I'm trying all sorts of options. I've had to use incredibly thin deck planks at 0.5mm and I thought they would be too thin to stick the cartridge paper to so I laid the planks, glued the edge, lined up a strip of the paper and then glued the next plank in behind and butted it up against the paper and the adjoining plank. This method has worked but when I cut the paper off it leaves it quite rough. I'm told that when I'm done I need to then varnish and sand and that will leave me with very fine lines between the planks. I made the mistake of sanding the first two planks and it did leave a nice finish. Looks rough at the moment though!2020-09-12 @ 13-14-33 - 001.jpg

I have also now switched to gluing the edge of the 0.5mm strips and butting the paper up against them before gluing to the deck. Hopefully this will give me a cleaner edge to begin with. Will let you know!

Joined
Jul 10, 2020
Messages
29
Points
68

Location
Cheltenham, England, UK
50 Hours so far

Morning all

Been a busy few weeks at work so not managed to get as much done as I would have liked but we are slowly getting there. A few planks a day and the deck has come on reasonably well too.


I've started to work from the garboard strake up now and that is going quite well. Gap across most of the bulkheads is exactly the same with just some significant narrowing at the stem obviously. I'm still taking 2mm off each strake to make sure I don't crowd up too much. Should fit well though - easier to see now that there are only a few strakes left. The edge setting on the top strakes has meant I've got some small gaps to fill but these are about 0.5mm and this is my first model so I'm not going to be too critical. I think I'll try spiling next time just to see what it's like. Seems like the only way to get a perfect fit. Read a good article about edge setting a plank and that is exactly what happened to me the first time and this time. Can't bend in 3 planes :( Who'd have thought? :)


The deck is starting to take shape now. I'm scraping it down with a razor blade held perpendicular and that is working reasonably well to get the paper and the deck planks level. I have then been told to varnish once before sanding? Thoughts?


This is what the deck looked like before scraping i.e. after I've just sliced as much of the paper excess off as I could.

Starting to feel like something now and still enjoying myself so that has to be a positive ;)

Trust everyone is doing well!

Joined
Jul 10, 2020
Messages
29
Points
68

Location
Cheltenham, England, UK
54 hours in

Evening all. Been a bit of a busy week but still managing a few things every evening.

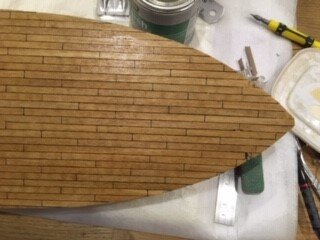

Spent a bit of time cleaning up the deck itself as below.

2020-10-03 @ 20-02-55 - 001.jpg

Then I marked out the butts.


2020-10-03 @ 20-02-24 - 001.jpg2020-10-03 @ 20-02-29 - 001.jpg2020-10-03 @ 20-02-34 - 001.jpg

And applied some clear matt varnish afterwards

2020-10-03 @ 20-02-05 - 001.jpg2020-10-03 @ 20-02-10 - 001.jpg2020-10-03 @ 20-03-32 - 001.jpg

In general I'm happy with the way it's come out. I know what I won't do next time :) Use the 0.5mm decking strips that came with the kit!! Nightmare trying to glue paper to the side of a 0.5mm plank - will go for something a little bit more robust next time I think! I will now give it a final sand with a very fine grit and that should do it for me I think.

And then I have taken some more steps with the hull as well. It's been a really interesting experience and once again I've learnt a lot about what to do and what not to do. Really should have separated the hull into sections as all the planking guides tell you to. It's worked out ok but I had to use two drop planks and 3 stealers. I know the stealers would have been necessary anyway but I think I could probably have avoided the drop planks if I had been more careful. Still at least I know how the principle works.

Pics from the point where I'm just about to put the last two strakes in.

2020-10-03 @ 20-02-42 - 001.jpg2020-10-03 @ 20-02-48 - 001.jpg

And then a few more in various stages. I've begun sanding the hull down now and there are a few small areas that need filling between some of the planks where the edge setting pushed them away a bit. Made up some filler from the sanding dust which should work well and I'm happy with how she is coming out.

Will post some more pics when the final sanding is done and the keel, stem and stern pieces are fitted. Bulwarks and Transom also going on soon!

2020-10-03 @ 20-01-31 - 001.jpg2020-10-03 @ 20-03-32 - 002.jpg2020-10-03 @ 20-03-32 - 003.jpg
2020-10-03 @ 20-03-32 - 004.jpg2020-10-03 @ 20-03-32 - 005.jpg

Chat soon!


Attachments

  • 2020-10-03 @ 20-03-32 - 006.jpg
    2020-10-03 @ 20-03-32 - 006.jpg
    20 KB · Views: 3
  • 2020-10-03 @ 20-04-18 - 001.jpg
    2020-10-03 @ 20-04-18 - 001.jpg
    21.1 KB · Views: 3
Last edited:

Heinrich

Staff member
Bluenose Moderator
Joined
Jan 9, 2020
Messages
2,323
Points
538

The deck planking looks good Stu. And what is even more important is that you experimented with something different. Only then do we gain in experience and can better define likes and preferences. Thumbsup
