HMAV BOUNTY - A “face lift “

GrantTyler said:
A quick update :
Here is what the crows feet finally looked like tensioned up and tied off via block and tackle (3mm blocks - I did cheat here as I couldn’t make the loop on the top block small enough)
AI-FI ;)ROTF
Mizzen :
View attachment 512886View attachment 512887
Fore mast:

I could not get the spacing on the mast top even due to the support beams (this happens when you scratch build without proper plans). The symmetry is cool and it looks good, just not 100% accurate. Some more AL-FI ROTF.
View attachment 512888View attachment 512889View attachment 512890
The stays did pull up on tension but this was expected at this scale so overall I’m pretty chuffed with these. Cheers Grant
Click to expand...
Great work on rigging! Keep it up! I can imagine how grandiose it will look at the end.

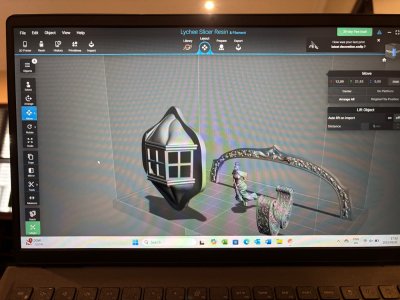

Good evening. A huge thank you to Dave from Lumberyard (@Dave Stevens (Lumberyard) ) who has sent me stl files of the figurehead, arch, scrolls and the quarter badge/balcony for 3D printing for no cost. I was stumped here as my CAD design is limited so a big thank you.

I just downloaded them into lychee slicer to begin the slicing work for the printer. I won’t use the quarter balcony as I intend to build this but it will be fun to print.

My total cost is still less than 2 cups of coffee in US terms thanks to Dave. :D :D.
Cheers Grant

GrantTyler said:
Good evening. A huge thank you to Dave from Lumberyard (@Dave Stevens (Lumberyard) ) who has sent me stl files of the figurehead, arch, scrolls and the quarter badge/balcony for 3D printing for no cost. I was stumped here as my CAD design is limited so a big thank you.

View attachment 521009
I just downloaded them into lychee slicer to begin the slicing work for the printer. I won’t use the quarter balcony as I intend to build this but it will be fun to print.

My total cost is still less than 2 cups of coffee in US terms thanks to Dave. :D :D.
Cheers Grant
Click to expand...
Aha, Grant in now also in the 3D-world. Then you also have to start with some complex handmade carvings.
Regards, Peter

Very lovely progress the ship looks a real beauty and all the rigging looking really great.
Be careful from the flame so the threads won't catch it ,talking feome experience here ROTF

Hooo, and in very very fashionable late happy birthday :cool:Birthday-Cake

Cheers
Guy

sevish said:
Very lovely progress the ship looks a real beauty and all the rigging looking really great.
Be careful from the flame so the threads won't catch it ,talking feome experience here ROTF

Hooo, and in very very fashionable late happy birthday :cool:Birthday-Cake

Cheers
Guy
Click to expand...
Thank you Guy. Yes I too have had a line go up in flames. Luckily it was before I rigged it onto the ship so just a quick remake. Cheers Grant

pingu57 said:
Great work on your rigging Grant, and i see that i missed your birthday, so i wish you a very belated birthday, i hope that the after party is ongoing :):)
And i understand that i also missed the start of your Enterprise :(
Click to expand...
Hi Peter. Thank you. It’s always good to hear from you. I hope you are doing all good. Cheers Grant

Grant, I just caught up with your build again. I've been busy with lesson plans and test building this year. School's out for summer! Now I can get back into ships again. I've really enjoyed your work. I was especially entranced with your cats. What did you use to cut the sheave slots, and what did you use for your actual sheaves. It really looks good. I also noted that you cut the slots from the end and went bck and capped the ends. I never would have thought of that. you are a veritable genius in engineering.

GrantTyler said:
Good morning. With my injury my shipyard time is increased however I am jumping around like ricochet rabbit on steroids. I can’t bring myself to finish any one thing. Full throttle……see what happens when I don’t get my adrenaline fix ROTF .

Channel- deadeyes- strops and chain plate:
View attachment 466566View attachment 466567
I designed and 3D printed the deadeyes as I don’t have any 6mm dead eyes in my stock. I used the old chain plates however these are sooooo inaccurate. They look good tho. I am not sure these will remain so. May decide to make more accurate ones with some wire.

Started making the sheaves for the main yard sheets. Got bored :

View attachment 466568
So rigged my steering and tiller. View attachment 466569View attachment 466570View attachment 466571
View attachment 466572
I also printed 30 belay pins. These don’t look as good as the brass blackened pins but I am still in the zero spend category. They are resin printed and brittle so I will have to careful when rigging. Not glue in.

View attachment 466573View attachment 466574


I need to STOP and fettle!!! HelpROTF

Cheers Grant

View attachment 466575
Click to expand...
Amazing Job GRantTyler, the change is way more than a face lift! Please accept my coment on the gratings you are using. Even thogh they look ok, the proportion of the wood thikness should equal de one of the mety space
GrantTyler said:
Good afternoon
Ships wheel and fife rails for the Mizzen rigging. I reused the wheel. I could design and print one, but the old one looks good- a little small from a scale point however good enough for this face lift.
View attachment 464492View attachment 464494View attachment 464493View attachment 464490
Cannon rigging a WIP:
View attachment 464497
Click to expand...
Amazing Job Grant Tyler, the change is way more than a face lift! Please accept my comment on the gratings you are using. Even though they look ok, the proportion of the wood thickness should equal de one of the empty space.

In other words, the sides of the square /hole) should be of the same measure of the log with. Sorry for your friend and colleague Unathi.

Vfordyce said:
Grant, I just caught up with your build again. I've been busy with lesson plans and test building this year. School's out for summer! Now I can get back into ships again. I've really enjoyed your work. I was especially entranced with your cats. What did you use to cut the sheave slots, and what did you use for your actual sheaves. It really looks good. I also noted that you cut the slots from the end and went bck and capped the ends. I never would have thought of that. you are a veritable genius in engineering.
Click to expand...
Good evening Vic. Good to hear you are all good. I used my mini table saw. You can only go in a little and then finish off with a blade and files. Luckily there is a brass band to hide the cap line so it looks complete.The sheaves are just dowels cut thin and painted black.
Cheers Grant

etubino said:
Amazing Job GRantTyler, the change is way more than a face lift! Please accept my coment on the gratings you are using. Even thogh they look ok, the proportion of the wood thikness should equal de one of the mety space

Amazing Job Grant Tyler, the change is way more than a face lift! Please accept my comment on the gratings you are using. Even though they look ok, the proportion of the wood thickness should equal de one of the empty space.

In other words, the sides of the square /hole) should be of the same measure of the log with. Sorry for your friend and colleague Unathi.
Click to expand...
Thank you very much. All assistance and learning is gleefully accepted here. I think my gratings have many more flaws as well. Scale was an issue however on an overall look and feel for a zero cost, I’m pretty happy with them. Cheers Grant
