HMS Enterprise - 1:96 - 96进取套材的制作

25年10月27日
1.记忆出问题了，忘记这些图片有没有上传过，查过记录没有看到，现在发一下吧，如重复请见谅

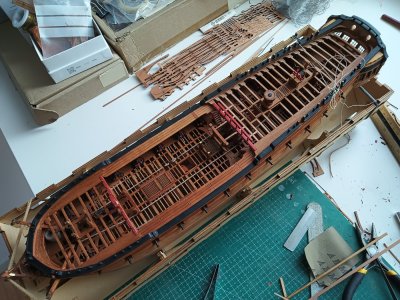

2.上层甲板横梁完成，部分横梁撑材跟炮窗冲突，改成倾斜支撑，横梁跟水泵立柱位置偏差，改用小纵梁支撑，舵盘绕线后变得转动困难，估计最终只能做成固定不3.动了，完成的绞盘是可以转动的，罗盘柜位置跟甲板格栅的安装位置有一点冲突，还是按套材说明书做吧
4.安装船舷扶手，开顶甲板炮位


















Translation for CTXMM:
October 27, 2025
1. My memory is failing me, and I forgot if I've uploaded these pictures before. I checked the records but didn't see them, so I'll post them now. Apologies for any repetitions.

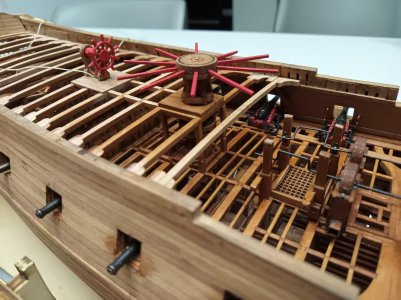

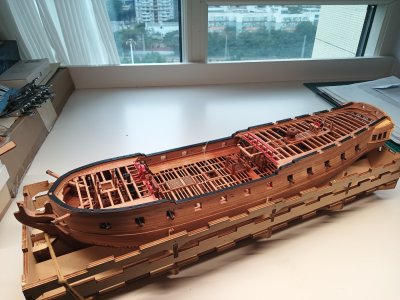

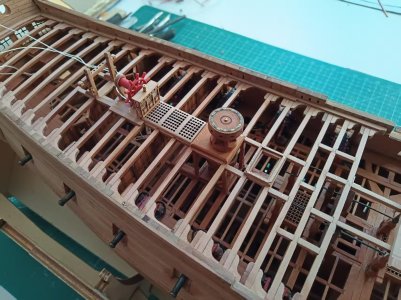

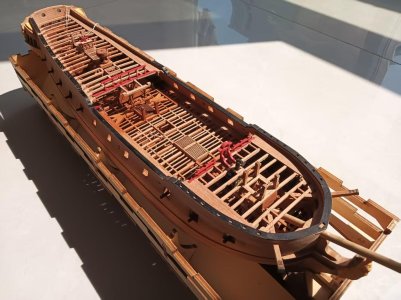

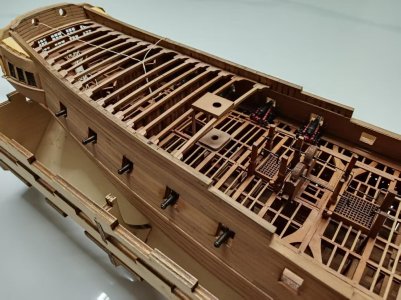

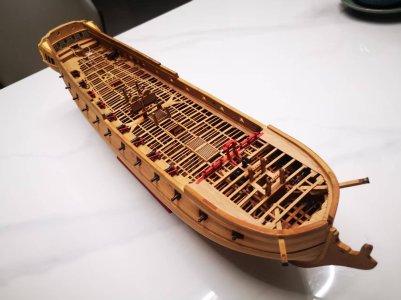

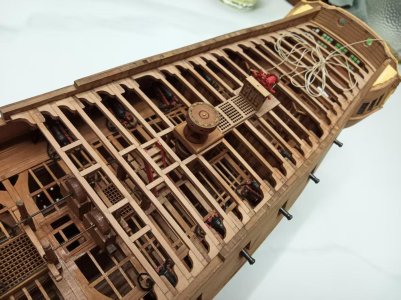

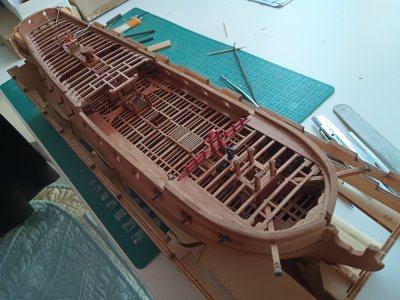

2. The upper deck beams are complete. Some of the beam supports conflict with the gun ports, so they've been replaced with angled supports. The beams are misaligned with the pump columns, so they've been replaced with small longitudinal beams. The steering wheel has become difficult to rotate after winding, so I guess it will just have to be fixed.

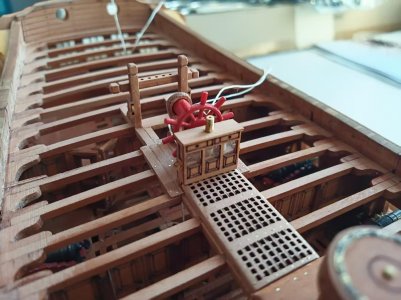

3. The finished capstan is rotatable. The binnacle's location conflicts slightly with the deck grille's mounting location, so I'll just follow the kit instructions.

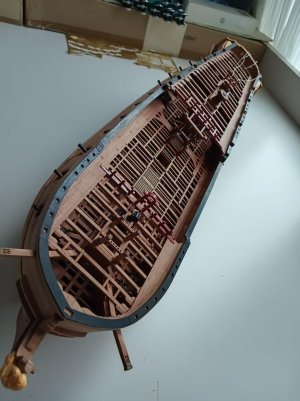

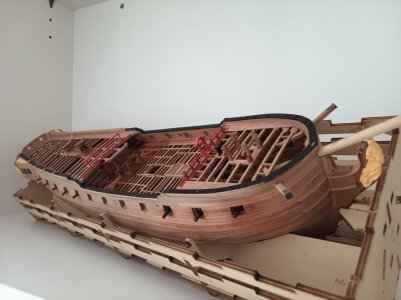

4. Installing the side rails and opening the top deck gun emplacements.
Click to expand...
It looks amazing, CTXMM.

96进取继续更新

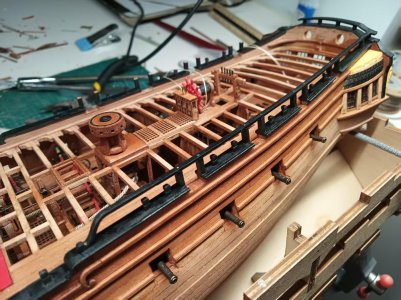

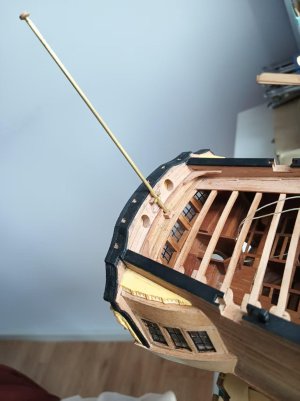

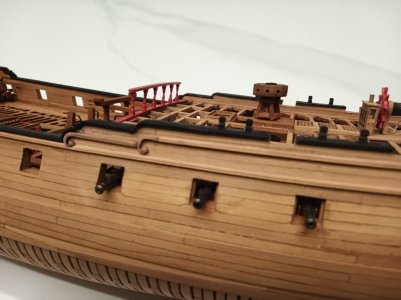

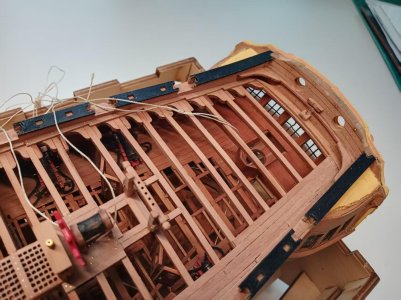

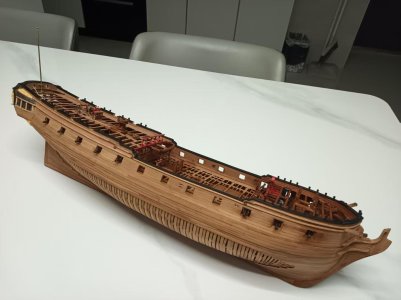

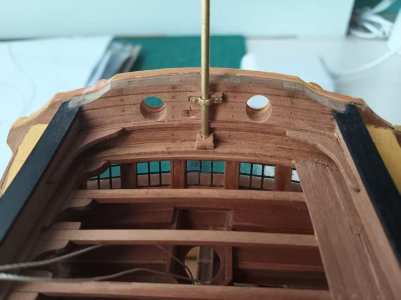

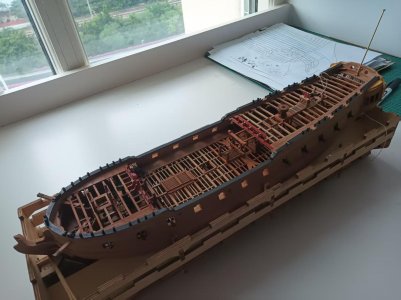

1.完成全部扶手，后部旗杆座，扶手开炮窗，

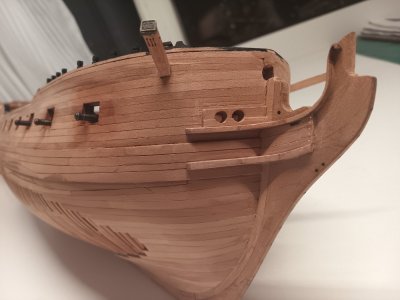

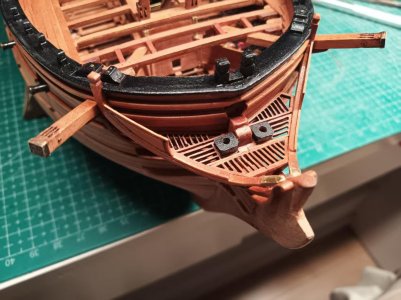

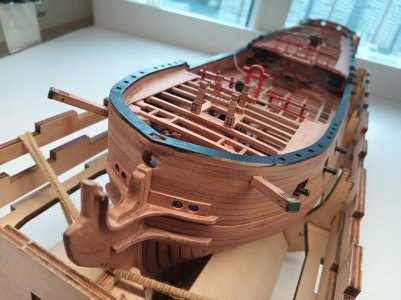

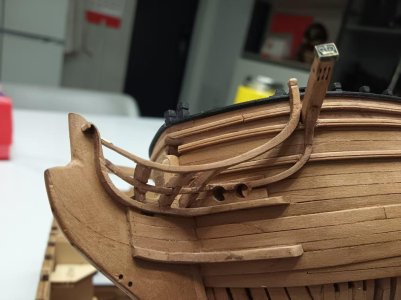

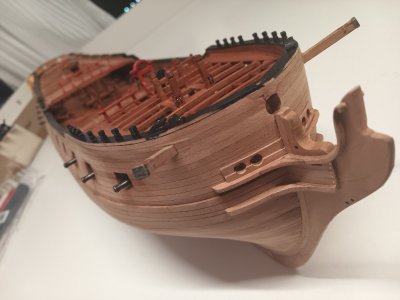

2.开锚孔，船头劈水板后面龙骨和船舷连接件增加了弧形加强块及护板

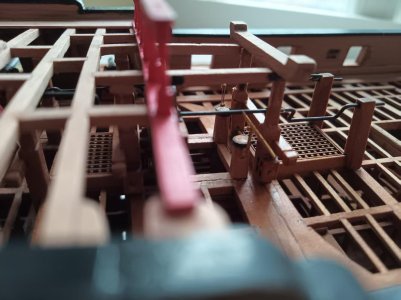

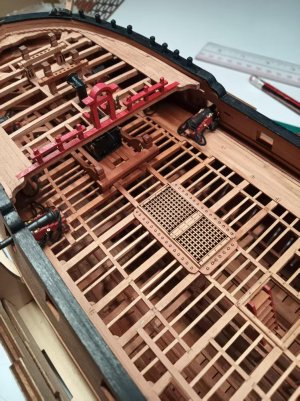

3.炮甲板中部格栅加了炮弹架，安装了主桅前压水泵

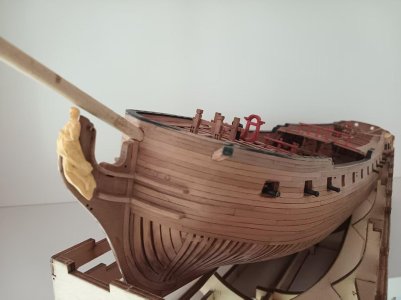

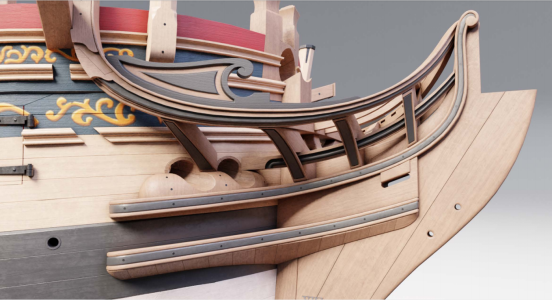

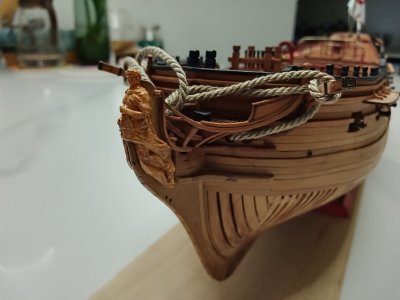

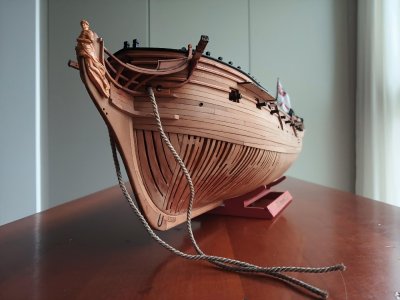

Very nicely built! The taper at the fore end of the knee of the head is great to see done so well.

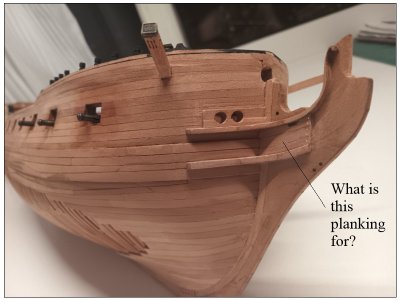

What is the planking on the gammoning piece of the knee of the head for? I have never seen this on any contemporary drawings or models so curious as to why there are planks there. Do you have information on this planking? Thank you
Allan


CTXMM said:

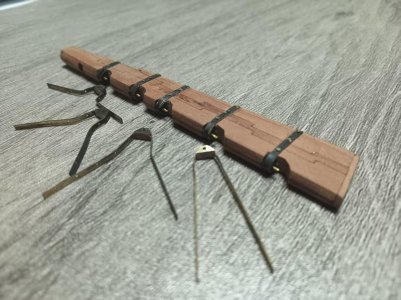

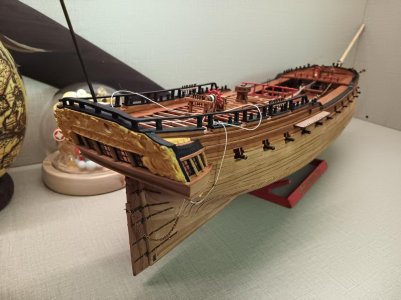

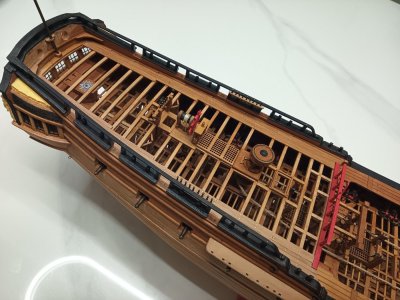

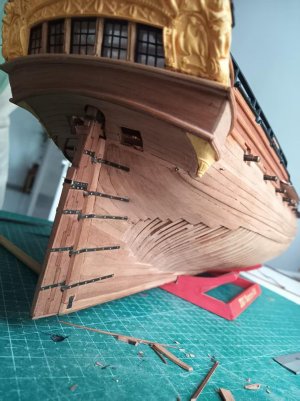

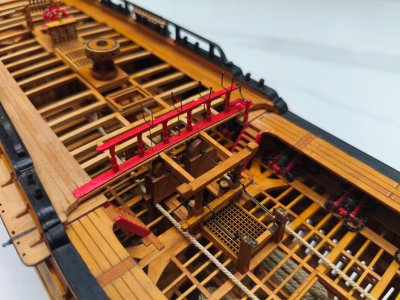

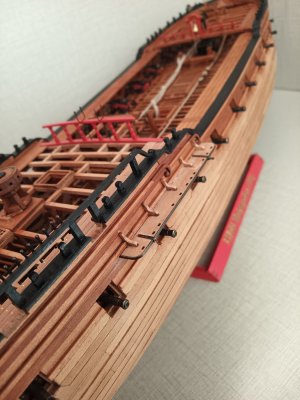

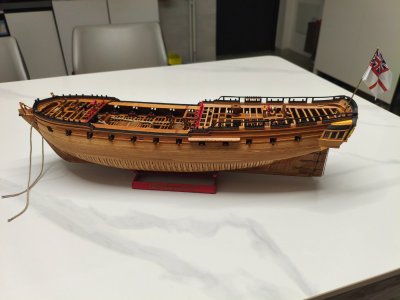

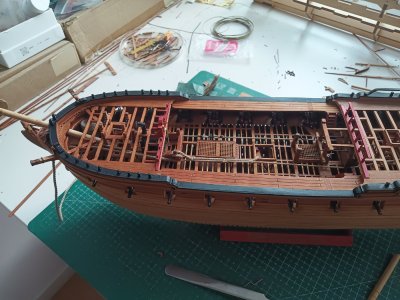

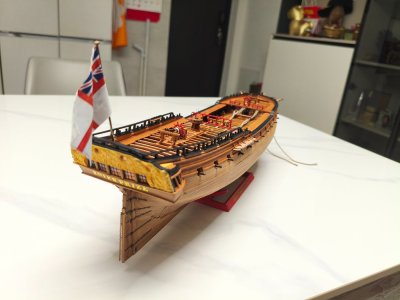

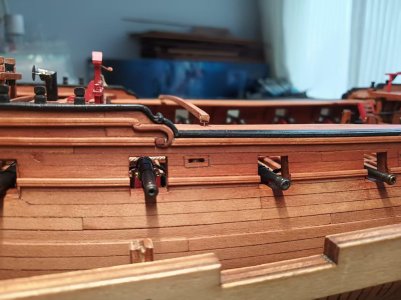

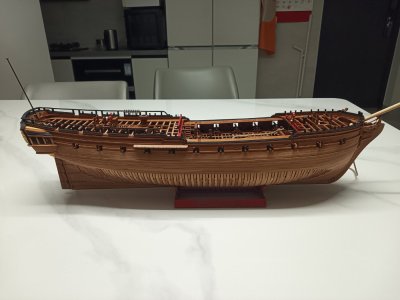

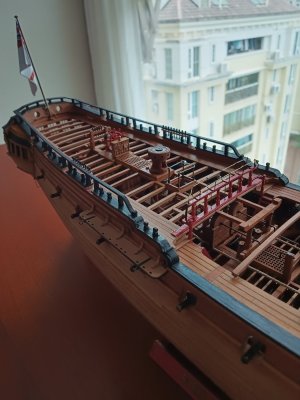

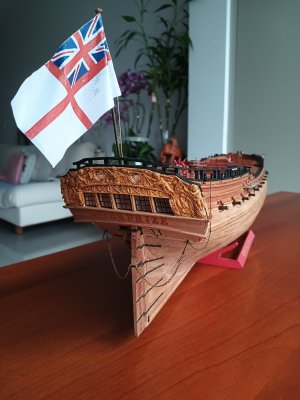

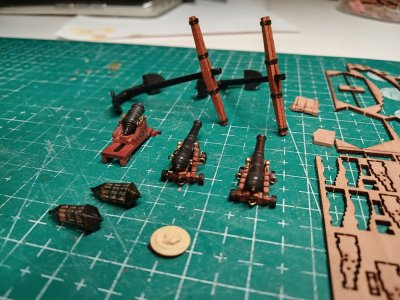

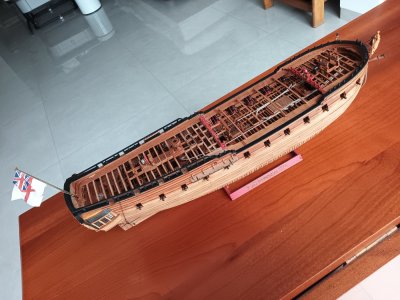

26 03 18 继续发布最新进度，固定炮位，安装前后甲板间廊桥，后甲板扶手，固定船舵，舵链，临时做个旗帜看看习效果

View attachment 585008

View attachment 585009

View attachment 585010

View attachment 585011

View attachment 585012

View attachment 585013

View attachment 585014

View attachment 585015

View attachment 585016

View attachment 585017

View attachment 585018

View attachment 585019

View attachment 585020
Click to expand...
Good morning. WOW very inspirational. Motivates me. Cheers Grant
