HMS GRANADO - full hull - POF kit by CAF in 1:48 - by Uwe

Uwek said:
also the top of the blackened smoke chimney was done .... the final installation will be done at the end - now only the two pots have to painted with copper colour

View attachment 443277

View attachment 443276

View attachment 443278

View attachment 443279

Many Thanks for your interest .... to be continued .....
Click to expand...
The galley stove looks great Uwe. The brick effect is very realistic. When I saw the stove included with part 2 of the kit I was planning to do something similar when l reached that stage. I just hope I can get anywhere near as good results. I do not like working with PE though

Signet said:
Such beautiful work! I believe the stove's hood and stack are made of brass; what finish did you use to get the metal/pewter finish? It works SO well here.
Click to expand...
Hallo,
yes the material is brass - for blackening, or better to say bluening I am using Balistol,
which available here in Europe (unfortunately not in the USA as we discussed once)


Keef said:
The galley stove looks great Uwe. The brick effect is very realistic. When I saw the stove included with part 2 of the kit I was planning to do something similar when l reached that stage. I just hope I can get anywhere near as good results. I do not like working with PE though
Click to expand...
You are absolutely right - not the easiest material to work with - but the finla result is not bad at all

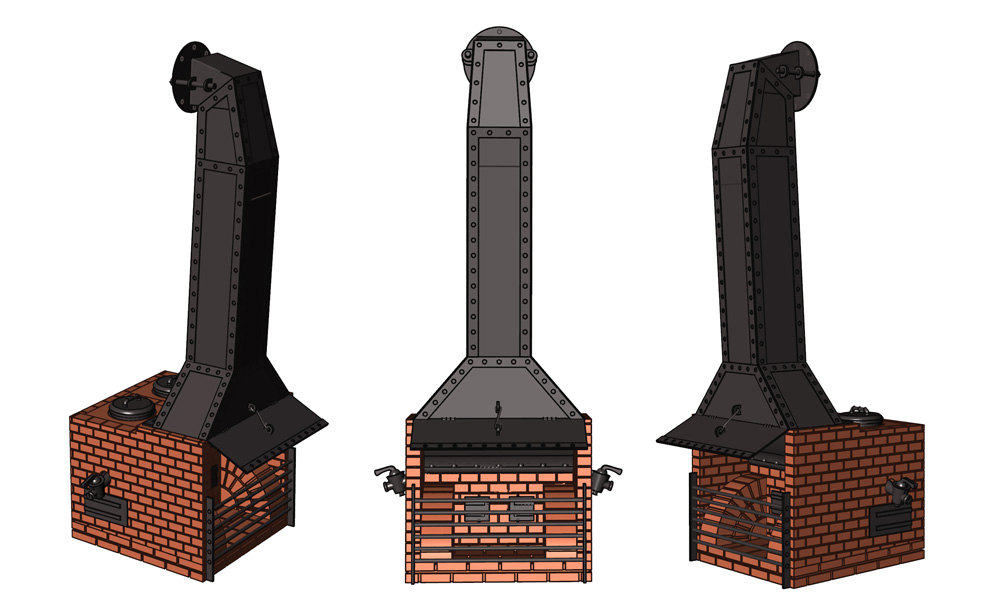

BTW: This stove can be ordered from CAF also separately - so if somebody needs a stove in this scale
www.cafmodel.com

Boiler3

1:48
www.cafmodel.com www.cafmodel.com

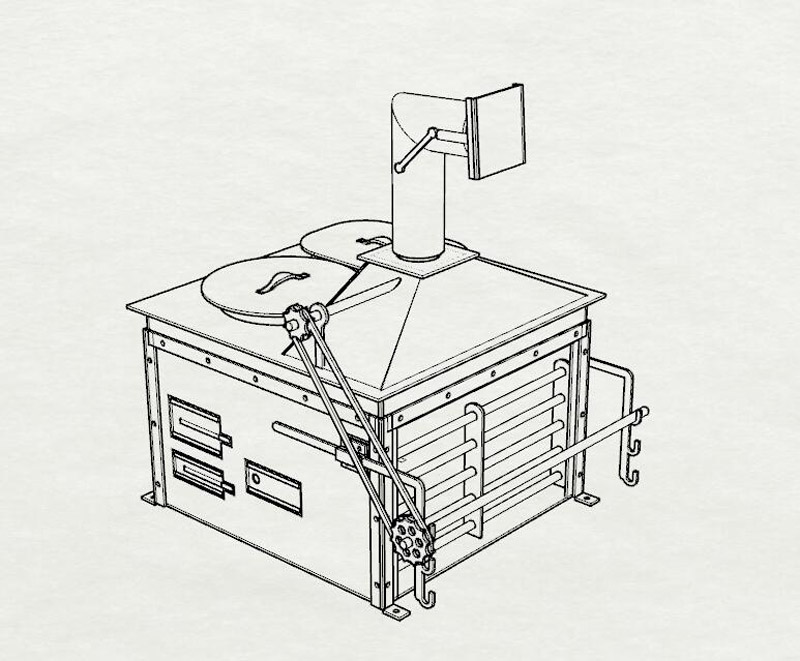

or another type - close to a Brody
www.cafmodel.com

Boiler1

1:48
www.cafmodel.com www.cafmodel.com

Many Many Thanks my friends for the comments and all the likes received ....... really motivating
Signet said:
Jagged? I was thinking that looked just like my normal jigsaw work. :cool:
Click to expand...
It is not so easy to make ...... believe me - a straight cut is eaiser

Now the next work are the pumps - first in the lower half of my model - all together the HMS Granado had four elm tree pumps.
One pair fore close to the main mast for the bilge water pumping (red arrows)
and
One pair aft close to the mizzen mast for sea water sucction for domestic and fire-fighting pumping (green arrows)

IMG_0726 pumps.jpg

First the fore elmtree pumps for Bilge water which are located in a pump well box



Here you can reconginze where I made the "cut "




Many Thanks for your interest ..... to be continued .....

Uwek said:
Many Many Thanks my friends for the comments and all the likes received ....... really motivating

It is not so easy to make ...... believe me - a straight cut is eaiser

Now the next work are the pumps - first in the lower half of my model - all together the HMS Granado had four elm tree pumps.
One pair fore close to the main mast for the bilge water pumping (red arrows)
and
One pair aft close to the mizzen mast for sea water sucction for domestic and fire-fighting pumping (green arrows)

View attachment 443679

First the fore elmtree pumps for Bilge water which are located in a pump well box

View attachment 443680

View attachment 443681

Here you can reconginze where I made the "cut "

View attachment 443683

View attachment 443682

View attachment 443684

Many Thanks for your interest ..... to be continued .....
Click to expand...
my dear friend your work on the pumps looks superb :) Okay

Uwek said:
Many Many Thanks my friends for the comments and all the likes received ....... really motivating

It is not so easy to make ...... believe me - a straight cut is eaiser

Now the next work are the pumps - first in the lower half of my model - all together the HMS Granado had four elm tree pumps.
One pair fore close to the main mast for the bilge water pumping (red arrows)
and
One pair aft close to the mizzen mast for sea water sucction for domestic and fire-fighting pumping (green arrows)

View attachment 443679

First the fore elmtree pumps for Bilge water which are located in a pump well box

View attachment 443680

View attachment 443681

Here you can reconginze where I made the "cut "

View attachment 443683

View attachment 443682

View attachment 443684

Many Thanks for your interest ..... to be continued .....
Click to expand...
Good afternoon Uwek. That is wonderful joinery. The pumpbox fits perfectly. Did you bevel each plank of the pumpbox to create that effect? It is very good. Cheers Grant.

Many Thanks for all your comments and replies - and also for all the likes received

Now to the other pair of pumps - the elmtree pumps for d0mestic and fire fighting


these are located between the frames - the small incorrections on the (inner) planking will be hidden by the mast footing






and the view from the bottom of the hull with the two inlets of the pumps



still not sanded down to the planking




Many Thanks for your interest .... to be continued .....
