HMS HOOD first build

[anttja]

bit more worked out ,made the first of four gun turrets, just have to calibrate the servo to get full 180 degree movement

View attachment 465187189_8629195187148269_1024864766343527919_n.mp4



[Davidp]

those turrets are to rounded & what is with that lip that goes around the bottom of the turret?



[anttja]

maybe you post the examples you have made



[Davidp]

the only Hood i have is Airfix's 1/600 scale model of that ship & if correct as it is upstairs in my bedroom as i am currently in my downstairs office, that model's turrets do not look like yours but more like the real ship's.



[anttja]

mine are a work in progress and will be more to true when finished



[Davidp]

is that turret vacuum formed as that would explain the lip on the bottom of the turret?
this is what i am working on but currently on pause as i cleanup well over 140 Booklet of General Plans of US Navy ships saved on my computer. there will be 17 ships with 16 during the war & 1 after the war.



[Marquinius]

Well, just found this one and will be following progress.



[anttja]

the turret is from a mould that I did not get quite right once it has been adjusted it will look better, as I said a work in progress.



[Davidp]

what did you make the mould out of?



[anttja]

mould is made from car body bog



[Davidp]

what plans/drawings are you using for the turrets & model?



[anttja]

got the plan from Vintage Model Pans in Canada drawn by a guy named C ,Bingham only problem
is I don,t thin he had a ruler since there are so many measurements that do not add up, does make things more dffiicult



[Davidp]

do you need any drawings/plans?



[anttja]

thanks for the offer I will let you know



[xanthar]

bit more worked out ,made the first of four gun turrets, just have to calibrate the servo to get full 180 degree movement

View attachment 481011

Very cool. I'm wondering how you setup the elevation?



[anttja]

bit rough and ready at the moment but when it is all together and painted none of it is seen.



[anttja]

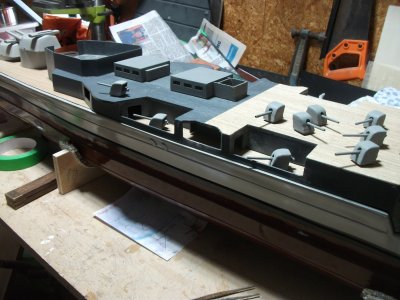

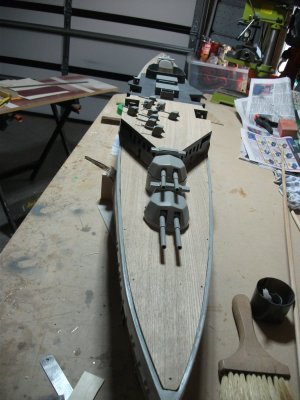

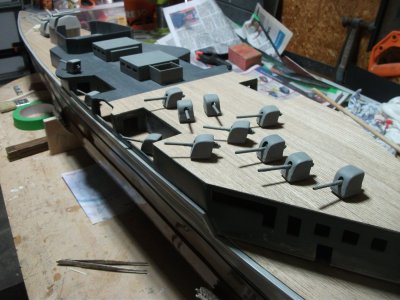

back to work now my eyes are sorted . tweaked the gun turret ,shape is better ,also now getting full 180degree turn.

Tony.

View attachment 468563752_8900191563393073_4530505738428995108_n.mp4



[xanthar]

Nice! Those barrels are looking good too,
