Hace años un amigo mío, modelista, comenzó la construcción de un jabeque conforme a los planos del ingeniero naval español del siglo XVIII Jorge Juan y Santacilia. Mi amigo, abandonó la construcción y me regaló "el pecio". Partiendo de esa base, muchos años despues, comence a continuar ese proyecto, el pasado 15 de junio. Un proyecto no muy complejo, algo menor, pero del que estoy disfrutando este verano. A petición de Uwe, pongo un resumen de los trabajos.

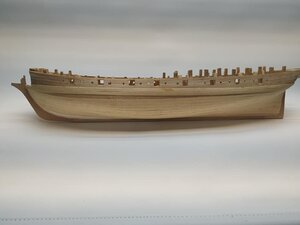

Primero unas fotos de la base de la que partí, el modelo tal y como lo abandonó mi amigo

google translation:
Years ago a friend of mine, a model maker, began the construction of a jabeque according to the plans of the 18th century Spanish naval engineer Jorge Juan y Santacilia. My friend abandoned the construction and gave me "the wreck". Starting from that base, many years later, I began to continue this project, on June 15. A not very complex project, somewhat minor, but one that I am enjoying this summer. At the request of Uwe, I put a summary of the works.

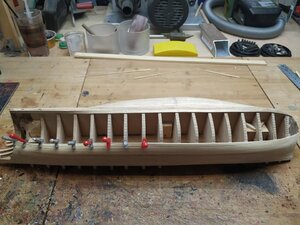

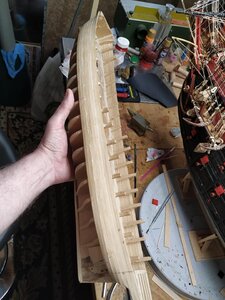

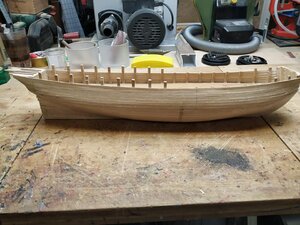

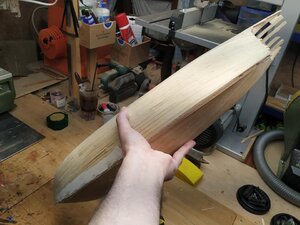

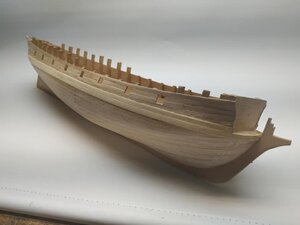

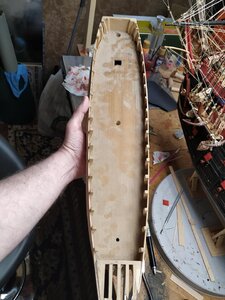

First some photos of the base from which I started, the model as my friend left it

104344829_697655780812544_3823982333961767330_n.jpg104471372_697655830812539_1047756104630057330_n.jpg104692652_697655857479203_6082070444253013813_n.jpg


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
17,220
Points
938

Location
Vienna, Austria
Hallo my friend,
I am very happy, that you decided to show us also this project - and I am not disclosing a secret, when I say, that it will be a very interesting building log...
Many Thanks for starting this log Thumbsup

Joined
Oct 19, 2018
Messages
588
Points
453

Location
Madrid, España
Este jabeque es peculiar, se diferencia de los jabeques habituales y tradicionales del Mediterraneo, por ejemplo del tipo Le Requín , francés aunque de "tecnología" balear. Jorge Juan hizo unos diseños con el fin de modernizar y rediseñar con métodos matemáticos y cientificos los jabeques. Así, por ejemplo, mientras que los jabeques tracicionales (le Requín o El Cazador) tienen su diseño de cuaderna en "V", el mío lo tiene en "U", así mismo sus líneas tienen menos brusca y arrufo, así como su disposición de elementos es distinta, acercándose mas al diseño de un navío.

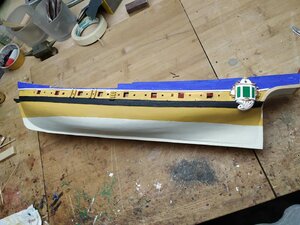

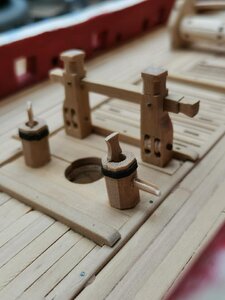

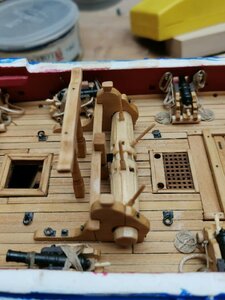

En cuanto al modelo,al partir de una base ya hecha por mi amigo, opté por un modelo cerrado y pintado. en cuanto a su obra viva y muerta, sin embargo enriquecido con una carpintería muy cuidada en boj americano en todos los elementos de cubierta.
El primer paso fue completar el cierre del casco. No se que madera utilizó mi amigo para cerrar el casco, intuyo que tilo o, tal vez ramín. Yo continué su obra con madera de samba o ayous ( Triplochiton scleroxylon ). Madera de baja calidad, barata y muy fácil de trabajar, pero adecuada para ir luego pintada. No hace falta, aquí, mejor madera.

This jabeque is peculiar, it differs from the usual and traditional jabeques of the Mediterranean, for example of the Le Requín type, French although of Balearic "technology". Jorge Juan made some designs in order to modernize and redesign the jabeques with mathematical and scientific methods. Thus, for example, while the traditional jabeques (Le Requín or El Cazador) have their frame design in "V", mine has it in "U", likewise their lines are less abrupt and sheer, as well as their arrangement of elements is different, getting closer to the design of a ship.

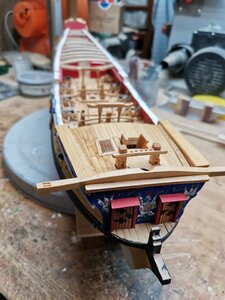

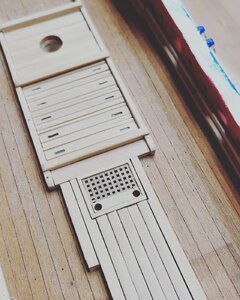

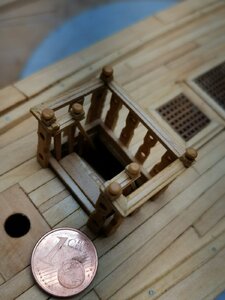

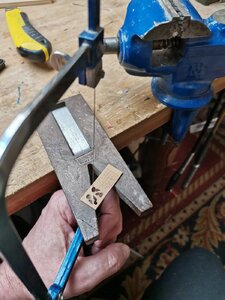

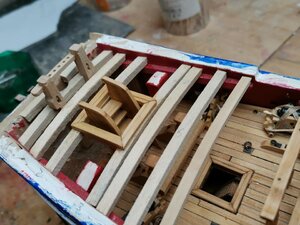

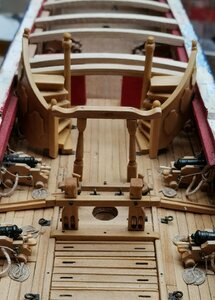

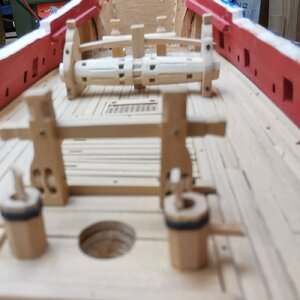

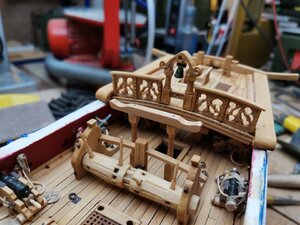

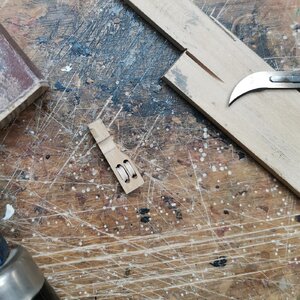

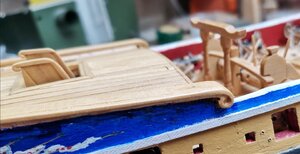

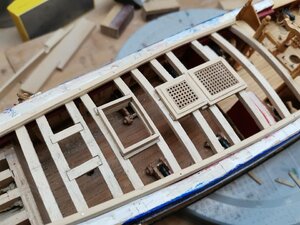

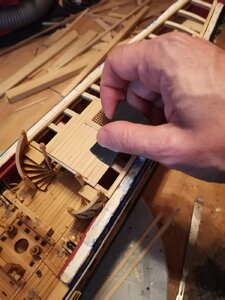

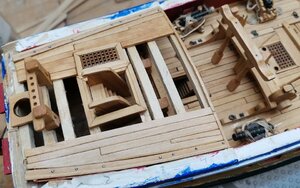

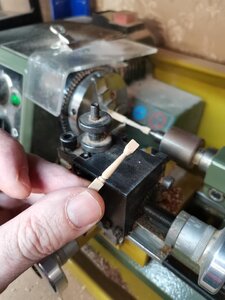

As for the model, starting from a base already made by my friend, I opted for a closed and painted model. as for his living and dead work, however enriched with a very careful carpentry in American boxwood in all the roof elements.

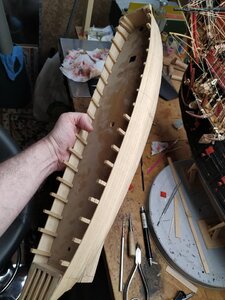

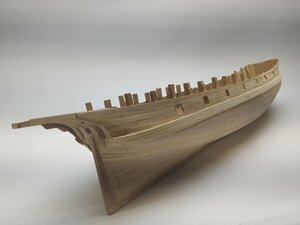

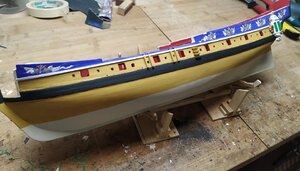

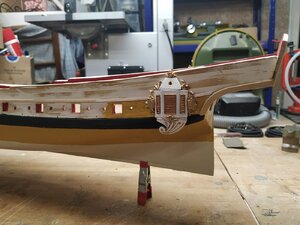

The first step was to complete the hull closure. I don't know what wood my friend used to close the hull, I suspect that linden or, maybe ramín. I continued his work with samba or ayous wood (Triplochiton scleroxylon). Low quality wood, cheap and very easy to work, but suitable to be painted later. Better wood is not needed here

105388607_698271997417589_6335815282268787563_n.jpg105478105_701445370433585_1812012923285496410_n.jpg105944993_703410113570444_3413085517089706284_n.jpg106224804_701445447100244_6698542124094026348_n.jpg106455072_703410090237113_20043442600868974_n.jpg106898790_705207683390687_9207296685810234666_n.jpg

Last edited by a moderator:

Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
17,220
Points
938

Location
Vienna, Austria

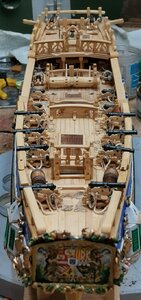

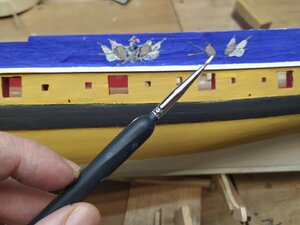

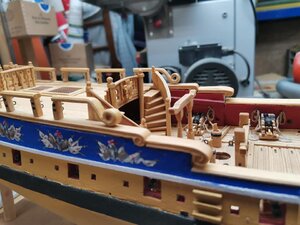

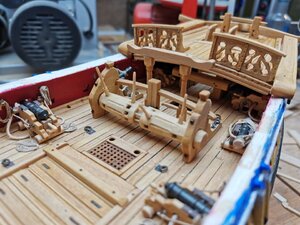

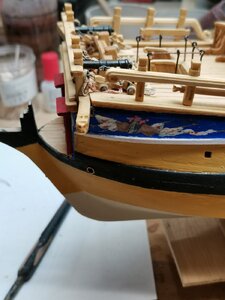

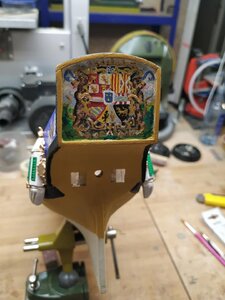

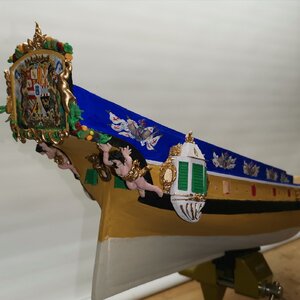

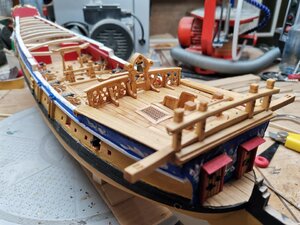

You have really your own special style with the paintings and ornaments - and a very special ship

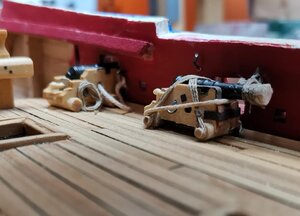

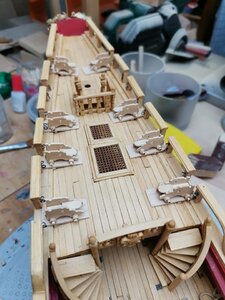

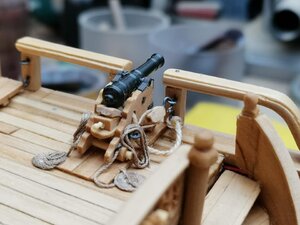

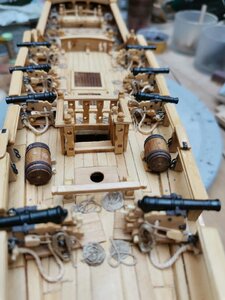

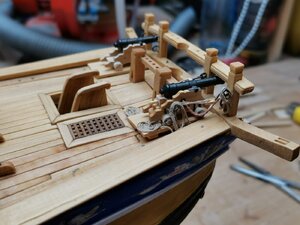

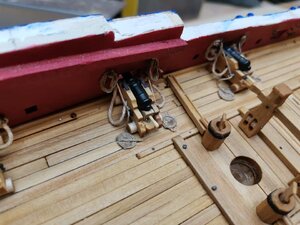

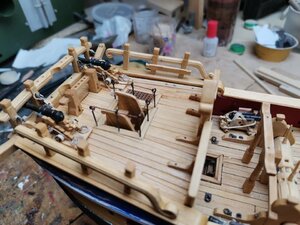

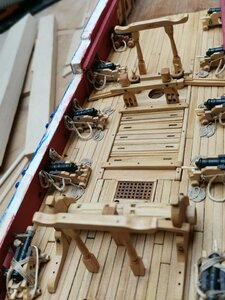

- looking very good - and interesting that you are showing guns as "ready for action" and also two lashed.
Interesting are also the small channels for the pumped water - great detail

Last edited:
Joined
Oct 19, 2018
Messages
588
Points
453

Location
Madrid, España
You have really your own special style with the paintings and ornaments - and a very special ship
- looking very good - and interesting that you are showing guns as "ready for action" and also two lashed.
Interesting are also the small chanels for the pumped water - great detail
En español es "abretonado"... está tomado del Album del Marqués de la Victoria

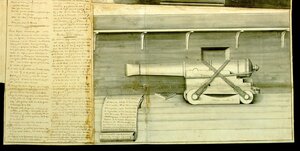

In Spanish it is "abretonado" ... it is taken from the Album of the Marqués de la Victoria



Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
17,220
Points
938

Location
Vienna, Austria
This jabeque is peculiar, it differs from the usual and traditional jabeques of the Mediterranean, for example of the Le Requín type, French although of Balearic "technology". Jorge Juan made some designs in order to modernize and redesign the jabeques with mathematical and scientific methods. Thus, for example, while the traditional jabeques (Le Requín or El Cazador) have their frame design in "V", mine has it in "U", likewise their lines are less abrupt and sheer, as well as their arrangement of elements is different, getting closer to the design of a ship.
As for the model, starting from a base already made by my friend, I opted for a closed and painted model. as for his living and dead work, however enriched with a very careful carpentry in American boxwood in all the roof elements.
The first step was to complete the hull closure. I don't know what wood my friend used to close the hull, I suspect that linden or, maybe ramín. I continued his work with samba or ayous wood (Triplochiton scleroxylon). Low quality wood, cheap and very easy to work, but suitable to be painted later. Better wood is not needed here
